Model # WBVH6240H0WW Official GE washer

Here are the diagrams and repair parts for Official GE WBVH6240H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Washer Water Inlet Valve WH13X10023
#203

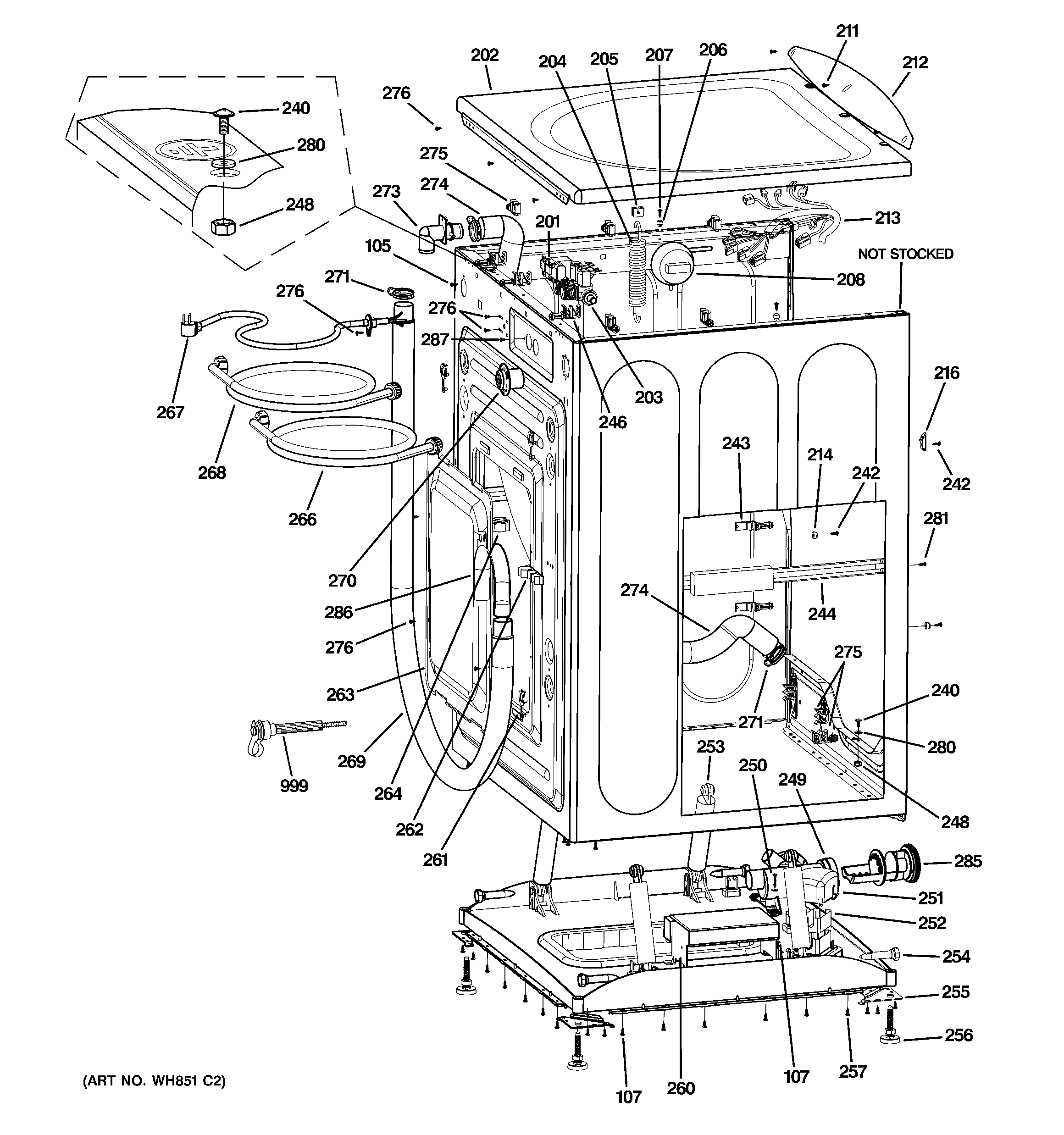

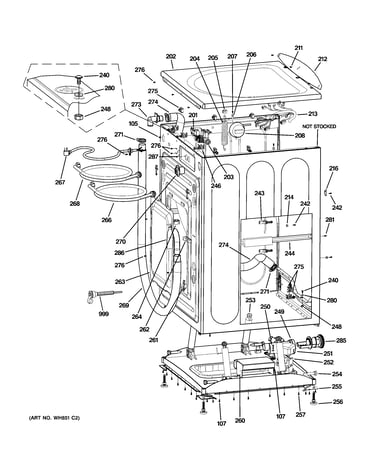

Cabinet & top panel diagram

Washer water inlet valve

Part #WH13X10023

BEST SELLER
$72.96 |
8% OFF Phone Price : $78.96
In Stock
Diverter WH43X10031
#140

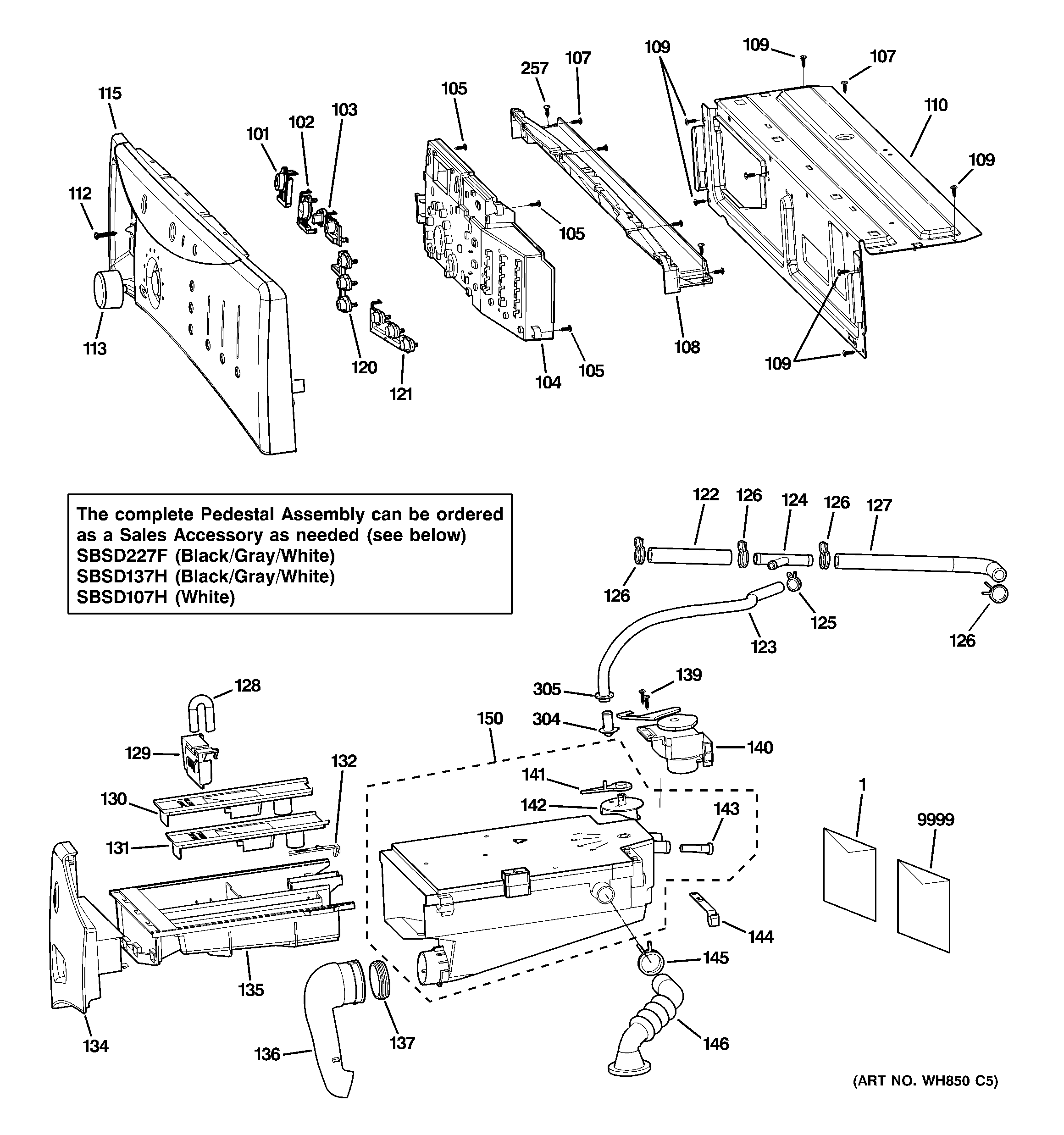

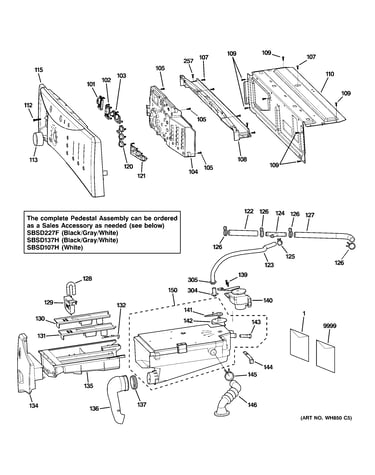

Controls & dispenser diagram

Diverter

Part #WH43X10031

Replaced by #WH43X10059

?
Manufacturer substitution
This part replaces WH43X10031. Substitute parts can look different from the original.
$129.55 |
8% OFF Phone Price : $141.55
In Stock
Washer Door Lock WH10X10006
#217

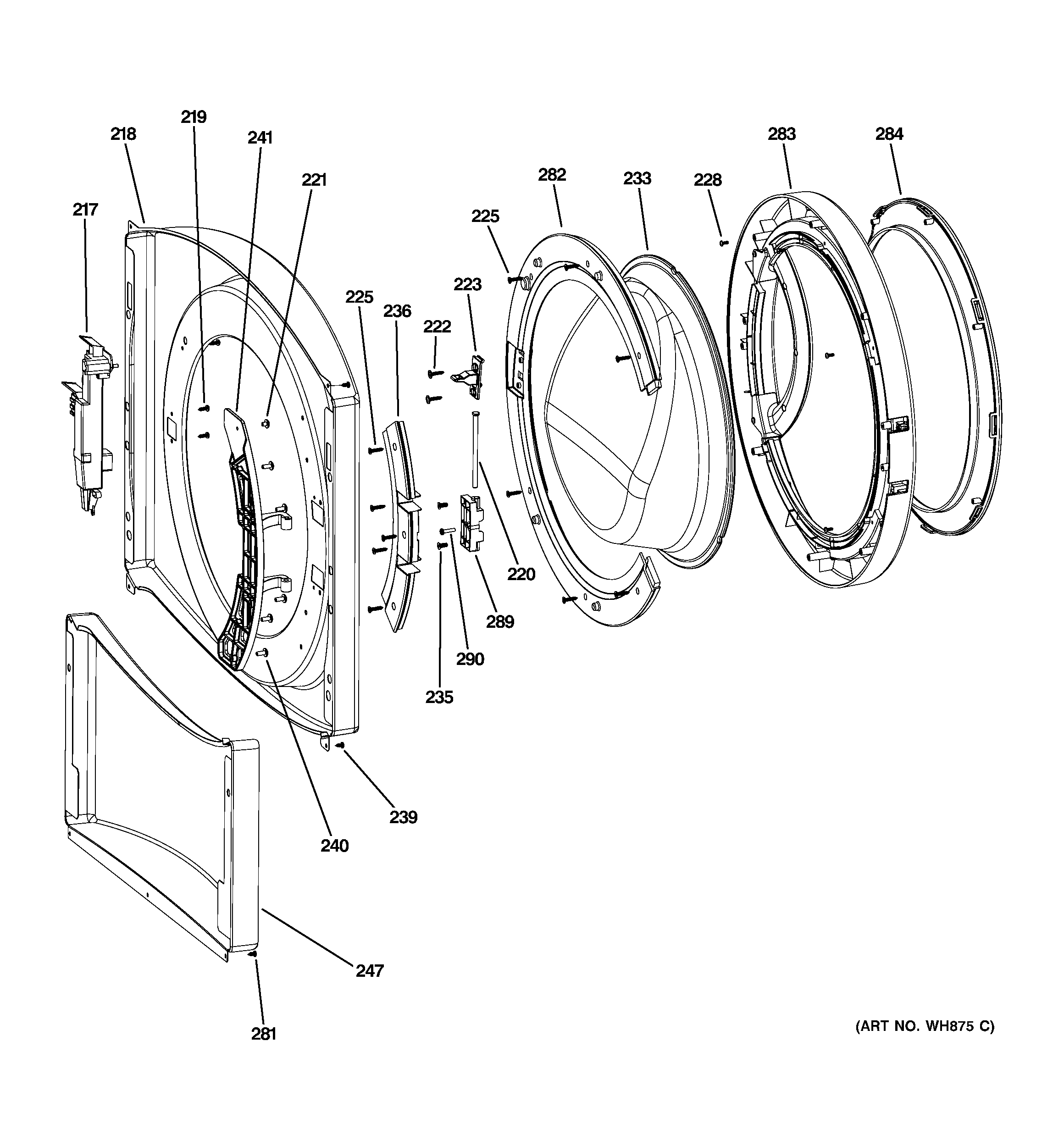

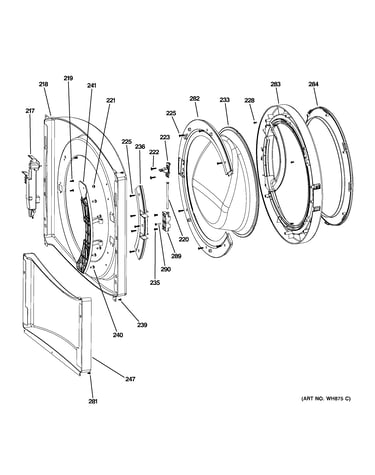

Front panel & door diagram

Washer door lock

Part #WH10X10006

$158.03 |
7% OFF Phone Price : $170.03
In Stock
Filter Pump WH23X10027
#285

Cabinet & top panel diagram

Filter pump

Part #WH23X10027

Replaced by #WH11X34741

?
Manufacturer substitution
This part replaces WH23X10027. Substitute parts can look different from the original.
$97.31
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Door Boot Spring Clamp, Outer WH01X10279
#349

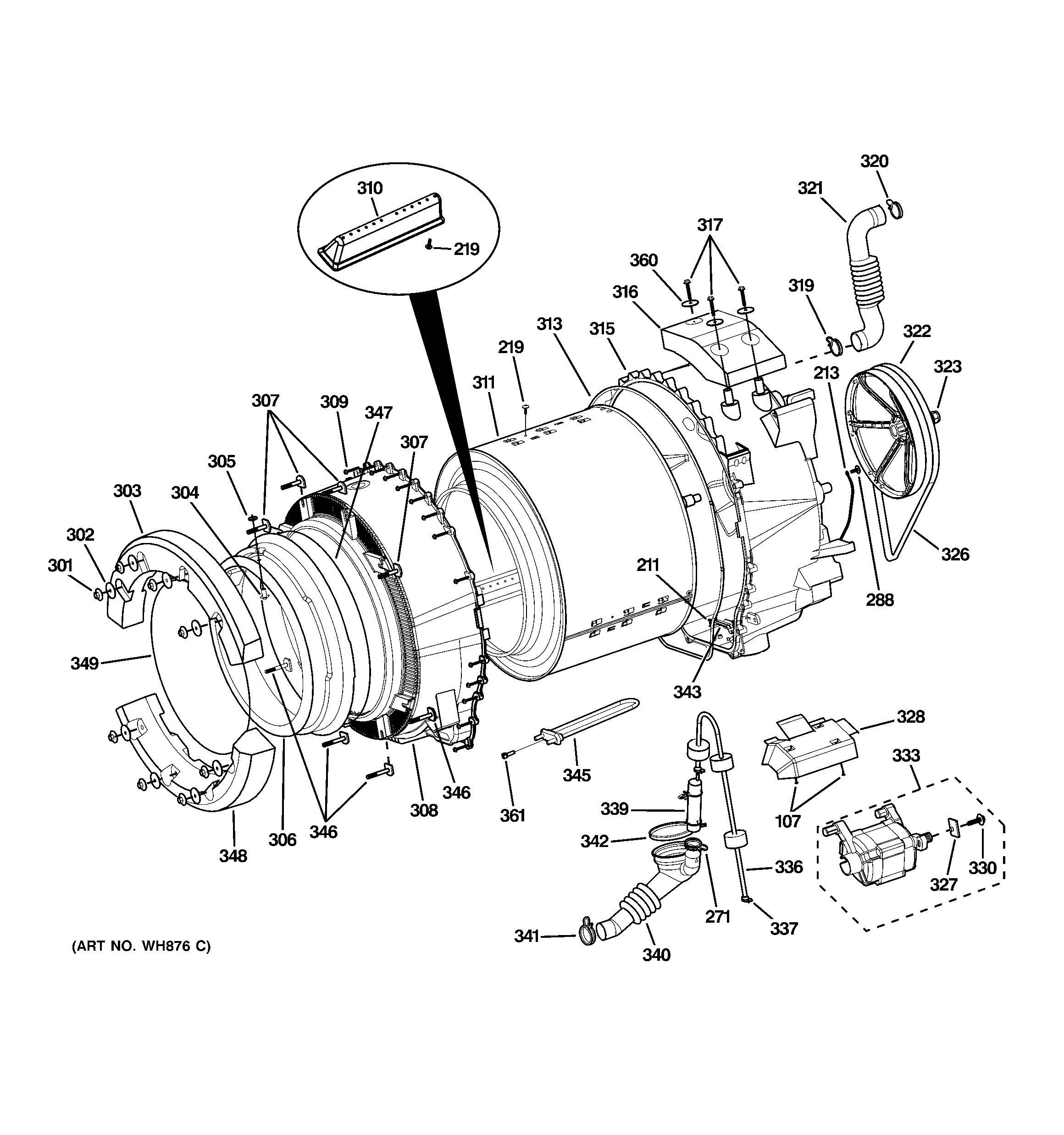

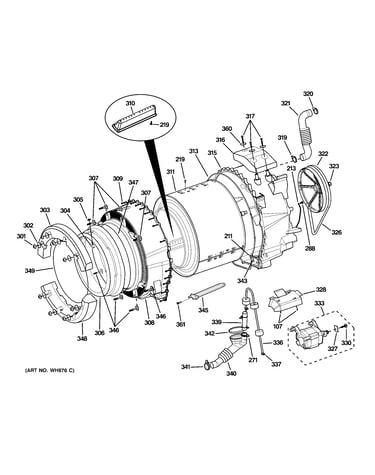

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Door Boot Spring Clamp, Inner WH01X10277
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH01X10277

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Drive Motor (replaces Wh02x10214) WH20X10028
#333

Tub & motor diagram

Washer drive motor (replaces wh02x10214)

Part #WH20X10028

$333.79 |
$12.00 OFF Phone Price : $345.79
In Stock
Washer Drain Hose WH41X10126
#269

Cabinet & top panel diagram

Washer drain hose

Part #WH41X10126

$37.61 |
14% OFF Phone Price : $43.61
In Stock
Washer Cycle Selector Knob WH11X10041
#113

Controls & dispenser diagram

Washer cycle selector knob

Part #WH11X10041

Replaced by #WE04X21014

?
Manufacturer substitution
This part replaces WH11X10041. Substitute parts can look different from the original.
$22.80 |
21% OFF Phone Price : $28.80
In Stock
