Kenmore Elite
Gas Range

Model # 79075423413 Official Kenmore Elite gas range

Here are the diagrams and repair parts for Official Kenmore Elite 79075423413 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

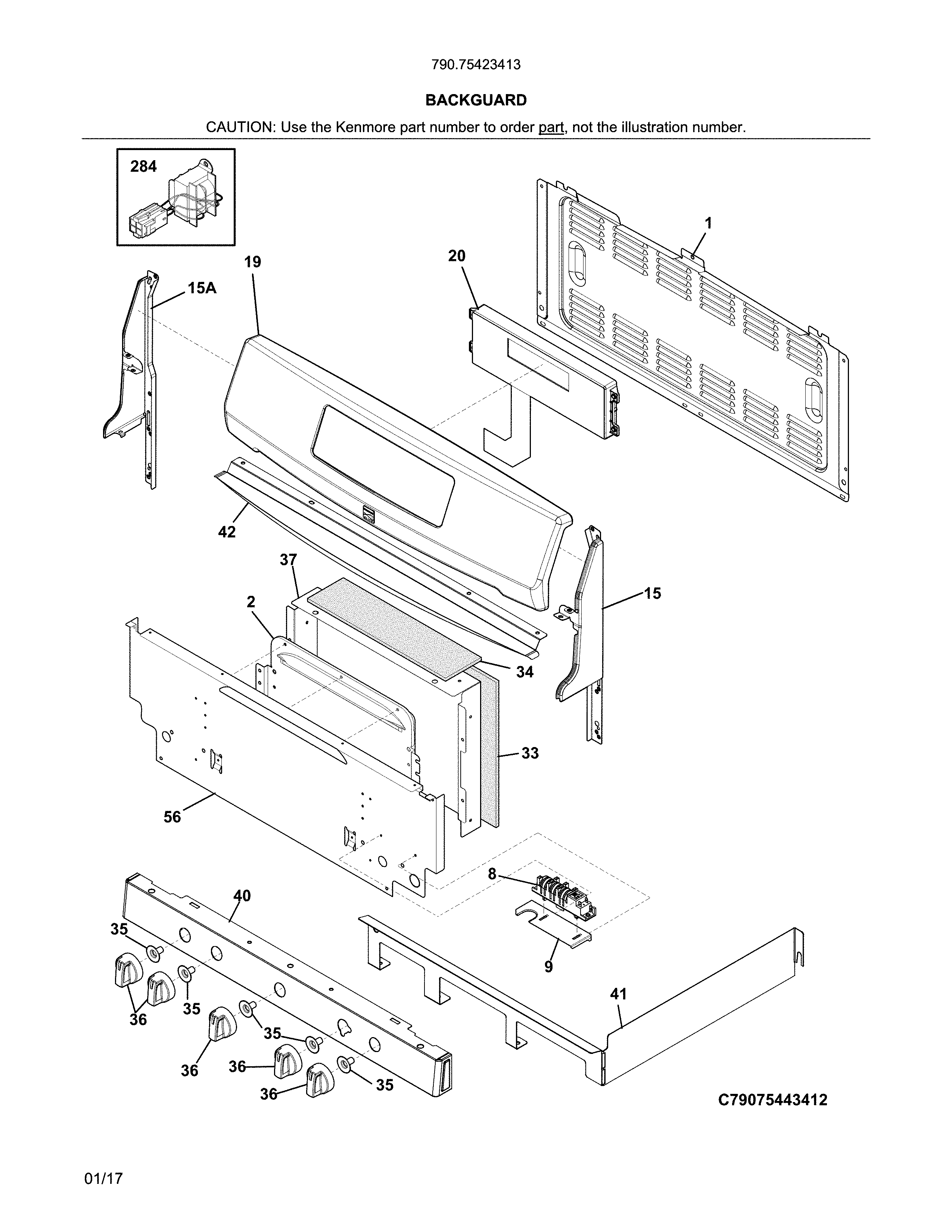

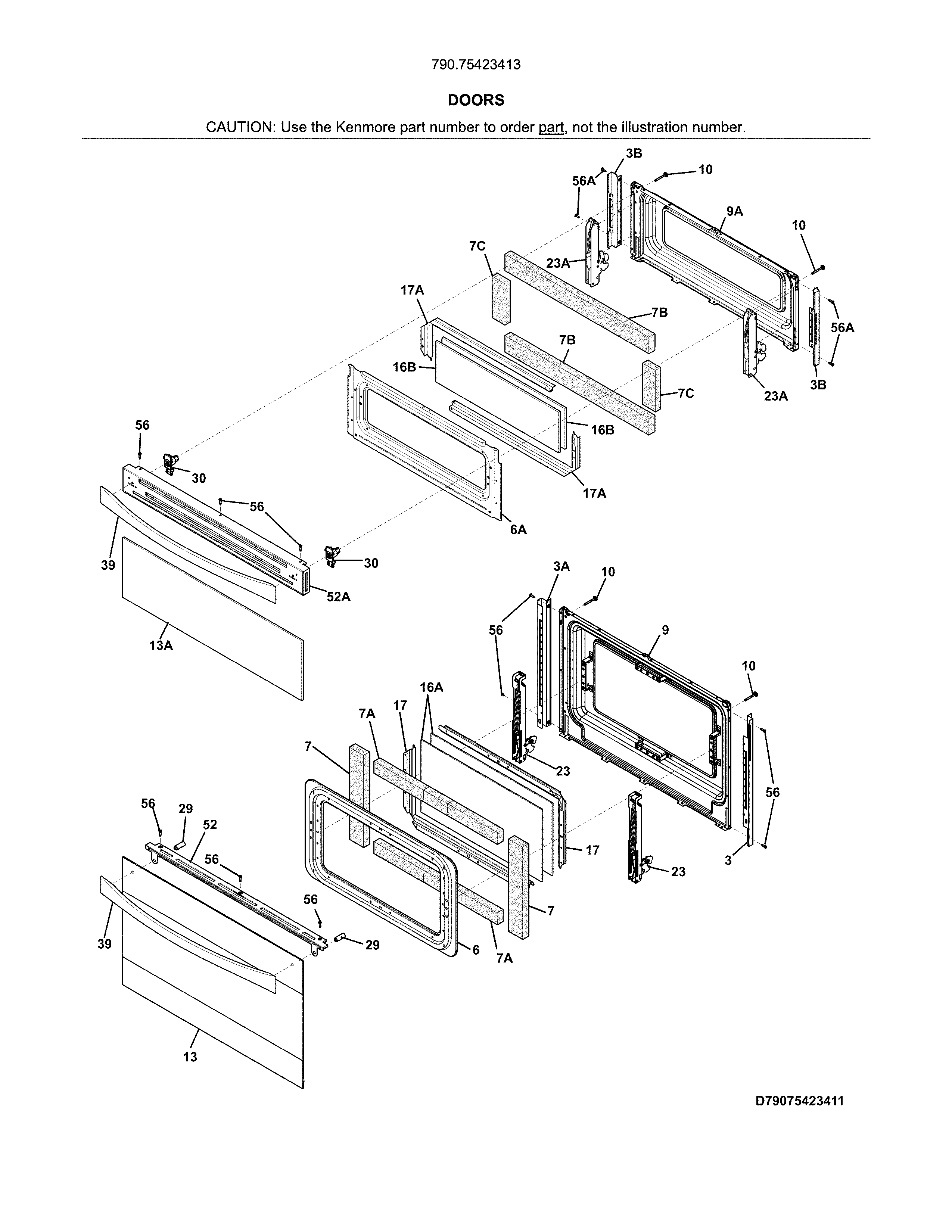

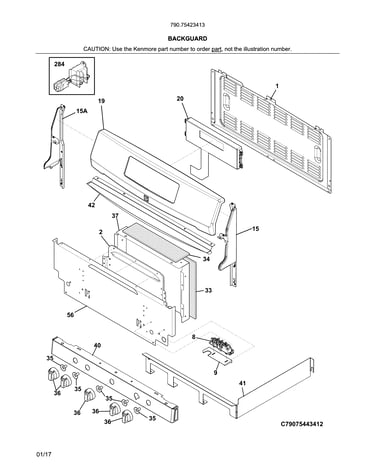

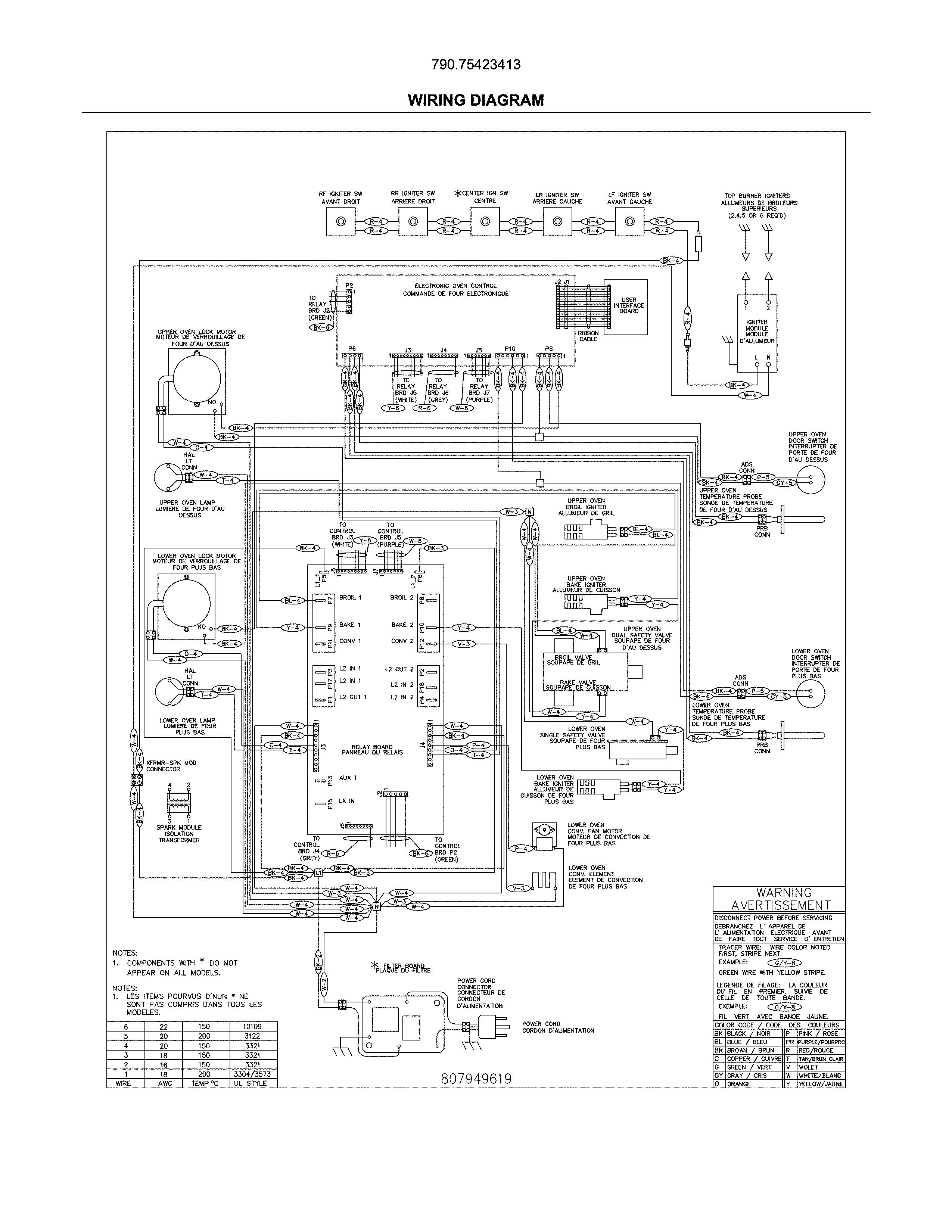

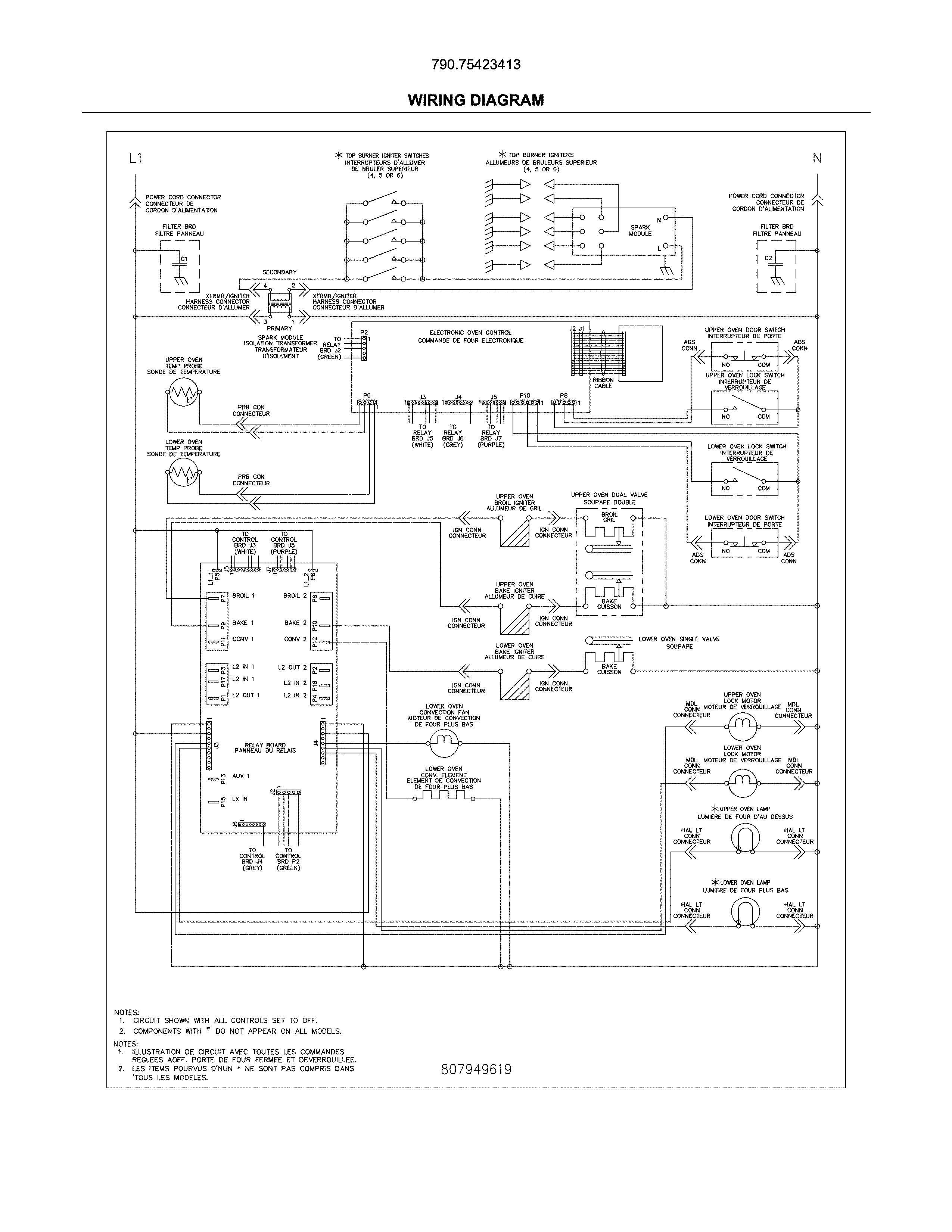

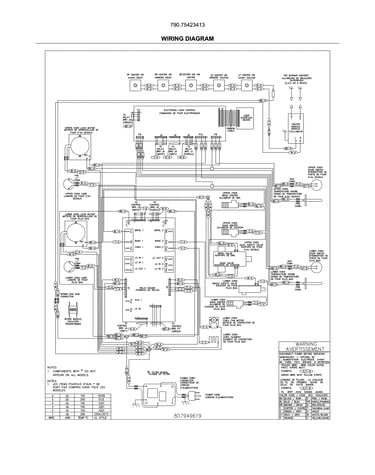

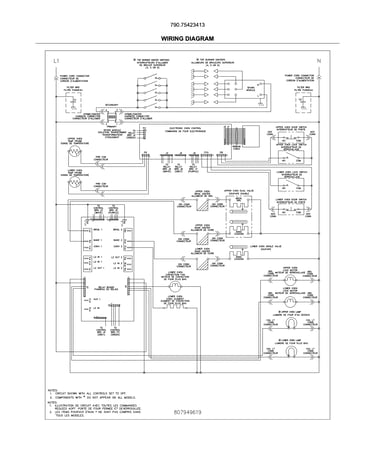

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Range Bake Igniter (replaces 316428501, 5304462661, 7316489400) 316489400
#26B

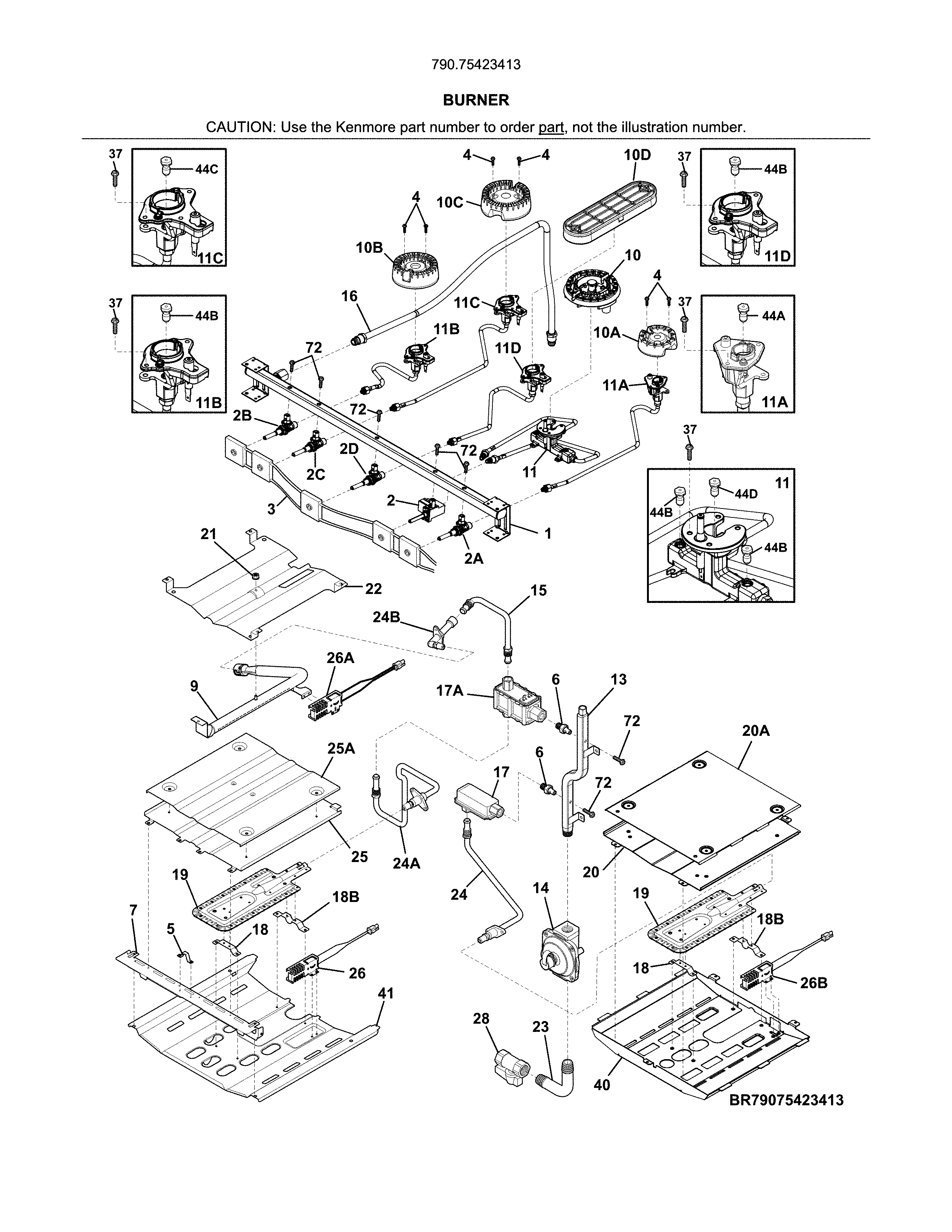

Burner diagram

Range bake igniter (replaces 316428501, 5304462661, 7316489400)

Part #316489400

BEST SELLER
$140.06 |
8% OFF Phone Price : $152.06
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
#4

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89 |
7% OFF Phone Price : $85.89
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10B

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

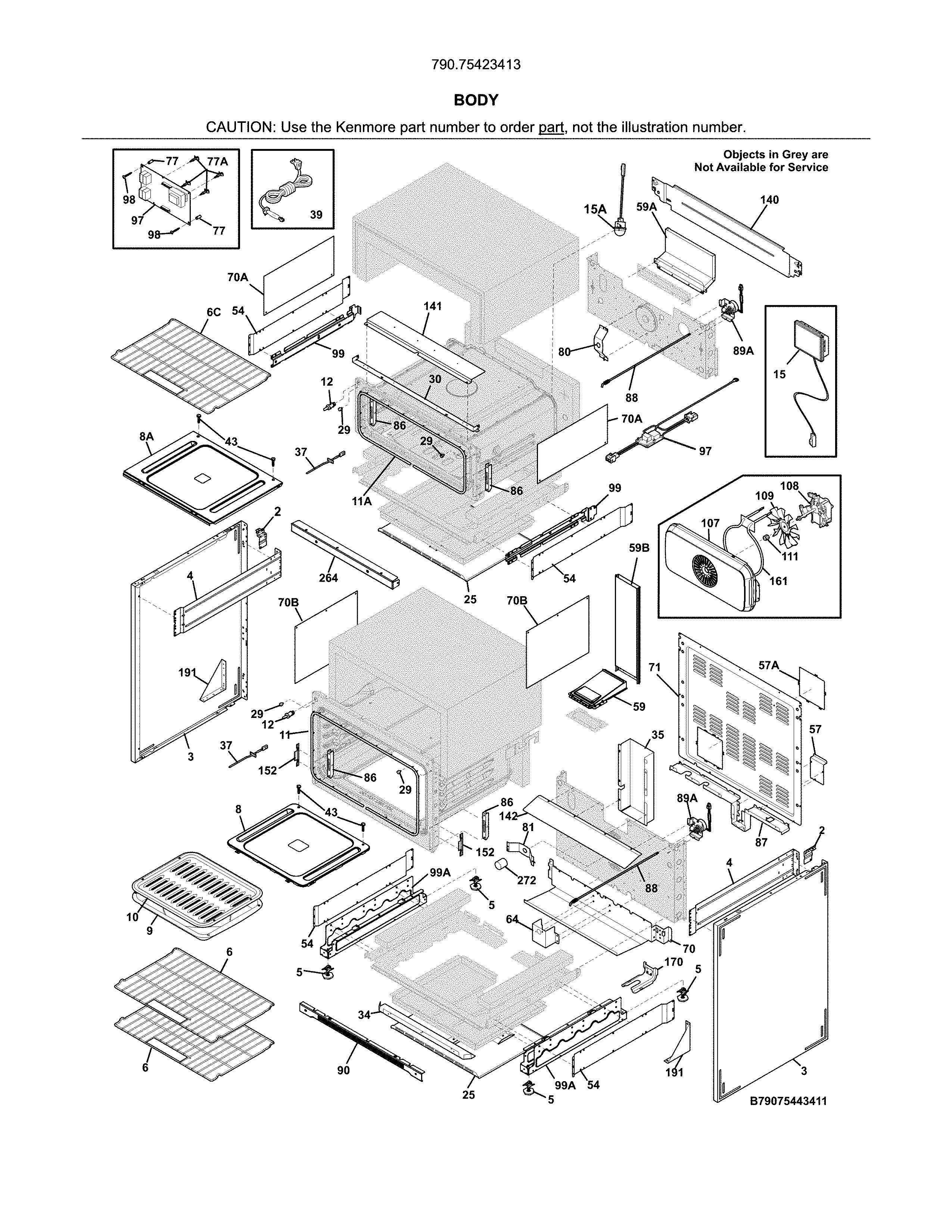

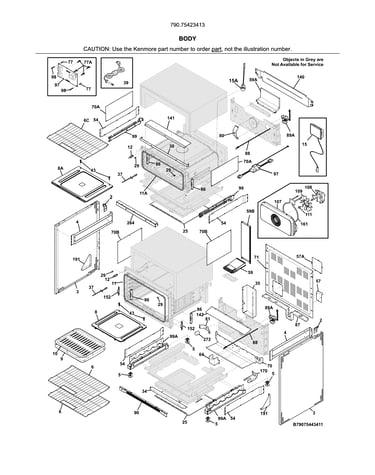

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

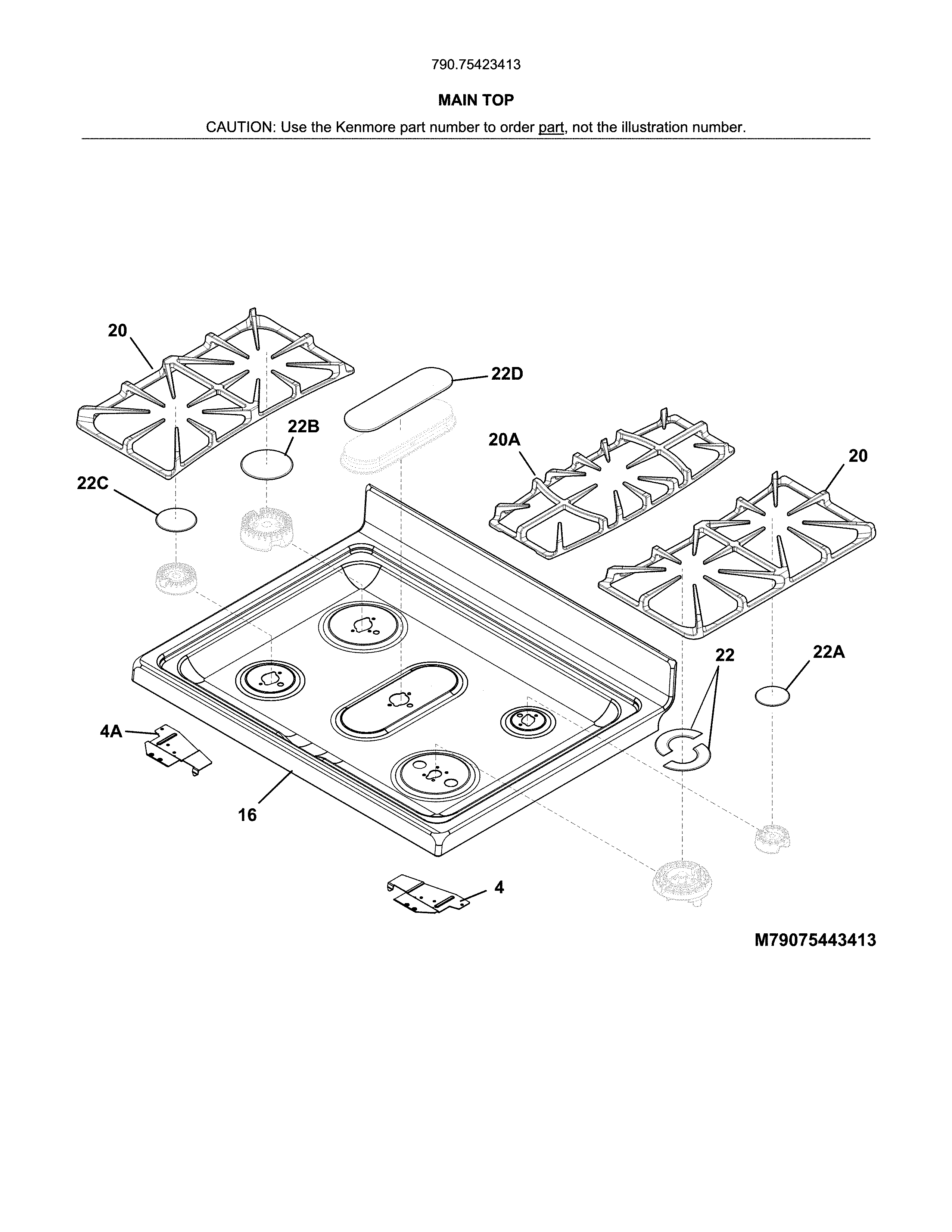

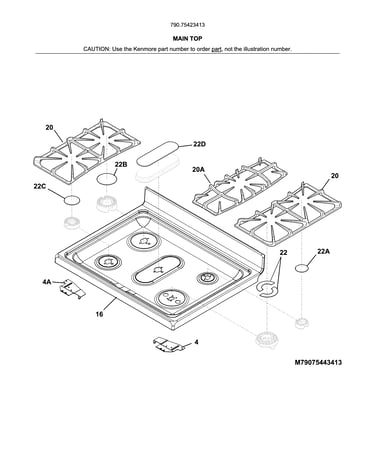

Main top diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22A

Main top diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Range Lp Conversion Kit 808752801
#NI

Burner diagram

Range lp conversion kit

Part #808752801

Replaced by #GRLP4

?
Manufacturer substitution
This part replaces 808752801. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Range Surface Burner Grate, Center 5304492146
#20A

Main top diagram

Range surface burner grate, center

Part #5304492146

Replaced by #A00263801

?
Manufacturer substitution
This part replaces 5304492146. Substitute parts can look different from the original.
BEST SELLER
$199.78 |
6% OFF Phone Price : $211.78
In Stock
Ikea Range Surface Burner Igniter And Orifice Holder (replaces 316548102) 316536616
#11C

Burner diagram

Ikea range surface burner igniter and orifice holder (replaces 316548102)

Part #316536616

BEST SELLER
$125.98 |
9% OFF Phone Price : $137.98
In Stock
