Kelvinator
Freestanding Freezer

Model # KCUC27F Official Kelvinator undercounter freezer

Here are the diagrams and repair parts for Official Kelvinator KCUC27F undercounter freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

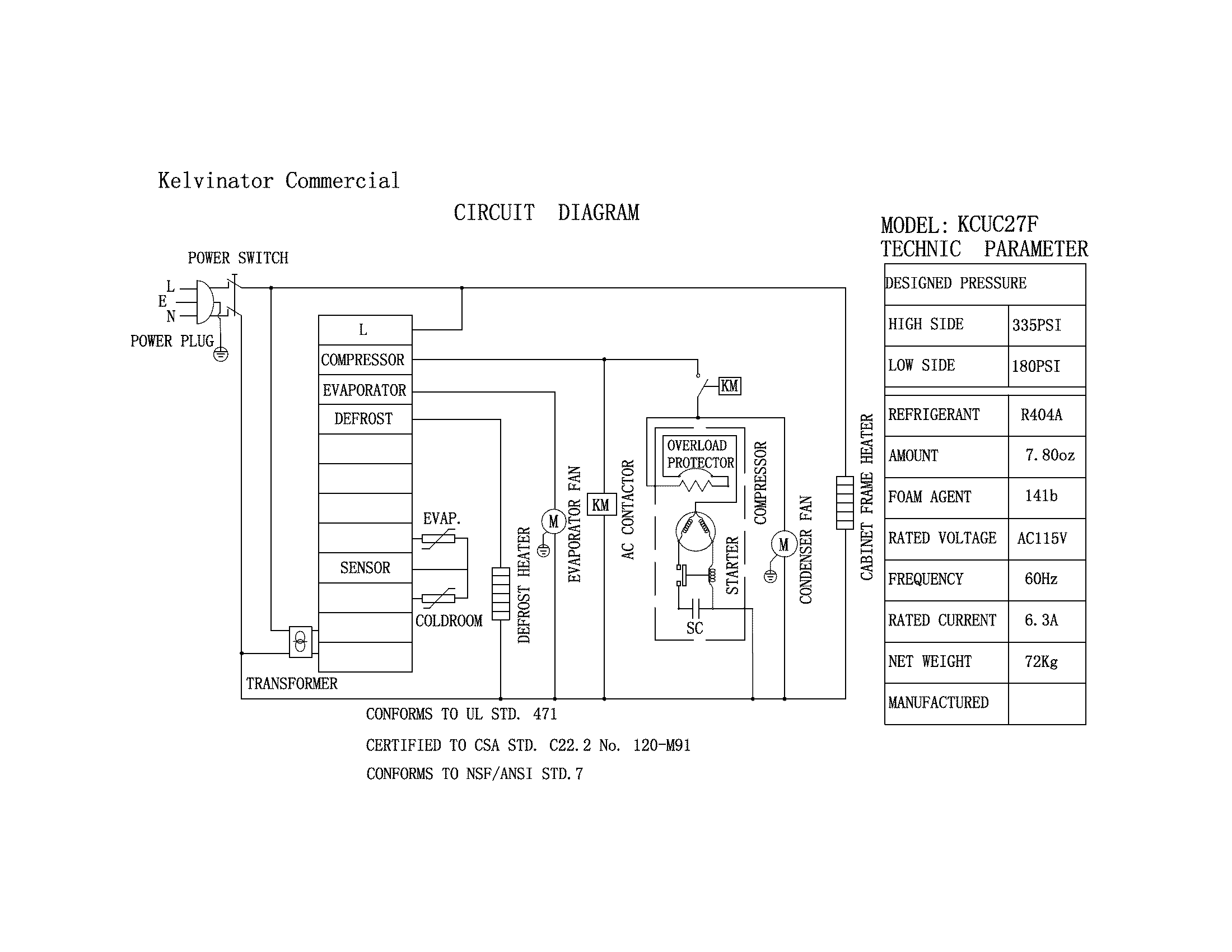

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Fan Assembly 5304492231
#43

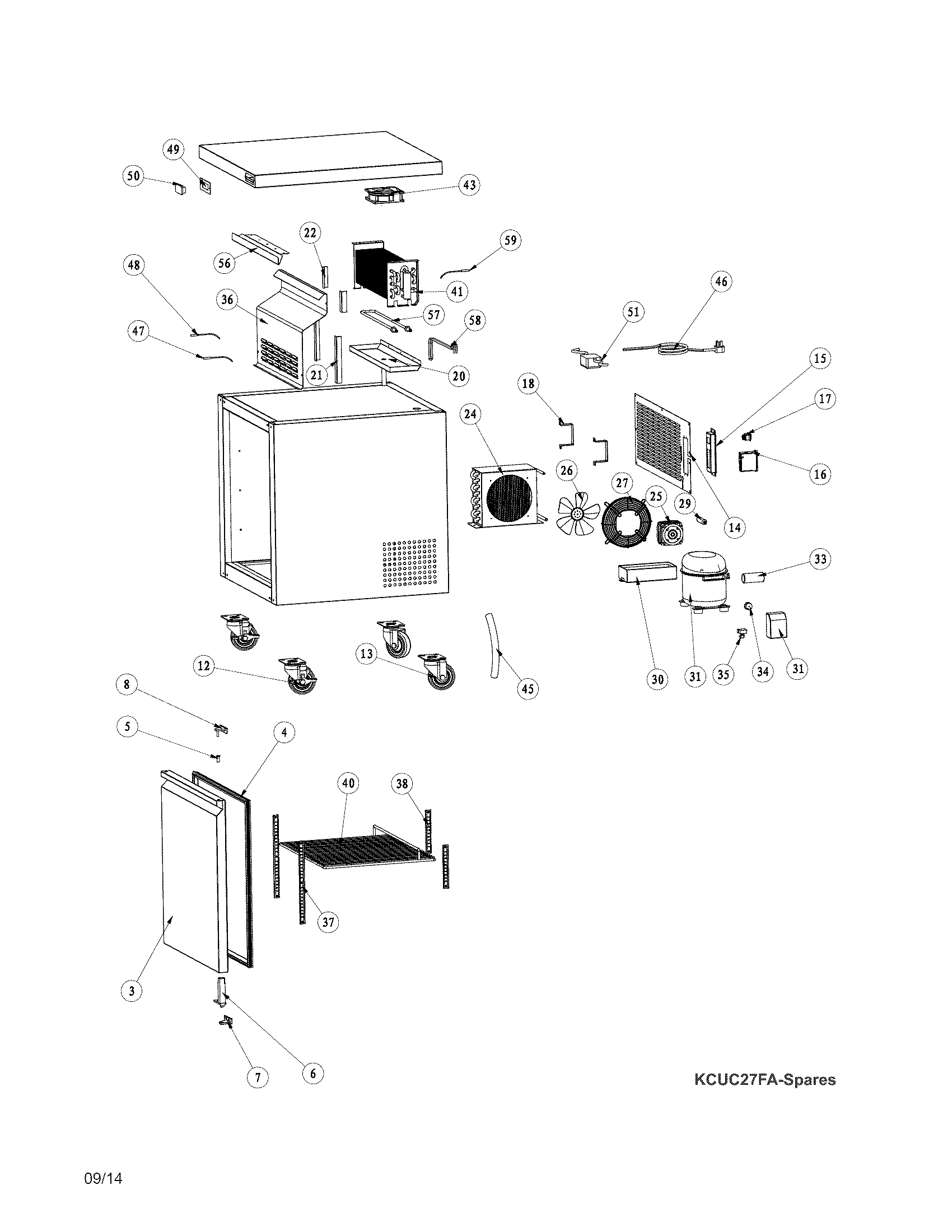

Recommended spare parts diagram

Fan assembly

Part #5304492231

The manufacturer no longer makes this part, and there's no substitute part

Caster 5304492262
#13

Recommended spare parts diagram

Caster

Part #5304492262

The manufacturer no longer makes this part, and there's no substitute part
