Sharp
Countertop Microwave

Model # R-200BW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-200BW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

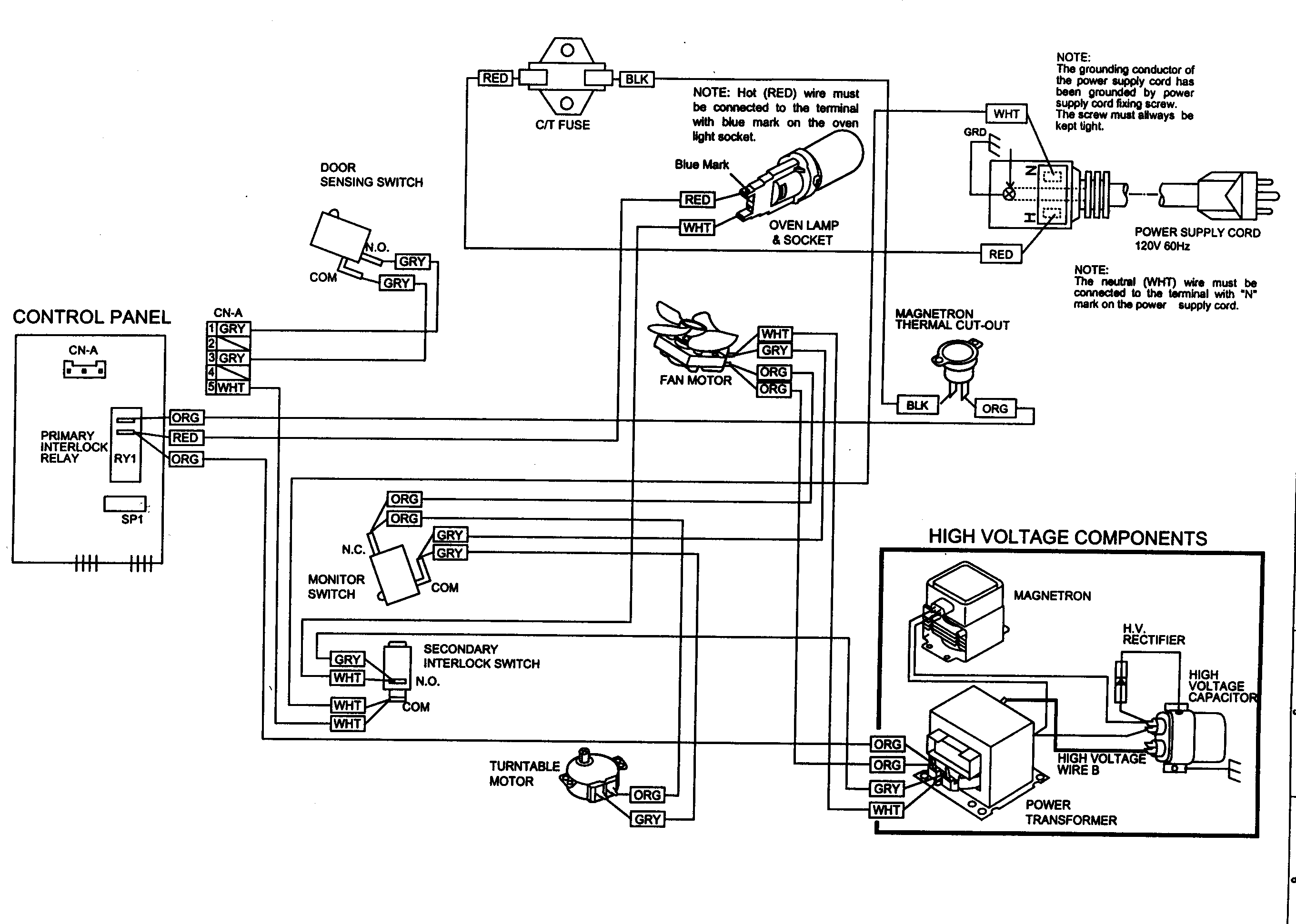

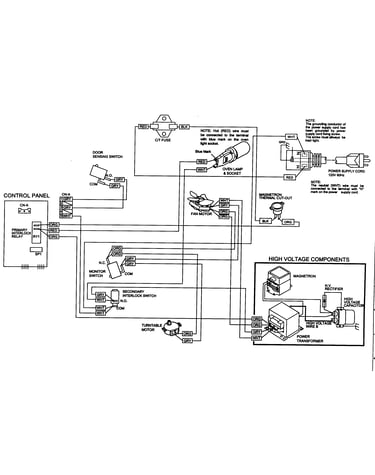

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
O-ring PPACGA097WRE0
#4-16

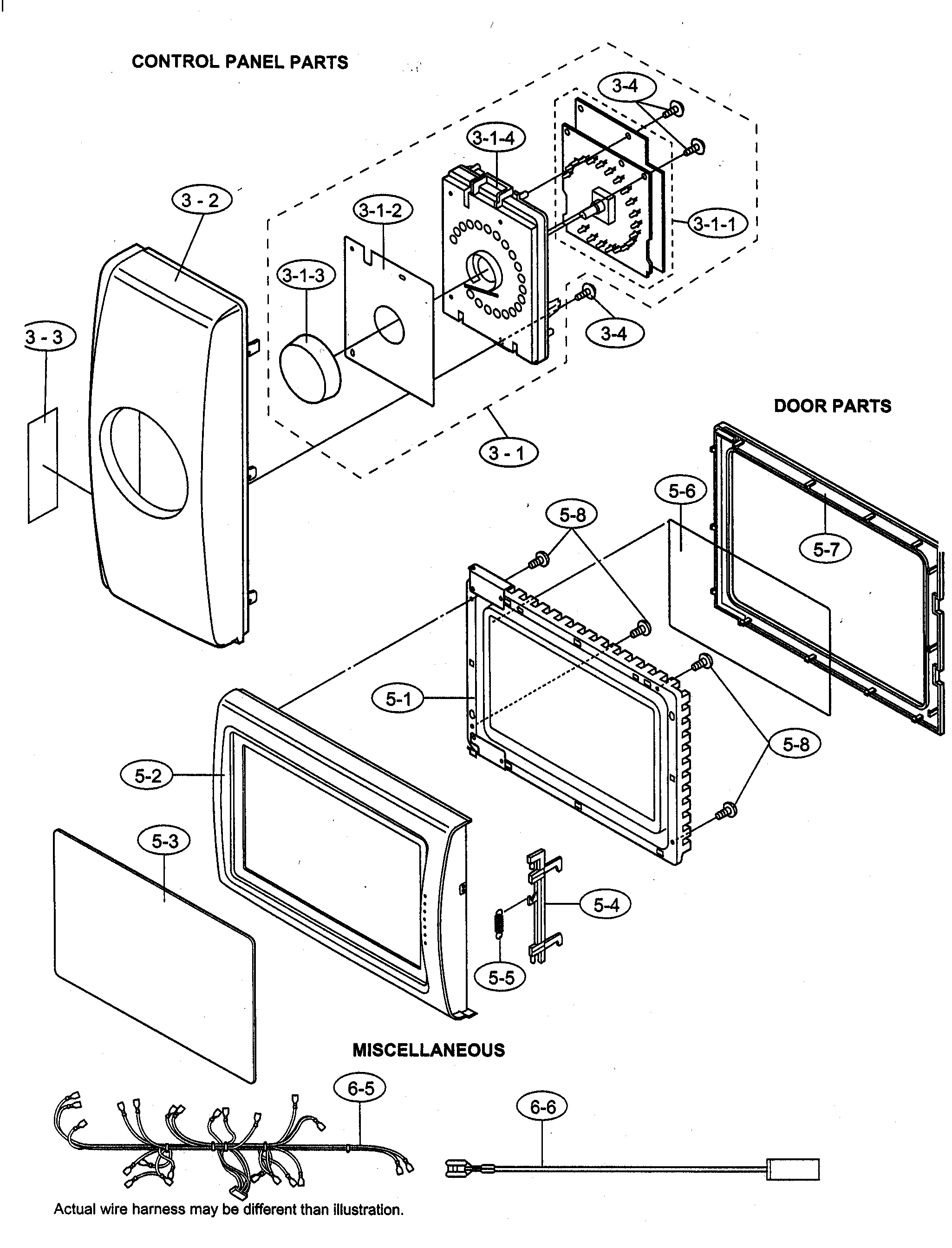

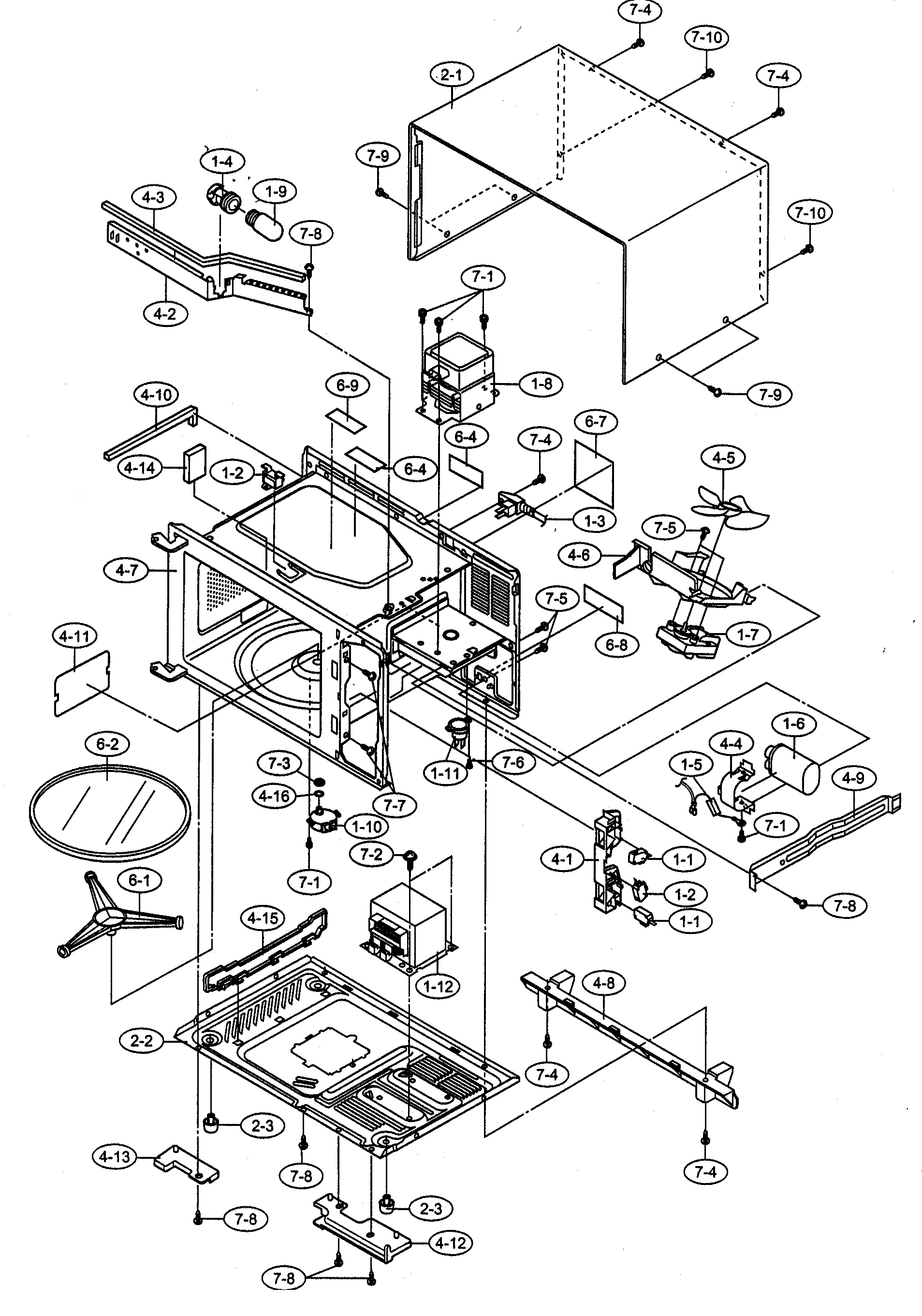

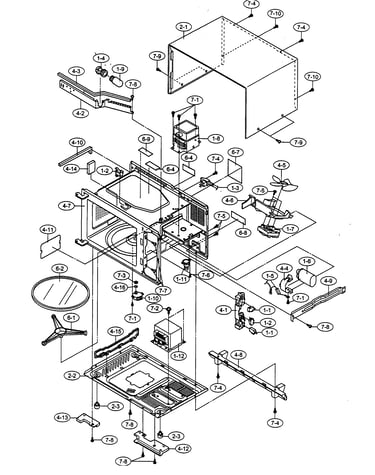

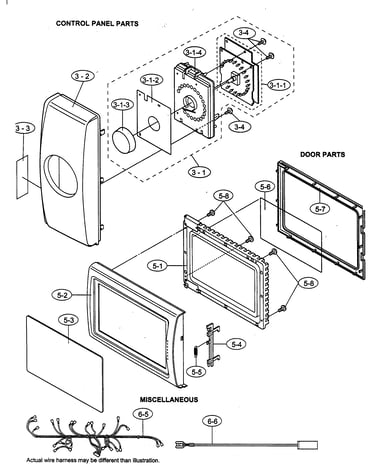

Oven cabinet parts diagram

O-ring

Part #PPACGA097WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable NTNT-A094WRE0
#6-2

Oven cabinet parts diagram

Microwave turntable

Part #NTNT-A094WRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0
#1-11

Oven cabinet parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan NFANJA029WRE0
#4-5

Oven cabinet parts diagram

Fan

Part #NFANJA029WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#110A

Oven cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA131WRE0
#1-1

Oven cabinet parts diagram

Switch

Part #QSW-MA131WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse FFS-BA020WRK0
#1-2

Oven cabinet parts diagram

Fuse

Part #FFS-BA020WRK0

The manufacturer no longer makes this part, and there's no substitute part

Hook PHOK-A105WRF0
#4-1

Oven cabinet parts diagram

Hook

Part #PHOK-A105WRF0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA186WRE0
#110

Oven cabinet parts diagram

Motor

Part #RMOTDA186WRE0

The manufacturer no longer makes this part, and there's no substitute part

Socket QSOCLA021WRE0
#1-4

Oven cabinet parts diagram

Socket

Part #QSOCLA021WRE0

The manufacturer no longer makes this part, and there's no substitute part
