Gas Walk-Behind Mower

Model # 917388670 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388670 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Lock Nut 83923
#39

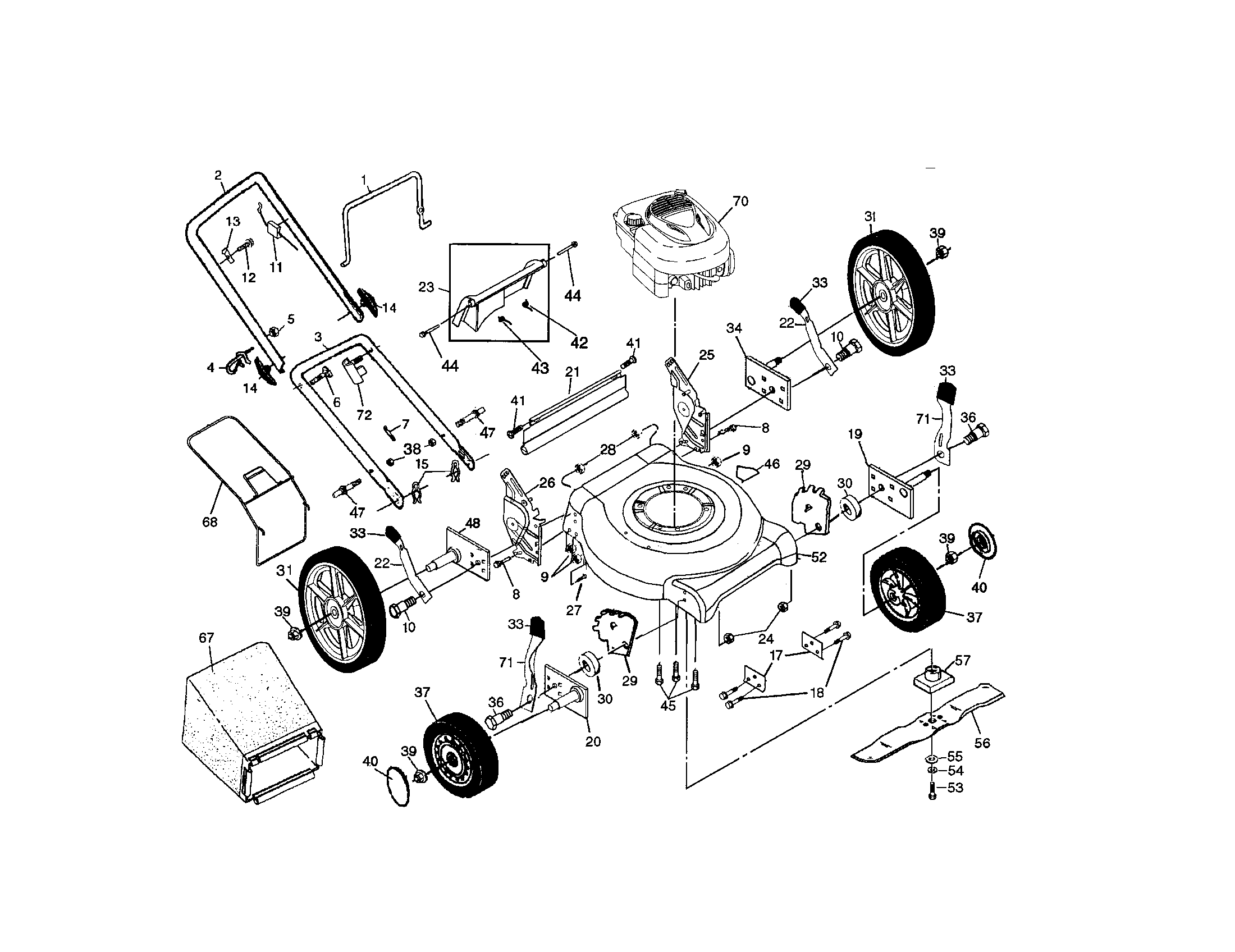

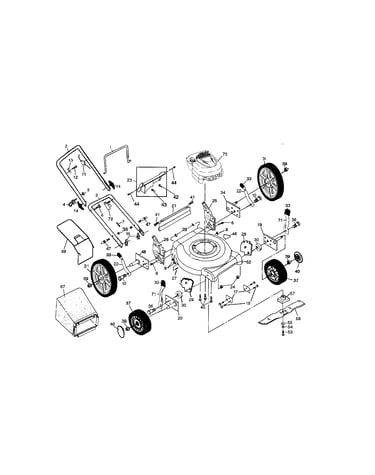

Rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Belt, 21-in 175064
#56

Rotary lawn mower diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Lawn Mower Handle Knob 181202
#14

Rotary lawn mower diagram

Lawn mower handle knob

Part #181202

Replaced by #532185577

?
Manufacturer substitution
This part replaces 181202. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#6

Rotary lawn mower diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Walk-behind Lawn Mower Engine Cable 176556
#11

Rotary lawn mower diagram

Walk-behind lawn mower engine cable

Part #176556

Replaced by #532176556

?
Manufacturer substitution
This part replaces 176556. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Gbag.250c2.b 181366
#67

Rotary lawn mower diagram

Gbag.250c2.b

Part #181366

Replaced by #532410666

?
Manufacturer substitution
This part replaces 181366. Substitute parts can look different from the original.
BEST SELLER
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Lawn Mower Blade Adapter 851514
#57

Rotary lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Nut 132004
#5

Rotary lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Rotary lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 179585
#4

Rotary lawn mower diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
