Model # 987799840 Official Craftsman chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 987799840 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
V-belt 1762636
#55

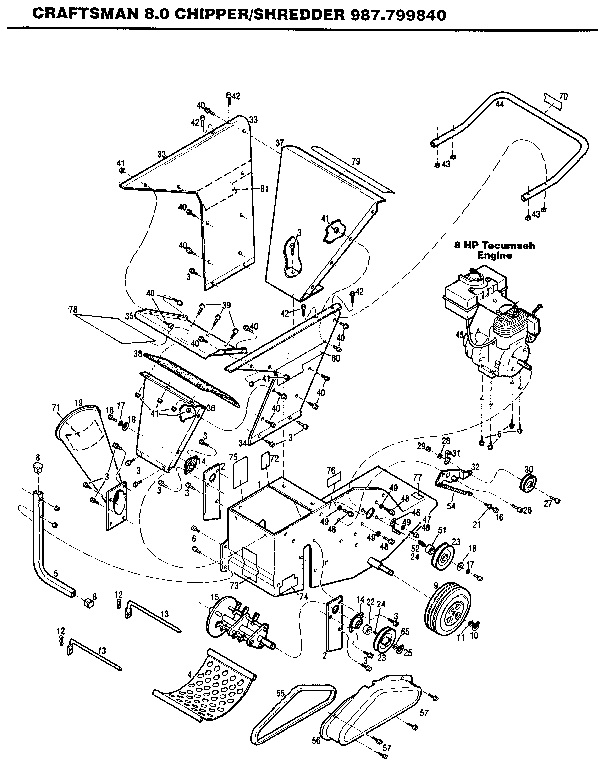

Replacement parts diagram

V-belt

Part #1762636

Replaced by #1762636MA

?
Manufacturer substitution
This part replaces 1762636. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$32.89 |
13% OFF Phone Price : $37.89
In Stock
Washer 1100254
#68

Replacement parts diagram

Washer

Part #1100254

Replaced by #936-0159

?
Manufacturer substitution
This part replaces 1100254. Substitute parts can look different from the original.
This item is not returnable
$3.44 |
23% OFF Phone Price : $4.44
In Stock
Pulley 1710567
#30

Replacement parts diagram

Pulley

Part #1710567

Replaced by #756-04241

?
Manufacturer substitution
This part replaces 1710567. Substitute parts can look different from the original.
$44.13
In Stock
Lock Washer 1100242
#49

Replacement parts diagram

Lock washer

Part #1100242

The manufacturer no longer makes this part, and there's no substitute part

Nut 1186389
#41

Replacement parts diagram

Nut

Part #1186389

Replaced by #1186389

?
Manufacturer substitution
This part replaces 1186389. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Screw 1186308
#40

Replacement parts diagram

Screw

Part #1186308

Replaced by #710-0599

?
Manufacturer substitution
This part replaces 1186308. Substitute parts can look different from the original.
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Screw 1186310
#39

Replacement parts diagram

Screw

Part #1186310

Replaced by #1186310

?
Manufacturer substitution
This part replaces 1186310. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
Plug 1762690
#8

Replacement parts diagram

Plug

Part #1762690

Replaced by #1762690MA

?
Manufacturer substitution
This part replaces 1762690. Substitute parts can look different from the original.
This item is not returnable
$7.11
In Stock
Lock Nut 1734398
#43

Replacement parts diagram

Lock nut

Part #1734398

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 1763112
#12

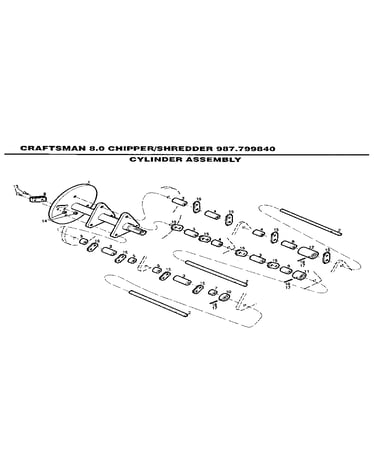

Cylinder assembly diagram

Sleeve

Part #1763112

Replaced by #1763112MA

?
Manufacturer substitution
This part replaces 1763112. Substitute parts can look different from the original.
$38.47
In Stock
