Jenn-Air
Gas Range

Model # JGS9900CDS00 Official Jenn-Air 30" gas slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JGS9900CDS00 30" gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

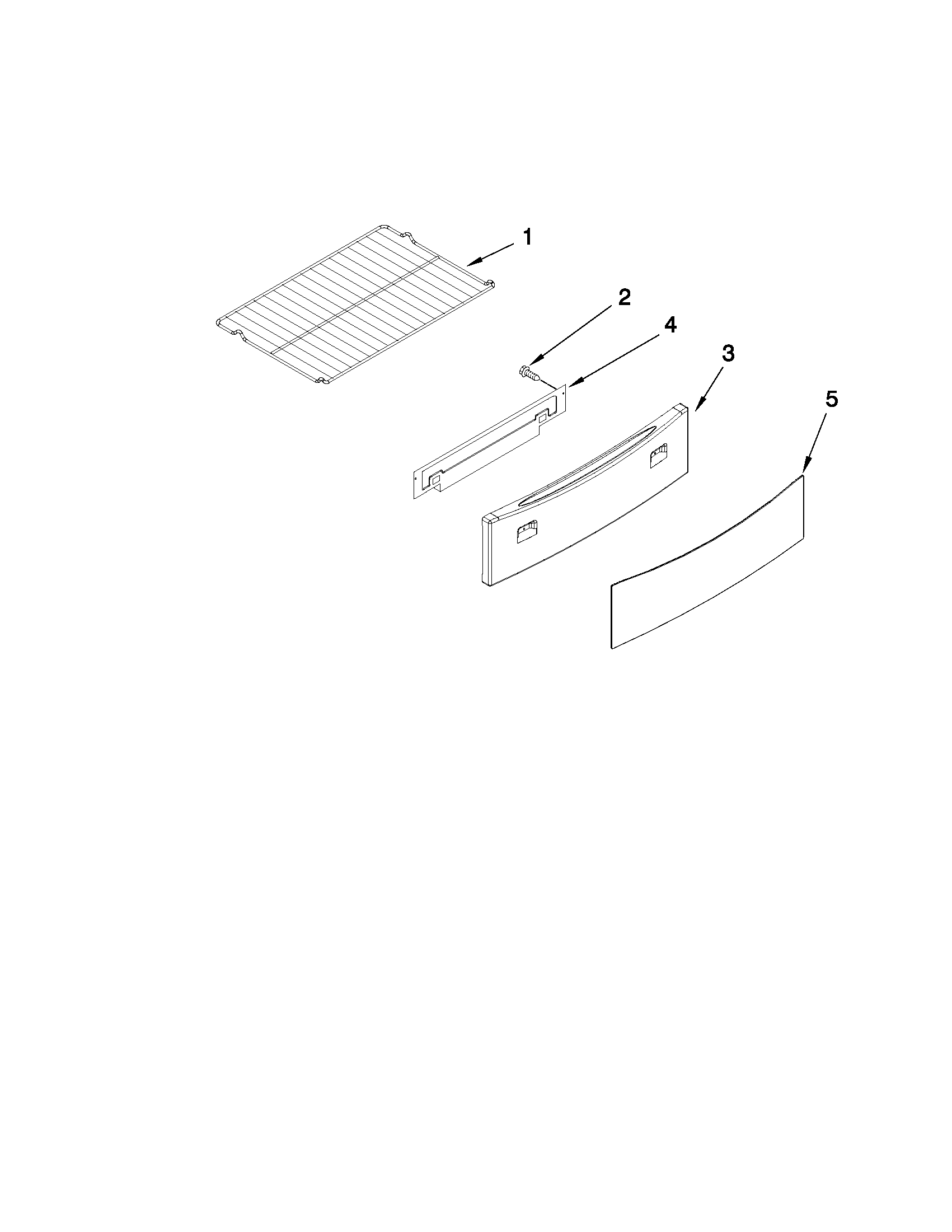

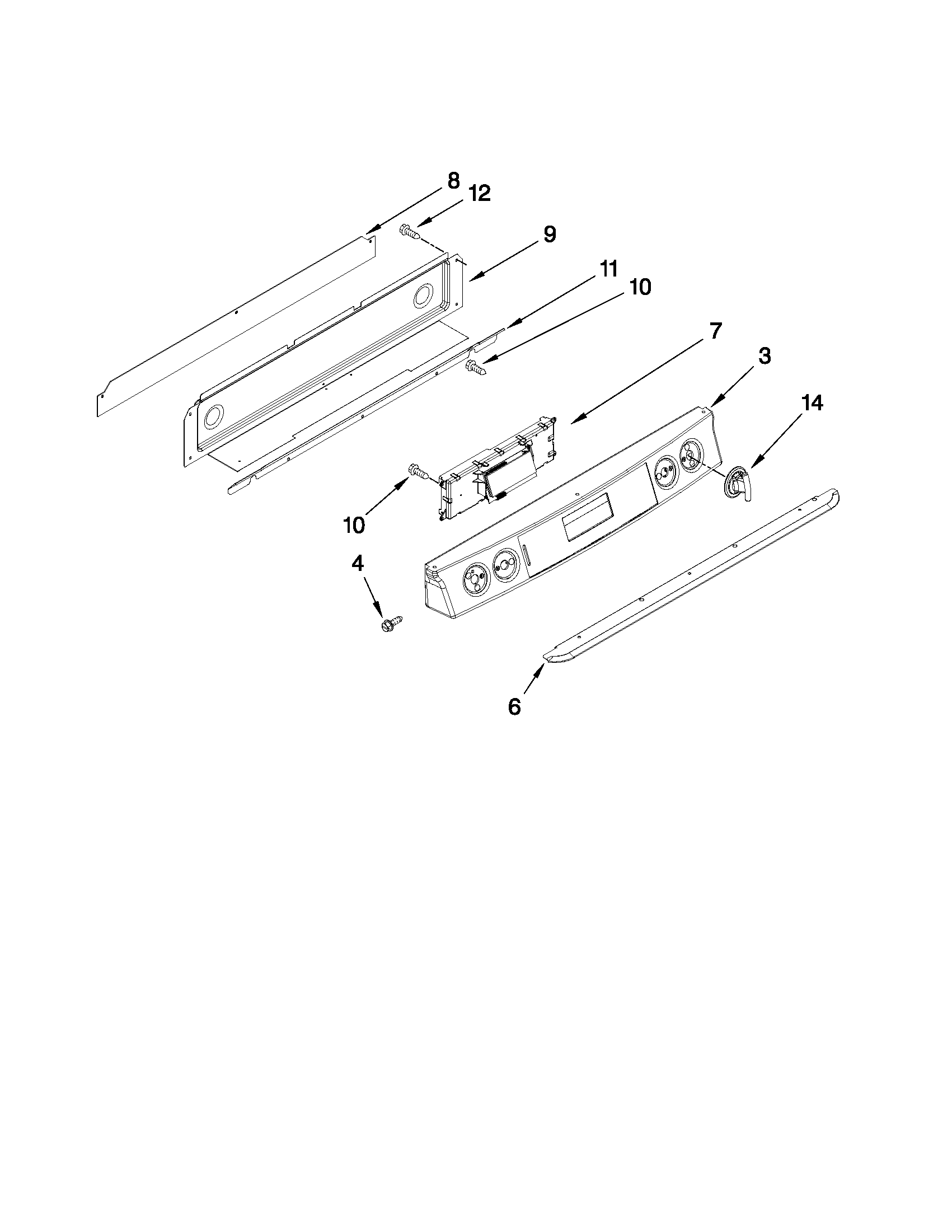

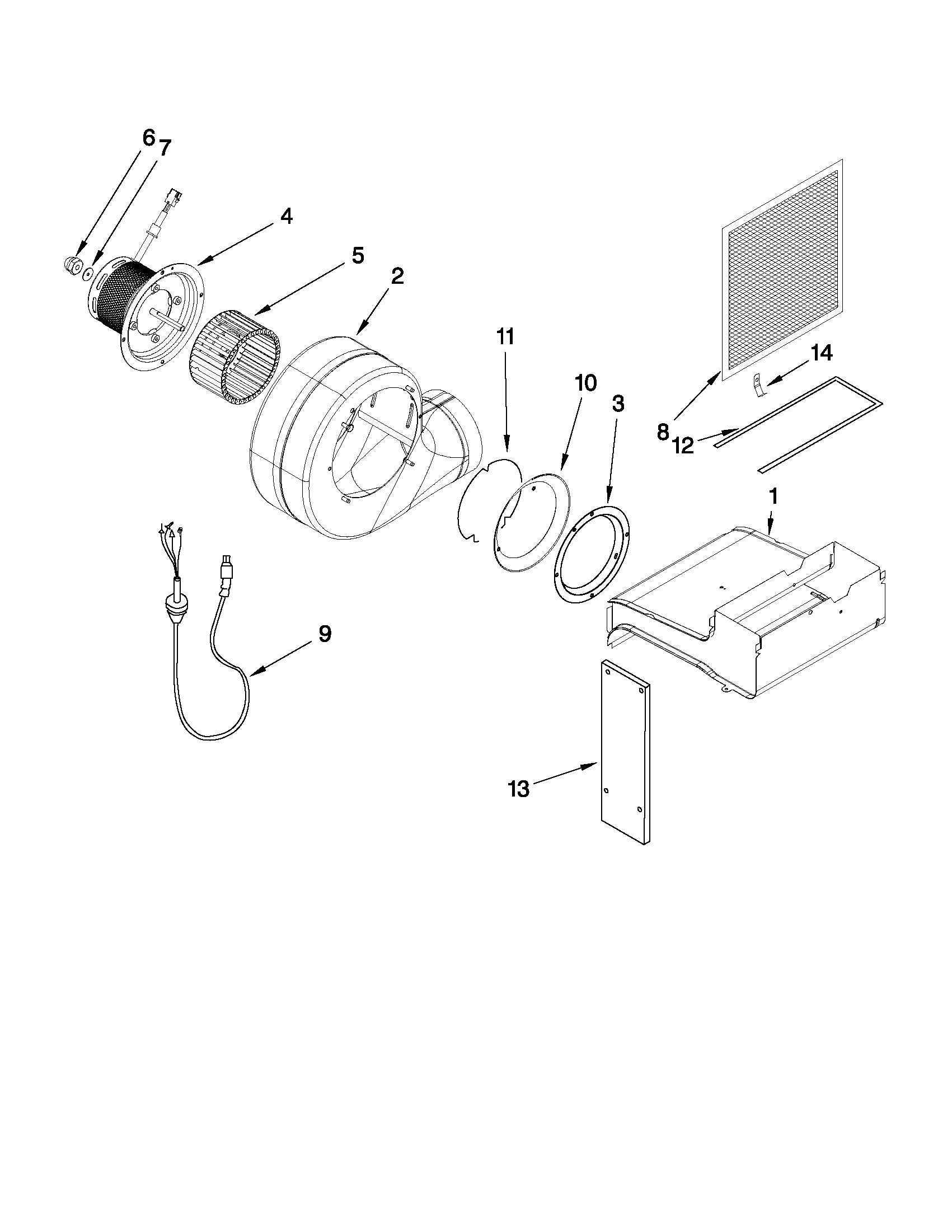

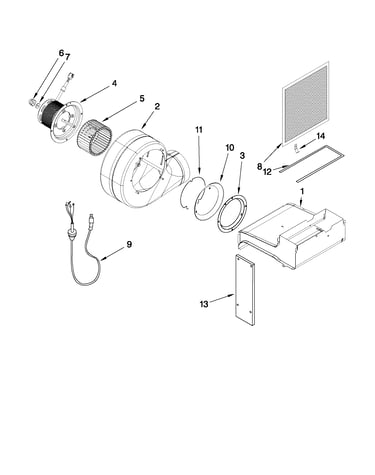

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Range Oven Igniter 7432P143-60
#13A

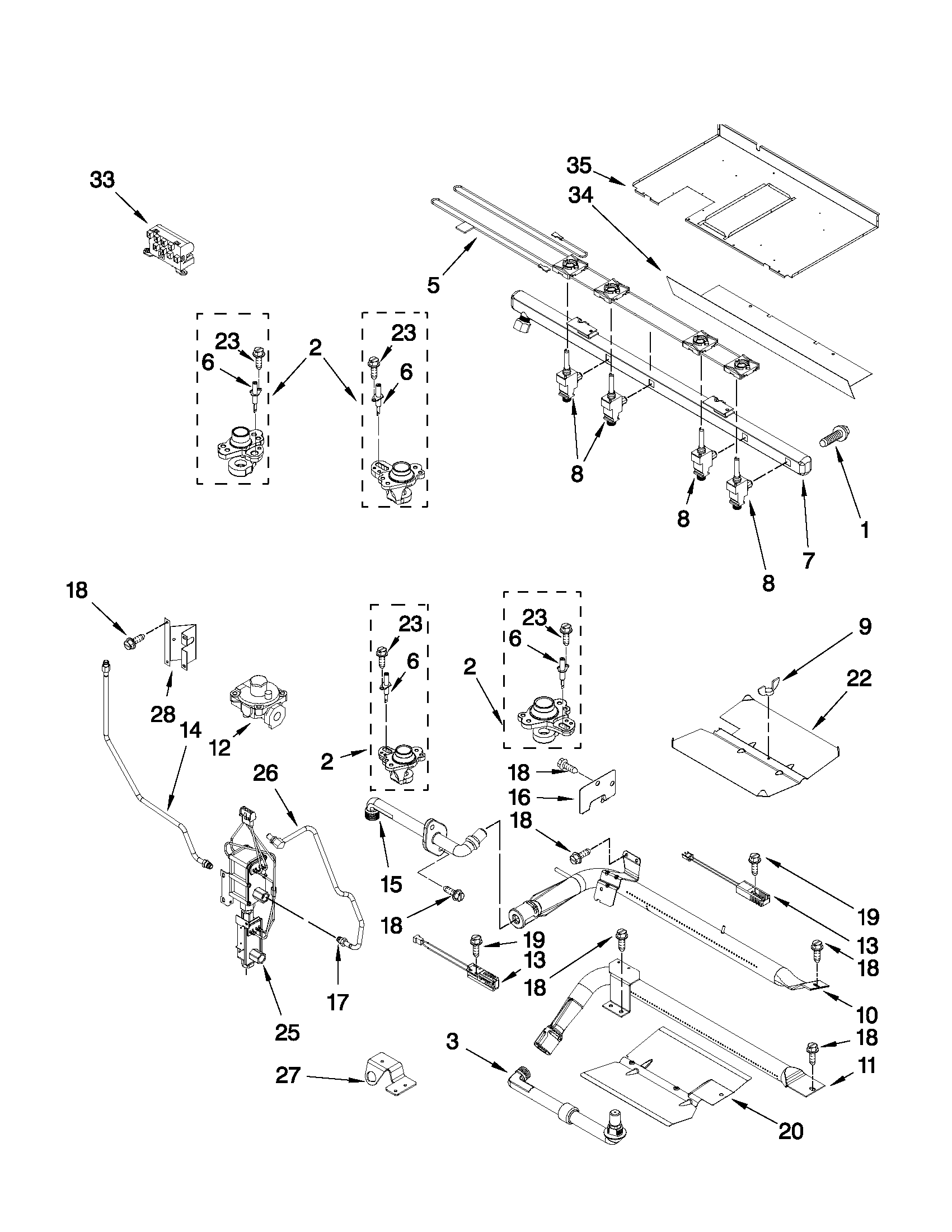

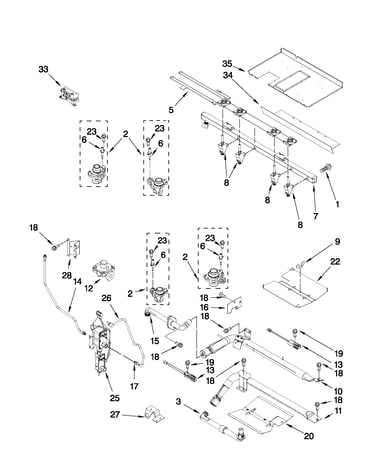

Manifold parts diagram

Range oven igniter

Part #7432P143-60

Replaced by #W11596211

?
Manufacturer substitution
This part replaces 7432P143-60. Substitute parts can look different from the original.
BEST SELLER
$45.86 |
12% OFF Phone Price : $51.86
In Stock
Screw 7101P606-60
Screw

Part #7101P606-60

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 7101P606-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sensor 7430P041-60
#10

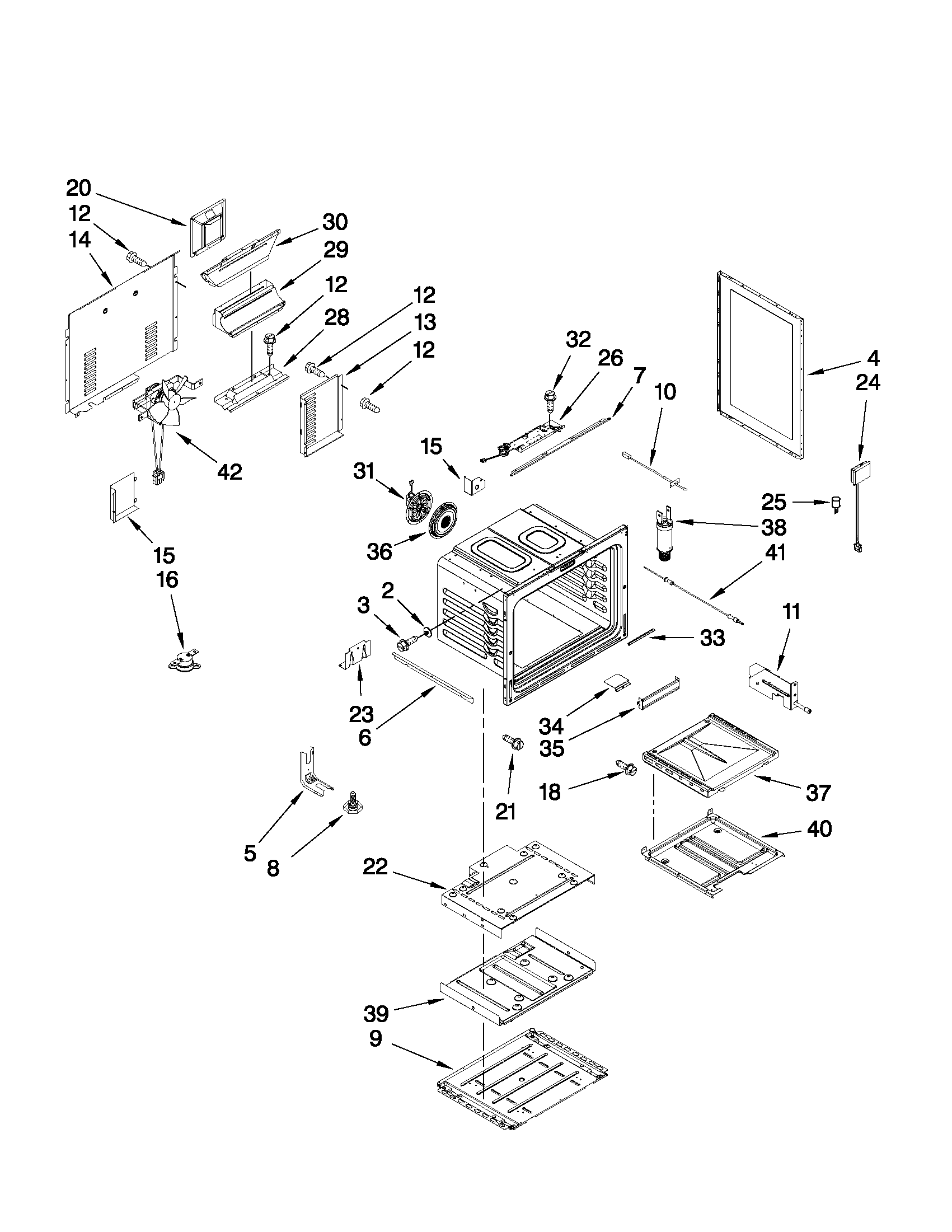

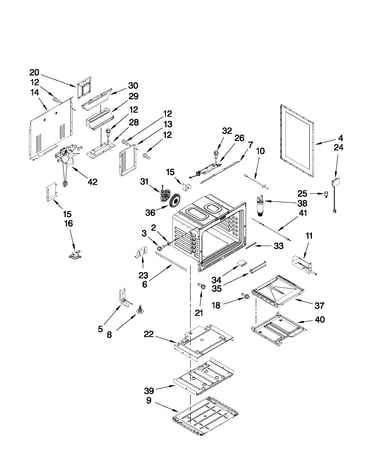

Chassis parts diagram

Sensor

Part #7430P041-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P041-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Gasket W10162384
#9

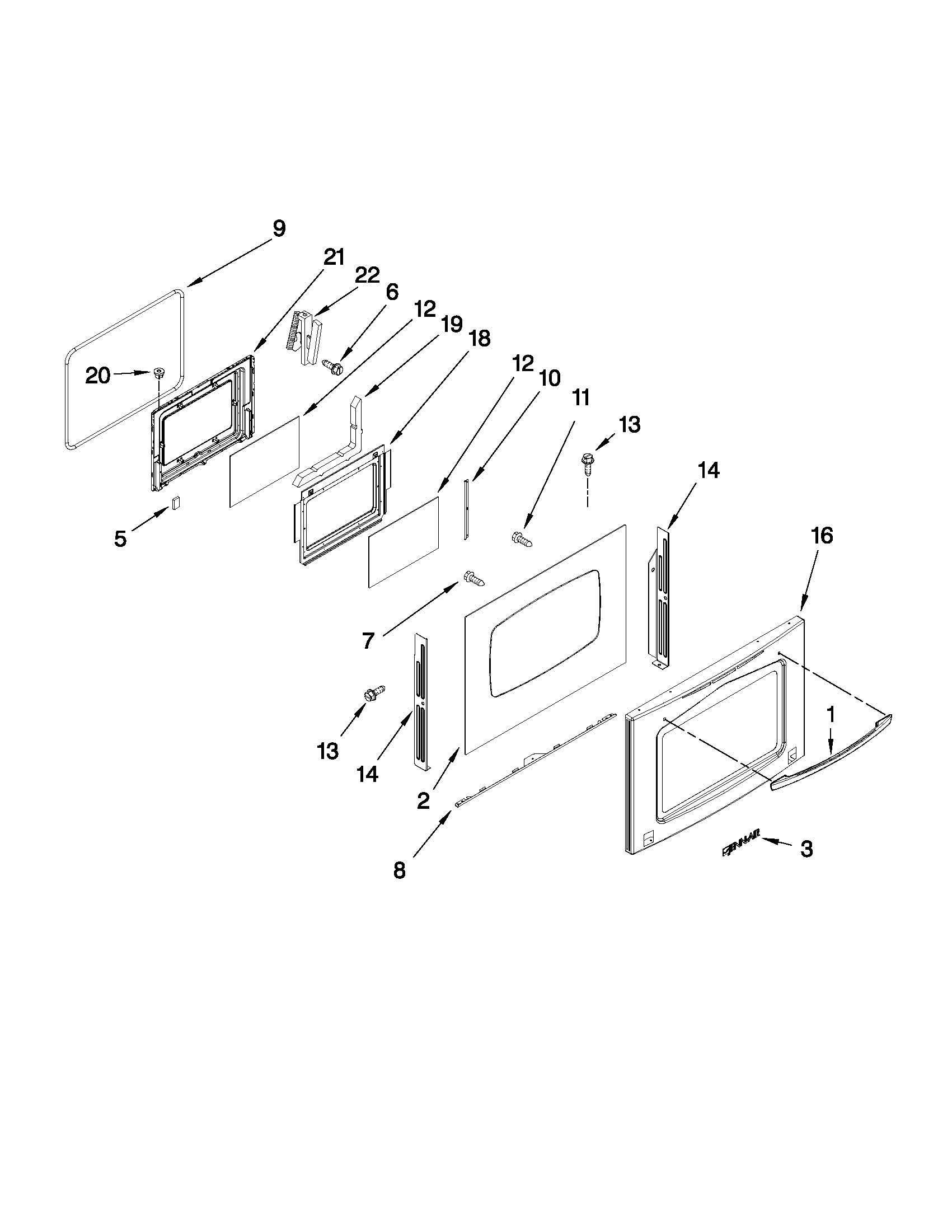

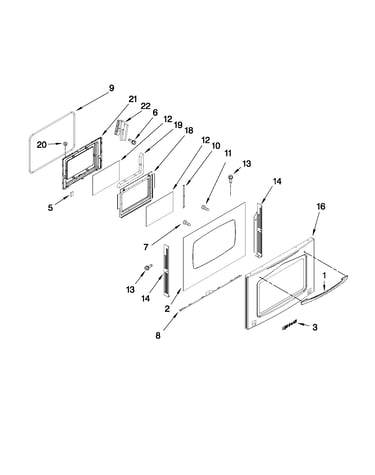

Door parts diagram

Range oven door gasket

Part #W10162384

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces W10162384. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 7101P376-60
Screw

Part #7101P376-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P376-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Burner Head 7505P339-60
#5

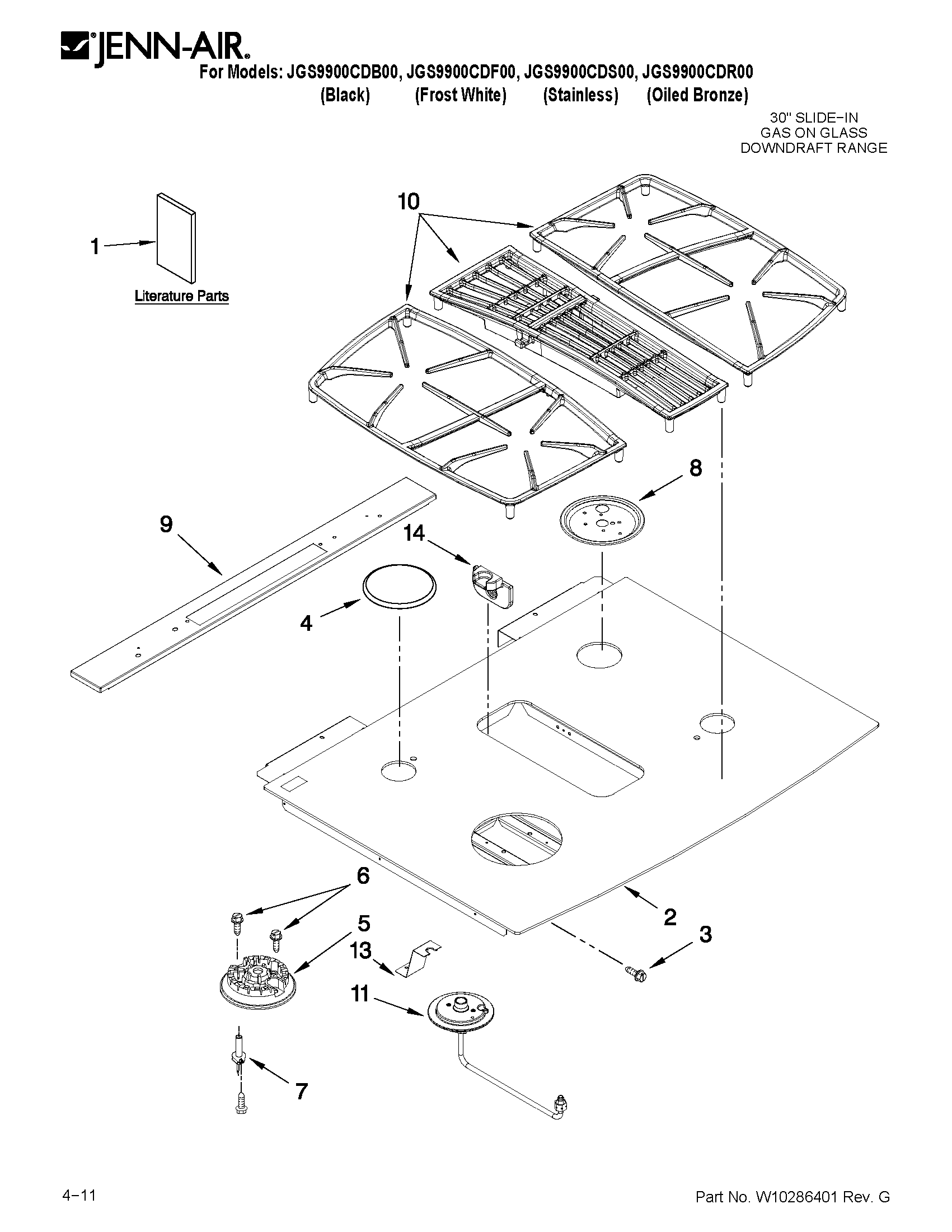

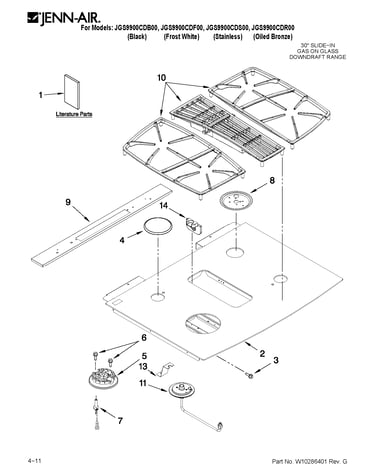

Cooktop parts diagram

Cooktop burner head

Part #7505P339-60

Replaced by #WP7505P339-60

?
Manufacturer substitution
This part replaces 7505P339-60. Substitute parts can look different from the original.
$63.66 |
9% OFF Phone Price : $69.66
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Range Anti-tip Bracket 3801F656-51
#5

Chassis parts diagram

Range anti-tip bracket

Part #3801F656-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F656-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
