Craftsman
Gas Walk-Behind Mower

Model # 917376742 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376742 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

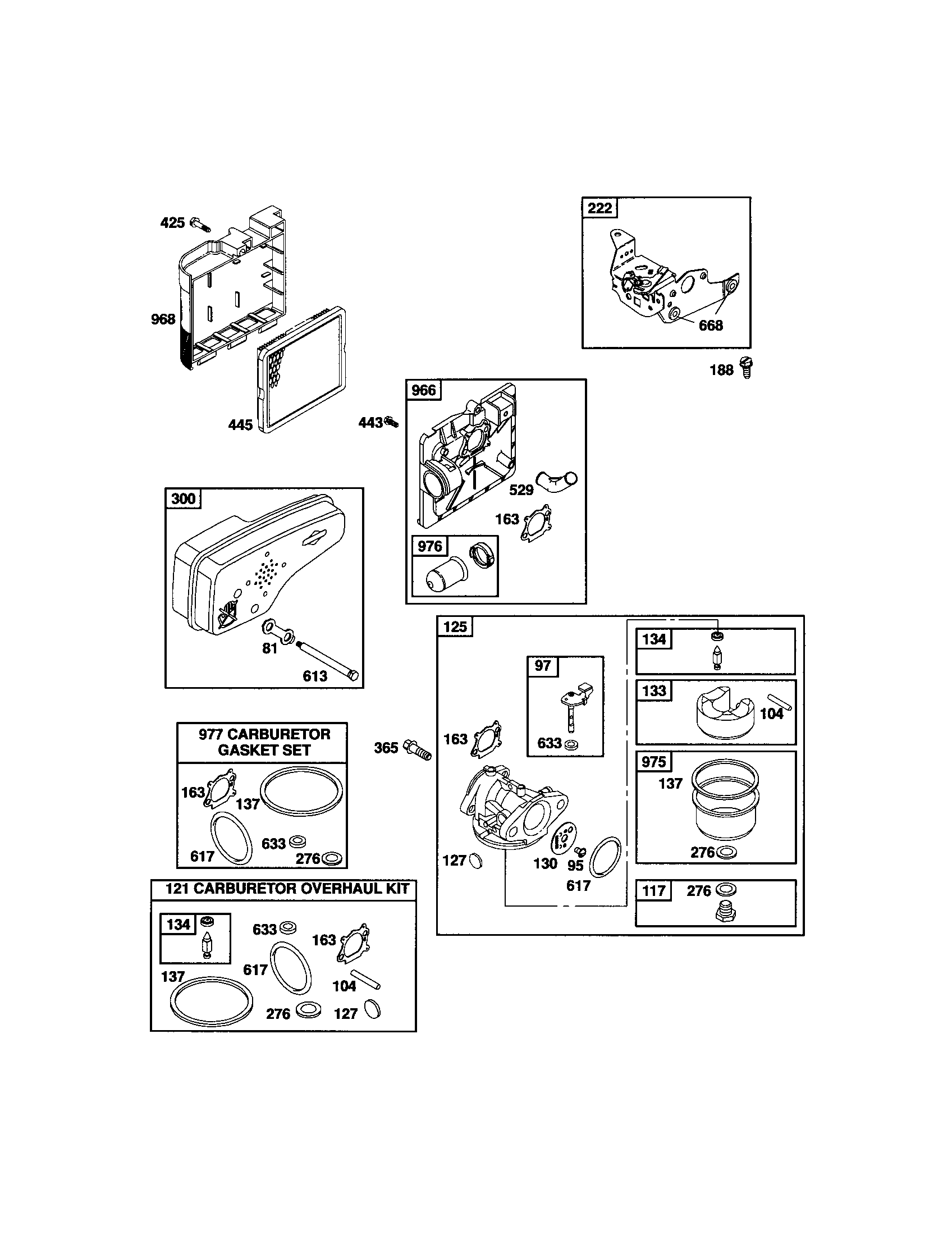

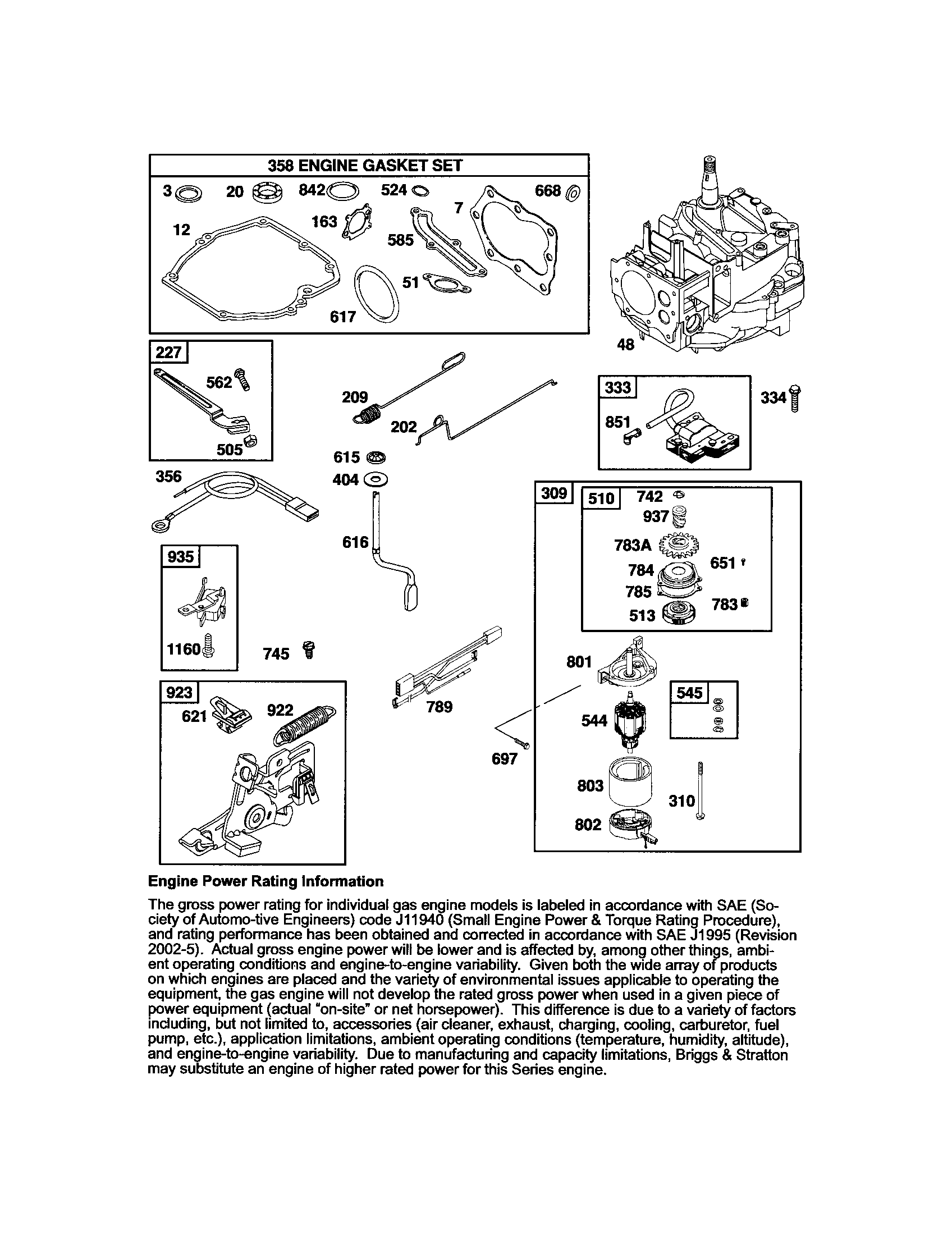

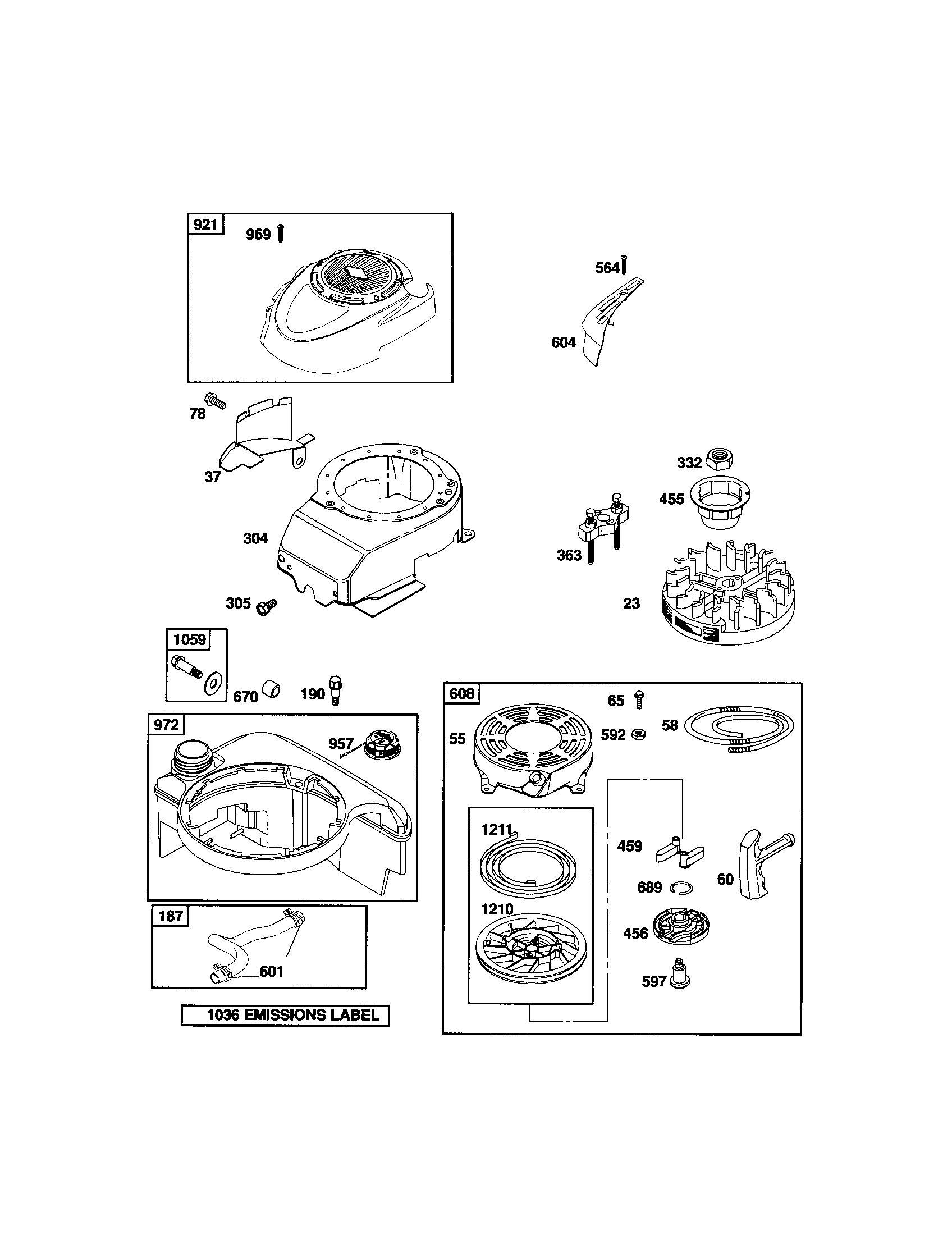

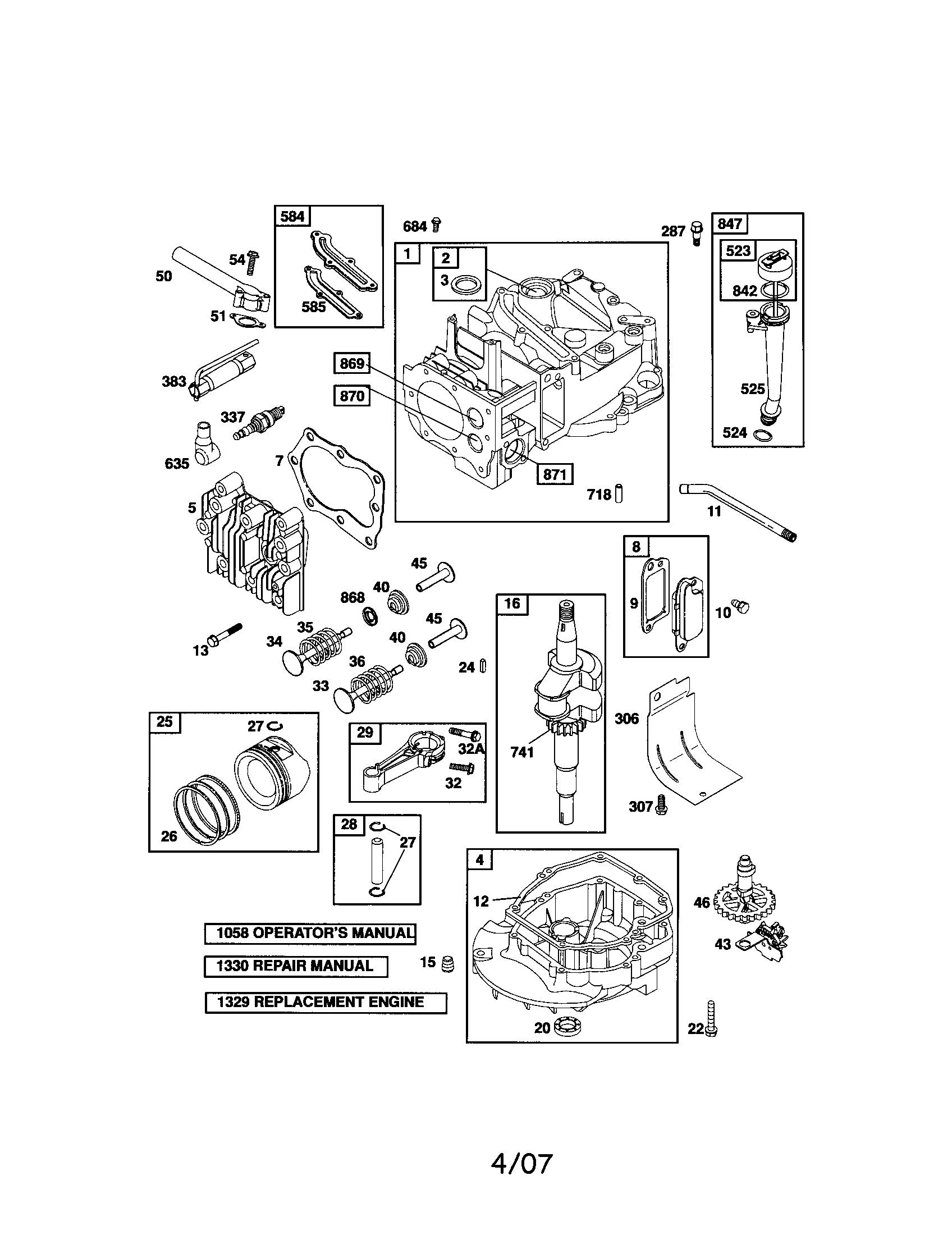

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 275 parts  |
Hndl.knob.bl 189713X428
#6

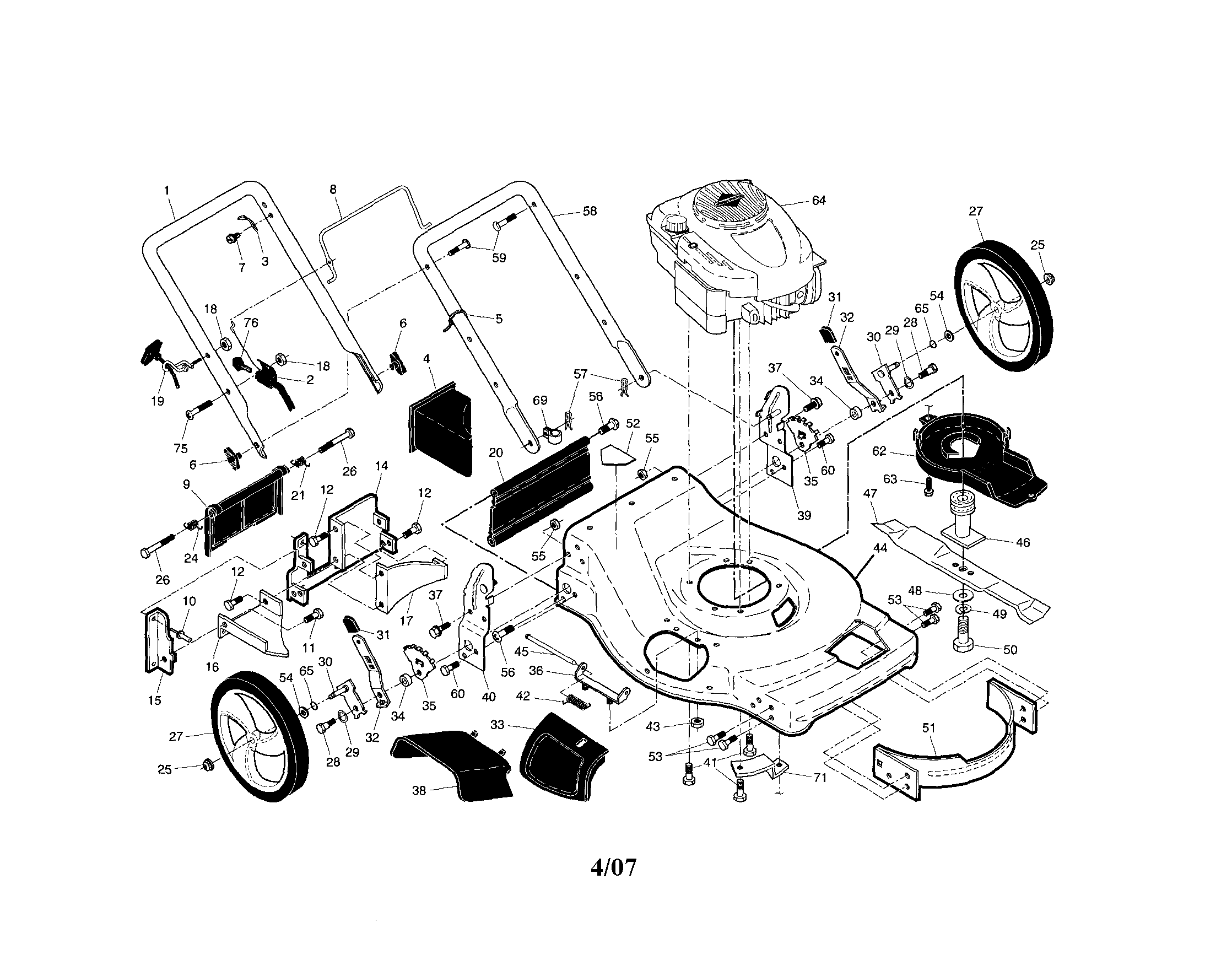

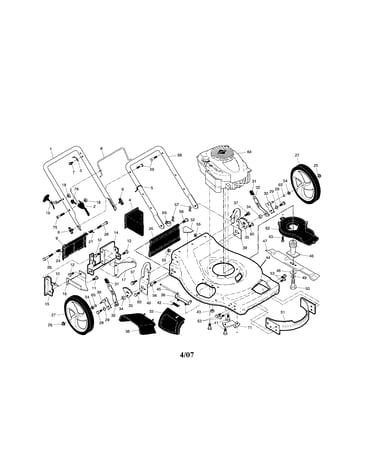

Engine/housing/handles diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

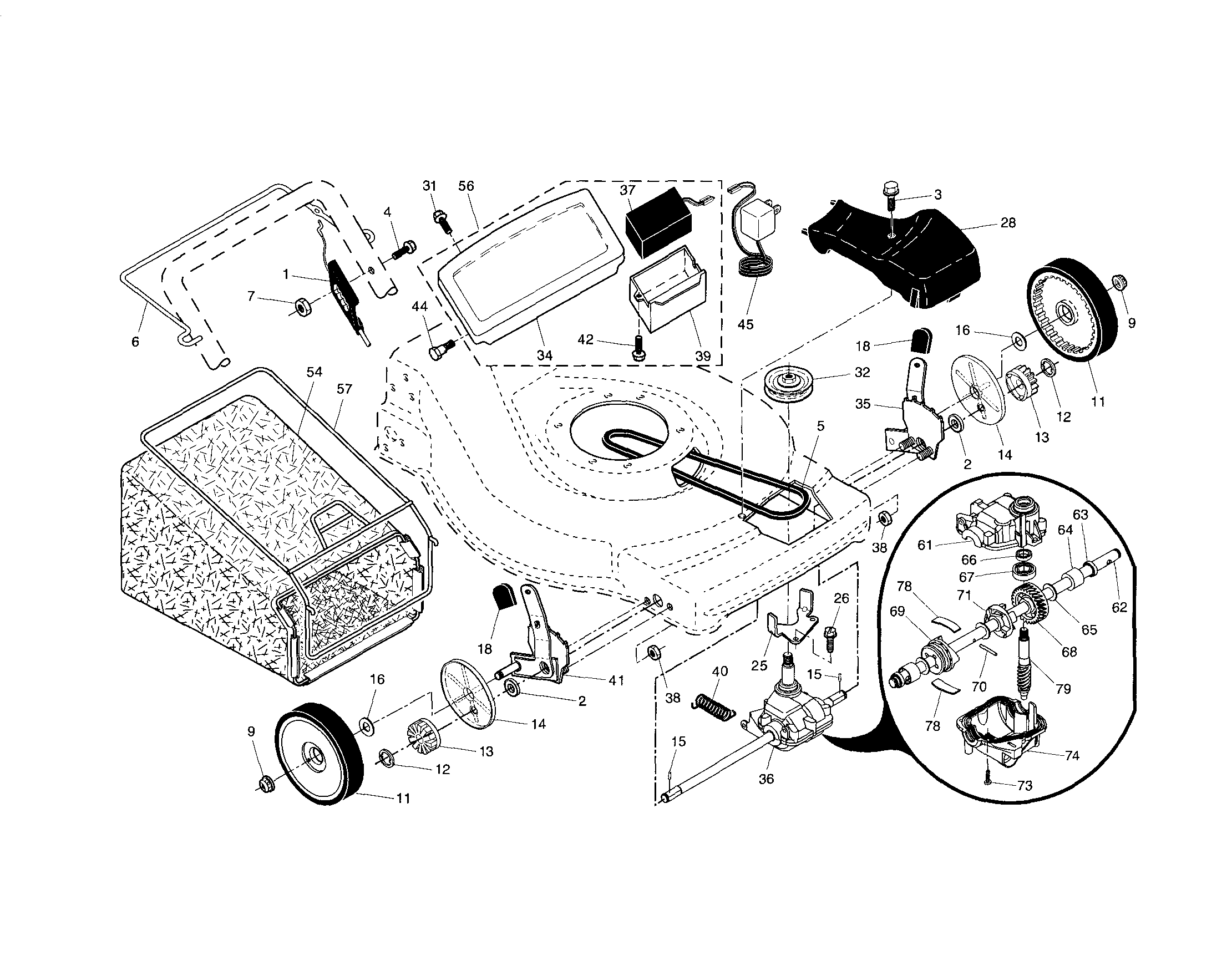

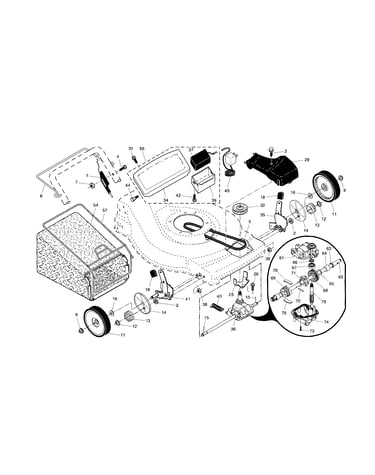

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Poulan Lawn Mower Ground Drive Belt, 3/8 X 33-3/16-in (replaces 532196857, 5321968-57) 196857
#5

Drive control/gear case/wheels diagram

Poulan lawn mower ground drive belt, 3/8 x 33-3/16-in (replaces 532196857, 5321968-57)

Part #196857

BEST SELLER

Get free shipping with Automatic Reorder

$18.90 |
10% OFF Phone Price : $20.90
In Stock
Handle Bolt 191574
#59

Engine/housing/handles diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Drive Control Cable 407816
#1

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #407816

Replaced by #532407816

?
Manufacturer substitution
This part replaces 407816. Substitute parts can look different from the original.
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Lawn Mower Wheel Assembly, Front 407755X427
#11

Drive control/gear case/wheels diagram

Lawn mower wheel assembly, front

Part #407755X427

Replaced by #583743601

?
Manufacturer substitution
This part replaces 407755X427. Substitute parts can look different from the original.
BEST SELLER
$39.66 |
13% OFF Phone Price : $45.66
In Stock
Drive Pawl 404845
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Mulching Blade 406707
#47

Engine/housing/handles diagram

Lawn mower mulching blade

Part #406707

Replaced by #532406707

?
Manufacturer substitution
This part replaces 406707. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.64 |
16% OFF Phone Price : $36.64
In Stock
Lock Nut 751592
#55

Engine/housing/handles diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Deflector Shield Torsion Spring (replaces 175285, 532193000, 5321930-00) 193000
#42

Engine/housing/handles diagram

Lawn mower deflector shield torsion spring (replaces 175285, 532193000, 5321930-00)

Part #193000

BEST SELLER
This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
