Craftsman
Lawn & Garden Engine

Model # 143217072 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143217072 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |

Lawn Mower O-ring 631028
#29

Carburetor 631597 (71/143) diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#83

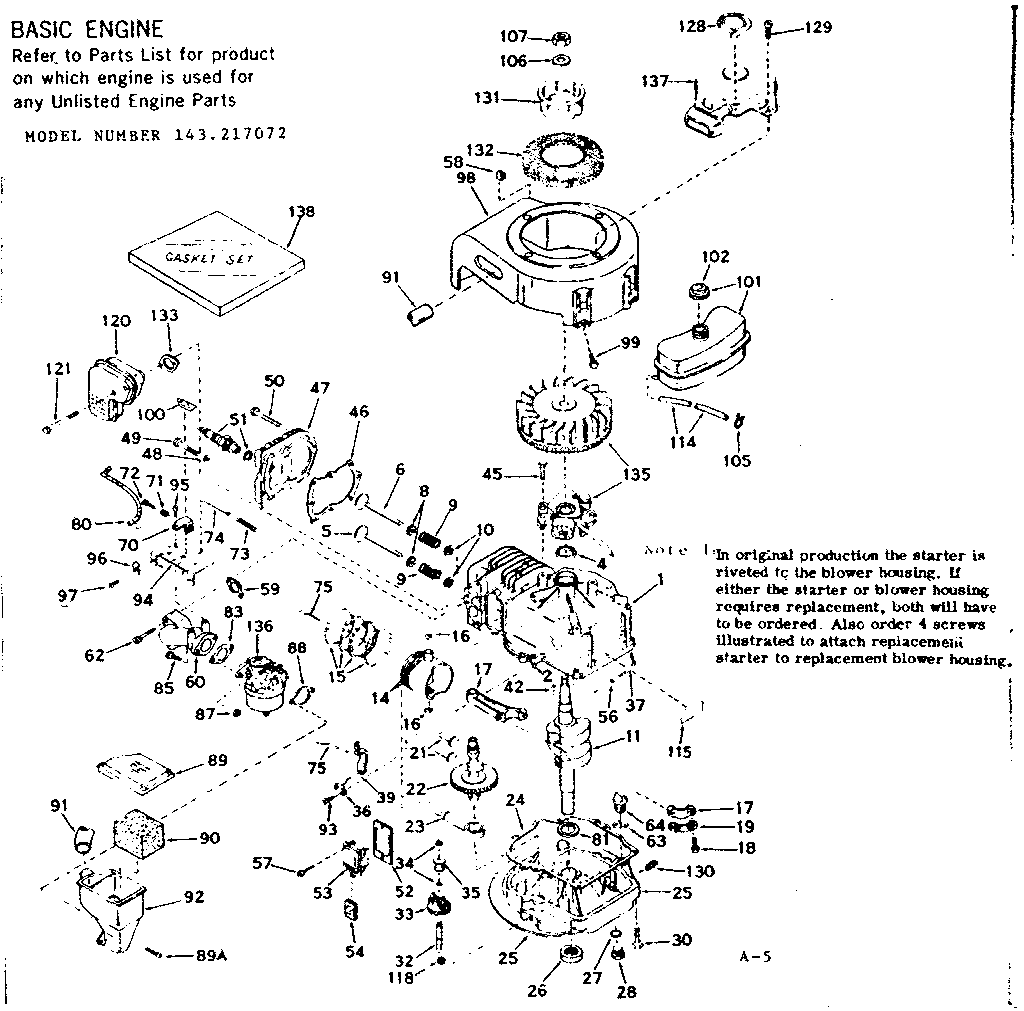

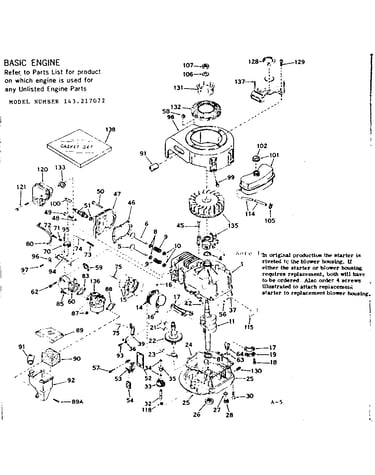

Basic engine diagram

Troybilt lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.64
22% OFF Phone Price : $4.64
In Stock
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#114

Basic engine diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Gasket 27110
#44

Carburetor 631597 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#105

Basic engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#25

Carburetor 631597 (71/143) diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19
14% OFF Phone Price : $14.19
In Stock
Flange Gasket 26750A
#24

Basic engine diagram

Flange gasket

Part #26750A

Replaced by #37609

?
Manufacturer substitution
This part replaces 26750A. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn & Garden Equipment Throttle Shaft Return Spring (replaces 630731, 631279, 631279a, 631279l, 632016) 631767
#2

Carburetor 631597 (71/143) diagram

Lawn & garden equipment throttle shaft return spring (replaces 630731, 631279, 631279a, 631279l, 632016)

Part #631767

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Nut 29752
#87

Basic engine diagram

Generac lawn & garden equipment engine nut

Part #29752

This item is not returnable
In Stock
