Honeywell
Humidifier

Model # HE225A1006 Official Honeywell humidifier

Here are the diagrams and repair parts for Official Honeywell HE225A1006 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Current Sensing Relay 32001754-001
#NI

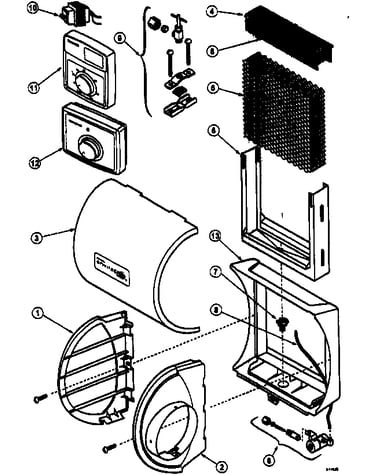

Cabinet parts diagram

Current sensing relay

Part #32001754-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Pad HC22A1007
#NI

Cabinet parts diagram

Humidifier pad

Part #HC22A1007

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 68-0244
#NI

Cabinet parts diagram

Service manual

Part #68-0244

The manufacturer no longer makes this part, and there's no substitute part

Fitting 32001615-001
#7

Cabinet parts diagram

Fitting

Part #32001615-001

The manufacturer no longer makes this part, and there's no substitute part

Media Pad HC22E1003
#5

Cabinet parts diagram

Media pad

Part #HC22E1003

The manufacturer no longer makes this part, and there's no substitute part

Pad Frame 32001621-001
#6

Cabinet parts diagram

Pad frame

Part #32001621-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Valve 32001639-002
#8

Cabinet parts diagram

Humidifier water valve

Part #32001639-002

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Line Installation Kit 32001752-001
#NI

Cabinet parts diagram

Humidifier water line installation kit

Part #32001752-001

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Water Distribution Tray 32001619-001
#4

Cabinet parts diagram

Humidifier water distribution tray

Part #32001619-001

The manufacturer no longer makes this part, and there's no substitute part

Humidistat H1008A1008
#12

Cabinet parts diagram

Humidistat

Part #H1008A1008

The manufacturer no longer makes this part, and there's no substitute part
