Model # FCDWF135E2 Official Frigidaire wine cooler - 5995209573

Here are the diagrams and repair parts for Official Frigidaire FCDWF135E2 wine cooler - 5995209573, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

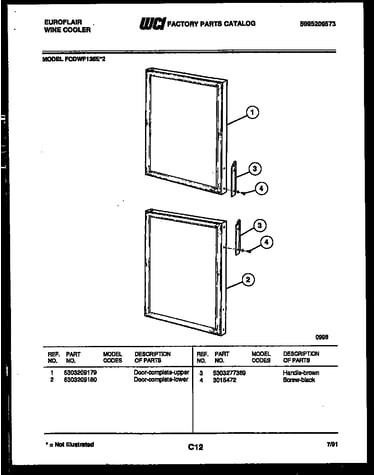

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Nut 3015516
#22

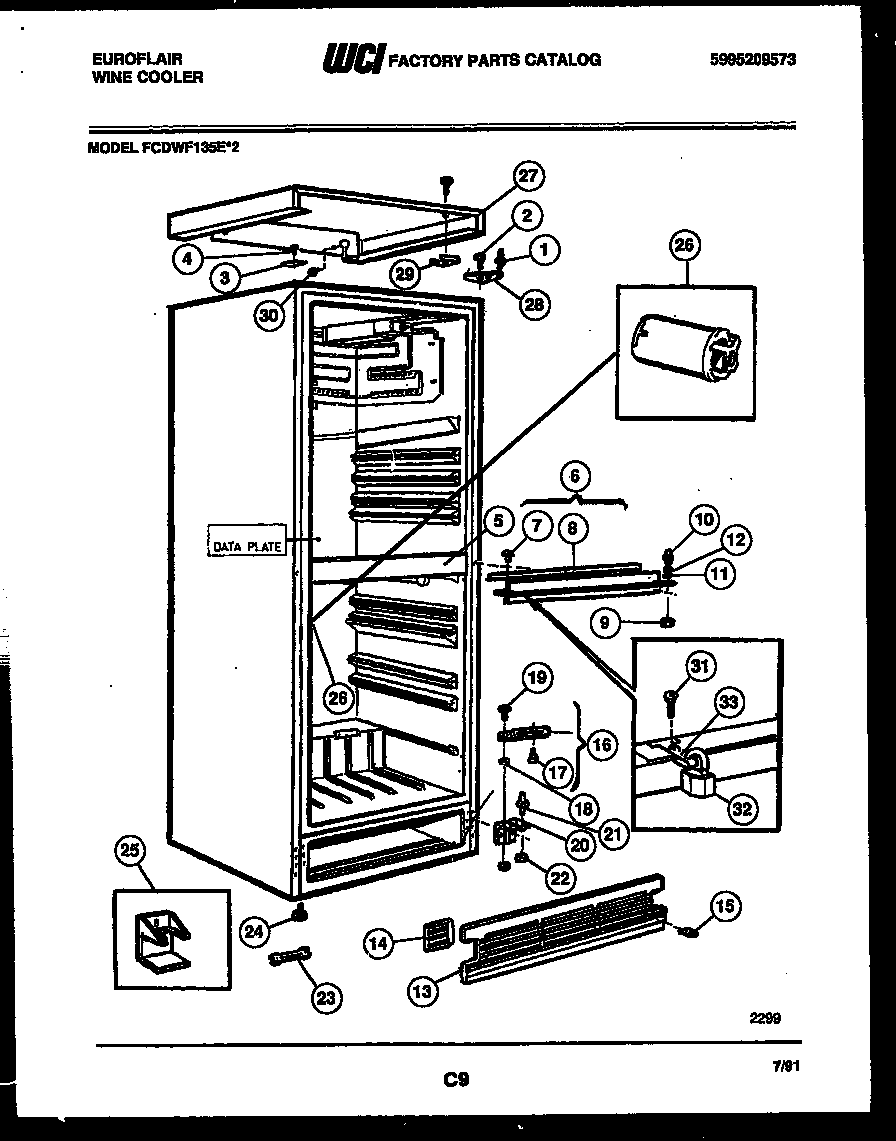

Cabinet parts diagram

Nut

Part #3015516

This item is not returnable
$2.49
In Stock
Refrigerator Shelf 3015908
#7

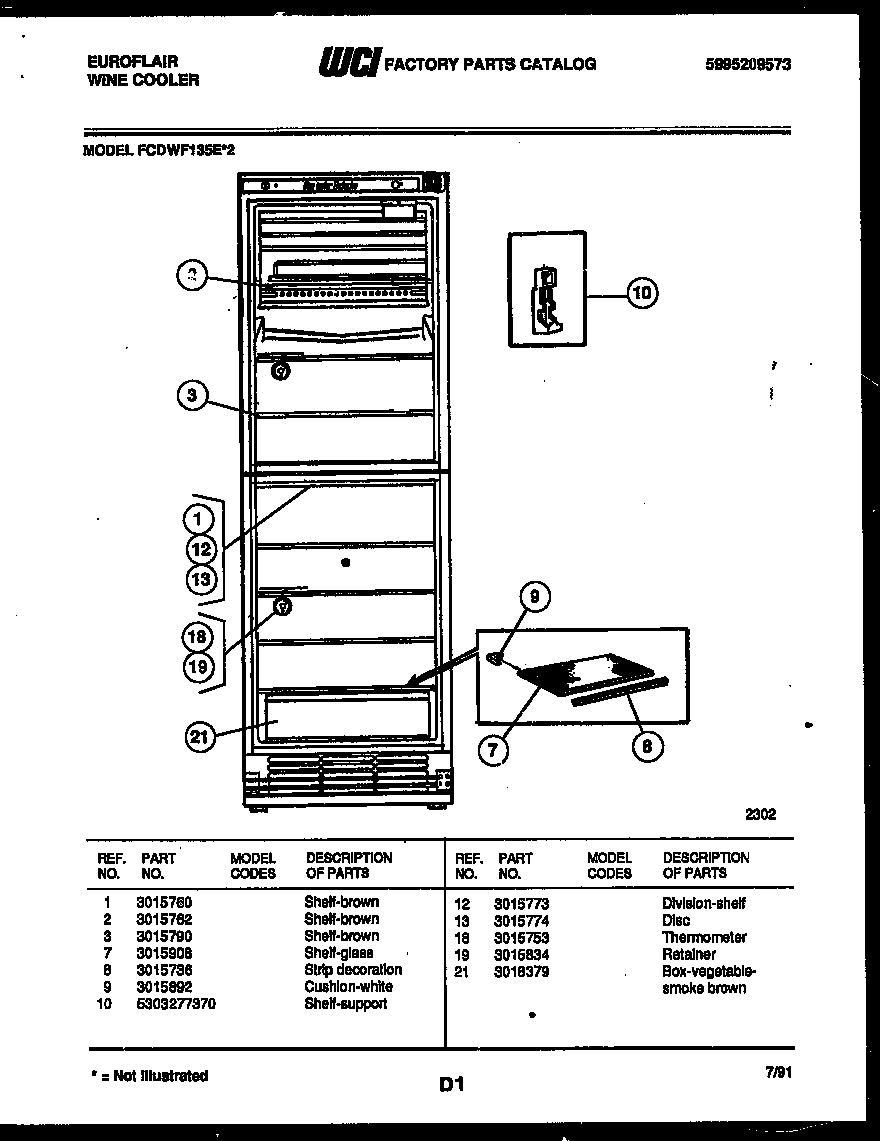

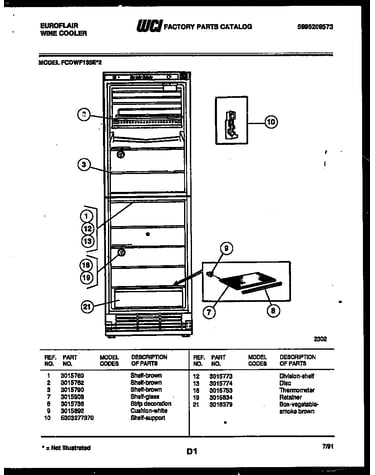

Shelves and supports diagram

Refrigerator shelf

Part #3015908

The manufacturer no longer makes this part, and there's no substitute part

Nut 3015494
#9

Cabinet parts diagram

Nut

Part #3015494

The manufacturer no longer makes this part, and there's no substitute part

Stop 3015512
#16

Cabinet parts diagram

Stop

Part #3015512

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 3015540
#22

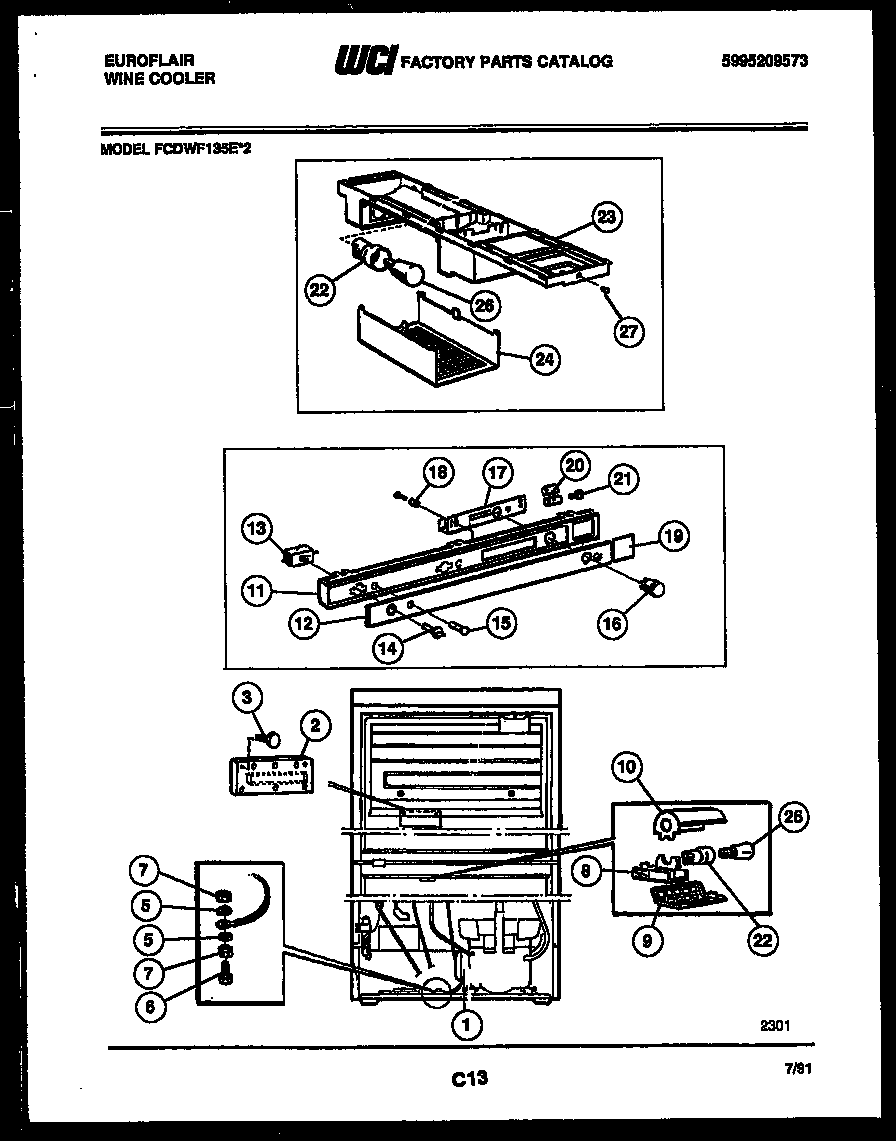

Lighting and control parts diagram

Receptacle

Part #3015540

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spacer 3015734
#3

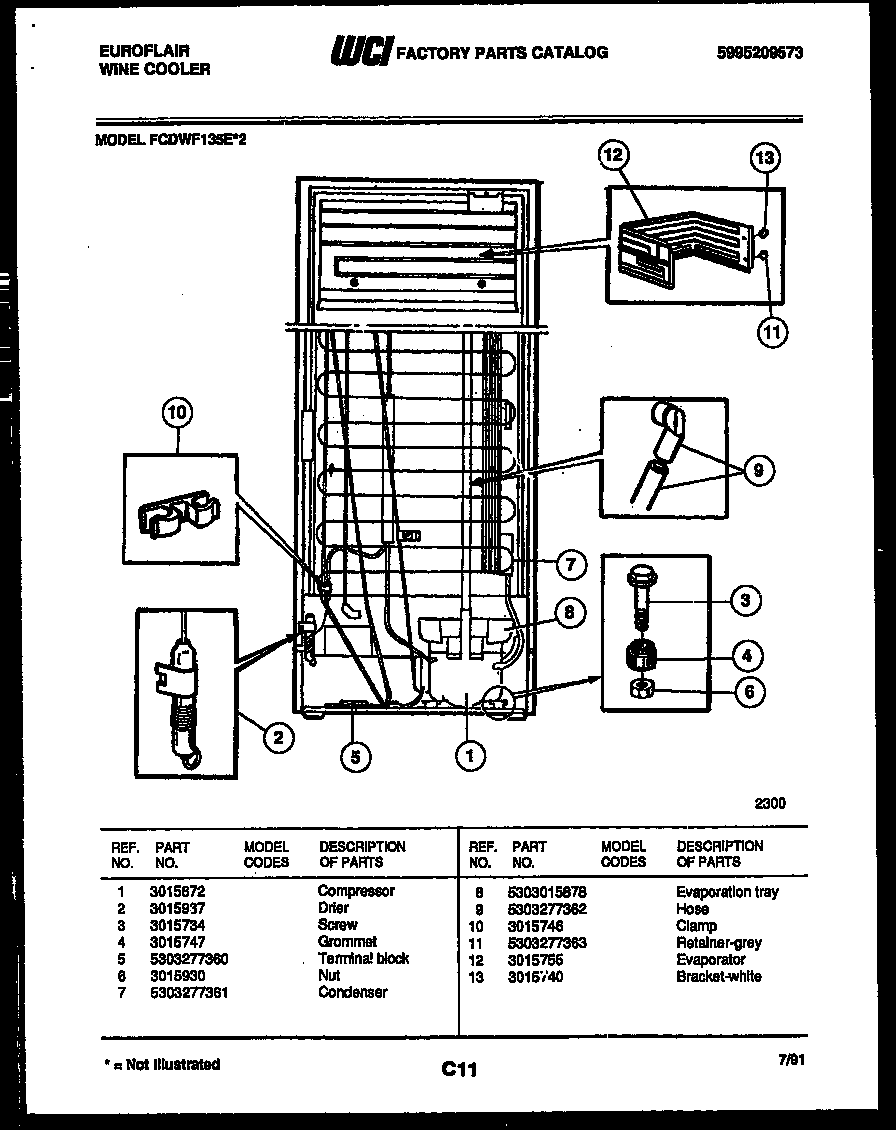

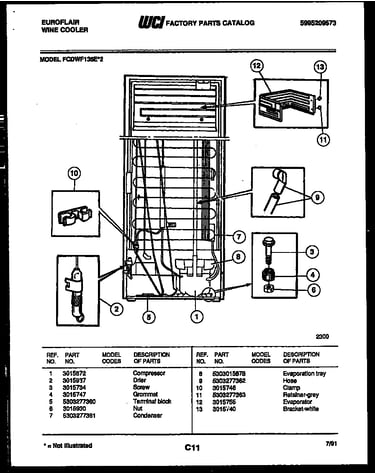

System parts diagram

Refrigerator spacer

Part #3015734

The manufacturer no longer makes this part, and there's no substitute part

Cap 3015504
#25

Cabinet parts diagram

Cap

Part #3015504

The manufacturer no longer makes this part, and there's no substitute part

Lamp 5303015532
#15

Lighting and control parts diagram

Lamp

Part #5303015532

The manufacturer no longer makes this part, and there's no substitute part

Clamp 3015746
#10

System parts diagram

Clamp

Part #3015746

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 3015507
#14

Cabinet parts diagram

Escutcheon

Part #3015507

The manufacturer no longer makes this part, and there's no substitute part
