Model # 20071211 Official Sears battery charger

Here are the diagrams and repair parts for Official Sears 20071211 battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 16 parts |

#13

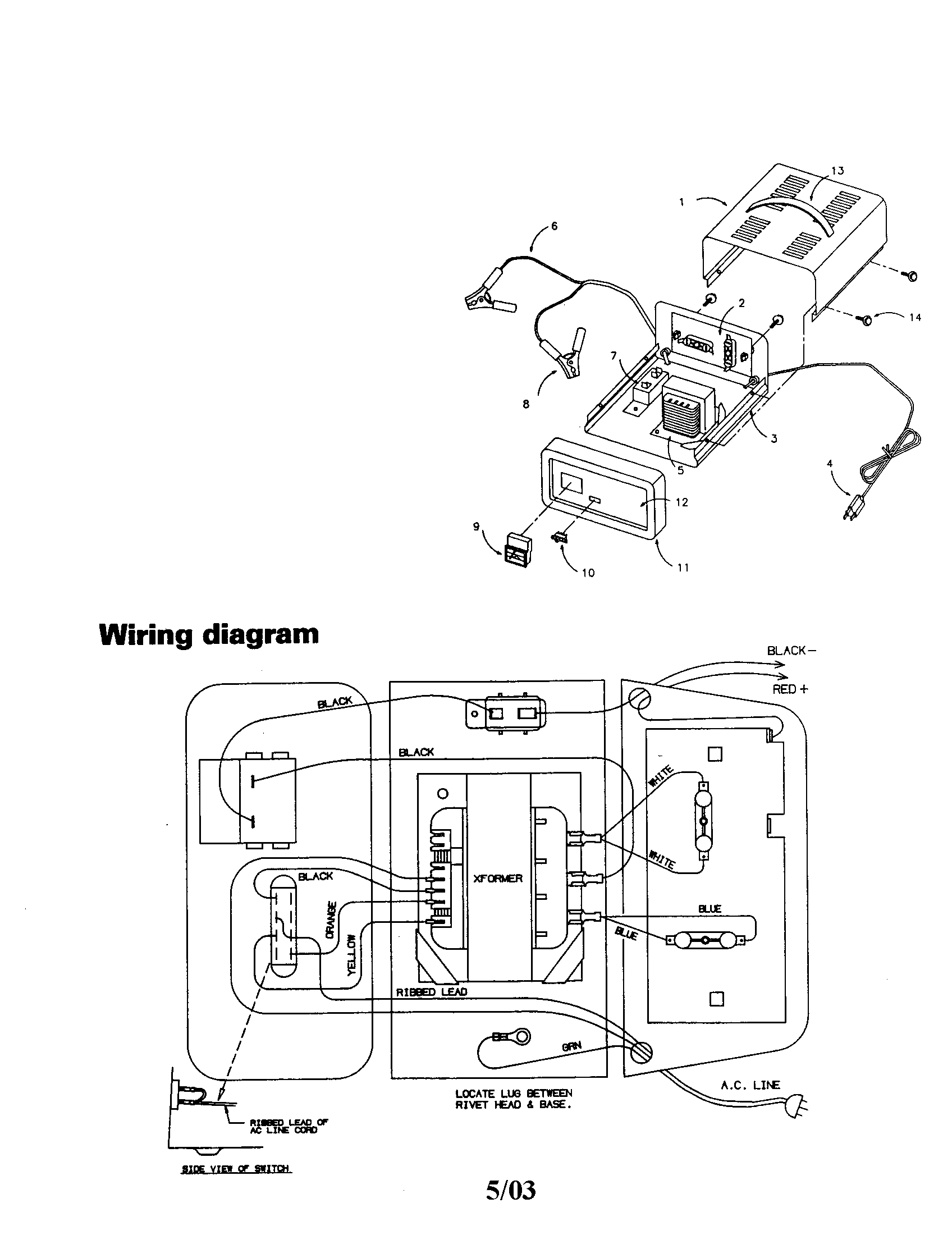

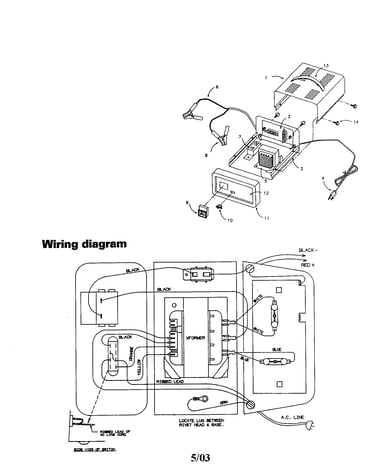

Cover/base/wiring diagram

Handle

Part #3599000240

The manufacturer no longer makes this part, and there's no substitute part

Cover/base/wiring diagram

Breaker

Part #3999000072

The manufacturer no longer makes this part, and there's no substitute part

Cover/base/wiring diagram

Heatsink

Part #2299000846

The manufacturer no longer makes this part, and there's no substitute part

Cover/base/wiring diagram

Meter

Part #5399100092

The manufacturer no longer makes this part, and there's no substitute part

#12

Cover/base/wiring diagram

Decal

Part #0899000532

The manufacturer no longer makes this part, and there's no substitute part

#14

Cover/base/wiring diagram

Screw

Part #5181806256

The manufacturer no longer makes this part, and there's no substitute part

Cover/base/wiring diagram

Cable

Part #3899000515

The manufacturer no longer makes this part, and there's no substitute part

Cover/base/wiring diagram

Transformer

Part #93026312

The manufacturer no longer makes this part, and there's no substitute part

#8B

Cover/base/wiring diagram

Sleeving b

Part #0399000008

The manufacturer no longer makes this part, and there's no substitute part

#8A

Cover/base/wiring diagram

Sleeving r

Part #0399000007

The manufacturer no longer makes this part, and there's no substitute part
