Model # SF304BSYW1 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF304BSYW1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Insulation 4371091
#15

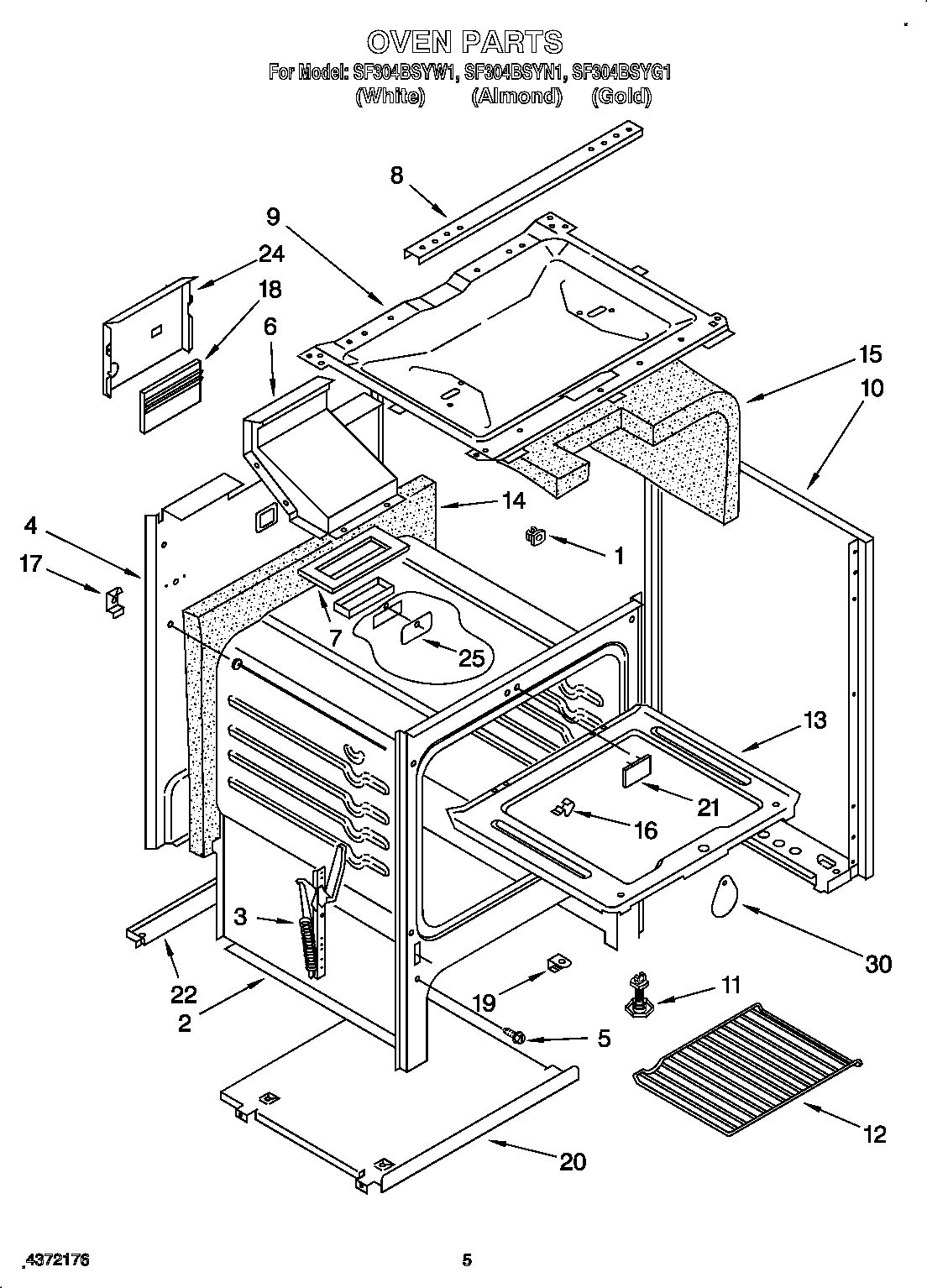

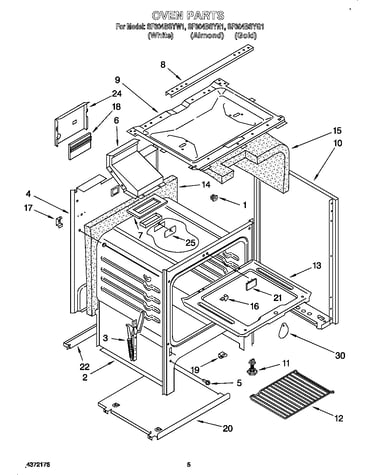

Oven parts diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Surface Knob 4371476
#3

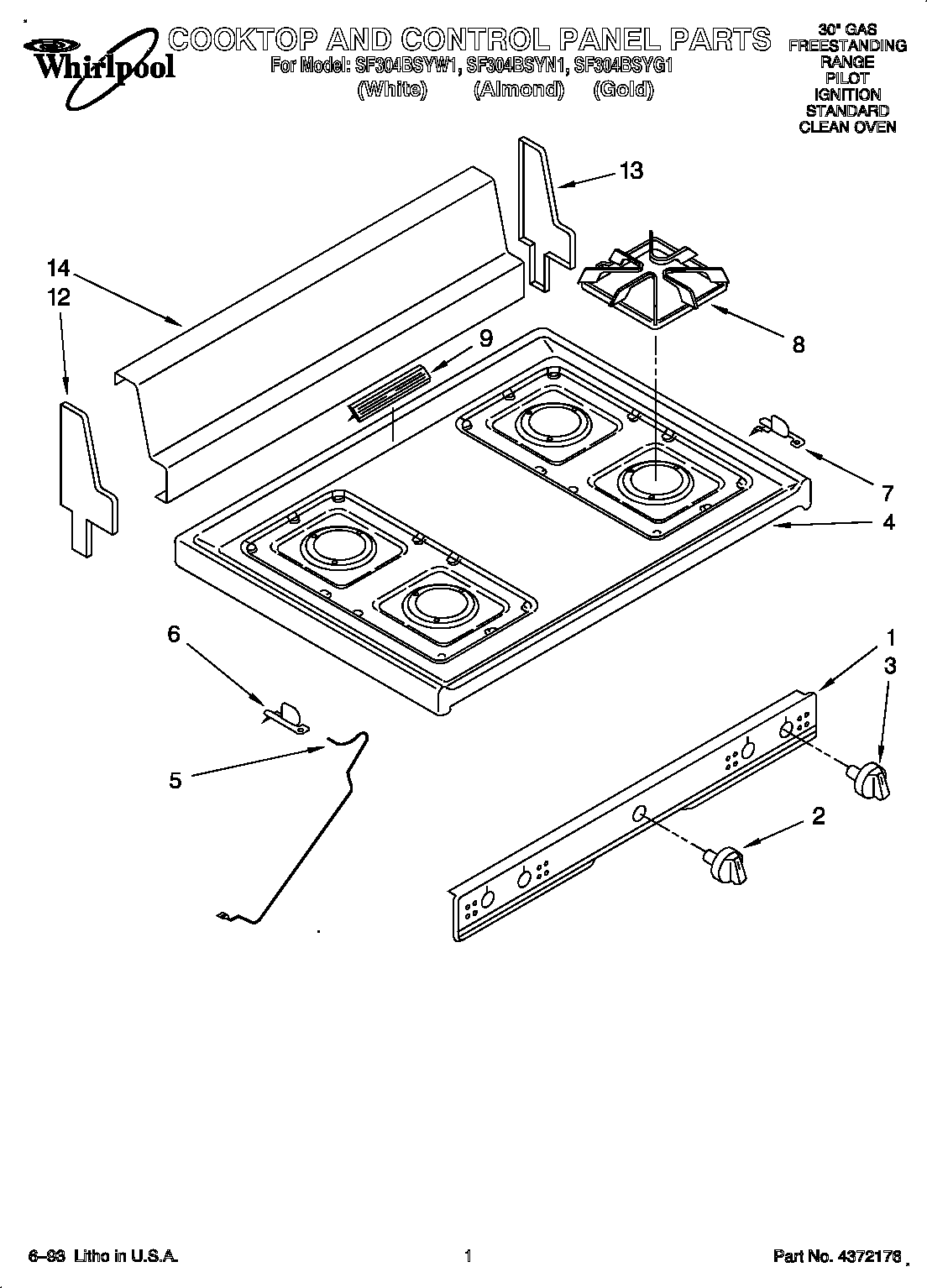

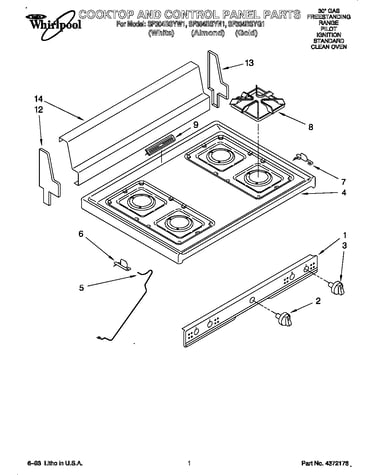

Cooktop and control panel parts diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Burner 4371480
#5

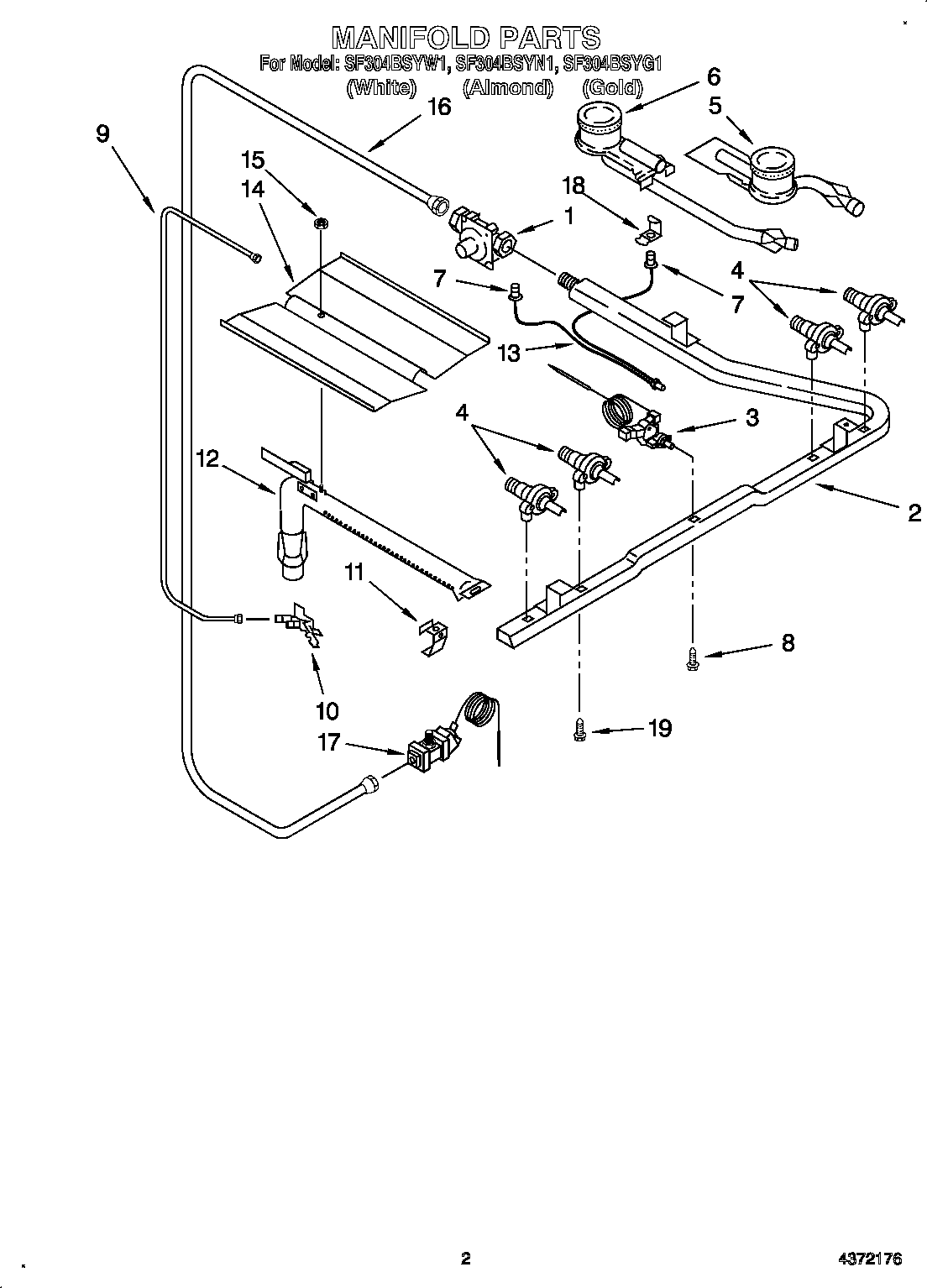

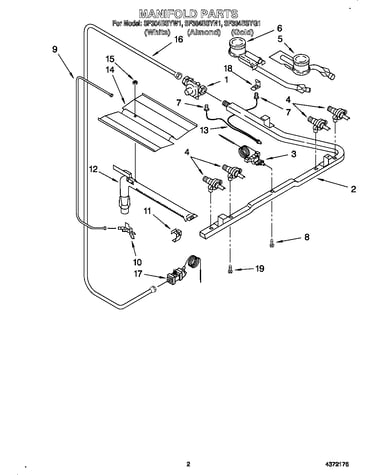

Manifold parts diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Screw 4371027
#19

Manifold parts diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Rear Cover 4371280
#14

Manifold parts diagram

Rear cover

Part #4371280

The manufacturer no longer makes this part, and there's no substitute part

Oven 4371018
#13

Oven parts diagram

Oven

Part #4371018

The manufacturer no longer makes this part, and there's no substitute part

Vent Cover 4371079
#9

Cooktop and control panel parts diagram

Vent cover

Part #4371079

The manufacturer no longer makes this part, and there's no substitute part

Channel 4371076
#8

Oven parts diagram

Channel

Part #4371076

The manufacturer no longer makes this part, and there's no substitute part

Push Nut Fastener 4371117
#12

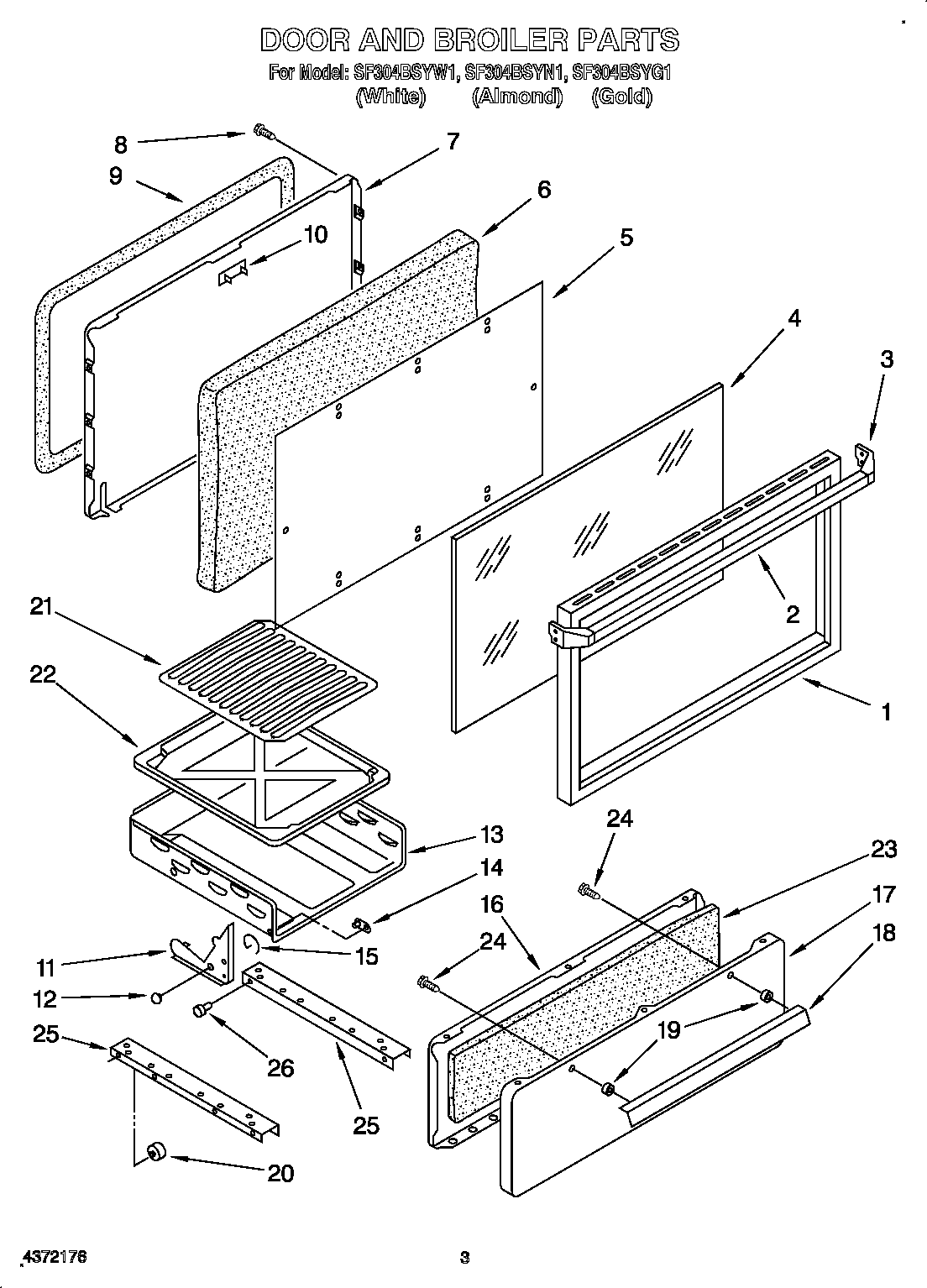

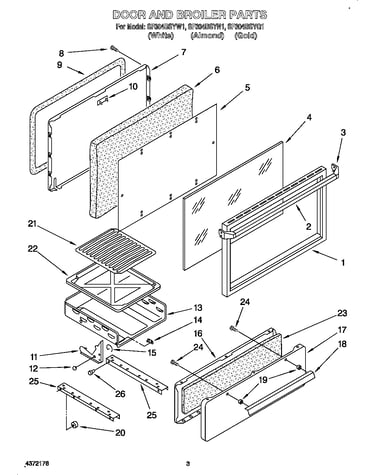

Door and broiler parts diagram

Push nut fastener

Part #4371117

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Bracket 816721
#7

Cooktop and control panel parts diagram

Cooktop bracket

Part #816721

The manufacturer no longer makes this part, and there's no substitute part
