Magic Chef
Chest Freezer

Model # C7J Official Magic Chef freezer

Here are the diagrams and repair parts for Official Magic Chef C7J freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

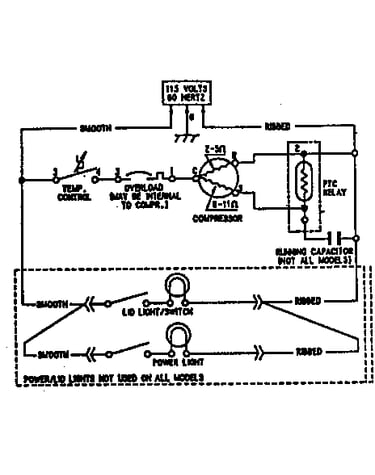

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Refrigerator Uv Dye Dryer 13900-1
#6

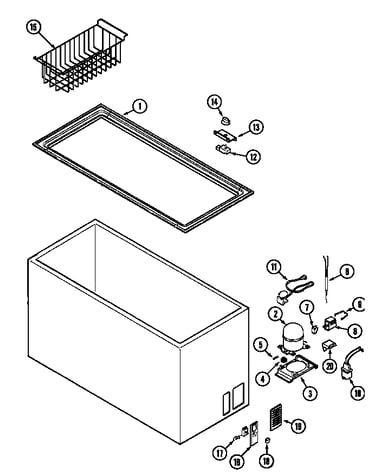

Cabinet diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Compressor Kit 68001140
Compressor kit

Part #68001140

Replaced by #W10823815

?
Manufacturer substitution
This part replaces 68001140. Substitute parts can look different from the original.
BEST SELLER
$364.37 |
$12.00 OFF Phone Price : $376.37
In Stock
Temperature Control 68001249
#17

Cabinet diagram

Temperature control

Part #68001249

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 68001249. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Wire Basket 09100065
#15

Cabinet diagram

Wire basket

Part #09100065

Replaced by #8210434A

?
Manufacturer substitution
This part replaces 09100065. Substitute parts can look different from the original.
$35.36 |
15% OFF Phone Price : $41.36
In Stock
Screw 68001155
#13B

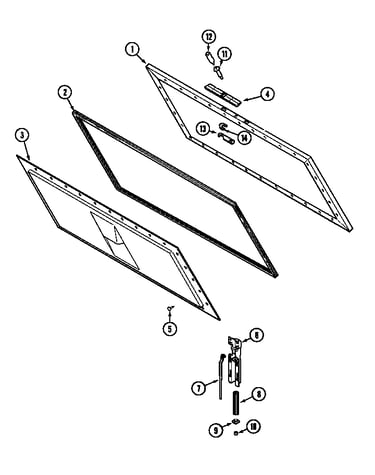

Lid diagram

Screw

Part #68001155

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001155. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Base Bracket 68001313
#3B

Cabinet diagram

Base bracket

Part #68001313

Replaced by #3-81556-001

?
Manufacturer substitution
This part replaces 68001313. Substitute parts can look different from the original.
$10.80
In Stock
Clip 09100010
#11D

Cabinet diagram

Clip

Part #09100010

Replaced by #488946

?
Manufacturer substitution
This part replaces 09100010. Substitute parts can look different from the original.
$14.00
In Stock
Overload 68001357
#20

Cabinet diagram

Overload

Part #68001357

Replaced by #2264602

?
Manufacturer substitution
This part replaces 68001357. Substitute parts can look different from the original.
$71.78
In Stock
Run Capacitor 09100173
#10

Cabinet diagram

Run capacitor

Part #09100173

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 09100173. Substitute parts can look different from the original.
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Screw 09100105
Screw

Part #09100105

Replaced by #4356491

?
Manufacturer substitution
This part replaces 09100105. Substitute parts can look different from the original.
$11.59
In Stock
