Craftsman
Power Sander

Model # 875189700 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 875189700 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Craftsman Gear Shaft 9822313
#13

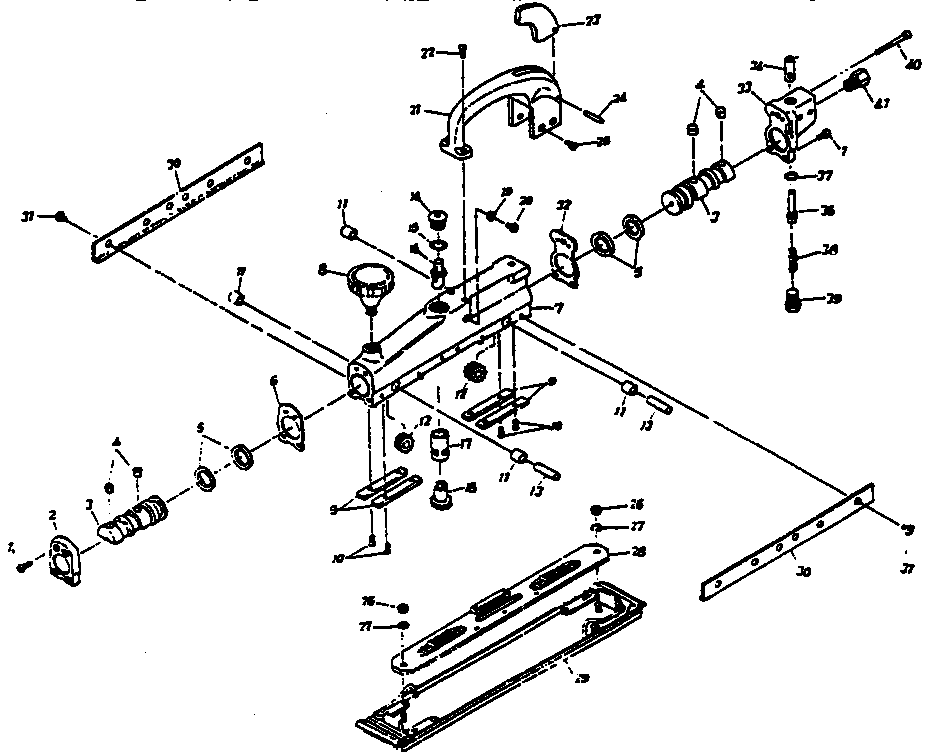

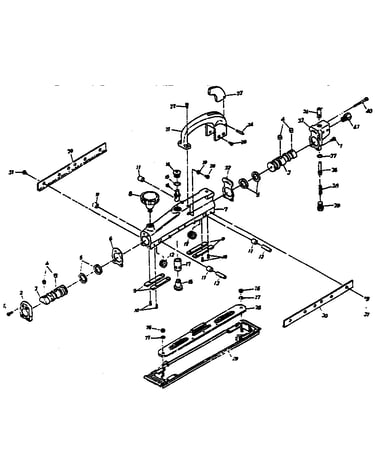

Straight line sander dual piston diagram

Craftsman gear shaft

Part #9822313

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Plug 9822304
#4

Straight line sander dual piston diagram

Craftsman plug

Part #9822304

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Actuatr Valv 9822317
#17

Straight line sander dual piston diagram

Craftsman actuatr valv

Part #9822317

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Plunger 9822314
#14

Straight line sander dual piston diagram

Craftsman plunger

Part #9822314

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Sockt Hd Scr 9822340
#40

Straight line sander dual piston diagram

Craftsman sockt hd scr

Part #9822340

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Gear 9822312
#12

Straight line sander dual piston diagram

Craftsman gear

Part #9822312

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Hose Adapter 9822341
#41

Straight line sander dual piston diagram

Craftsman hose adapter

Part #9822341

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rear Gasket 9822332
#32

Straight line sander dual piston diagram

Craftsman rear gasket

Part #9822332

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer 9822327
#27

Straight line sander dual piston diagram

Craftsman washer

Part #9822327

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ph Rd Hd Scr 9822322
#22

Straight line sander dual piston diagram

Craftsman ph rd hd scr

Part #9822322

The manufacturer no longer makes this part, and there's no substitute part
