Model # 165155402 Official Craftsman paint roller

Here are the diagrams and repair parts for Official Craftsman 165155402 paint roller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 44 parts |

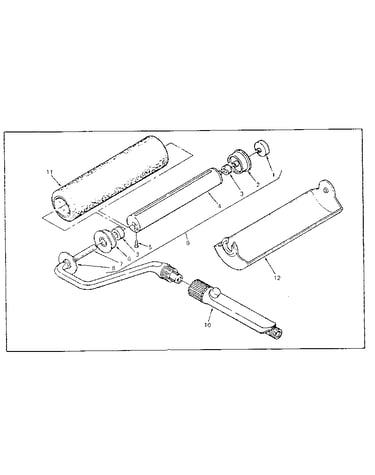

9" roller assembly diagram

Power paint roller tubing end cap seal

Part #0155438

The manufacturer no longer makes this part, and there's no substitute part

9" roller assembly diagram

Paint sprayer screw, 8 x 1/2-in

Part #9802215

The manufacturer no longer makes this part, and there's no substitute part

9" roller assembly diagram

Power paint roller tubing end cap

Part #0155439

The manufacturer no longer makes this part, and there's no substitute part

9" roller assembly diagram

End cap

Part #0155436

The manufacturer no longer makes this part, and there's no substitute part

#18

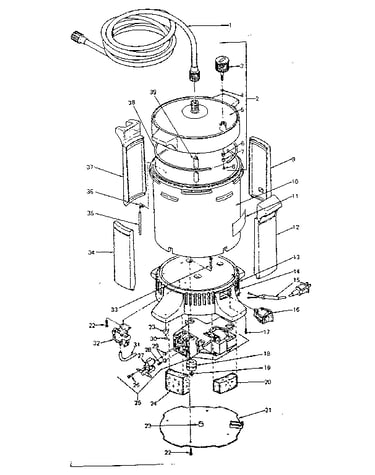

Paint roller assembly diagram

Cushion

Part #0155442

The manufacturer no longer makes this part, and there's no substitute part

9" roller assembly diagram

Spacer

Part #0155284

The manufacturer no longer makes this part, and there's no substitute part

#36

Paint roller assembly diagram

Fitting

Part #9885604

The manufacturer no longer makes this part, and there's no substitute part

Paint roller assembly diagram

Cover assembly

Part #0155632

The manufacturer no longer makes this part, and there's no substitute part

#33

Paint roller assembly diagram

Screw

Part #9800054

The manufacturer no longer makes this part, and there's no substitute part

#10

9" roller assembly diagram

Handle assembly

Part #0155629

The manufacturer no longer makes this part, and there's no substitute part
