Dacor
Gas Range

Model # ER36GSCHLPH Official Dacor range

Here are the diagrams and repair parts for Official Dacor ER36GSCHLPH range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

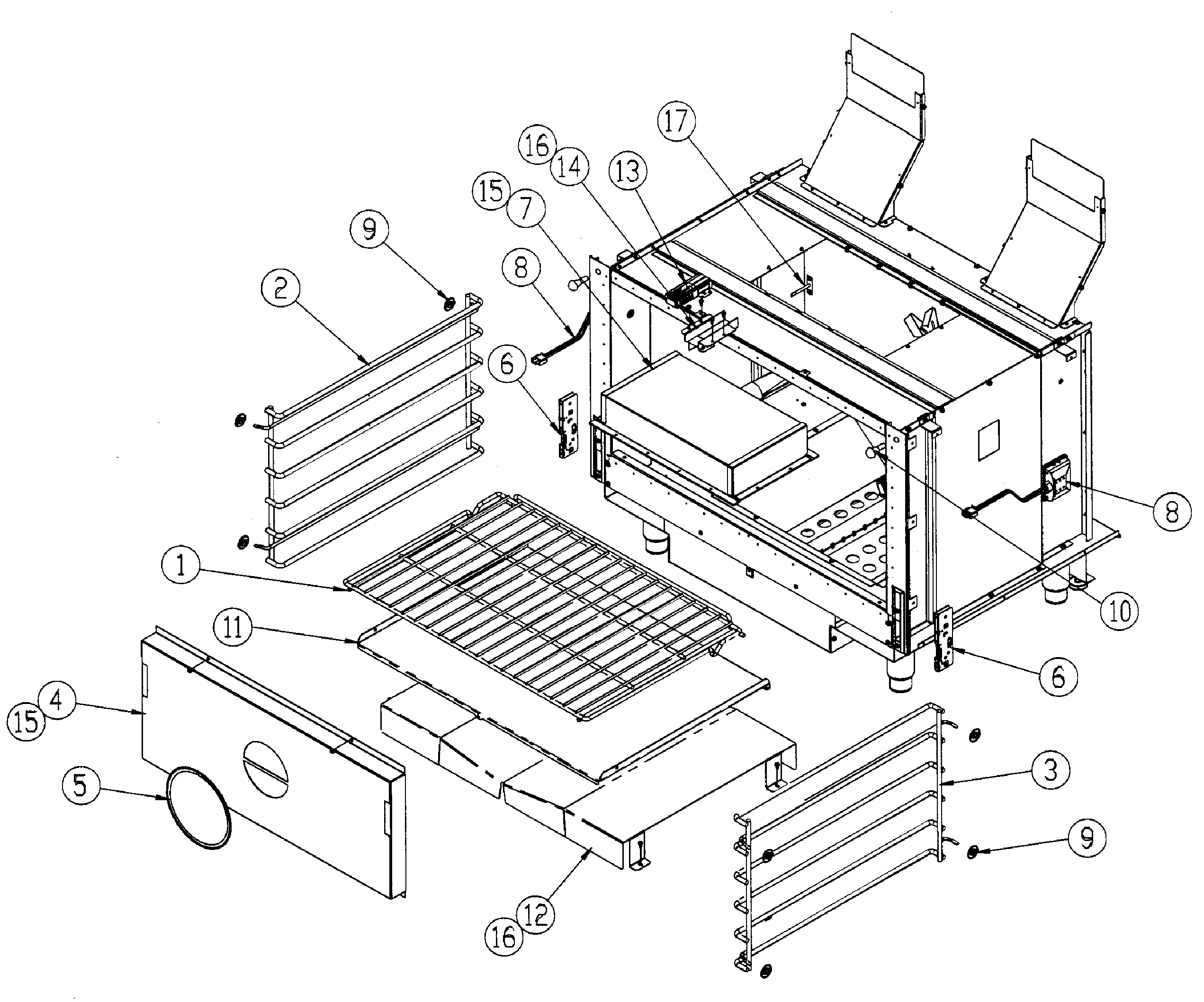

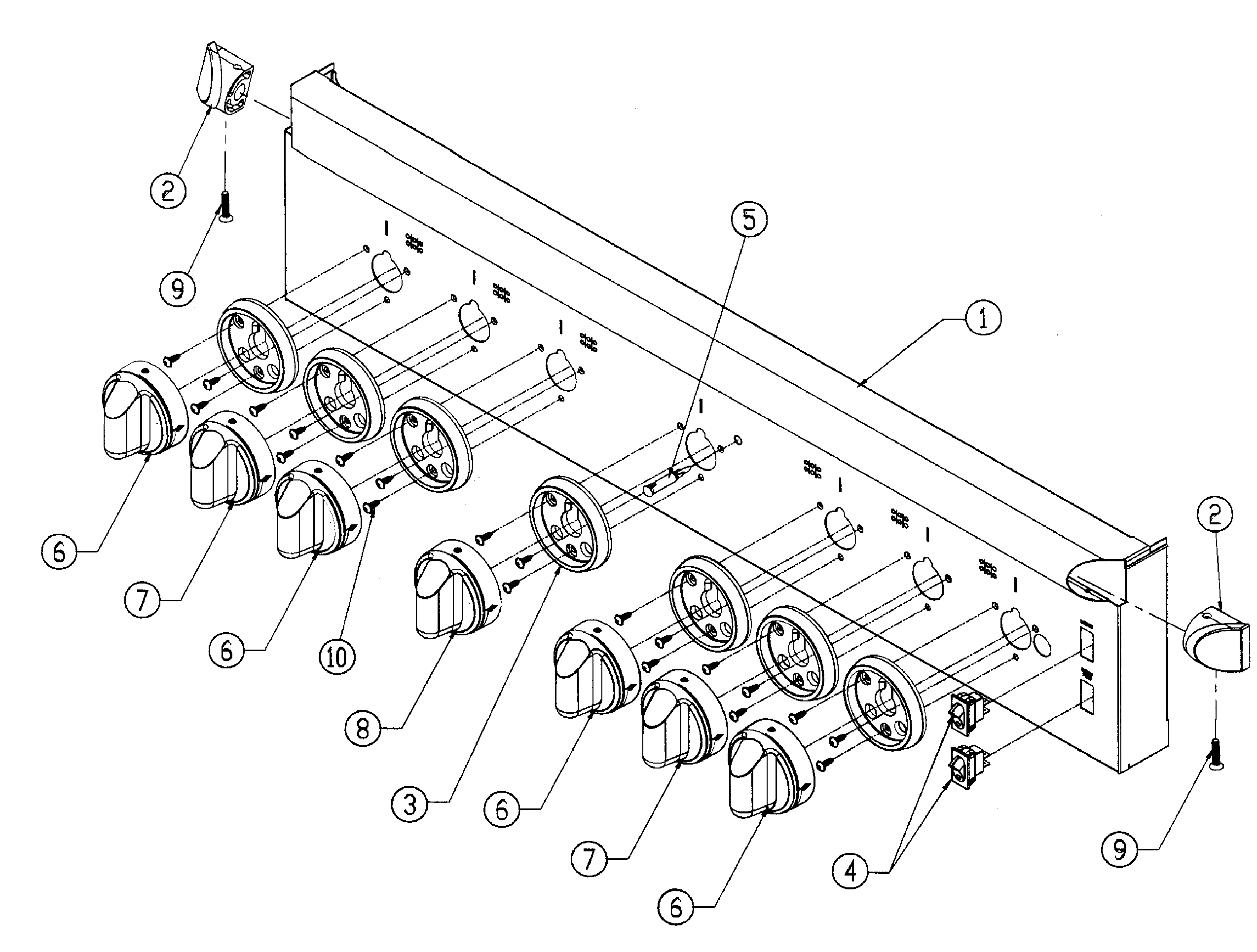

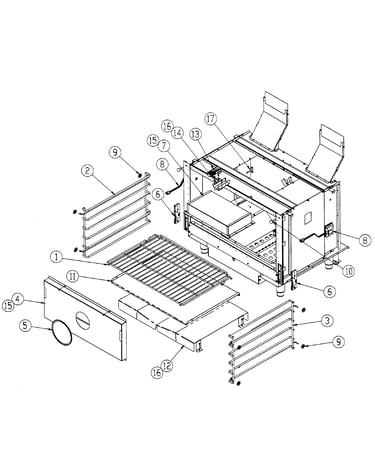

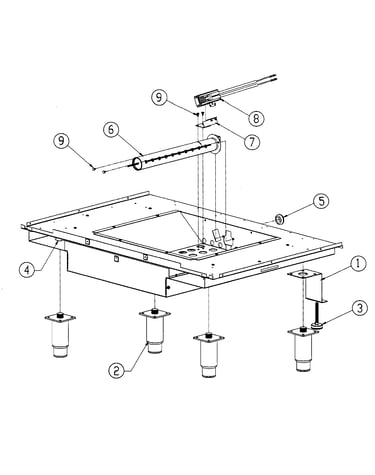

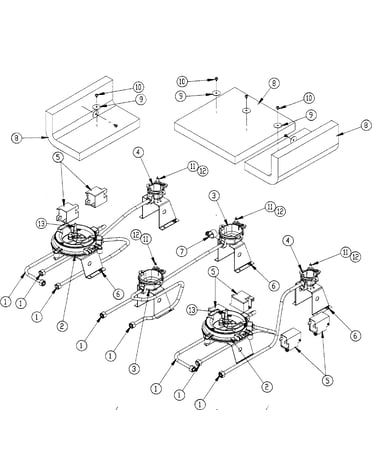

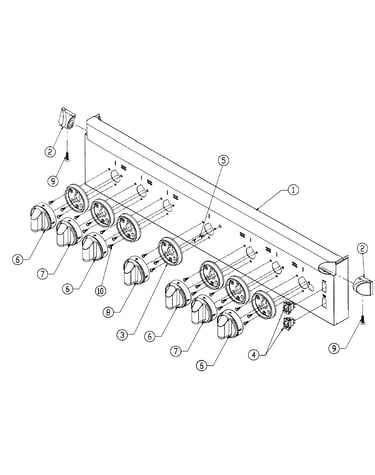

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Range Oven Control Board 106169-02
#12

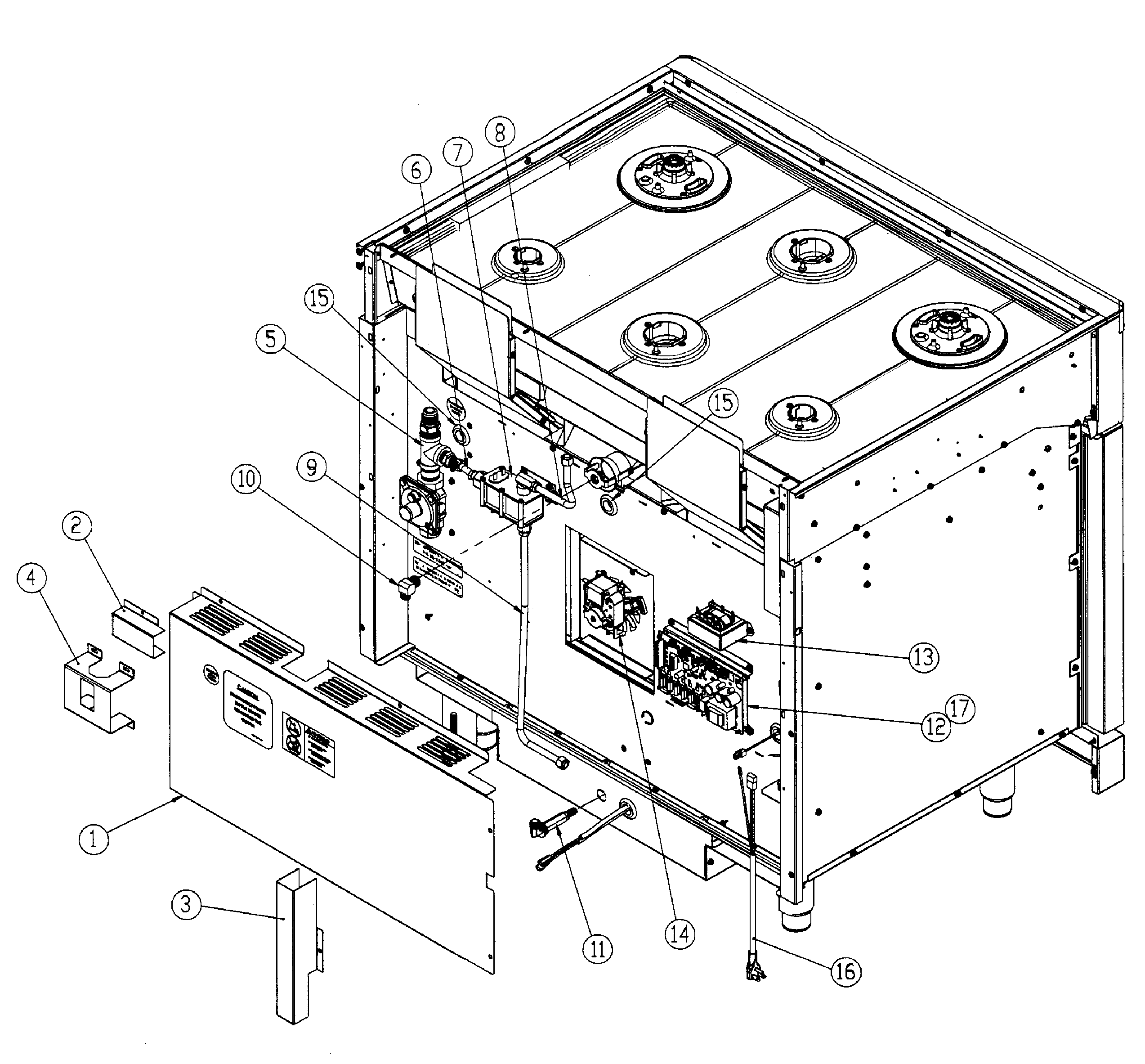

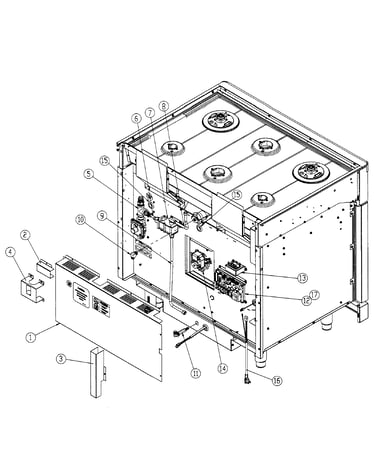

Rear assy diagram

Range oven control board

Part #106169-02

$187.99
In Stock
Nut 83308
#10

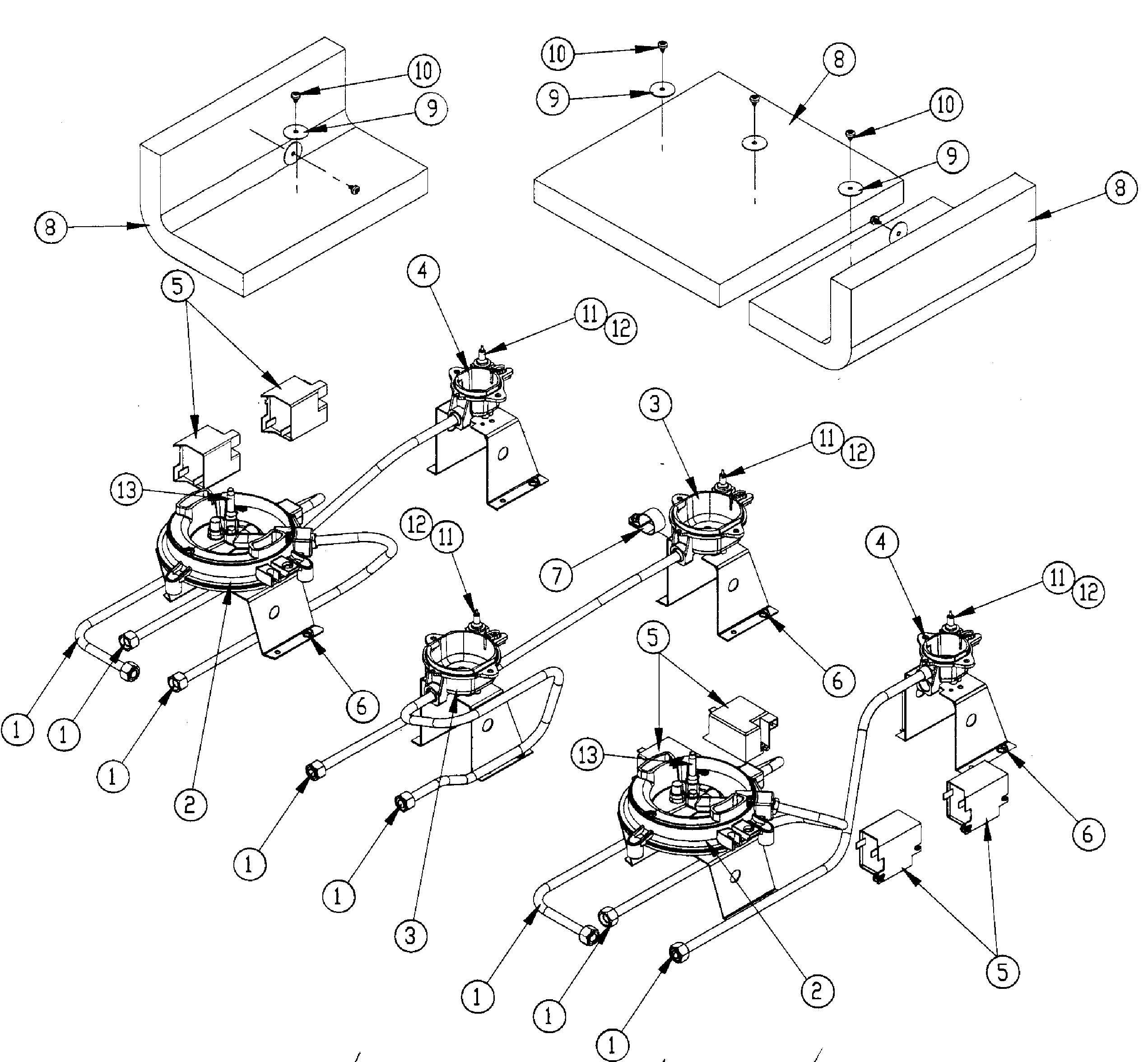

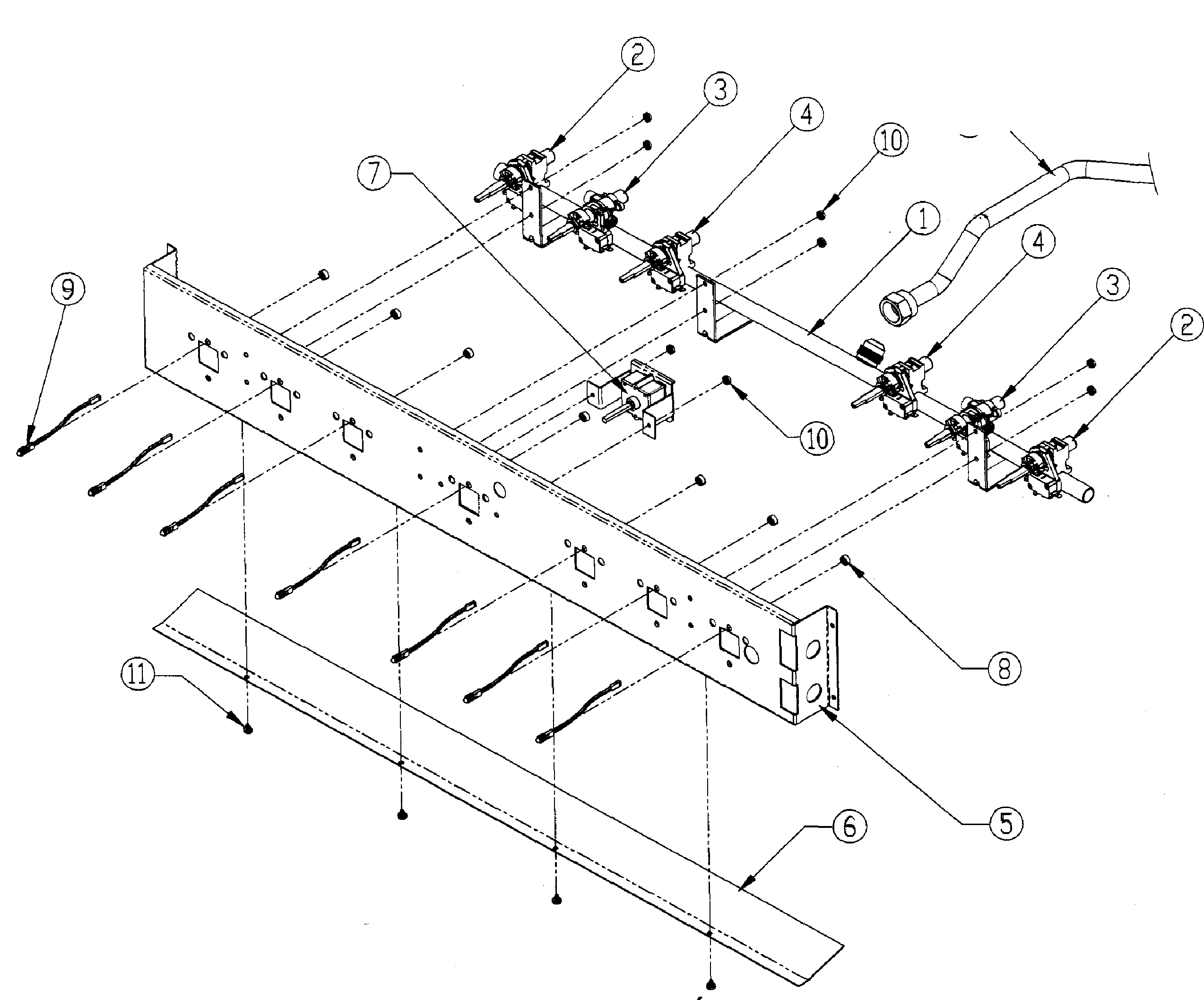

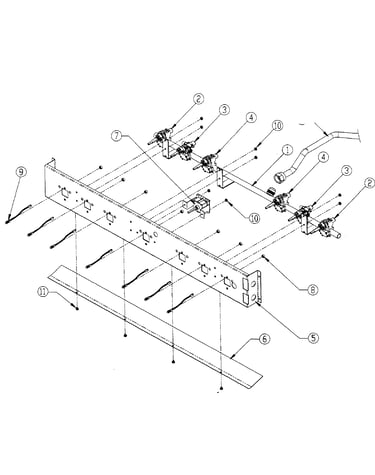

Manifold diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Spill Tray 106375BP
#1

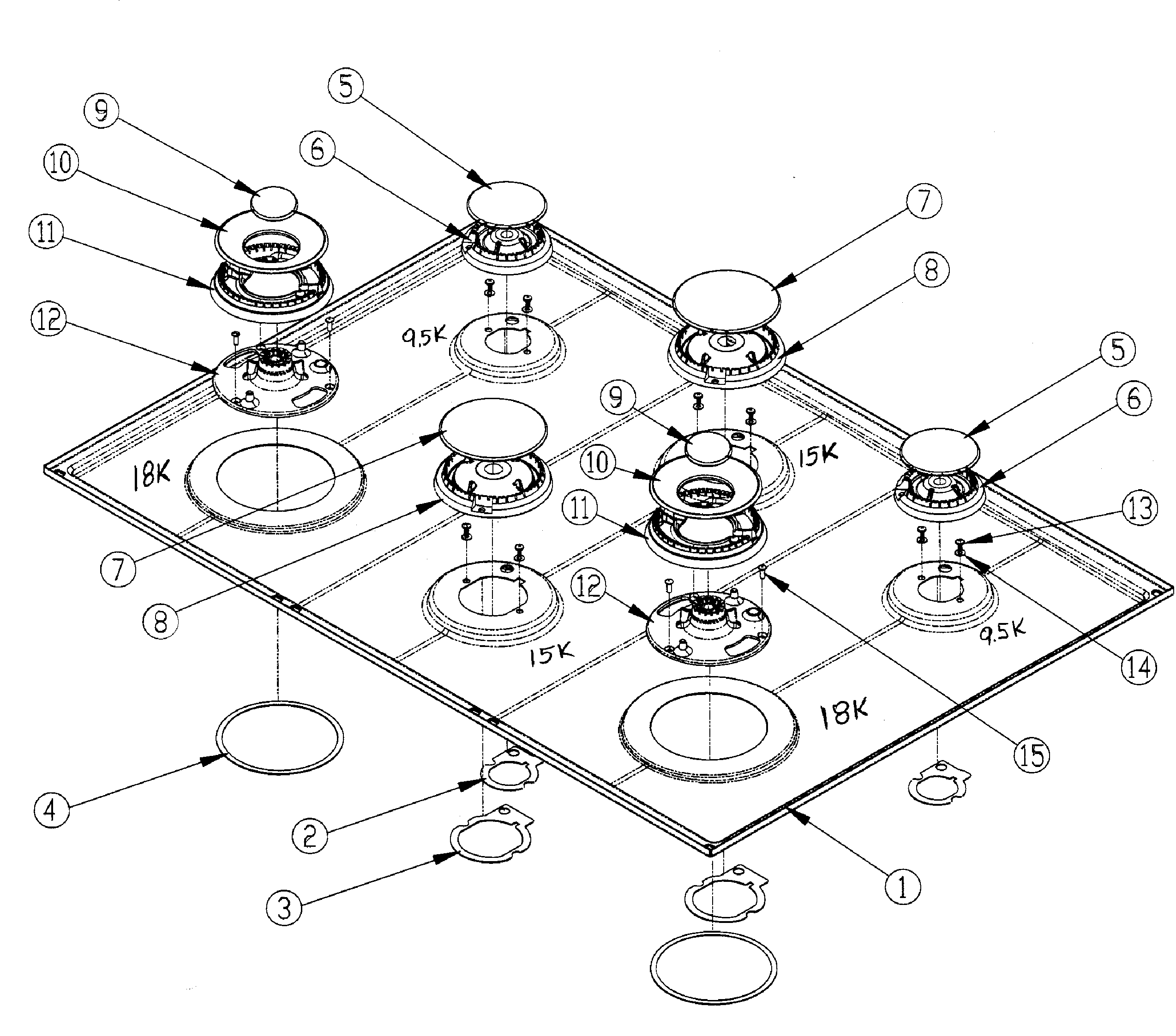

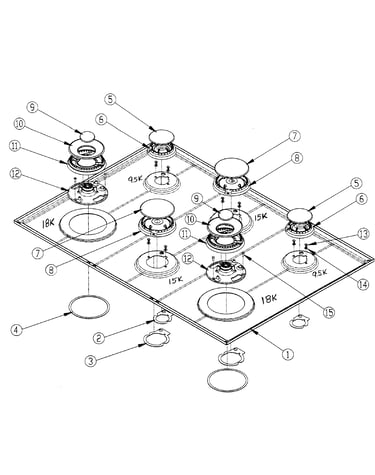

Top assy diagram

Spill tray

Part #106375BP

$99.49
In Stock
Range Surface Burner Cap 102593
#5

Top assy diagram

Range surface burner cap

Part #102593

$9.99
In Stock
Wall Oven Door Window Assembly 72968
#5

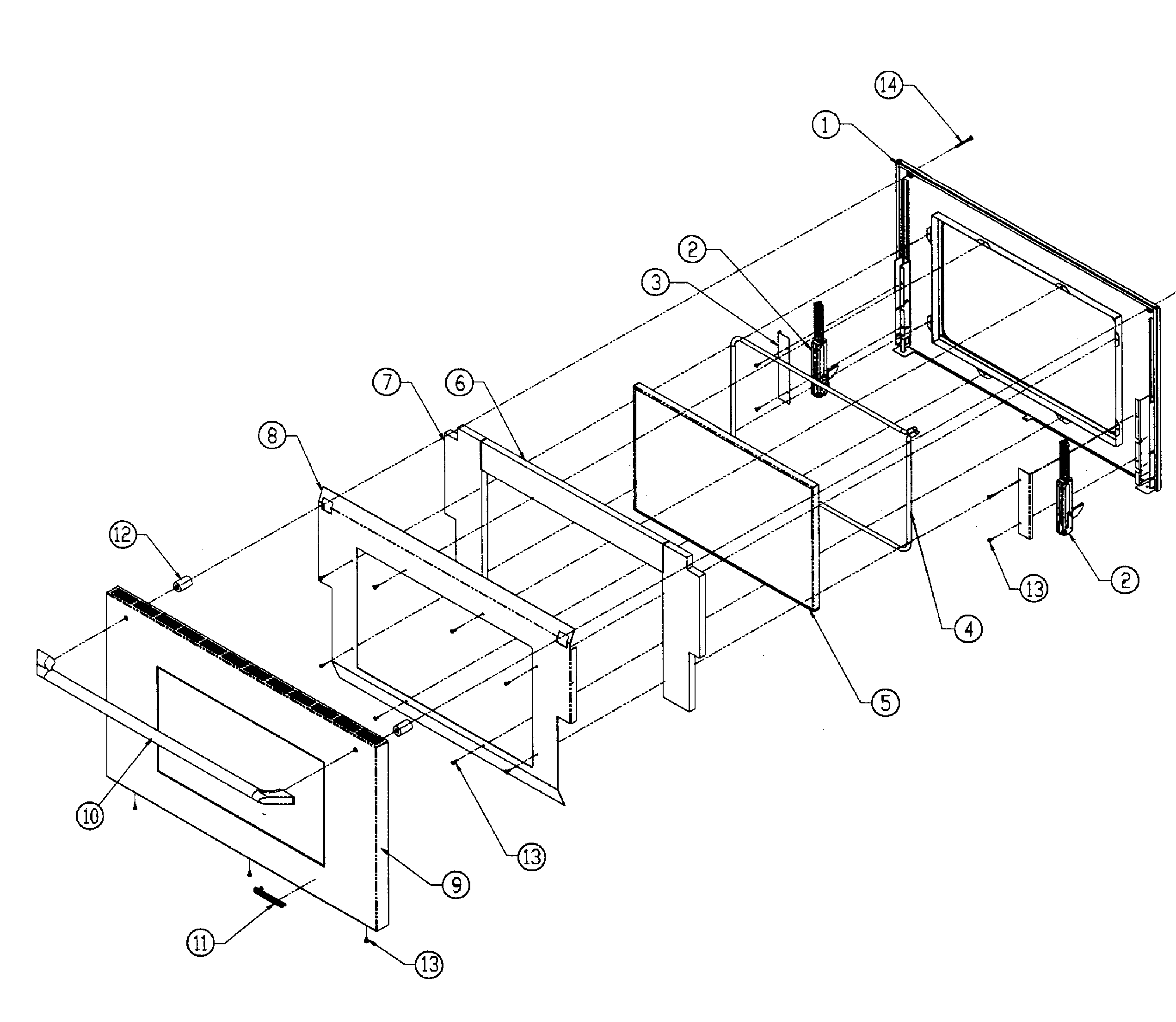

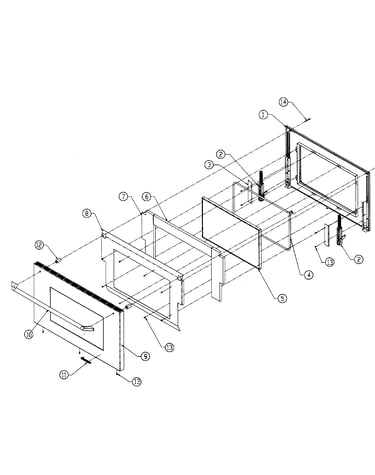

Door assy diagram

Wall oven door window assembly

Part #72968

$176.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
#10

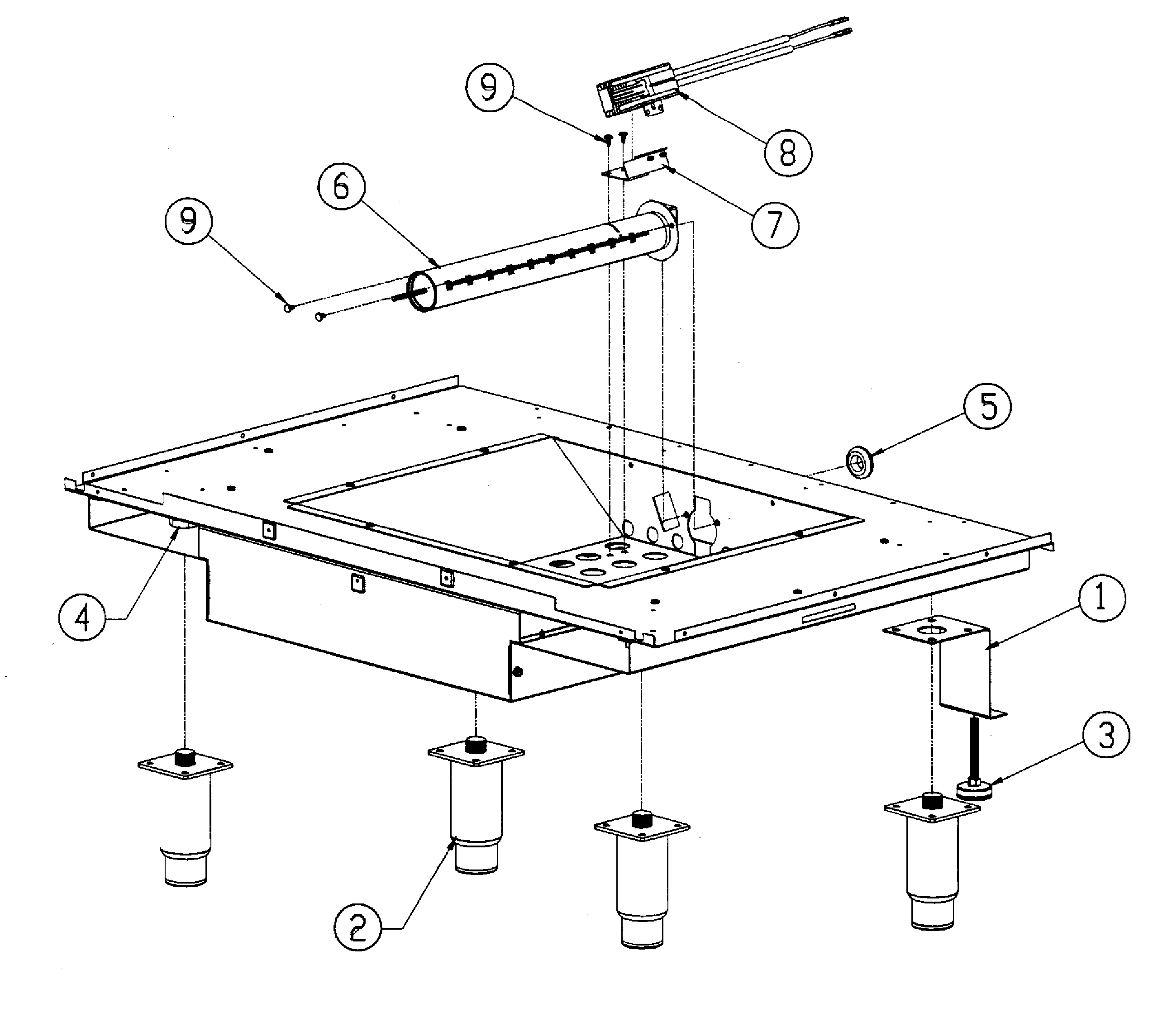

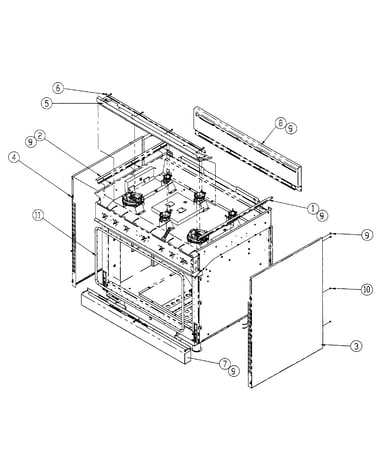

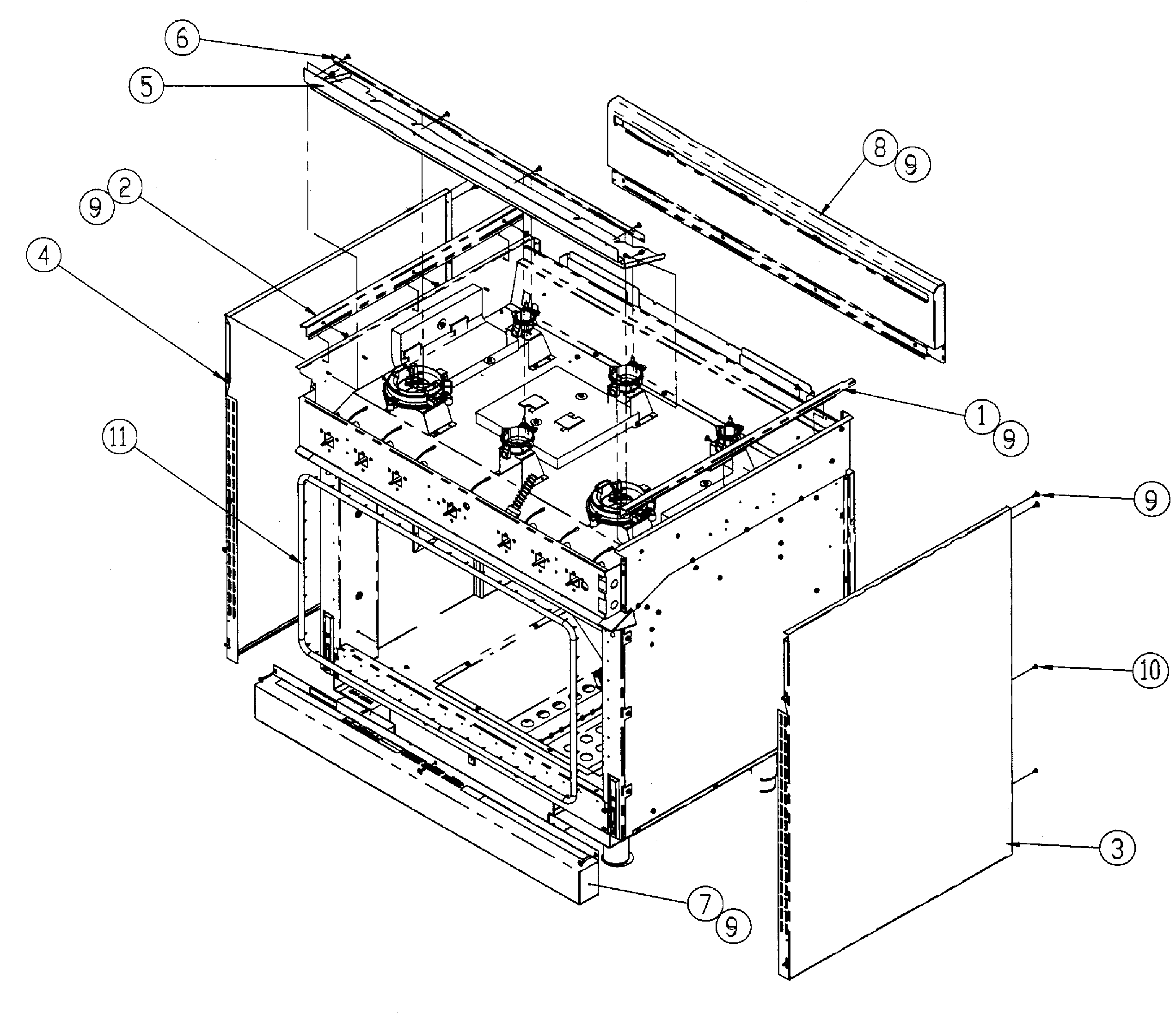

Outer assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Cooktop Dual Valve 103659
#7

Rear assy diagram

Cooktop dual valve

Part #103659

$119.99
Back Order
Jet Broil 103556-04
#10

Rear assy diagram

Jet broil

Part #103556-04

$25.49
In Stock
Limit Switch 92321
#NI

Top assy diagram

Limit switch

Part #92321

$20.99
In Stock
Range Screw 103696
#13

Top assy diagram

Range screw

Part #103696

This item is not returnable
$2.16
In Stock
