Craftsman
Gas Walk-Behind Mower

Model # 917370760 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370760 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

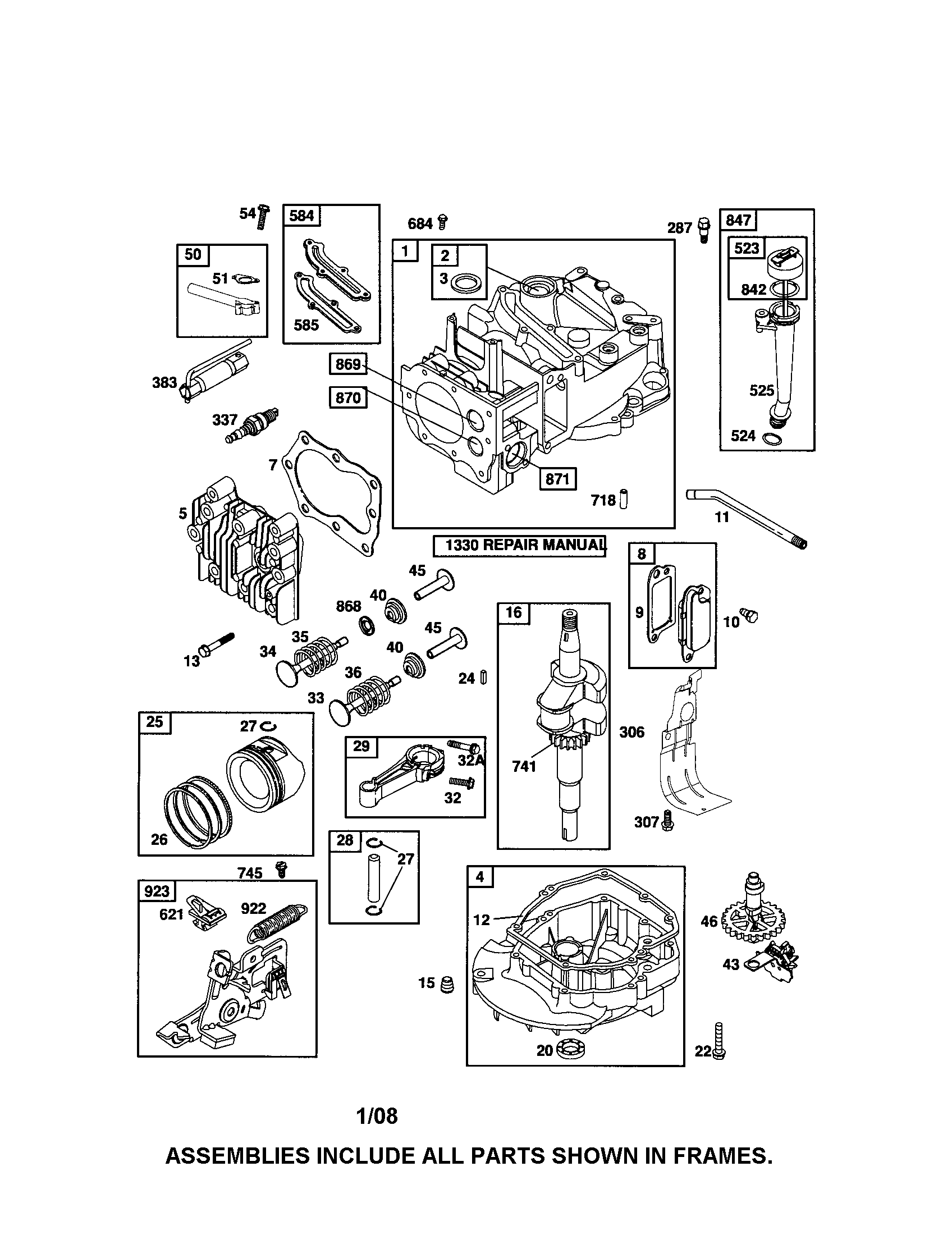

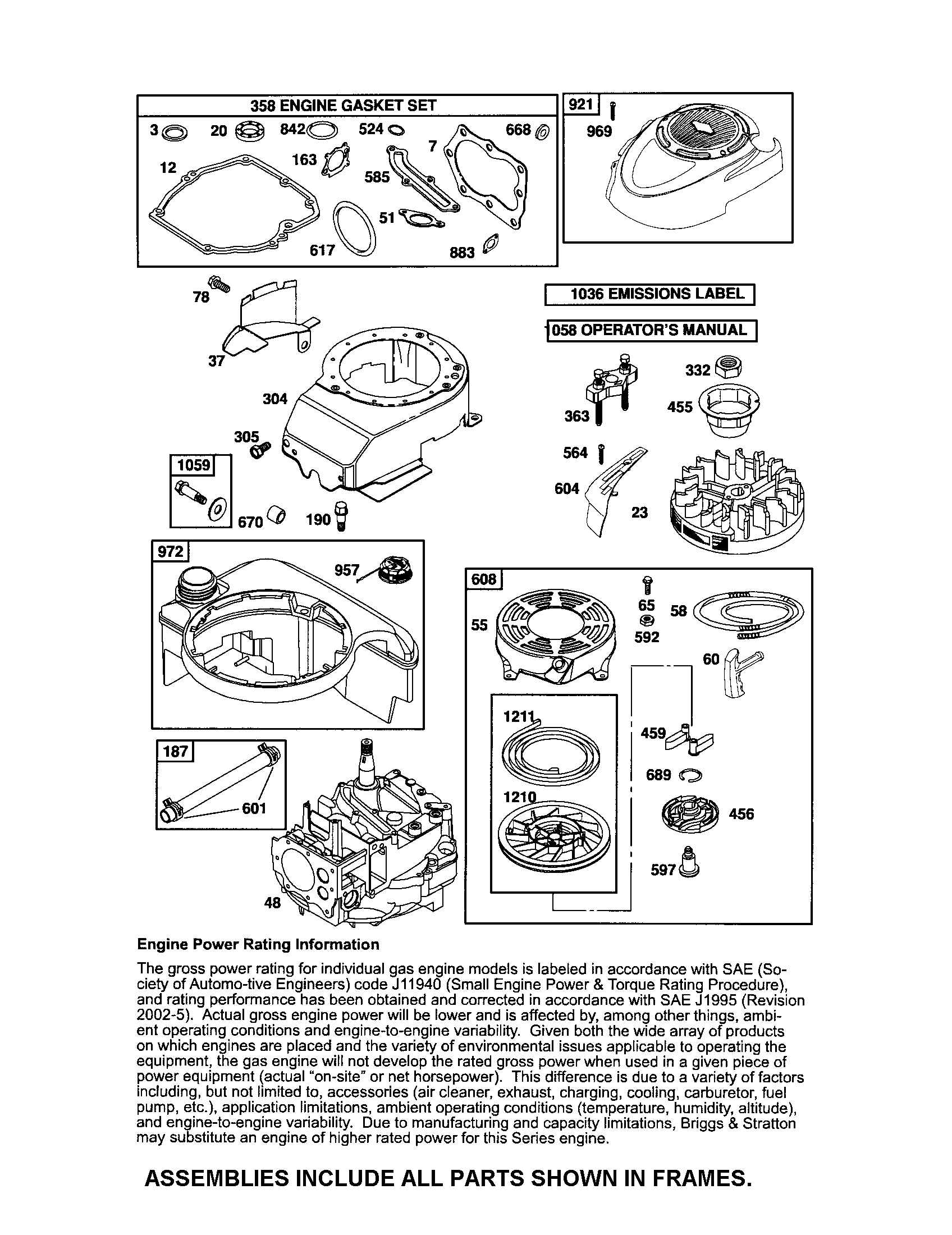

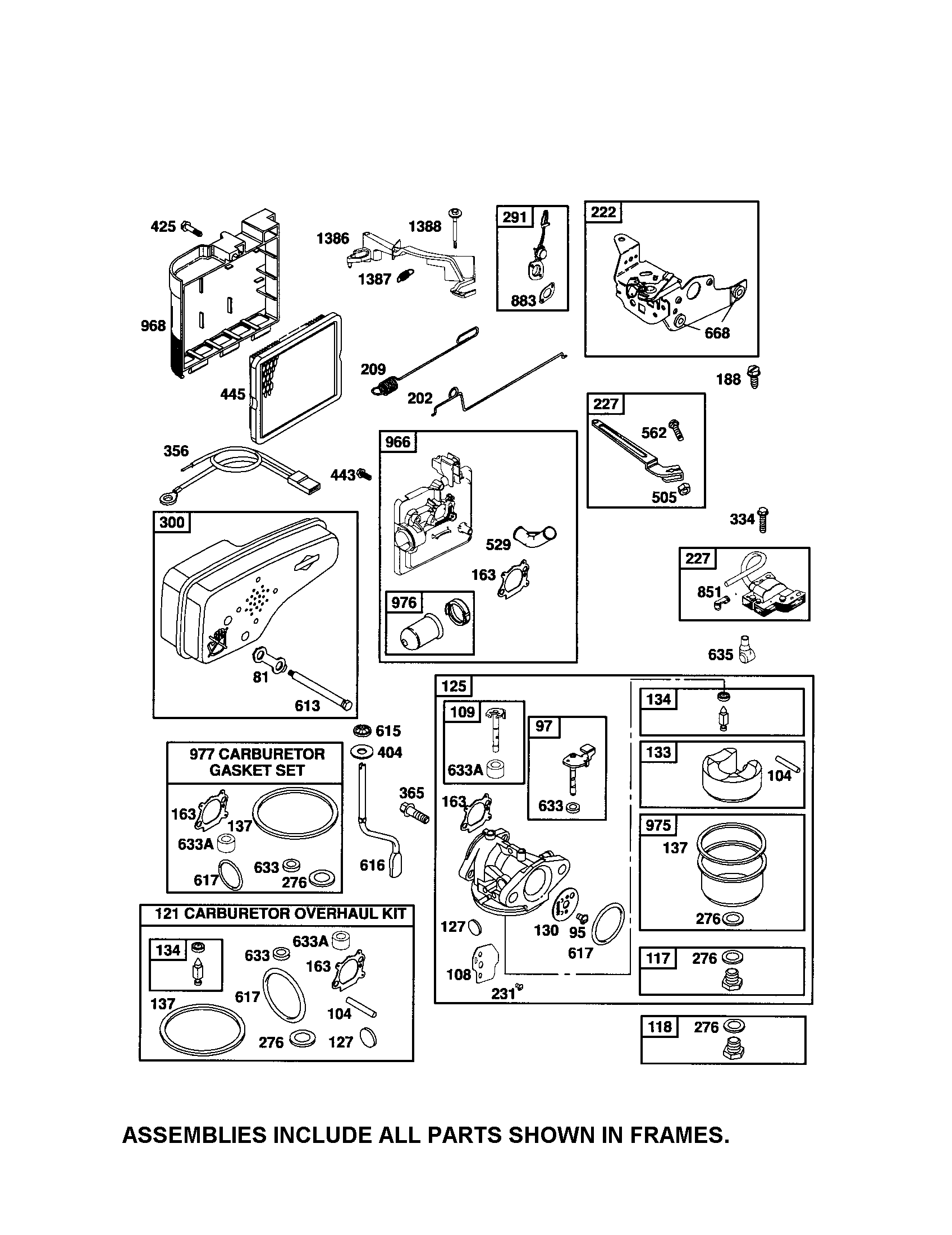

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
Lawn & Garden Equipment Nut 409148
#33

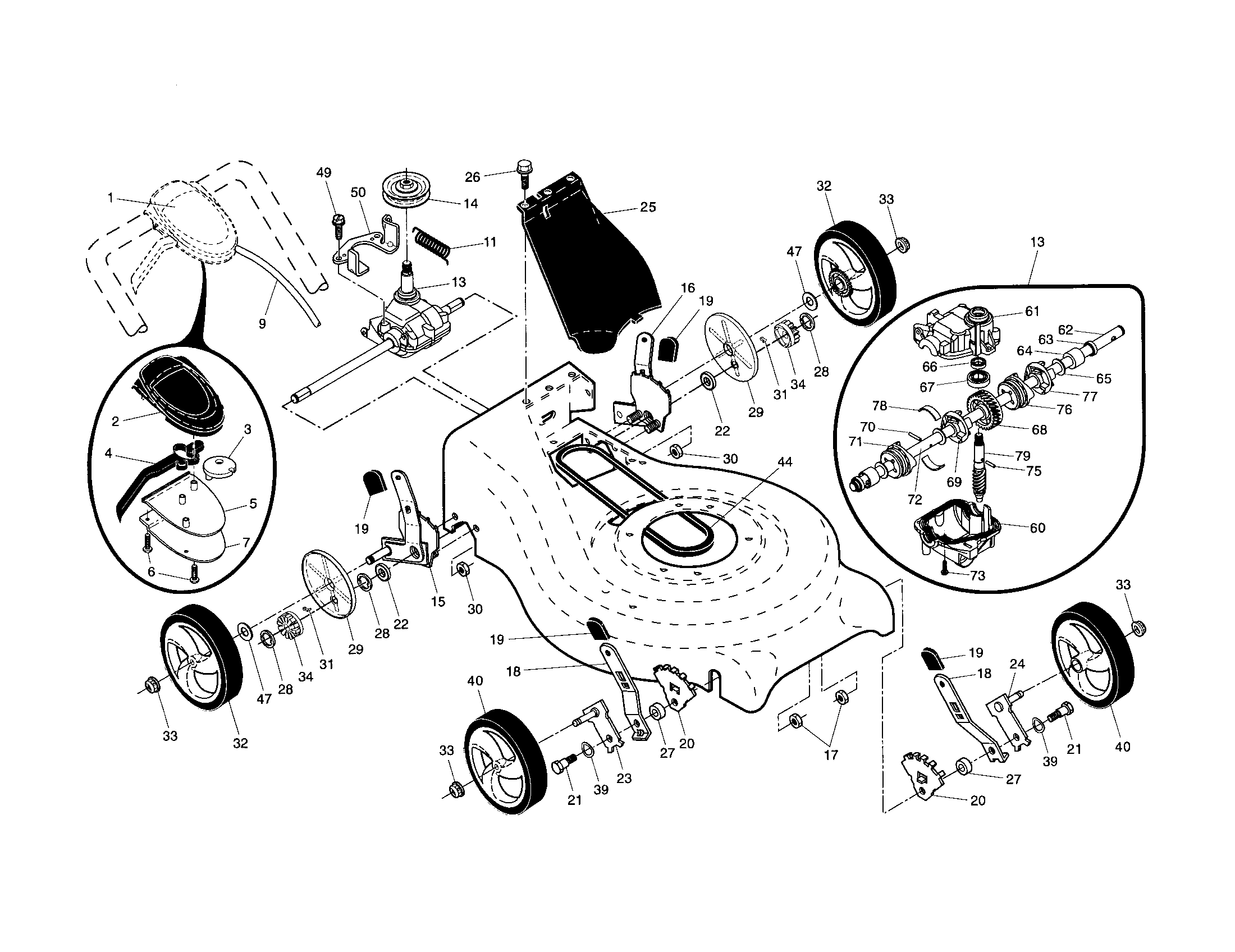

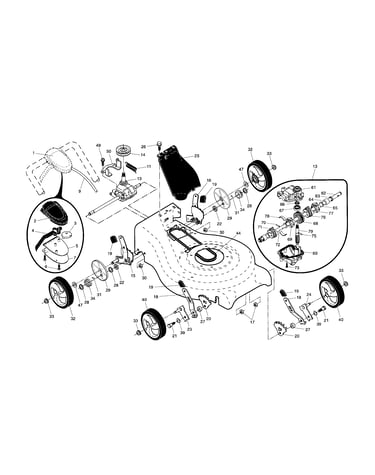

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#8

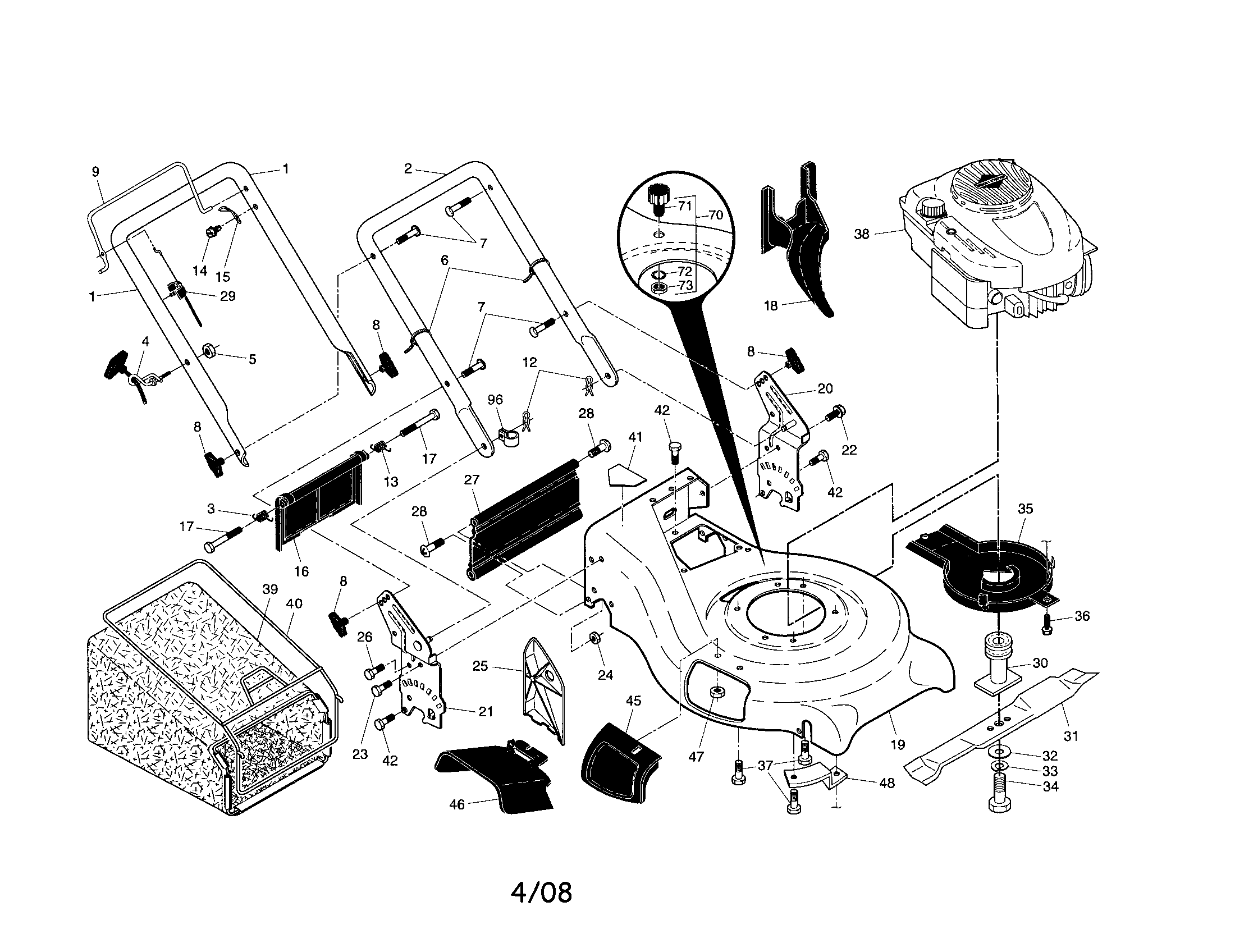

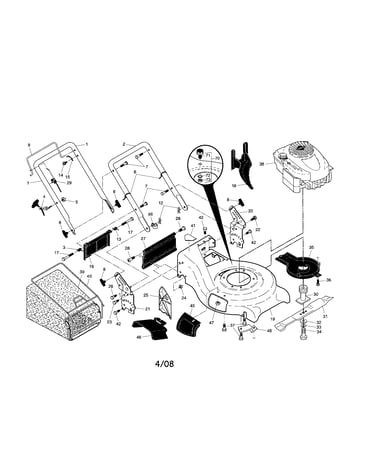

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#24

Engine/housing/handle diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Bolt 401638
#21

Drive control/gear case/wheels diagram

Bolt

Part #401638

Replaced by #596203801

?
Manufacturer substitution
This part replaces 401638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Drive Control Assembly 406254
#1

Drive control/gear case/wheels diagram

Lawn mower drive control assembly

Part #406254

Replaced by #583297901

?
Manufacturer substitution
This part replaces 406254. Substitute parts can look different from the original.
BEST SELLER
$59.98 |
9% OFF Phone Price : $65.98
In Stock
Return Spring 406558
#11

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Washer 67725
#47

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Cable 406258
#9

Drive control/gear case/wheels diagram

Lawn mower cable

Part #406258

Replaced by #532406258

?
Manufacturer substitution
This part replaces 406258. Substitute parts can look different from the original.
$38.98 |
13% OFF Phone Price : $44.98
In Stock
Short Lever 188281
#4

Drive control/gear case/wheels diagram

Short lever

Part #188281

Replaced by #583170901

?
Manufacturer substitution
This part replaces 188281. Substitute parts can look different from the original.
$30.64 |
16% OFF Phone Price : $36.64
In Stock
