Frigidaire
Electric Range

Model # FFEF3016TBC Official Frigidaire freestanding electric range

Here are the diagrams and repair parts for Official Frigidaire FFEF3016TBC freestanding electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

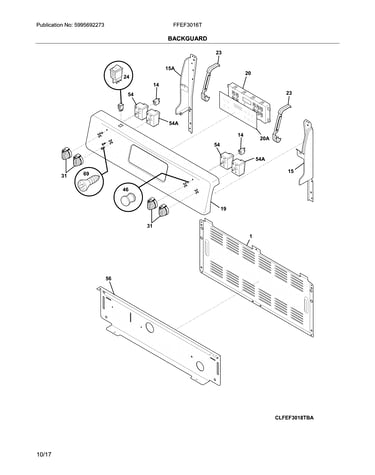

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Galaxy Range Bake Element (replaces 316075104) 316075103
#67

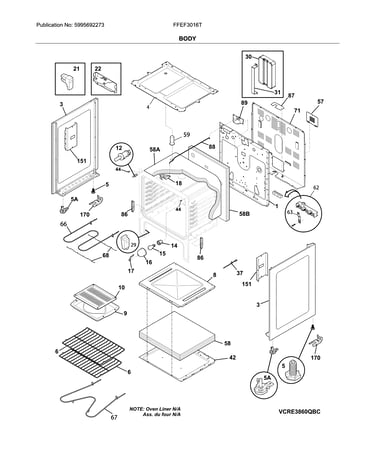

Body diagram

Galaxy range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Element 318372214
#15

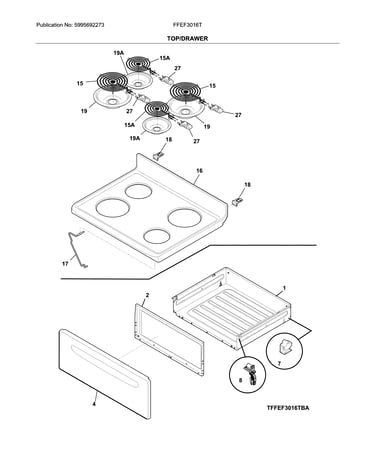

Top/drawer diagram

Element

Part #318372214

Replaced by #316442301

?
Manufacturer substitution
This part replaces 318372214. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
White-westinghouse Range Coil Element, 6-in (replaces 316439801) 318372211
#15A

Top/drawer diagram

White-westinghouse range coil element, 6-in (replaces 316439801)

Part #318372211

BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Range Oven Door Inner Glass 316117503
#16

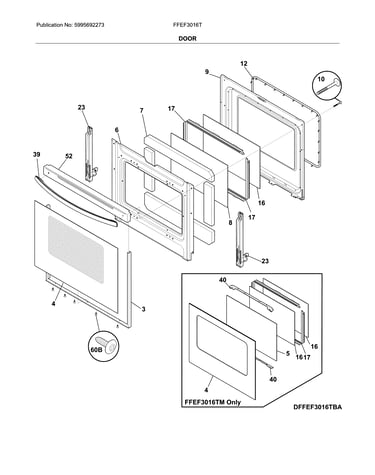

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
