GE
Bottom-Mount Refrigerator

Model # GFSS6KKXASS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GFSS6KKXASS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

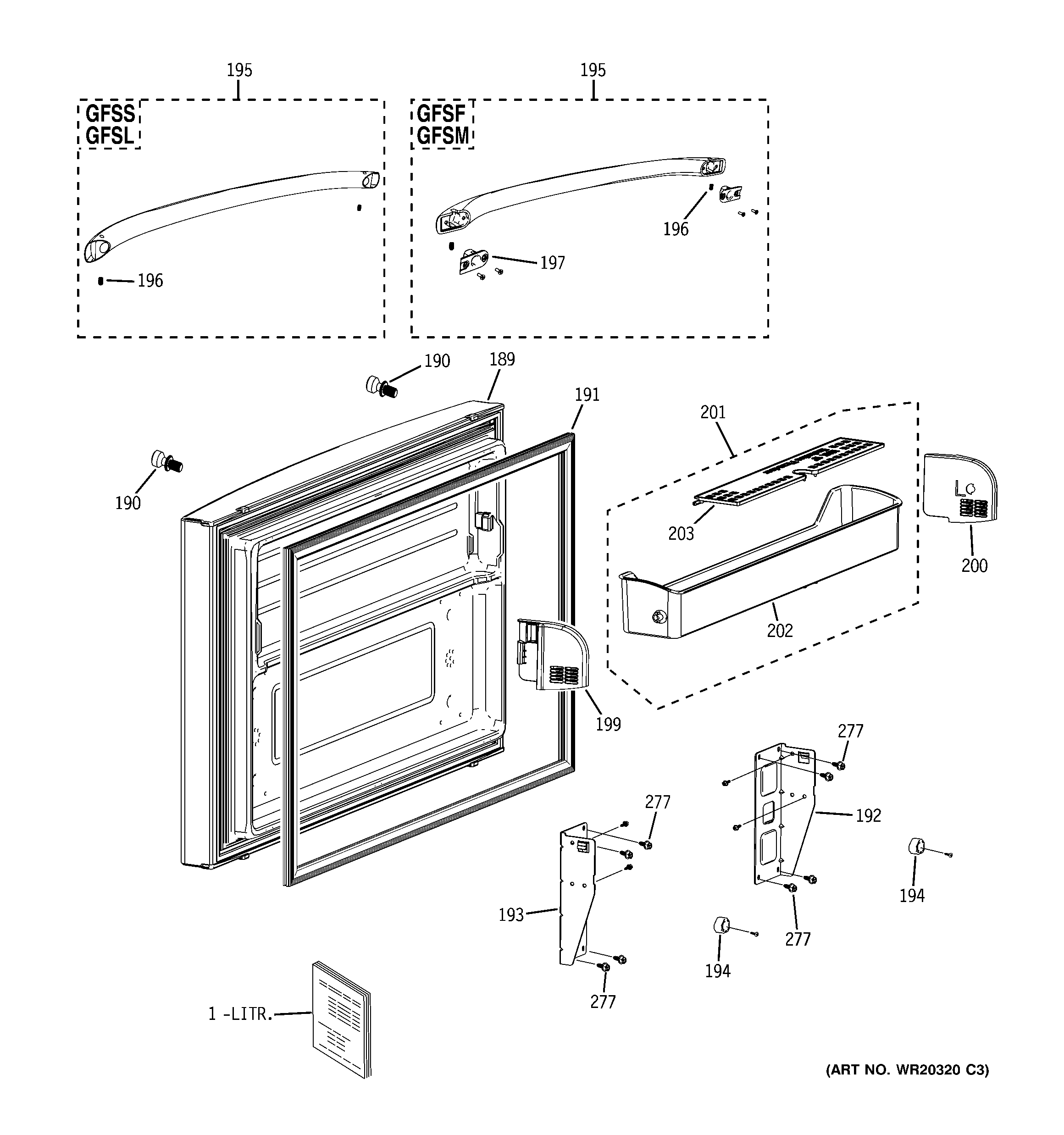

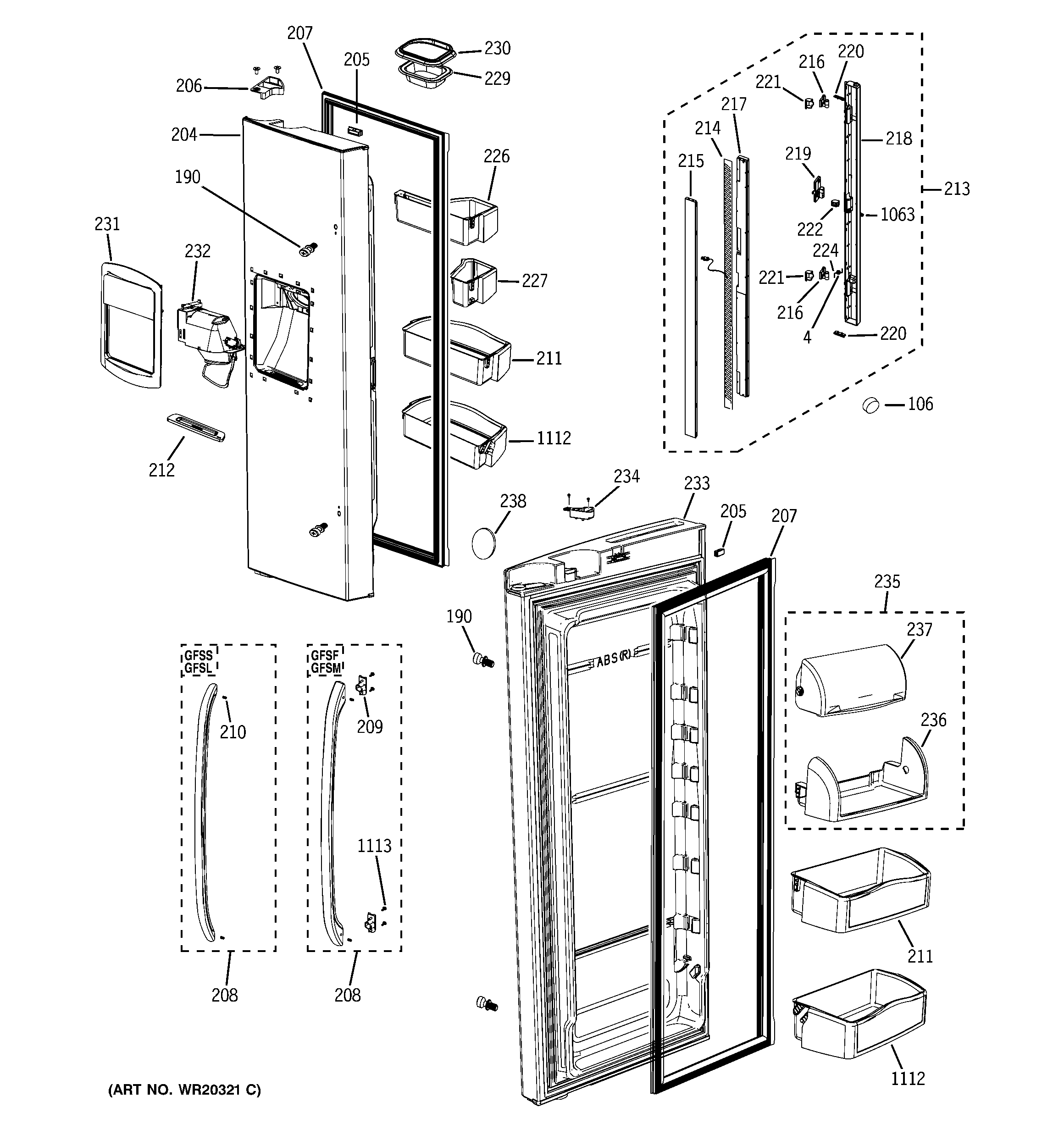

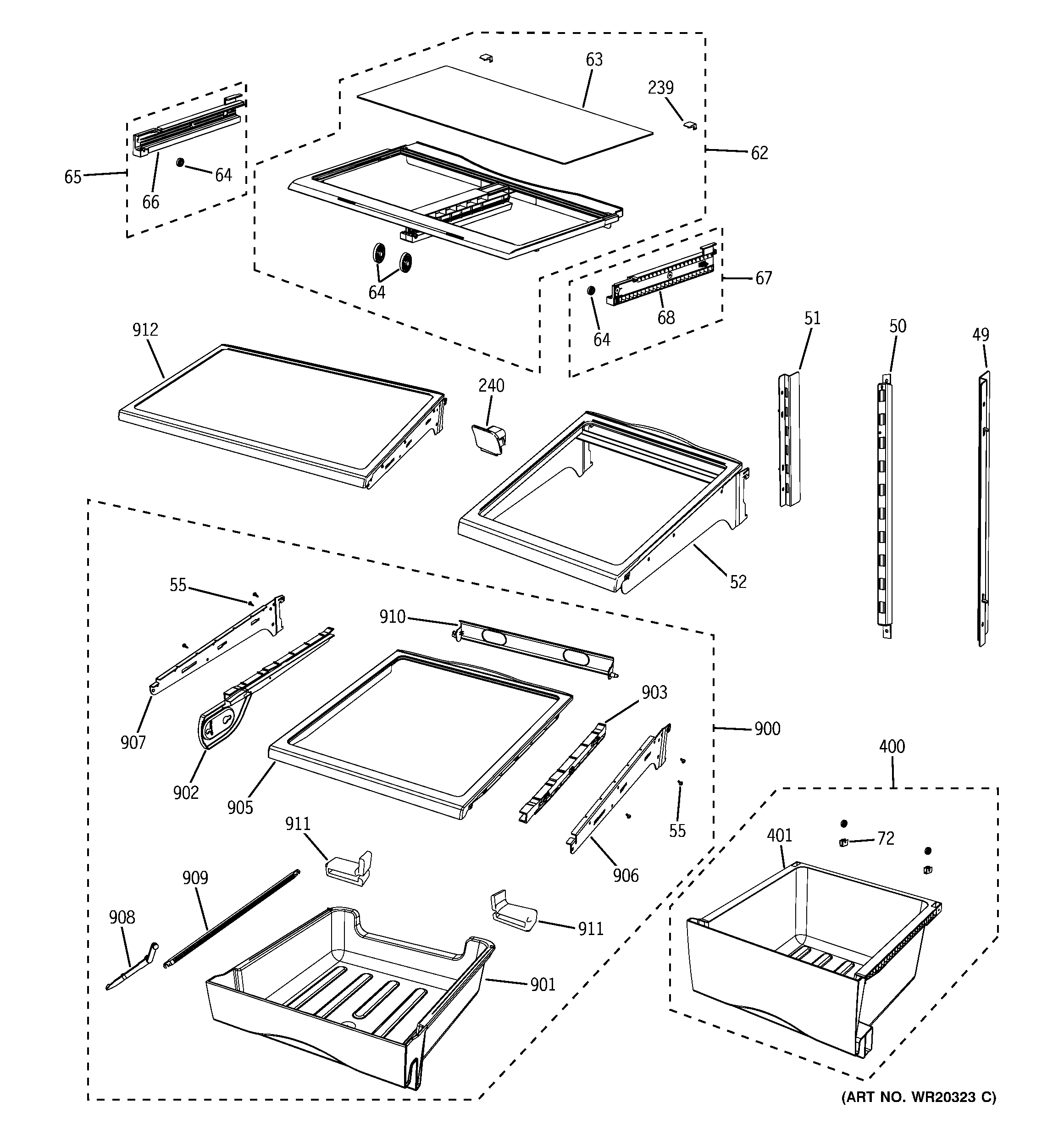

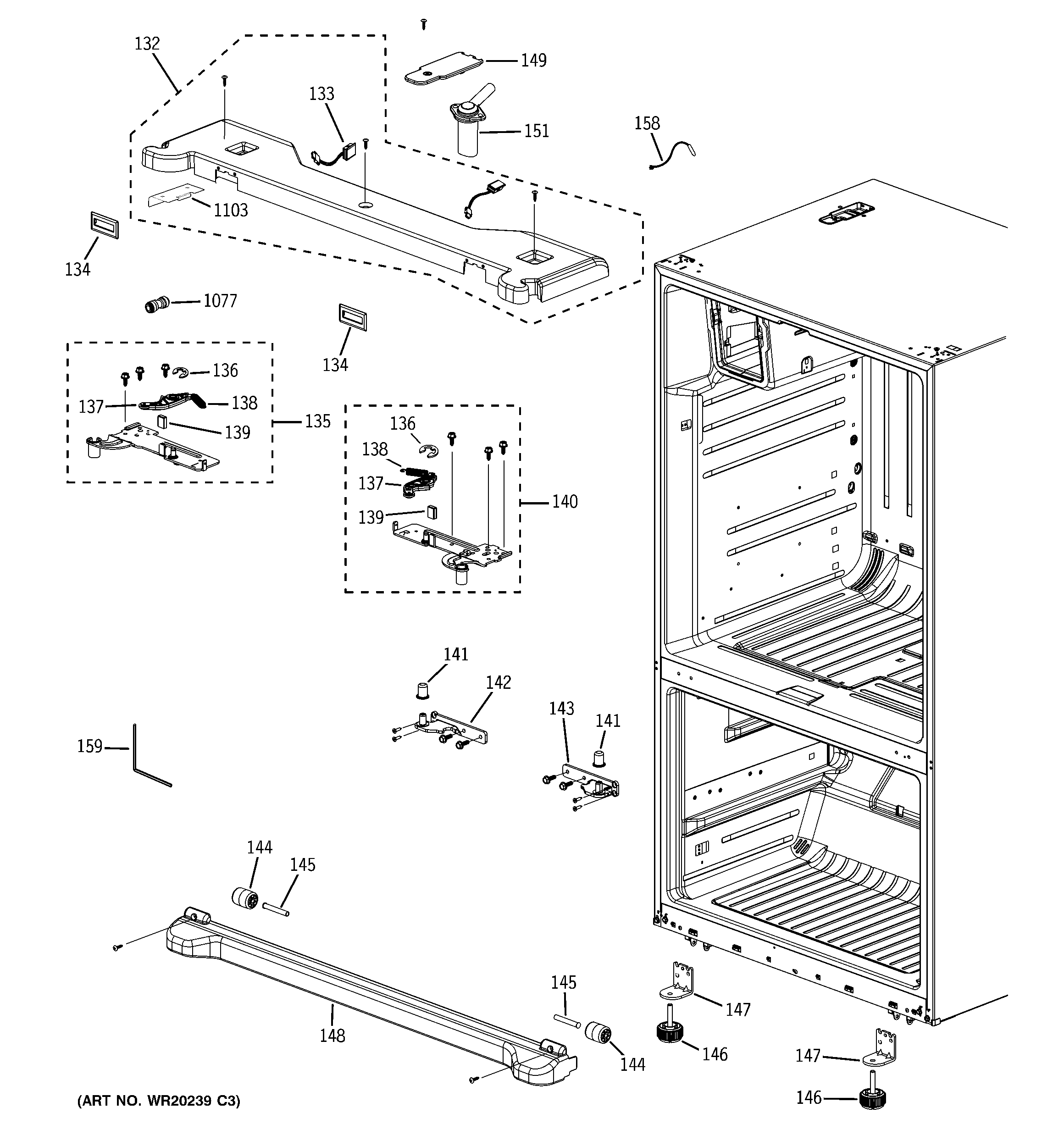

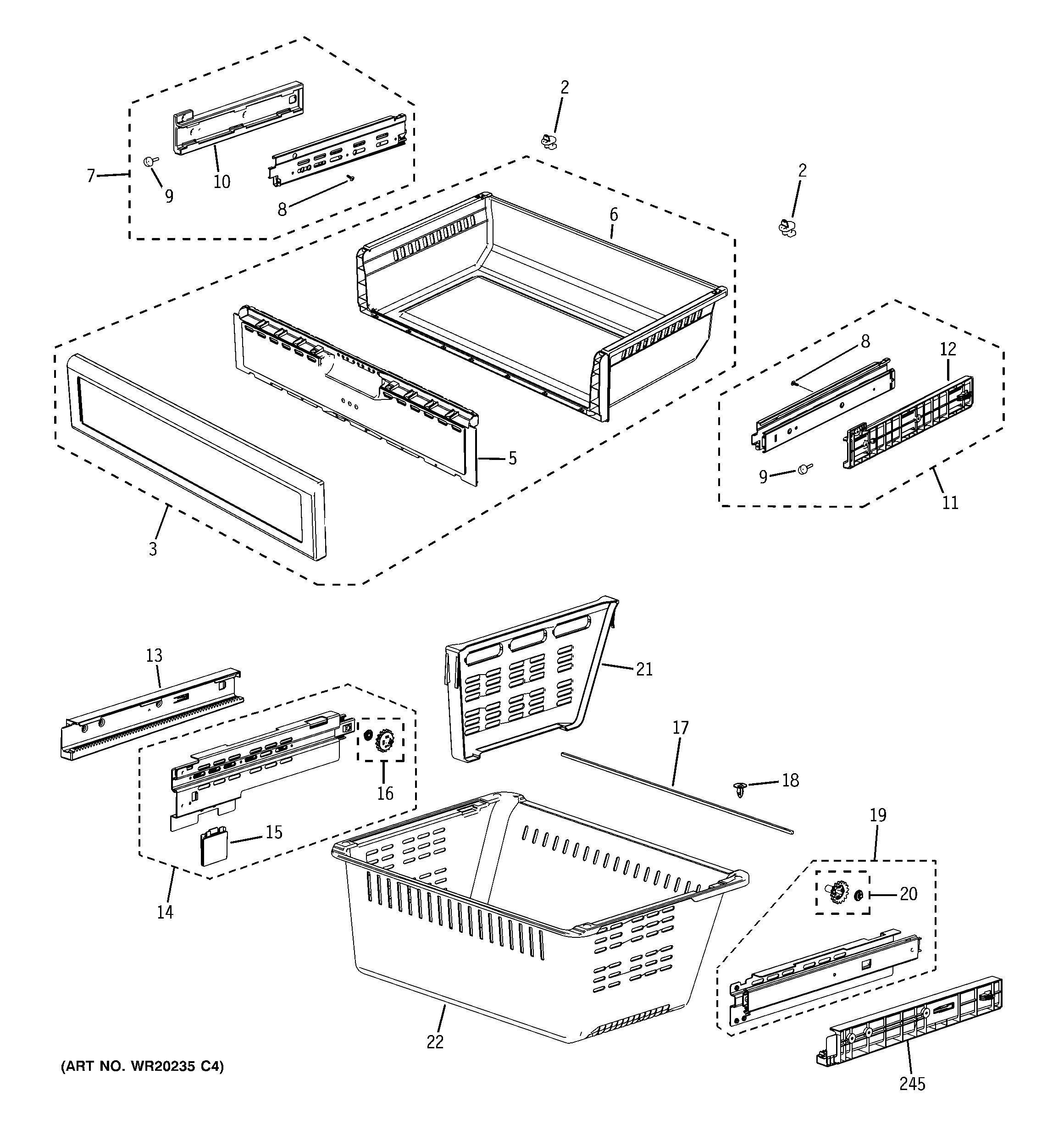

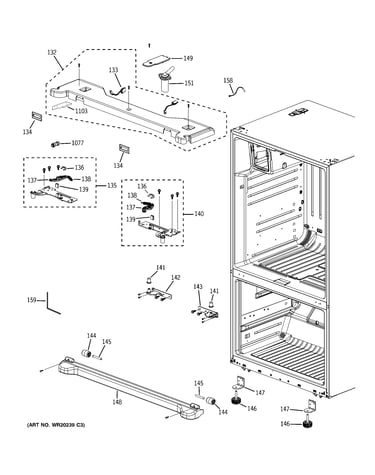

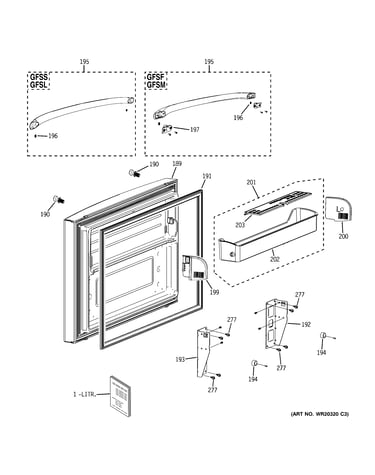

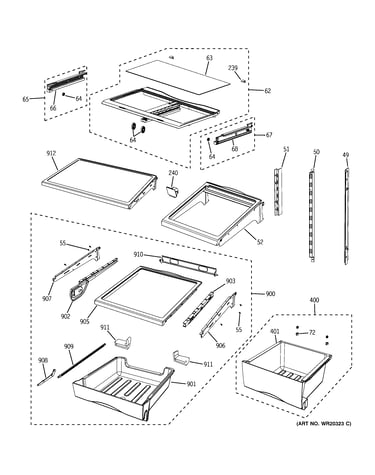

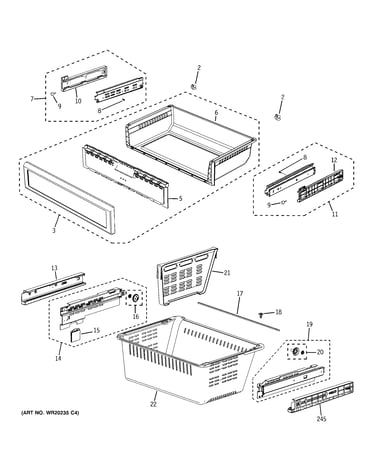

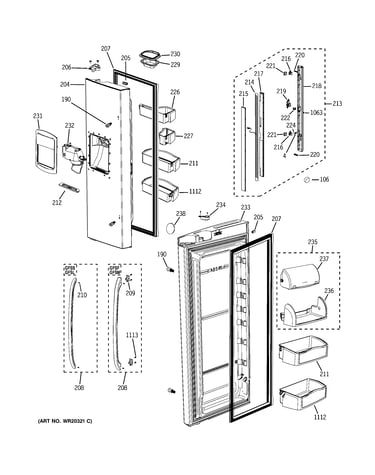

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Refrigerator Incandescent Lamp WR02X12594
#33

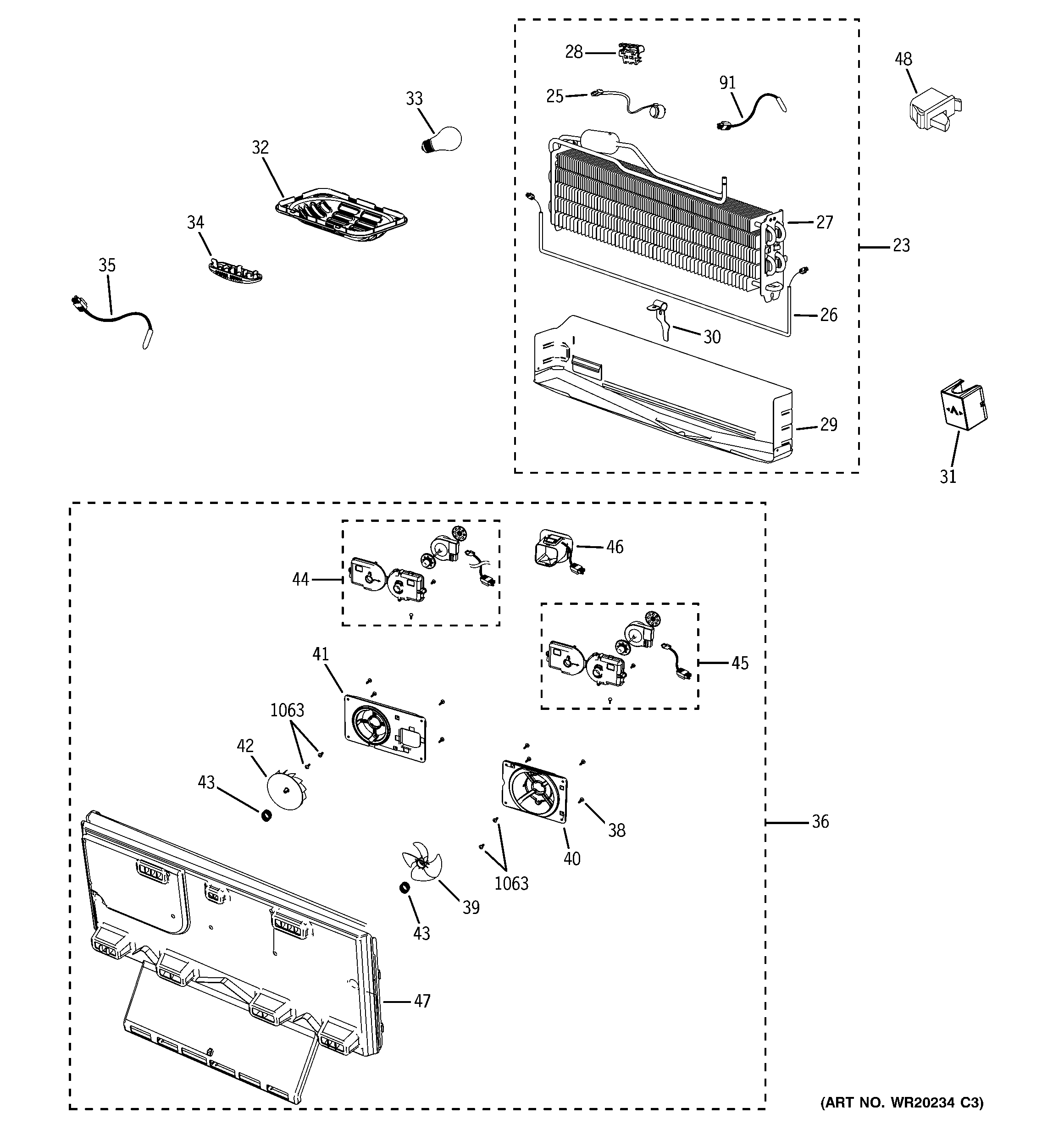

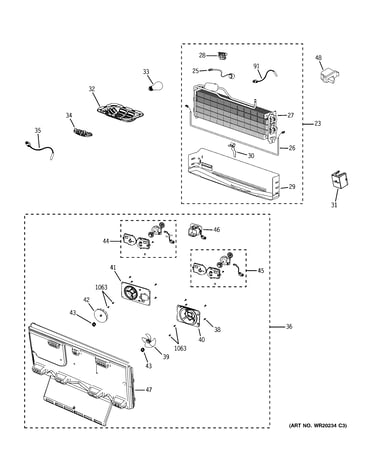

Freezer section diagram

Refrigerator incandescent lamp

Part #WR02X12594

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12594. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Ice Maker Assembly WR30X10097
#123

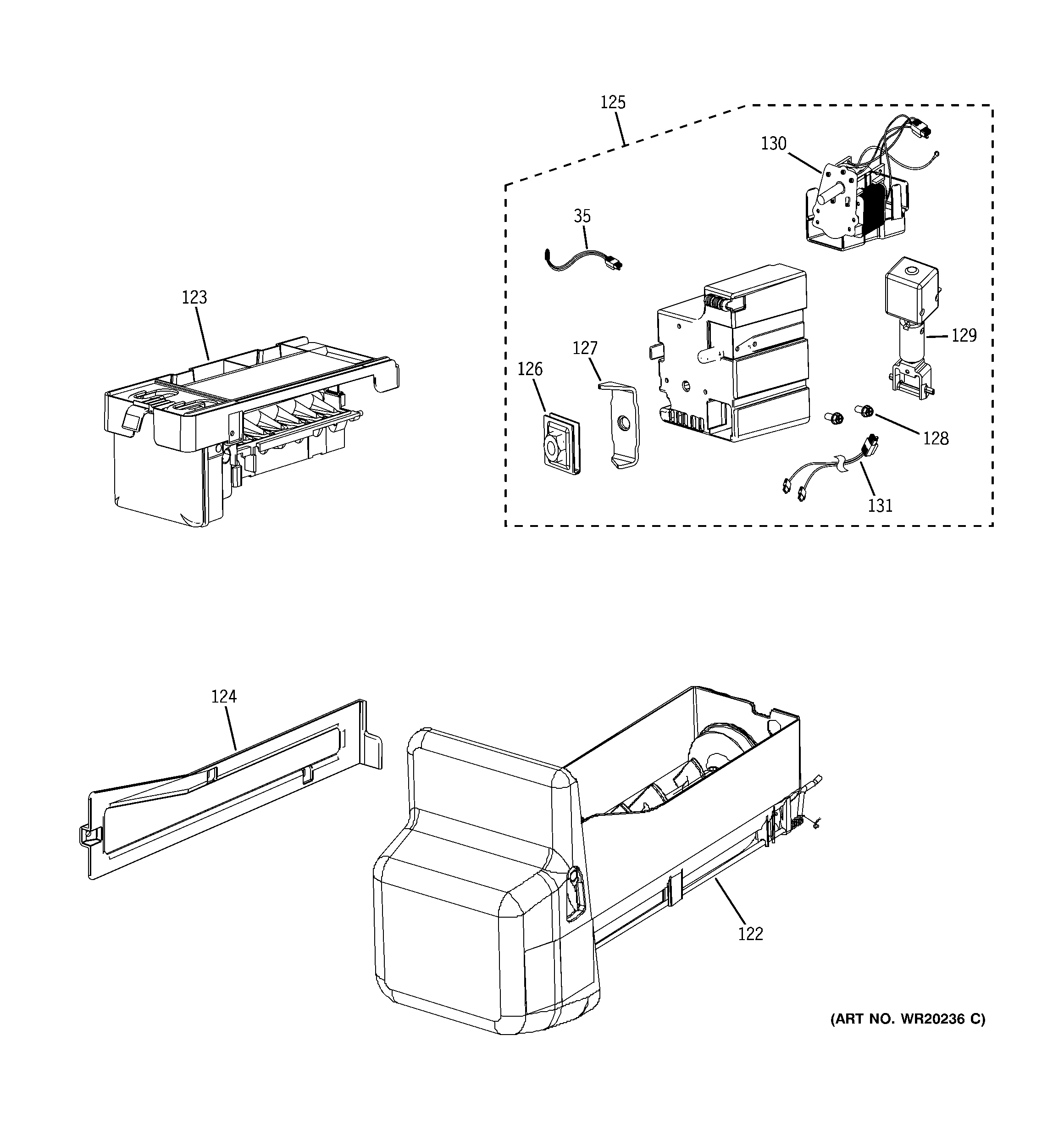

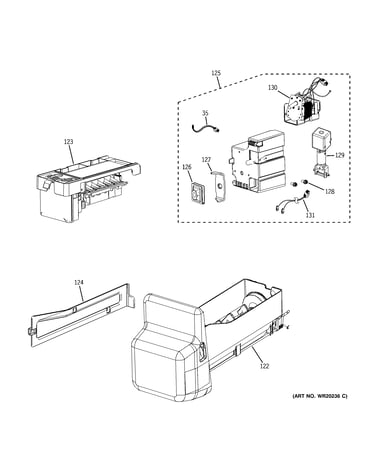

Ice maker & dispenser diagram

Refrigerator ice maker assembly

Part #WR30X10097

BEST SELLER
$204.89 |
6% OFF Phone Price : $216.89
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#1003

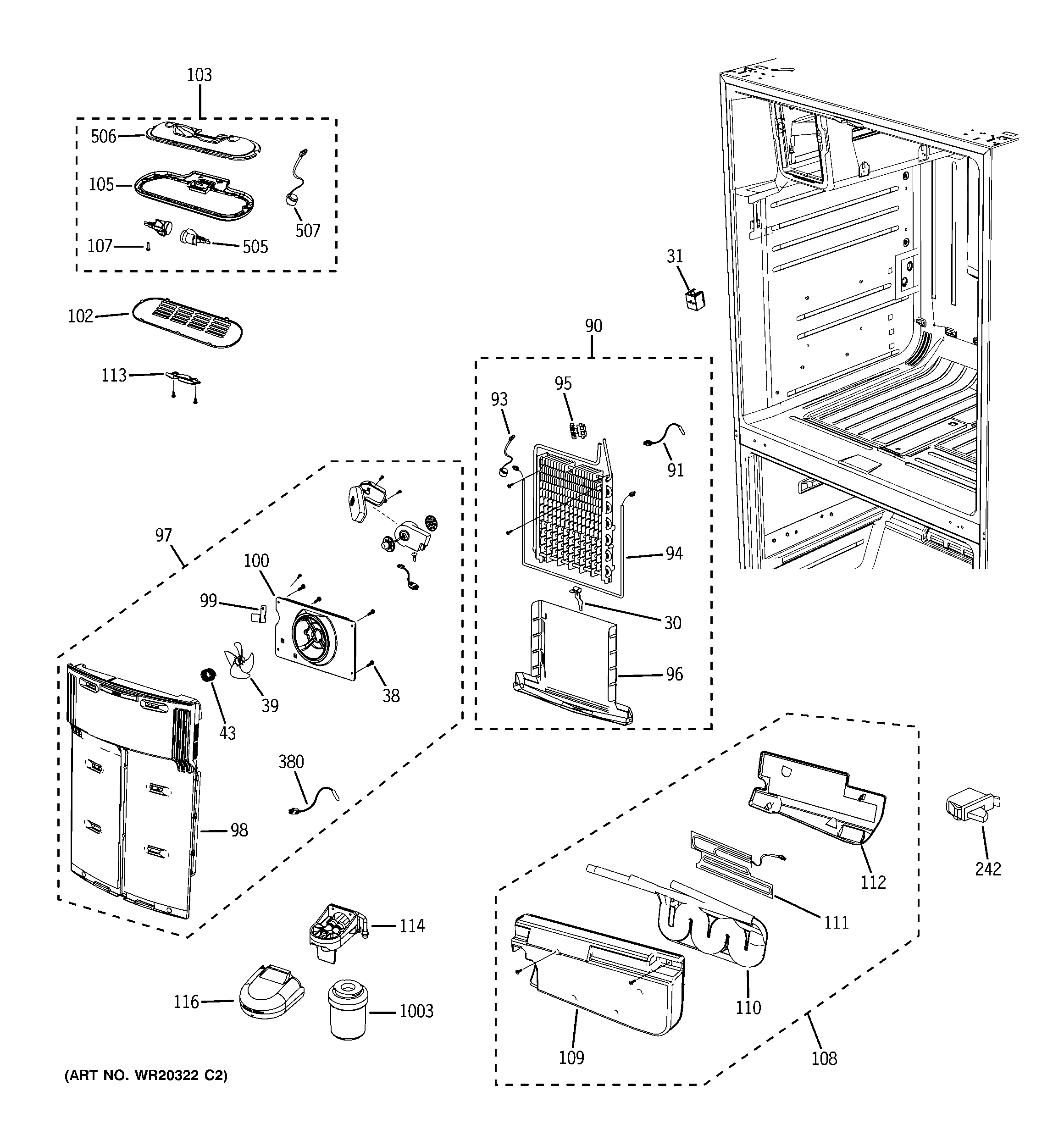

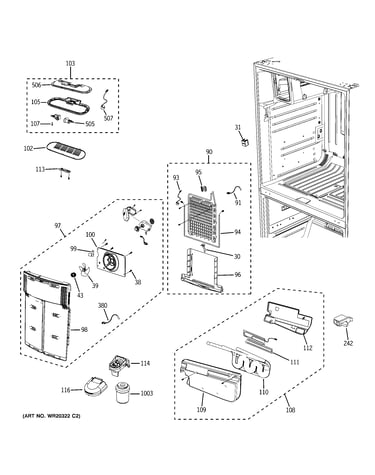

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
$64.22
In Stock
Refrigerator Defrost Heater WR51X10104
#26

Freezer section diagram

Refrigerator defrost heater

Part #WR51X10104

$175.06 |
6% OFF Phone Price : $187.06
In Stock
Refrigerator Drain Tube Kit (replaces Wr02x13283, Wr87x10166) WR02X12751
#181

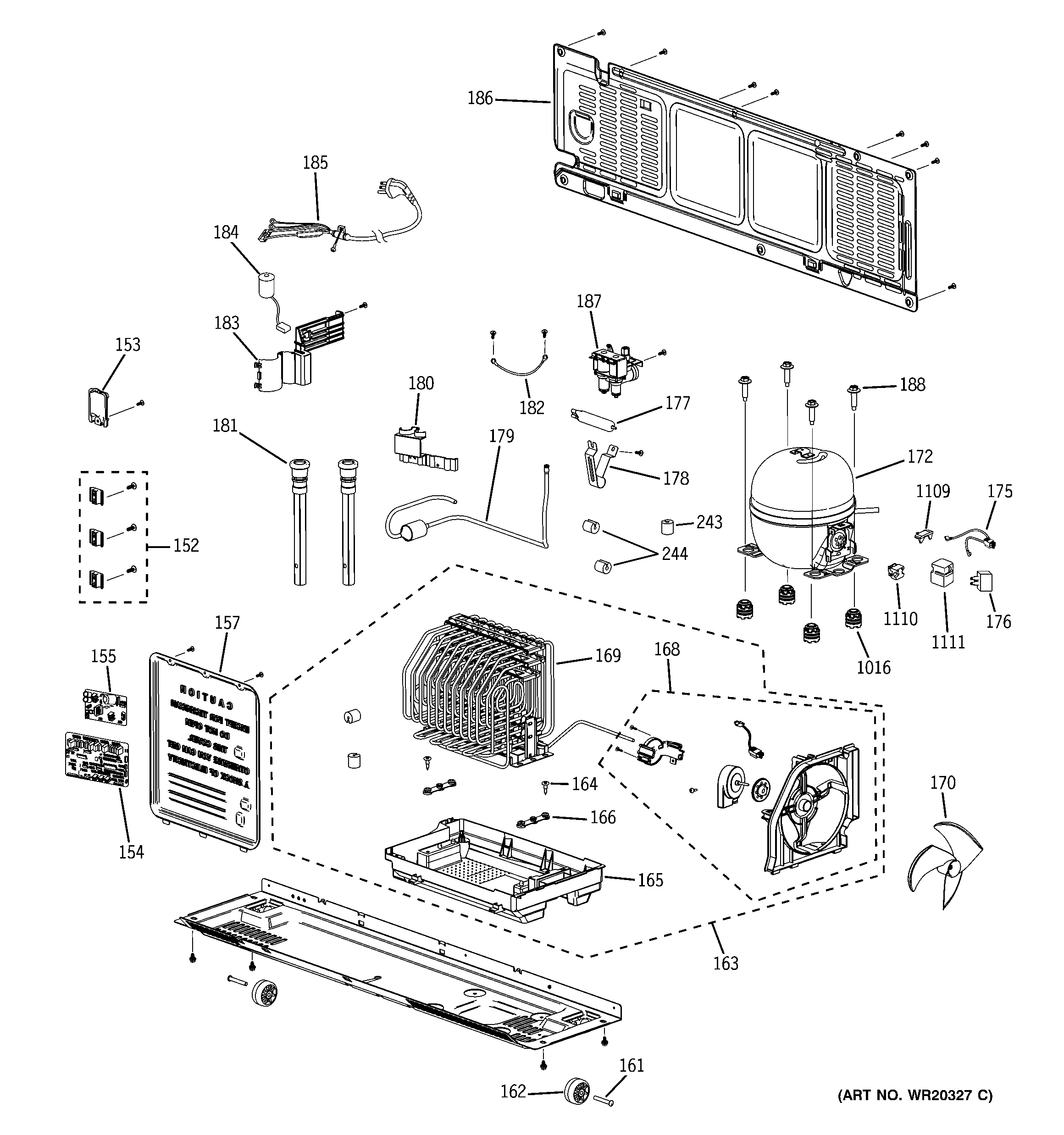

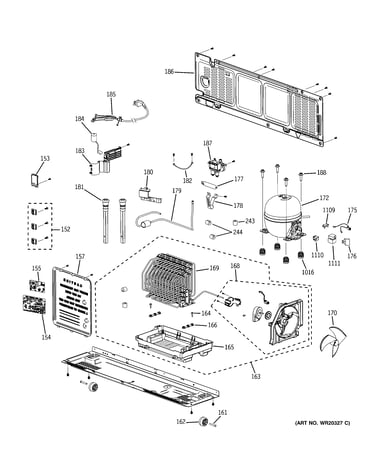

Machine compartment diagram

Refrigerator drain tube kit (replaces wr02x13283, wr87x10166)

Part #WR02X12751

$47.55 |
11% OFF Phone Price : $53.55
In Stock
Refrigerator Water Filter Head (replaces Wr17x12805) WR17X12512
#114

Fresh food section diagram

Refrigerator water filter head (replaces wr17x12805)

Part #WR17X12512

$185.12 |
6% OFF Phone Price : $197.12
In Stock
Refrigerator Fresh Food Evaporator Cover Assembly WR60X10272
#97

Fresh food section diagram

Refrigerator fresh food evaporator cover assembly

Part #WR60X10272

$278.75 |
$12.00 OFF Phone Price : $290.75
In Stock
Refrigerator Evaporator Fan Motor (replaces Wr60x10310) WR60X10255
#44

Freezer section diagram

Refrigerator evaporator fan motor (replaces wr60x10310)

Part #WR60X10255

$137.63 |
8% OFF Phone Price : $149.63
In Stock
Refrigerator Compressor Start Relay WR07X10112
#1109

Machine compartment diagram

Refrigerator compressor start relay

Part #WR07X10112

$87.17 |
6% OFF Phone Price : $93.17
In Stock
Refrigerator Temperature Sensor WR50X10058
#380

Fresh food section diagram

Refrigerator temperature sensor

Part #WR50X10058

$57.59 |
9% OFF Phone Price : $63.59
In Stock
