Model # 315274880 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315274880 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Charger 977405-000
#5

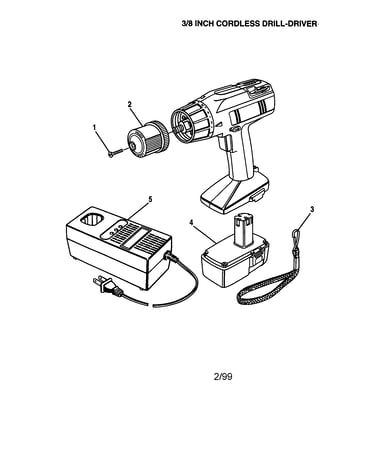

3/8" cordless drill-driver diagram

Charger

Part #977405-000

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 977390-000
#18

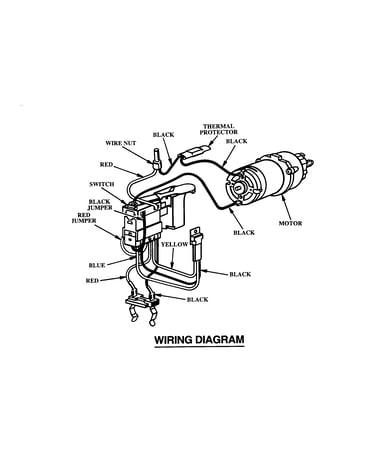

Replacement parts diagram

Switch assembly

Part #977390-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#9

Replacement parts diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part

Clip 974362-000
#8

Replacement parts diagram

Clip

Part #974362-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#1

Replacement parts diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Hub 974358-000
#7

Replacement parts diagram

Hub

Part #974358-000

The manufacturer no longer makes this part, and there's no substitute part

Cl Balls 974366-000
#4

Replacement parts diagram

Cl balls

Part #974366-000

The manufacturer no longer makes this part, and there's no substitute part

Clutch Washer 974356-000
#11

Replacement parts diagram

Clutch washer

Part #974356-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974401-000
#2

Replacement parts diagram

Retainer

Part #974401-000

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#3

Replacement parts diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part
