Whirlpool
Top-Mount Refrigerator

Model # 3ET19DKXEW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 3ET19DKXEW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

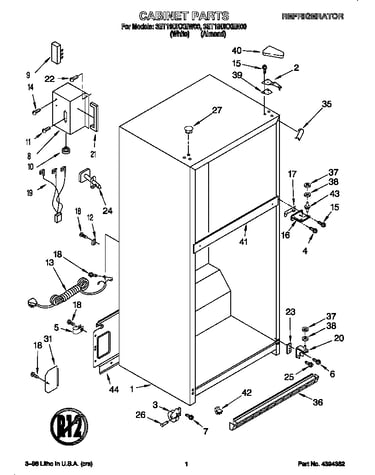

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

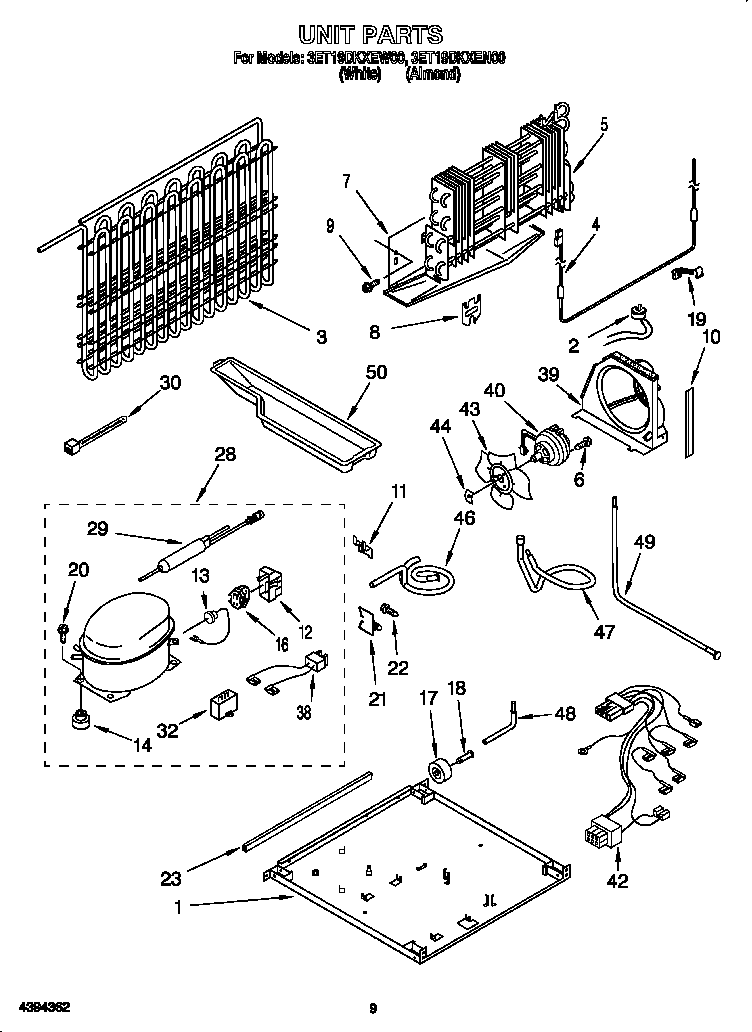

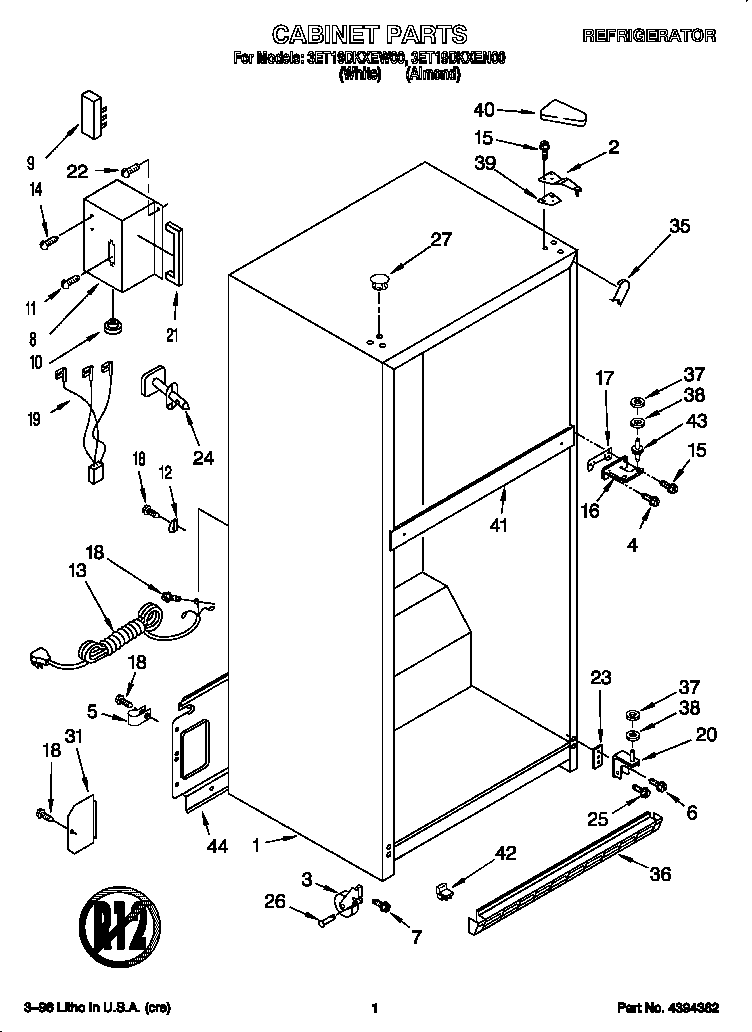

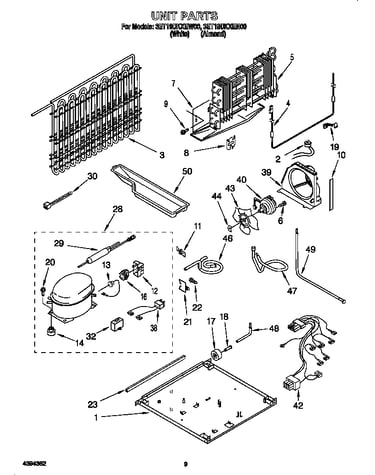

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Screw 487909
#17

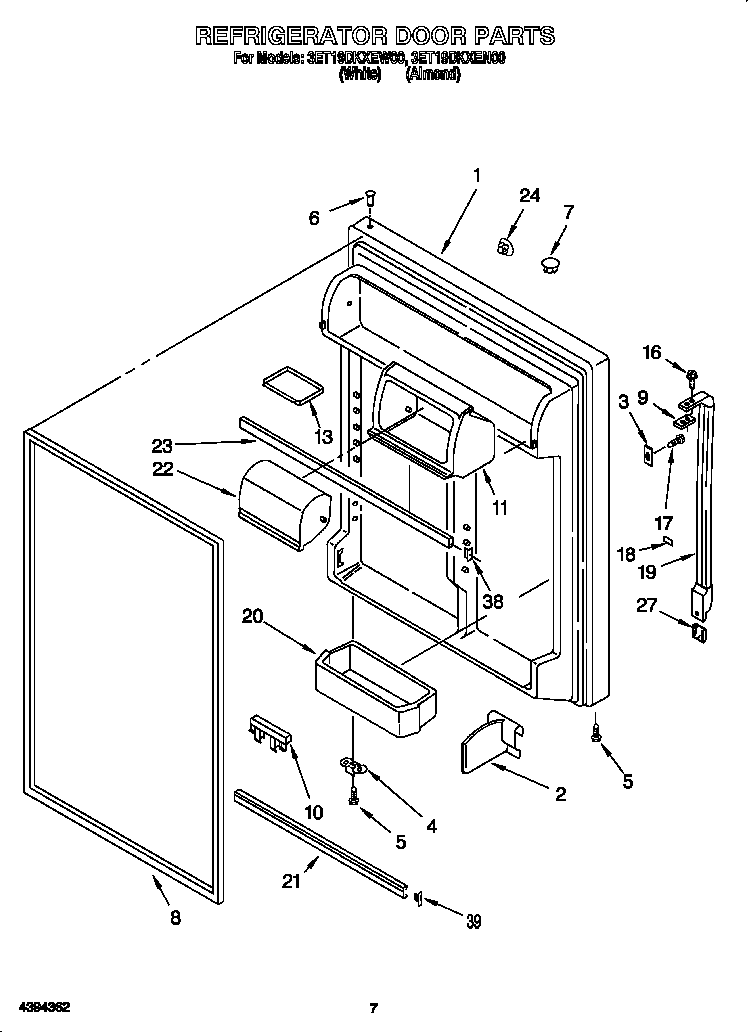

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Kirkland Refrigerator Door Gasket (replaces 2159051, 2171386, 2177307, 2202874, 2214962) 2159057
#8

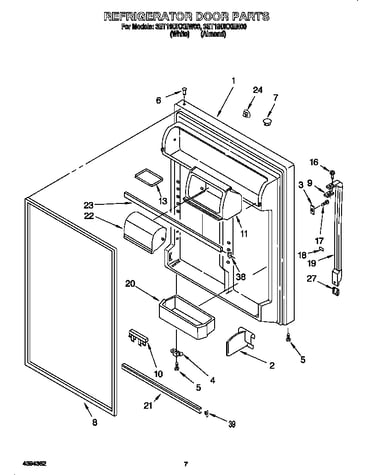

Refrigerator door diagram

Kirkland refrigerator door gasket (replaces 2159051, 2171386, 2177307, 2202874, 2214962)

Part #2159057

BEST SELLER
$97.68 |
11% OFF Phone Price : $109.68
In Stock
Appliance Silicone Lubricant 542638

#NI

All parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Kirkland Refrigerator Freezer Door Gasket (replaces 2158327, 2202808, 2214966) 2159327
#8

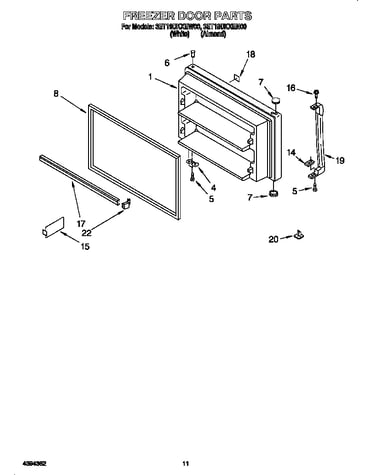

Freezer door diagram

Kirkland refrigerator freezer door gasket (replaces 2158327, 2202808, 2214966)

Part #2159327

$87.40 |
6% OFF Phone Price : $93.40
In Stock
Dacor Refrigerator Compressor Tubing Kit (replaces 482331) 876765

#NI

All parts diagram

Dacor refrigerator compressor tubing kit (replaces 482331)

Part #876765

$31.69 |
16% OFF Phone Price : $37.69
In Stock
Light Socket 2162085
#8

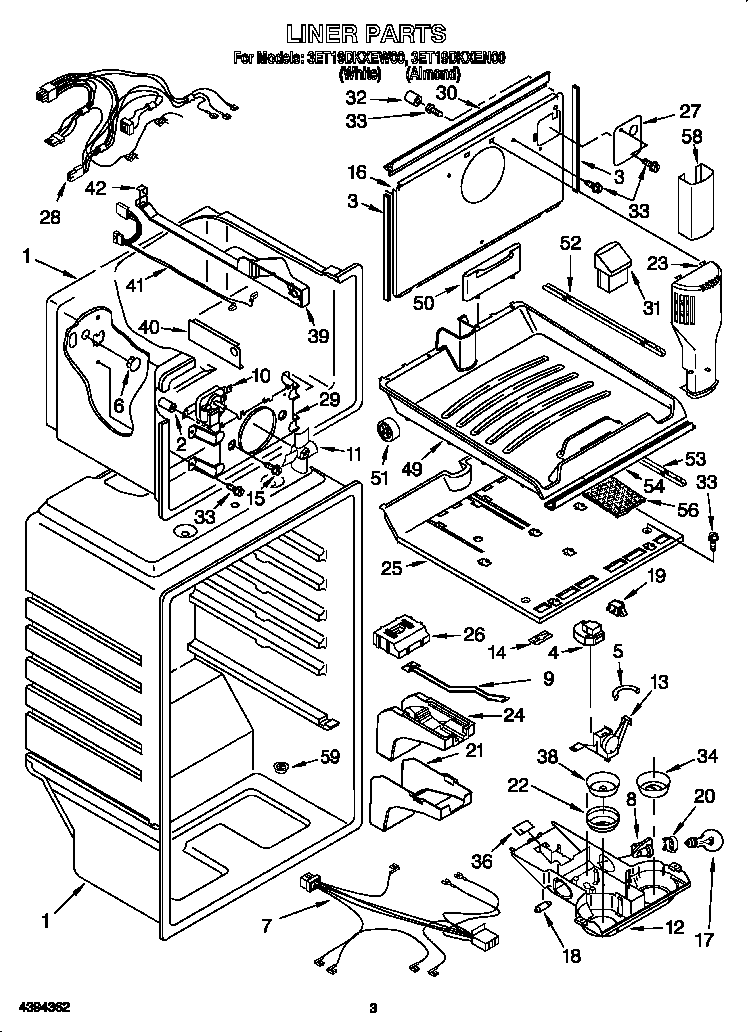

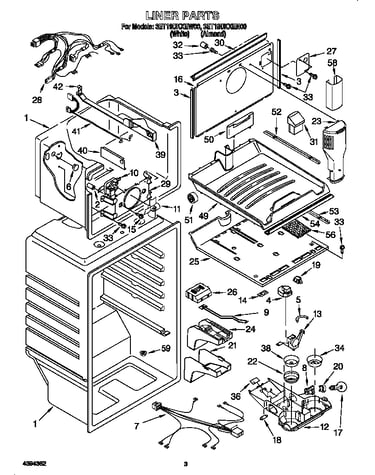

Liner diagram

Light socket

Part #2162085

Replaced by #4387478

?
Manufacturer substitution
This part replaces 2162085. Substitute parts can look different from the original.
$62.74 |
9% OFF Phone Price : $68.74
In Stock
Refrigerator Crisper Pan 2193245
#34

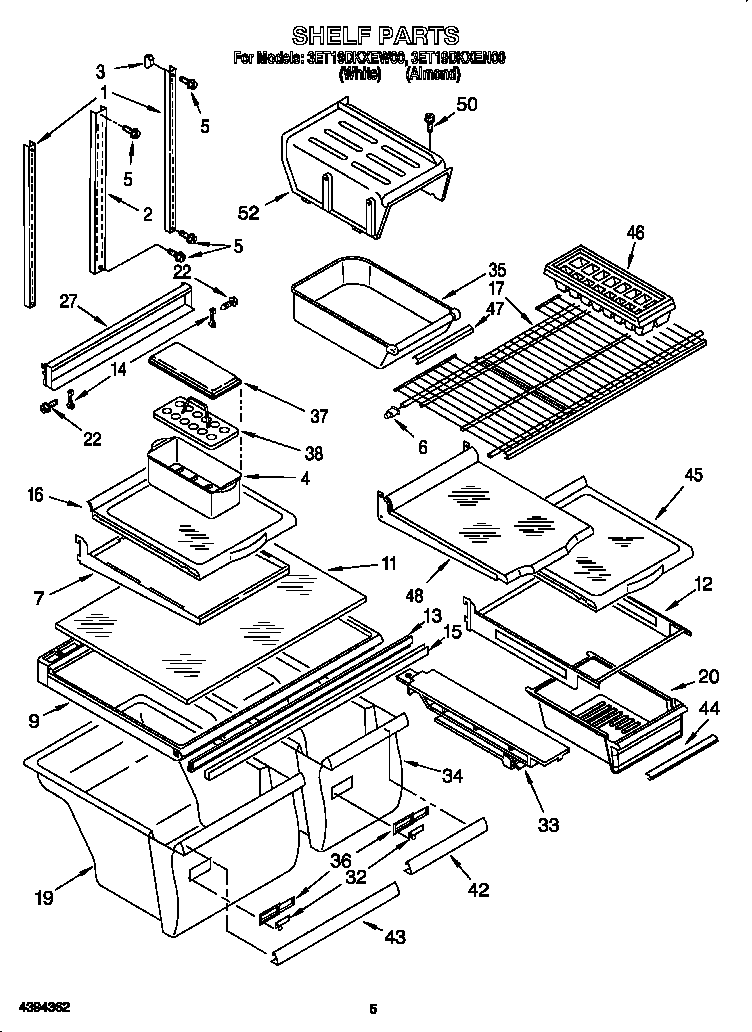

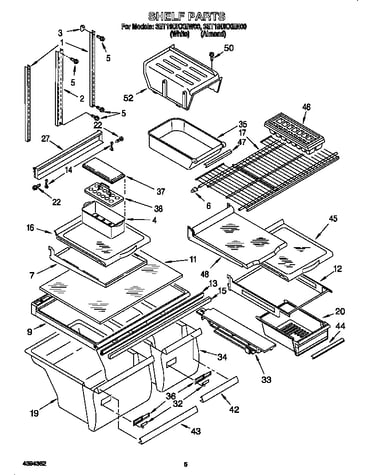

Shelf diagram

Refrigerator crisper pan

Part #2193245

Replaced by #W10856580

?
Manufacturer substitution
This part replaces 2193245. Substitute parts can look different from the original.
$99.50 |
11% OFF Phone Price : $111.50
In Stock
