KitchenAid
Bottom-Mount Refrigerator

Model # KBFS22EWMS9 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBFS22EWMS9 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

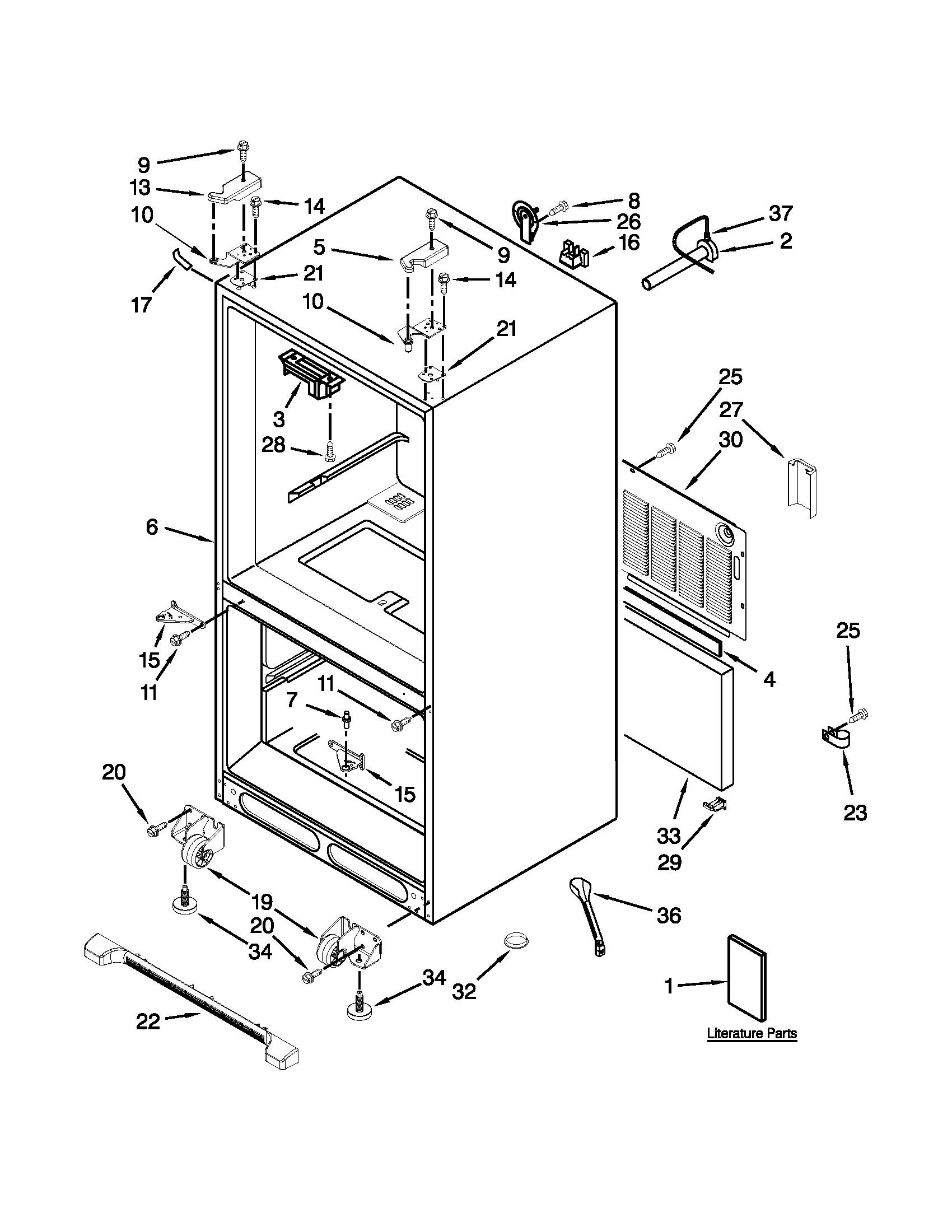

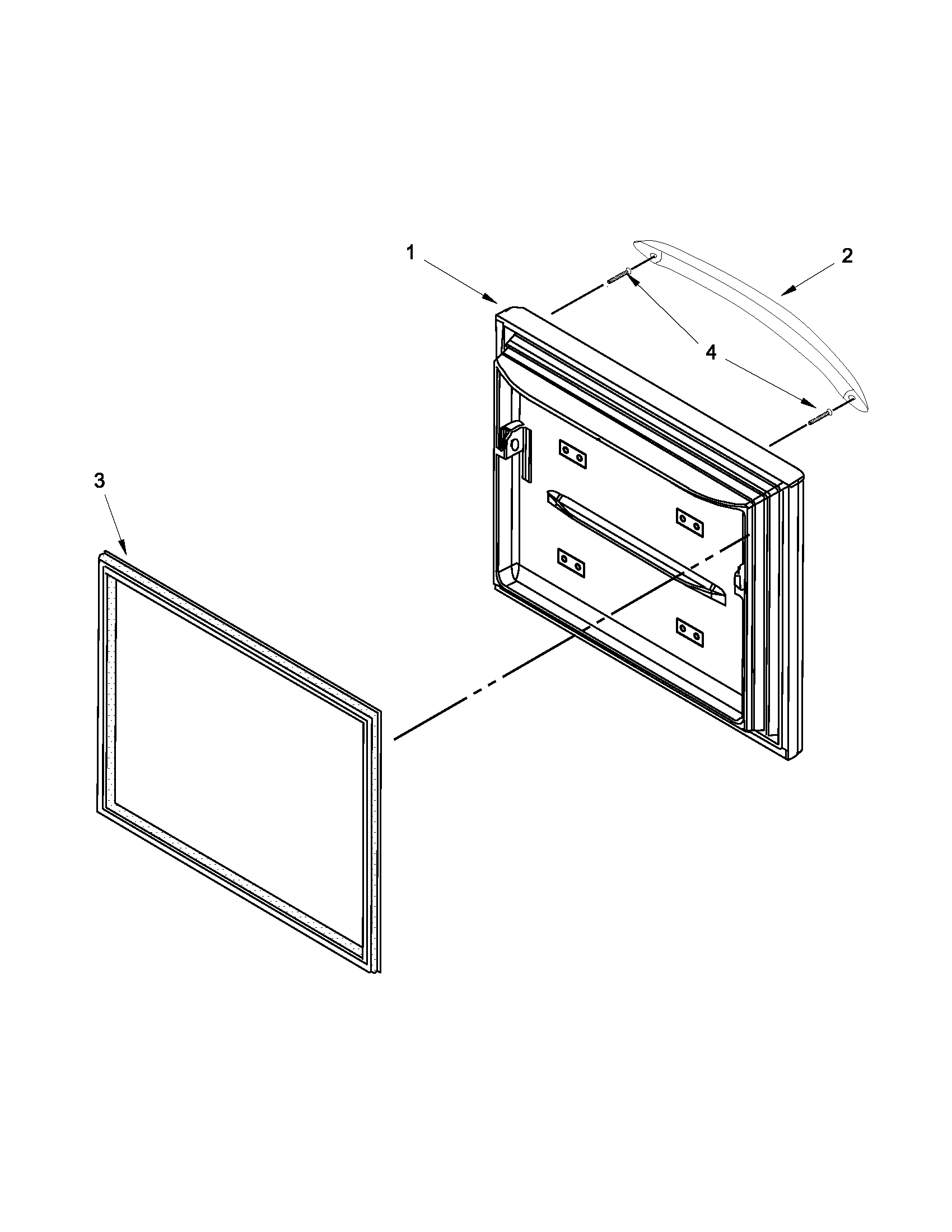

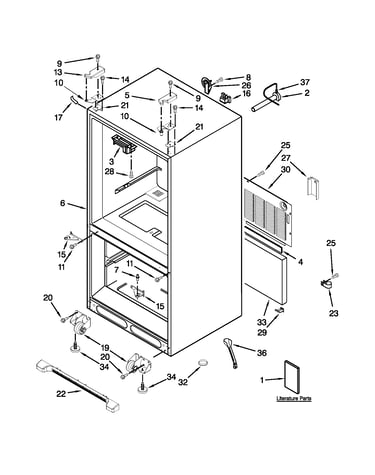

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Refrigerator Filter W10336197
#19

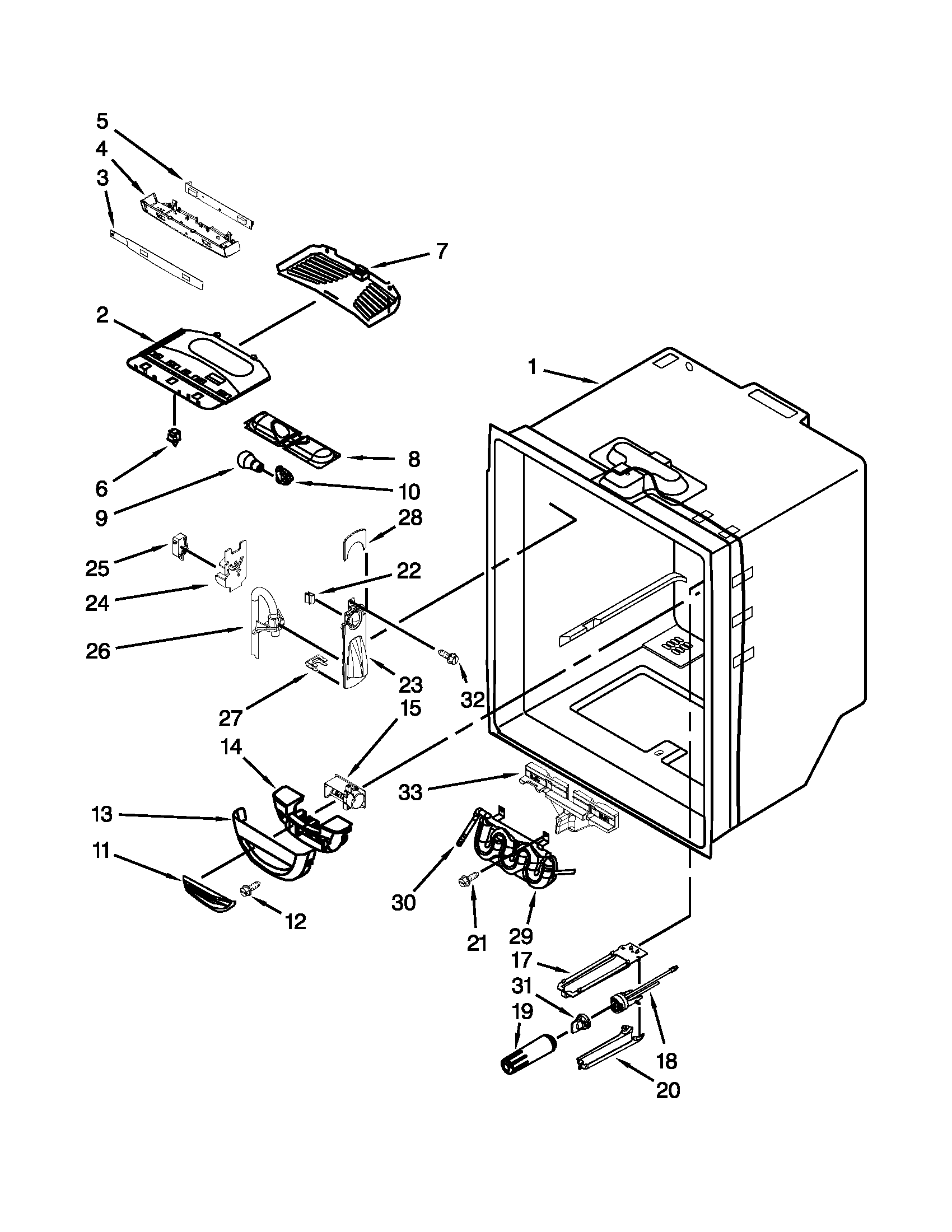

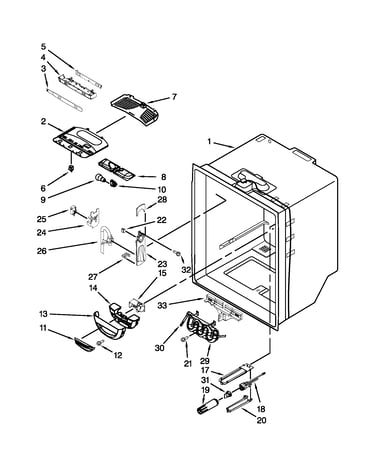

Refrigerator liner parts diagram

Refrigerator filter

Part #W10336197

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W10336197. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10177049
#27

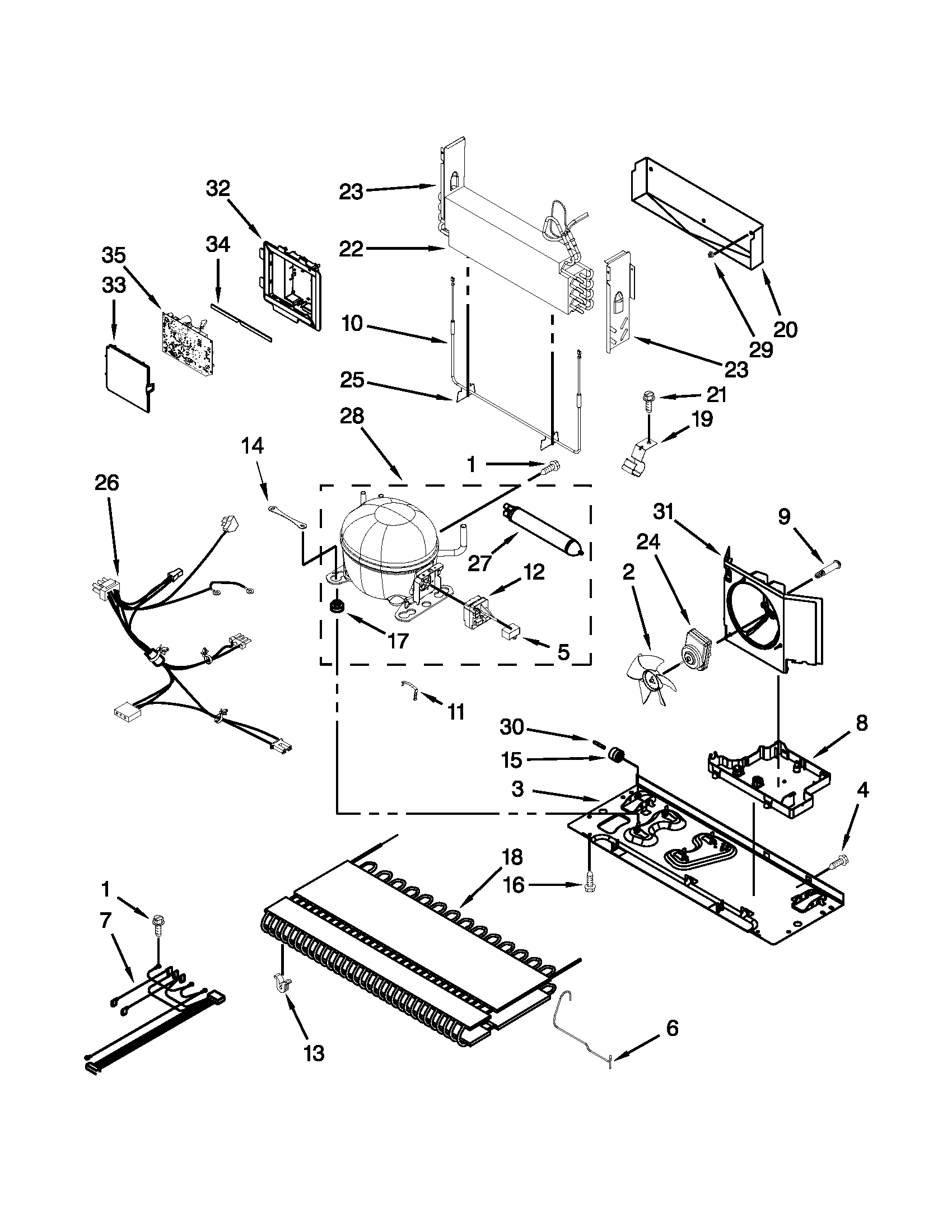

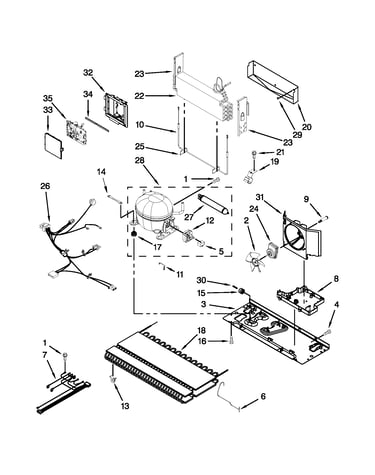

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Assembly W10469286
#100

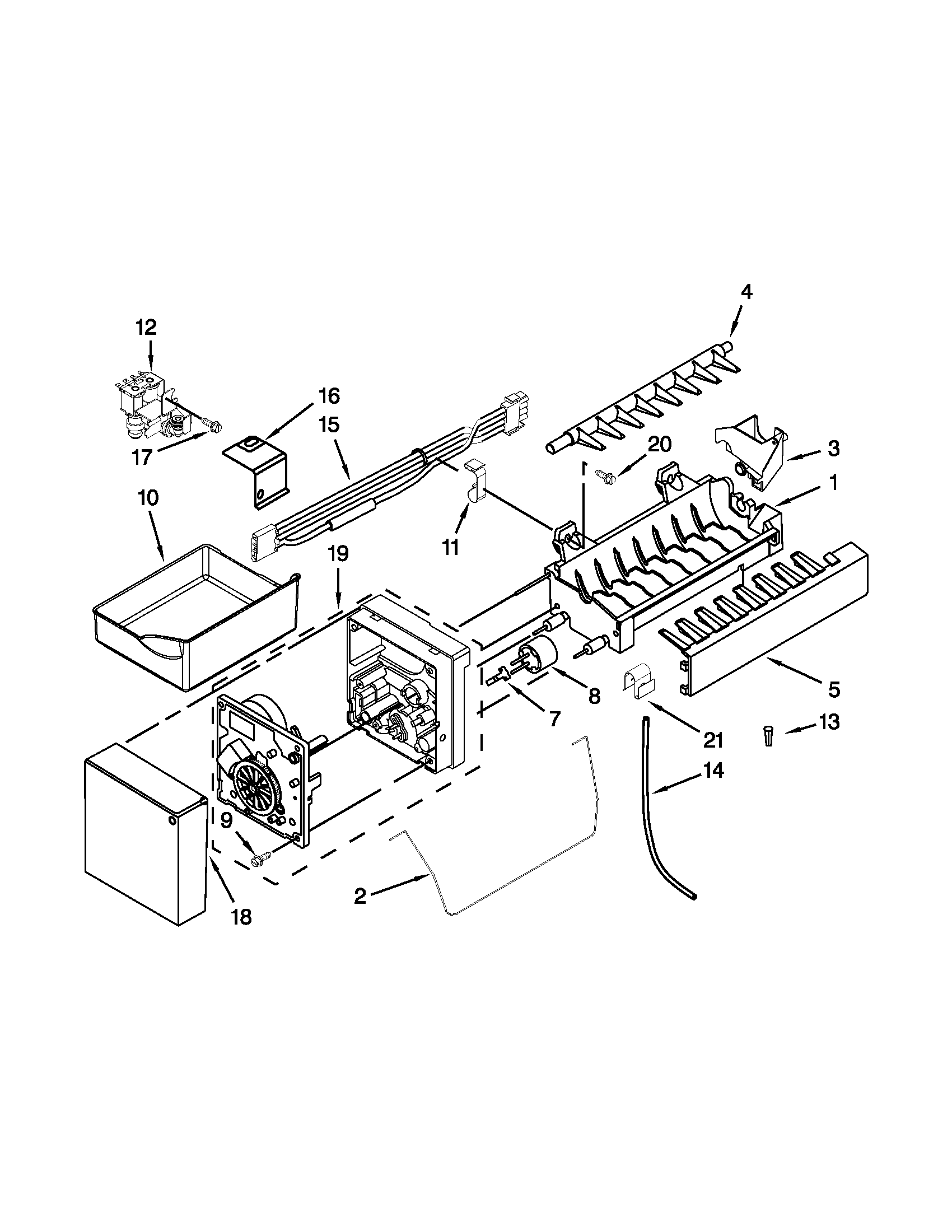

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10469286

Replaced by #W10884390

?
Manufacturer substitution
This part replaces W10469286. Substitute parts can look different from the original.
BEST SELLER
$92.98 |
6% OFF Phone Price : $98.98
In Stock
Refrigerator Light Bulb W10311505N
Refrigerator light bulb

Part #W10311505N

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Thermistor 12791419SP
#17

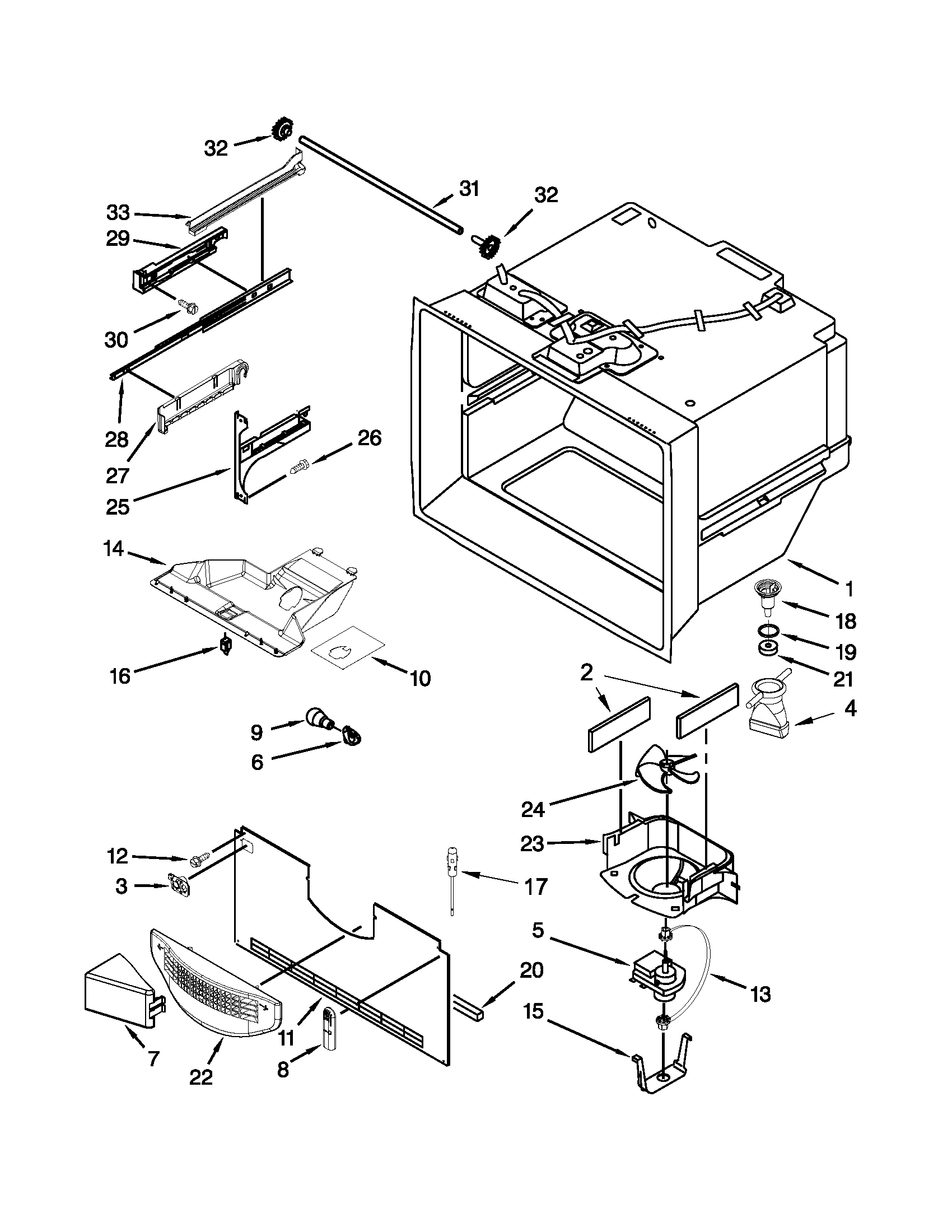

Freezer liner parts diagram

Refrigerator thermistor

Part #12791419SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791419SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Door Gasket W10443225
#8A

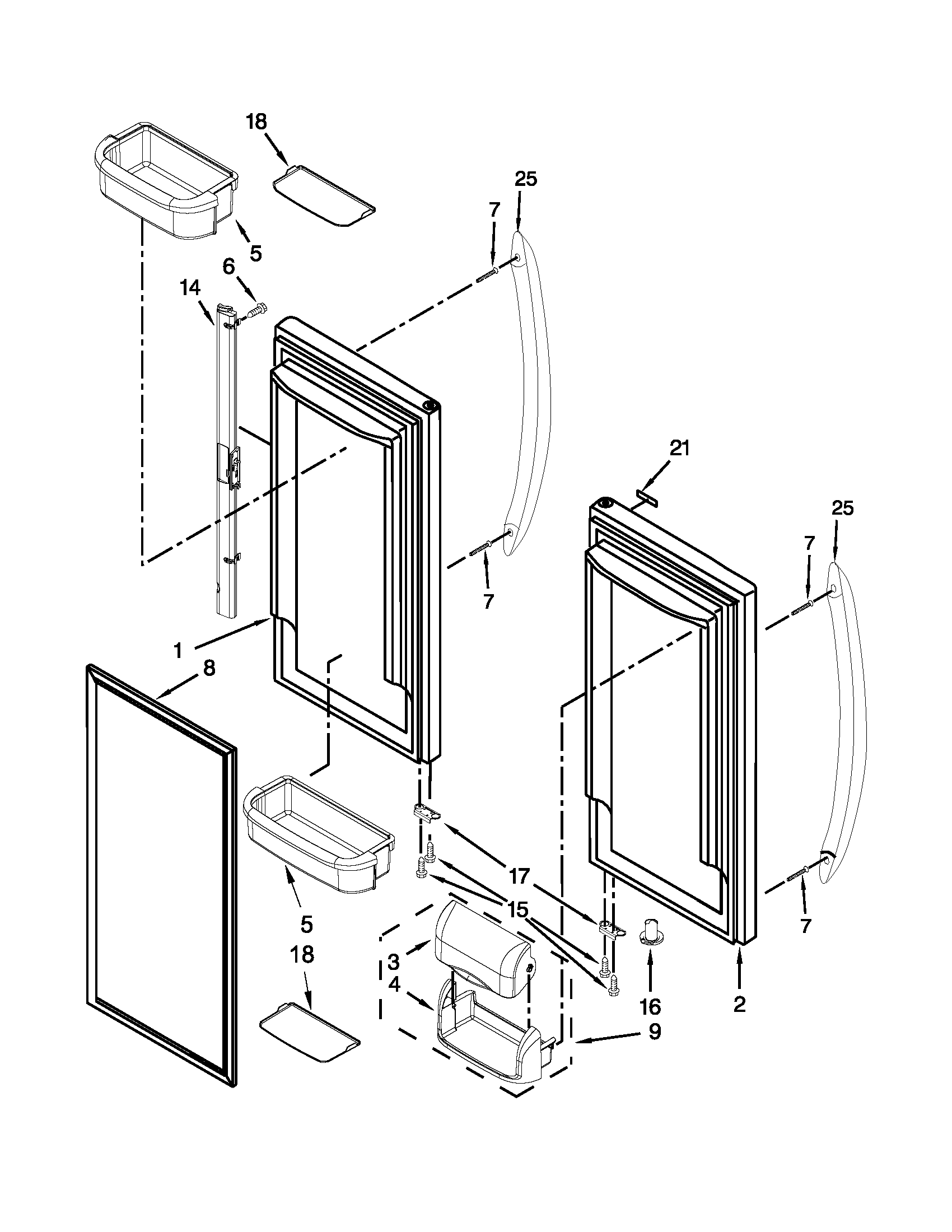

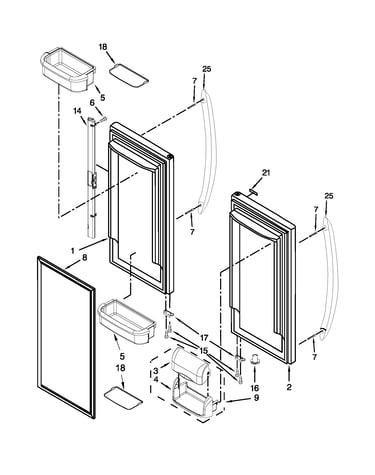

Refrigerator door parts diagram

Refrigerator door gasket

Part #W10443225

Replaced by #W10830162

?
Manufacturer substitution
This part replaces W10443225. Substitute parts can look different from the original.
BEST SELLER
$111.17 |
10% OFF Phone Price : $123.17
In Stock
Refrigerator Defrost Heater 12729128
#10

Unit parts diagram

Refrigerator defrost heater

Part #12729128

Replaced by #WP12729128

?
Manufacturer substitution
This part replaces 12729128. Substitute parts can look different from the original.
BEST SELLER
$65.56 |
8% OFF Phone Price : $71.56
In Stock
Refrigerator Central Rail 12530701N
#44

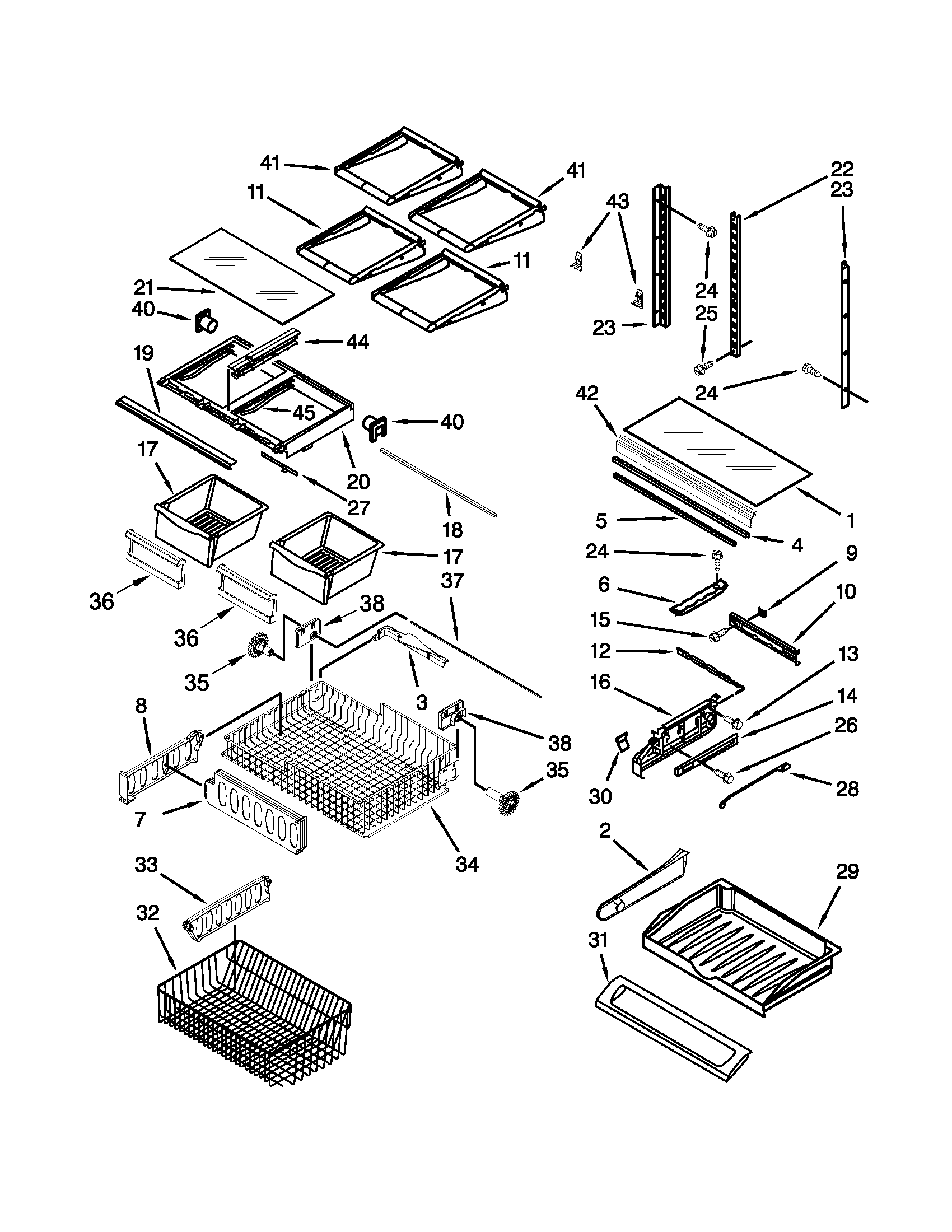

Shelf parts diagram

Refrigerator central rail

Part #12530701N

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701N. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Evaporator Motor 13062901
#5

Freezer liner parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Refrigerator Run Capacitor W10350564
#5

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
