Model # 315117131 Official Craftsman 3" belt sander

Here are the diagrams and repair parts for Official Craftsman 315117131 3" belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Handle Cover 999929-001
#35

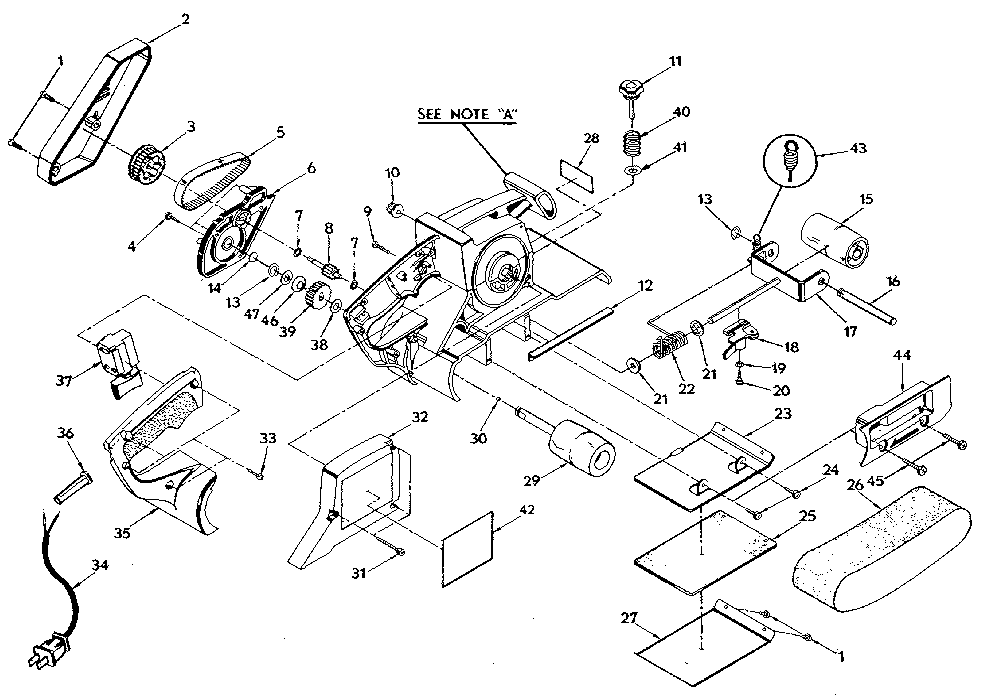

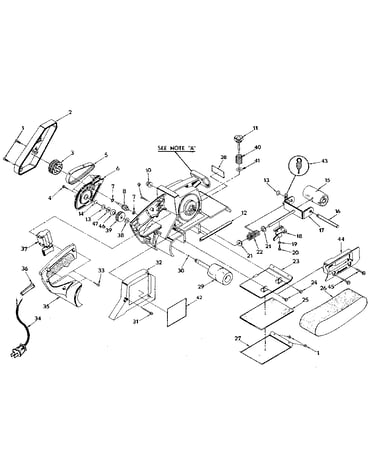

Gear and platen assembly diagram

Handle cover

Part #999929-001

The manufacturer no longer makes this part, and there's no substitute part

Pulley Kit 989366-000
#10

Gear and platen assembly diagram

Pulley kit

Part #989366-000

The manufacturer no longer makes this part, and there's no substitute part

Wear Plate 998380-001
#27

Gear and platen assembly diagram

Wear plate

Part #998380-001

The manufacturer no longer makes this part, and there's no substitute part

Thrust Disc 616103-802
#14

Gear and platen assembly diagram

Thrust disc

Part #616103-802

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 999927-001
#18

Gear and platen assembly diagram

Lever assembly

Part #999927-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 989592-007
#16

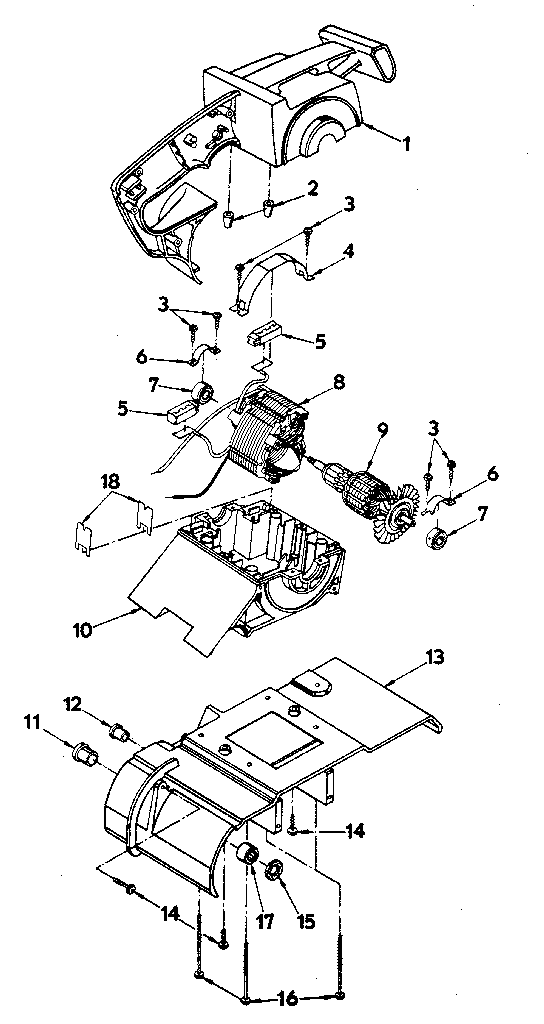

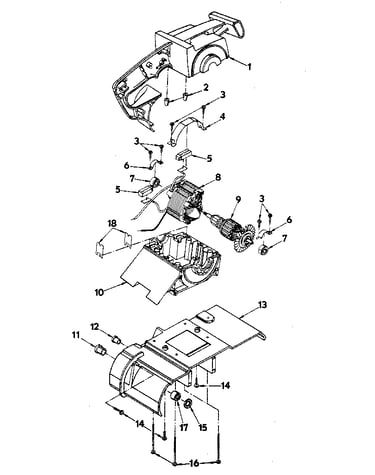

Field and armature assembly diagram

Screw

Part #989592-007

The manufacturer no longer makes this part, and there's no substitute part

Bearing Strap 606808-002
#6

Field and armature assembly diagram

Bearing strap

Part #606808-002

The manufacturer no longer makes this part, and there's no substitute part

Yoke Assembly 999945-004
#17

Gear and platen assembly diagram

Yoke assembly

Part #999945-004

The manufacturer no longer makes this part, and there's no substitute part

Plate 967878-003
#44

Gear and platen assembly diagram

Plate

Part #967878-003

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover 998366-004
#6

Gear and platen assembly diagram

Gear cover

Part #998366-004

The manufacturer no longer makes this part, and there's no substitute part
