Model # 113201310 Official Craftsman 35-125-amp variable control ac arc welder

Here are the diagrams and repair parts for Official Craftsman 113201310 35-125-amp variable control ac arc welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

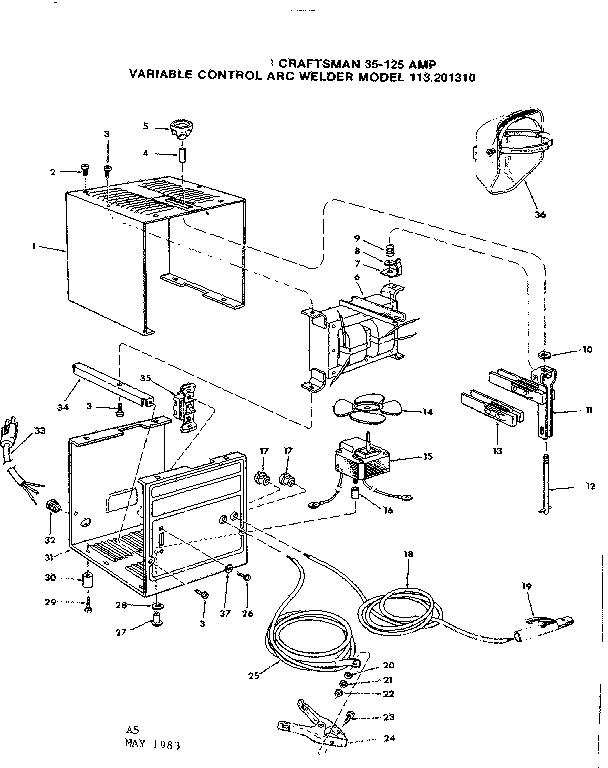

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Emerson Screw 9416390
#3

Unit diagram

Emerson screw

Part #9416390

The manufacturer no longer makes this part, and there's no substitute part

Ground Clamp 51439
#24

Unit diagram

Ground clamp

Part #51439

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Strain Relief 61086
#17

Unit diagram

Power cord strain relief

Part #61086

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 61344
#14

Unit diagram

Fan blade

Part #61344

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 61408
#15

Unit diagram

Fan motor

Part #61408

The manufacturer no longer makes this part, and there's no substitute part

Relief 60361
#32

Unit diagram

Relief

Part #60361

The manufacturer no longer makes this part, and there's no substitute part

Switch 61402
#35

Unit diagram

Switch

Part #61402

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer STD551206
#37

Unit diagram

Lock washer

Part #STD551206

The manufacturer no longer makes this part, and there's no substitute part

Bumper 61386
#30

Unit diagram

Bumper

Part #61386

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541025
#22

Unit diagram

Hex nut

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part
