Wine & Beverage Cooler

Model # ZDBI240WIIA Official GE beverage center

Here are the diagrams and repair parts for Official GE ZDBI240WIIA beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

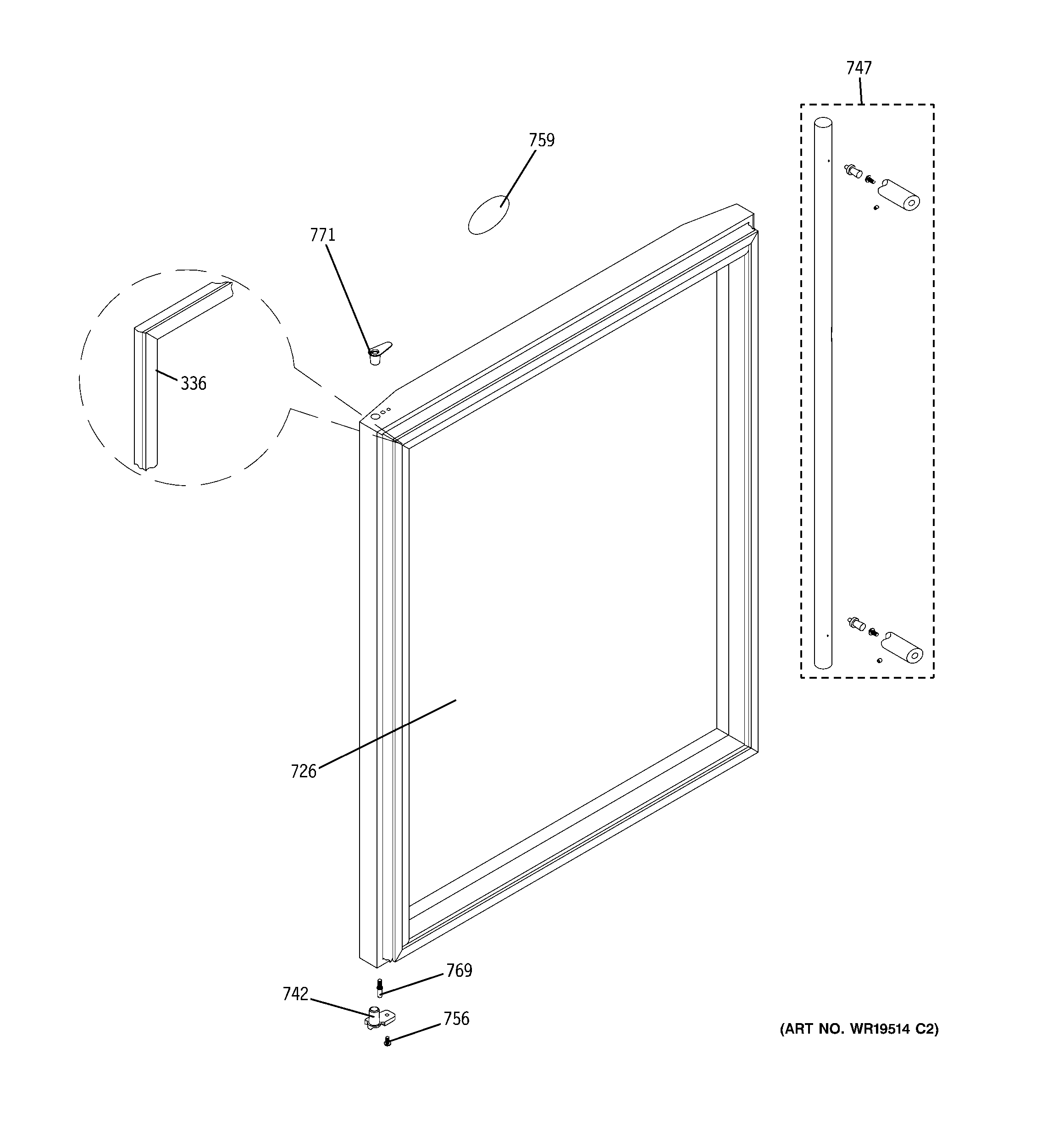

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Dryer Filter WR86X0096
#35

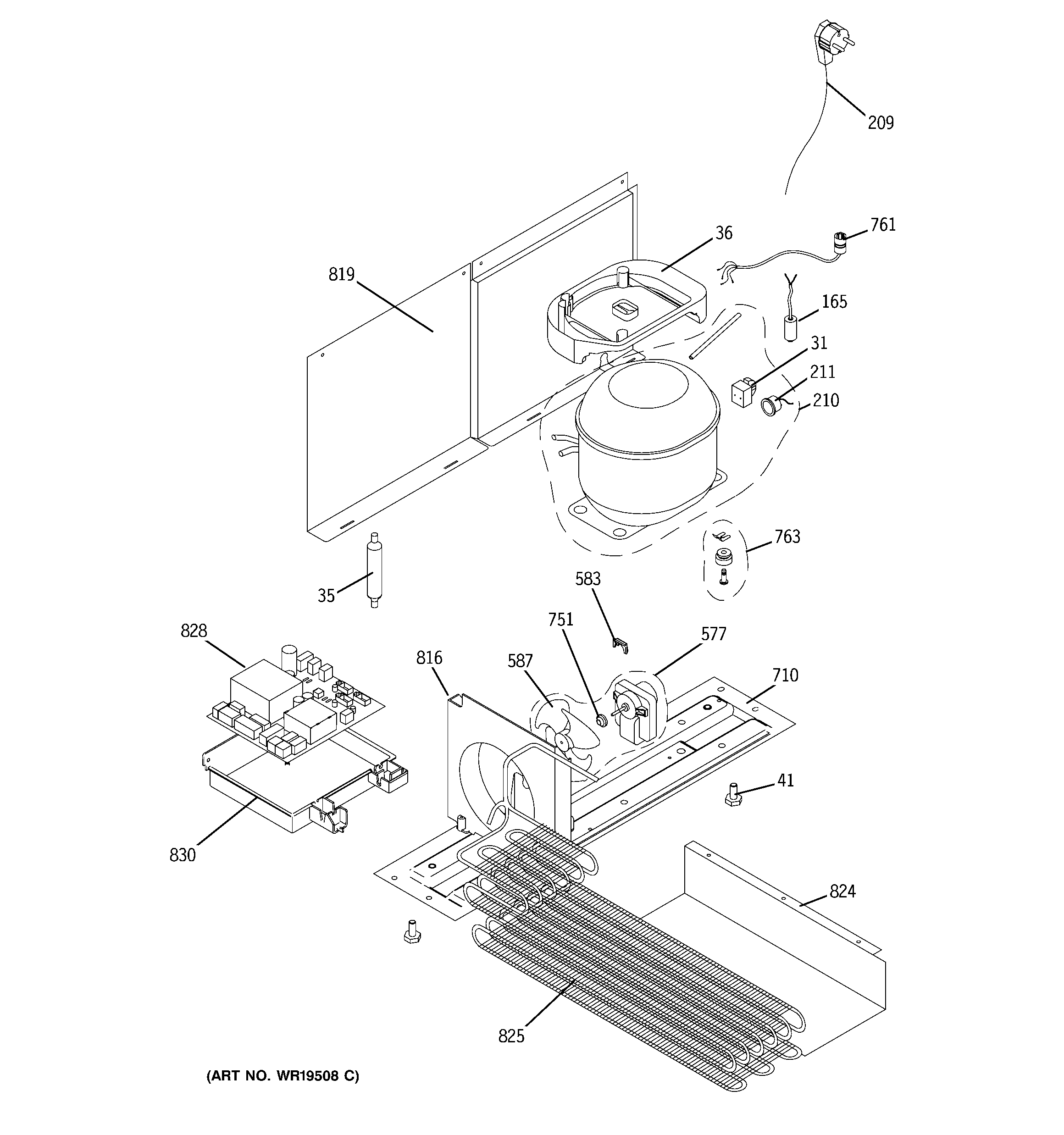

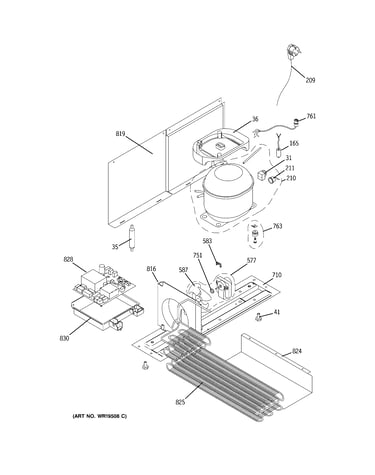

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Beverage Cooler Power Control Board (replaces Wr17x11680, Wr55x10407, Wr55x10507, Wr55x10508, Wr55x10509, Wr55x10510, Wr55x10511, Wr55x10512) WR55X10430
#828

Unit parts diagram

Beverage cooler power control board (replaces wr17x11680, wr55x10407, wr55x10507, wr55x10508, wr55x10509, wr55x10510, wr55x10511, wr55x10512)

Part #WR55X10430

$454.55
$12.00 OFF Phone Price : $466.55
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Unit parts diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54
11% OFF Phone Price : $108.54
In Stock
Beverage Cooler Compressor (replaces Wr87x10245) WR87X10076
#210

Unit parts diagram

Beverage cooler compressor (replaces wr87x10245)

Part #WR87X10076

$548.74
$12.00 OFF Phone Price : $560.74
In Stock
Wine Cooler Door Hinge, Upper WR13X10276
#739

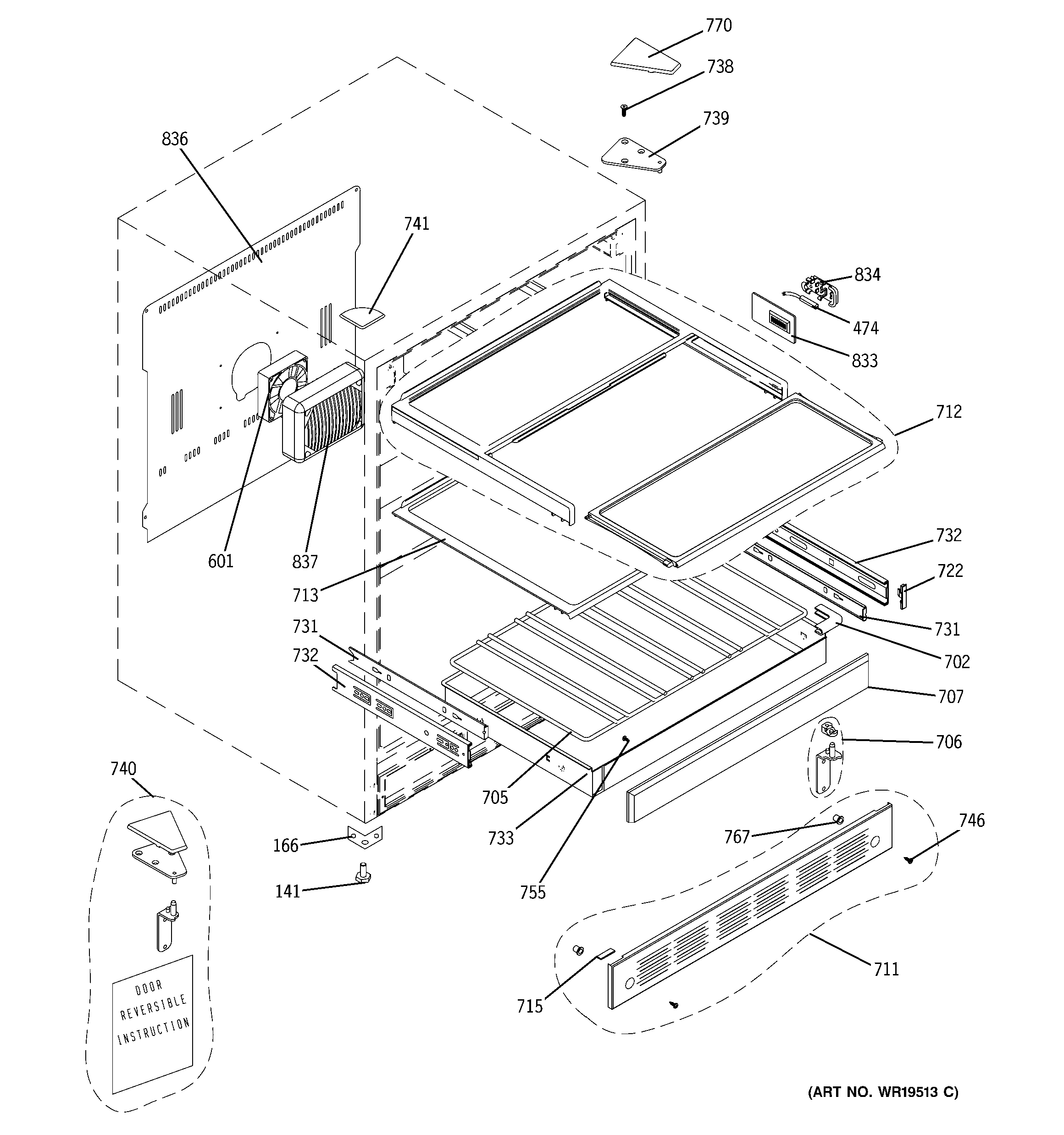

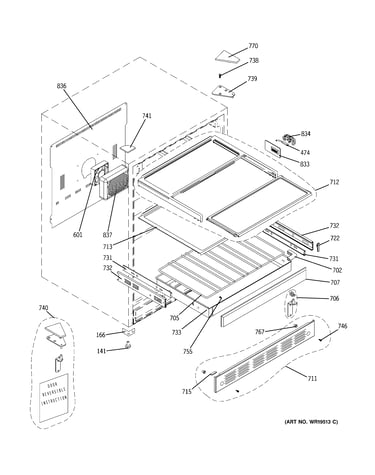

Cabinet & shelves diagram

Wine cooler door hinge, upper

Part #WR13X10276

$38.53
13% OFF Phone Price : $44.53
In Stock
Wine Cooler Electronic Control Board (replaces Wr09x10118) WR55X10429
#876

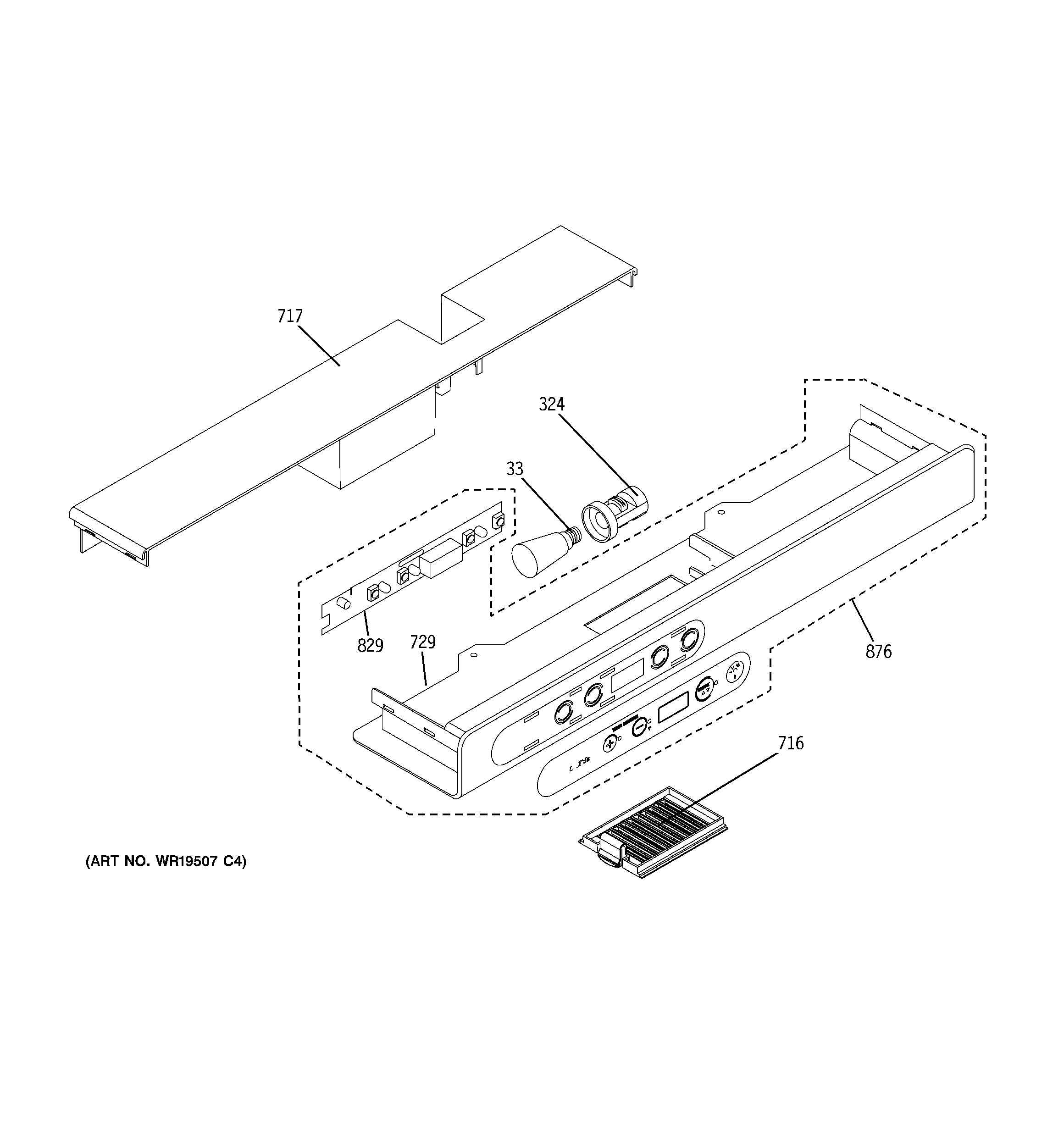

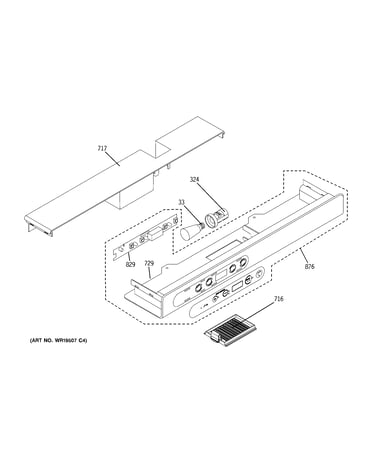

Climate controls diagram

Wine cooler electronic control board (replaces wr09x10118)

Part #WR55X10429

$219.29
5% OFF Phone Price : $231.29
In Stock
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

Cabinet & shelves diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$226.00
5% OFF Phone Price : $238.00
In Stock
Wine Cooler Toe Grille (stainless) WR79X10030
#711

Cabinet & shelves diagram

Wine cooler toe grille (stainless)

Part #WR79X10030

$125.86
9% OFF Phone Price : $137.86
In Stock
Control Board WR09X10118
#729

Climate controls diagram

Control board

Part #WR09X10118

Replaced by #WR55X10429

?
Manufacturer substitution
This part replaces WR09X10118. Substitute parts can look different from the original.
$219.29
5% OFF Phone Price : $231.29
In Stock
Guide WR02X11412
#722

Cabinet & shelves diagram

Guide

Part #WR02X11412

In Stock
