Water Pump

Model # 39025011 Official Sears jet pump

Here are the diagrams and repair parts for Official Sears 39025011 jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Slinger N69-1
#2

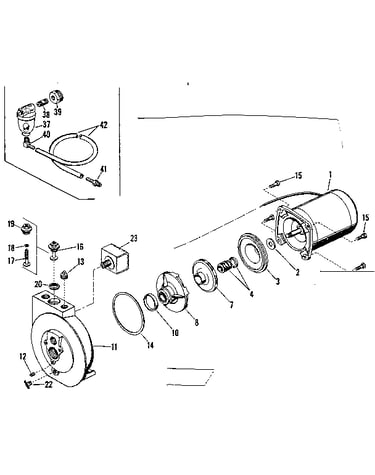

Motor and pump assembly diagram

Slinger

Part #N69-1

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces N69-1. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Diff Ring L21-1
#10

Motor and pump assembly diagram

Diff ring

Part #L21-1

$24.77
In Stock
Drain Cock U212-68
#22

Motor and pump assembly diagram

Drain cock

Part #U212-68

The manufacturer no longer makes this part, and there's no substitute part

Pump Body Gasket N20-35
#14

Motor and pump assembly diagram

Pump body gasket

Part #N20-35

Replaced by #N20-35C

?
Manufacturer substitution
This part replaces N20-35. Substitute parts can look different from the original.
This item is not returnable
$9.44
Back Order
Jet Gasket N20-25
#14

Jets for shallow well pumps diagram

Jet gasket

Part #N20-25

Replaced by #N20-25N

?
Manufacturer substitution
This part replaces N20-25. Substitute parts can look different from the original.
This item is not returnable
$10.83
In Stock
Valve Seat J66-14
#11B

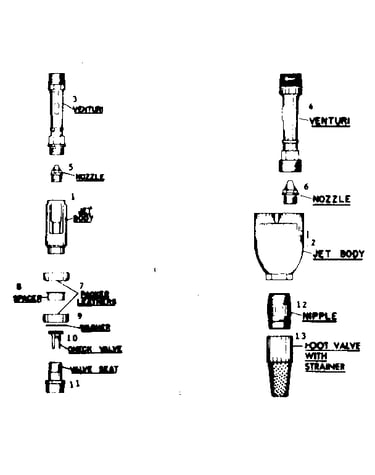

Single pipe jet & double pipe diagram

Valve seat

Part #J66-14

$201.51
In Stock
Spacer J43-16
#8B

Single pipe jet & double pipe diagram

Spacer

Part #J43-16

$59.85
In Stock
Gasket L20-39
#20

Motor and pump assembly diagram

Gasket

Part #L20-39

$8.19 |
11% OFF Phone Price : $9.19
In Stock
Leather 3 In J57-3
#7B

Single pipe jet & double pipe diagram

Leather 3 in

Part #J57-3

$26.14
In Stock
Seal Ring J21-21
#4B

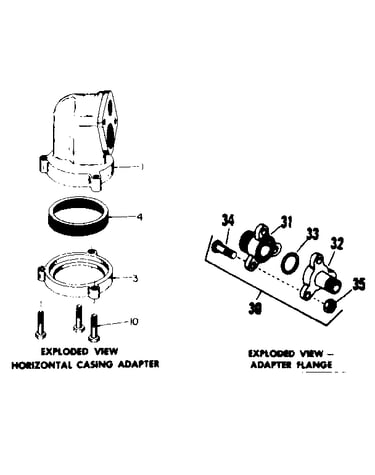

Horizontal casing adapters & adapter flange kit diagram

Seal ring

Part #J21-21

$52.40
In Stock
