Whirlpool
Gas Range

Model # SF318PEWN0 Official Whirlpool 30" sealed gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool SF318PEWN0 30" sealed gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

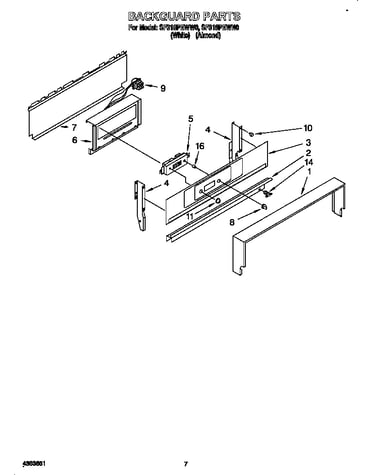

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Insulation 4157665
#6

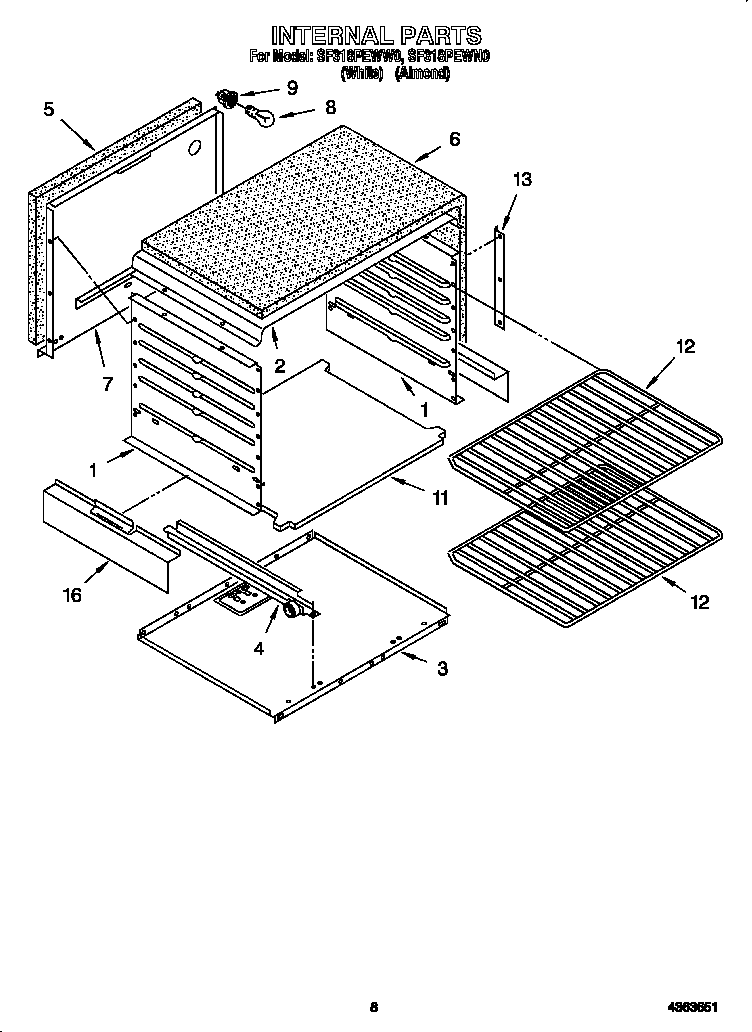

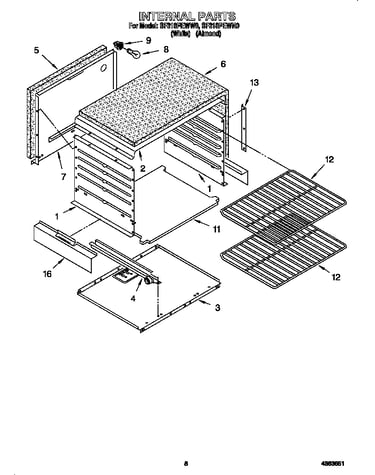

Internal diagram

Insulation

Part #4157665

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157665. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 4157664
#5

Internal diagram

Insulation

Part #4157664

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157664. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Igniter Switch 4157210
#3

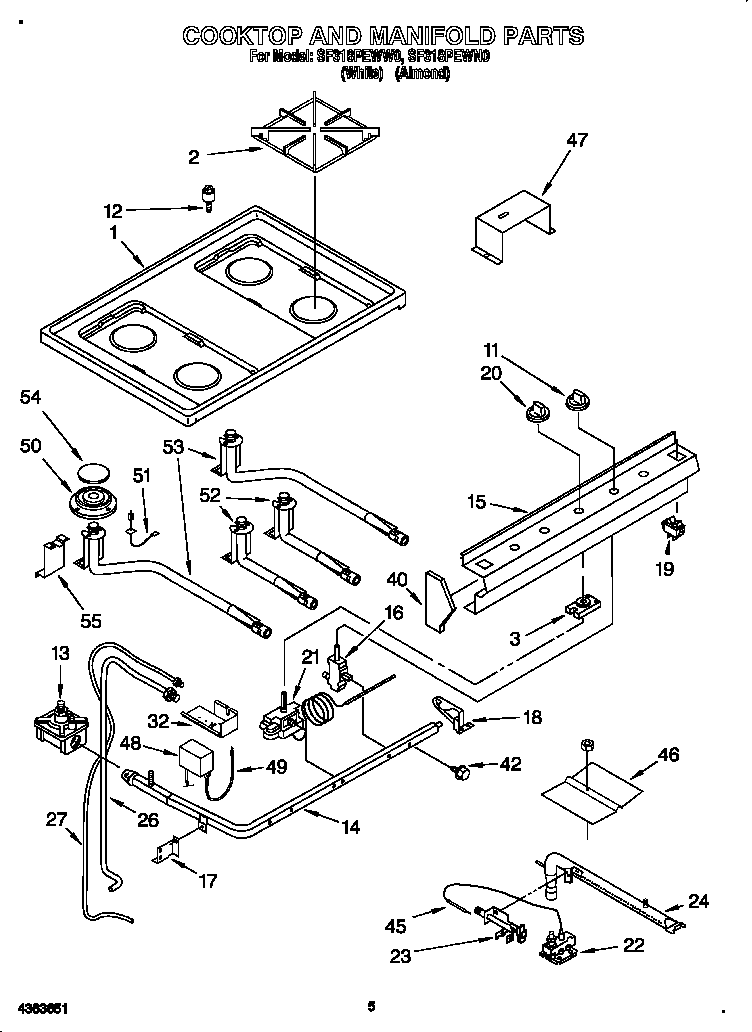

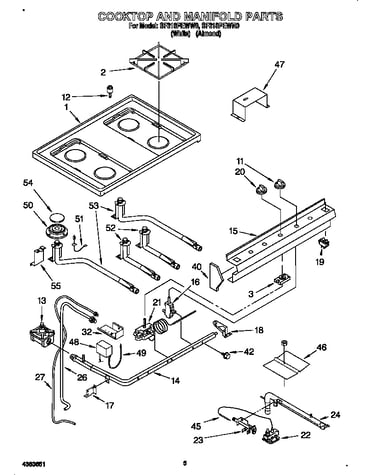

Cooktop and manifold diagram

Igniter switch

Part #4157210

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 4157210. Substitute parts can look different from the original.
$43.51
In Stock
Broiler Pan 4315095
#19

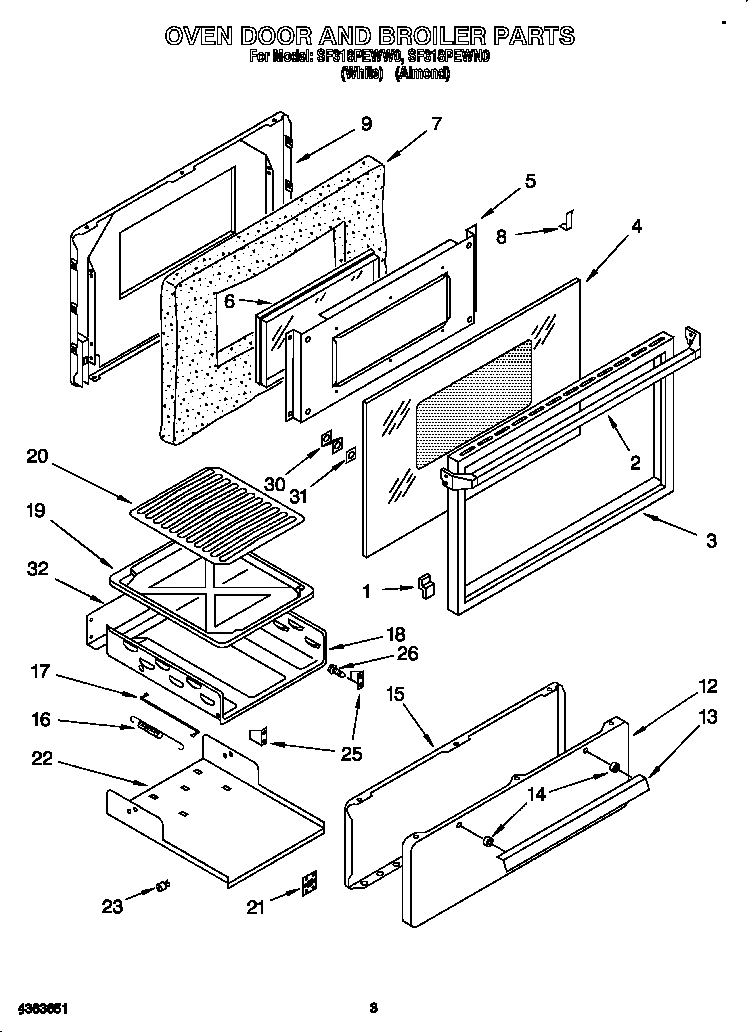

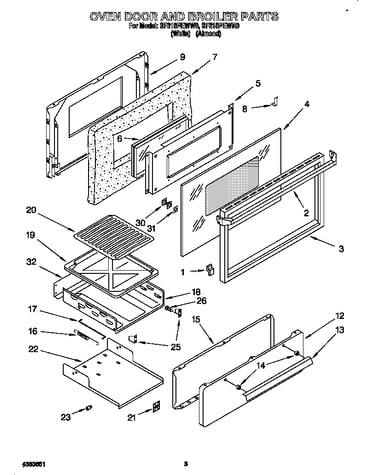

Oven door and broiler diagram

Broiler pan

Part #4315095

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4315095. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Light Bulb 4157019
#8

Internal diagram

Light bulb

Part #4157019

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4157019. Substitute parts can look different from the original.
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Surface Igniter 4363540
#51

Cooktop and manifold diagram

Surface igniter

Part #4363540

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 4363540. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Nut 4157052
#46A

Cooktop and manifold diagram

Nut

Part #4157052

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157052. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Drawer Glide 4363051
#23

Oven door and broiler diagram

Drawer glide

Part #4363051

Replaced by #W10709871

?
Manufacturer substitution
This part replaces 4363051. Substitute parts can look different from the original.
$7.96
In Stock
Screw 4157111
Screw

Part #4157111

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157111. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Burner Control Knob (black) 4320580
#11

Cooktop and manifold diagram

Range burner control knob (black)

Part #4320580

Replaced by #WP4320580

?
Manufacturer substitution
This part replaces 4320580. Substitute parts can look different from the original.
This item is not returnable
$9.03 |
10% OFF Phone Price : $10.03
In Stock
