Bosch
Electric Cooktop

Model # NIT8665UC/02 Official Bosch cooktop

Here are the diagrams and repair parts for Official Bosch NIT8665UC-02 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Insert 00416289
#243

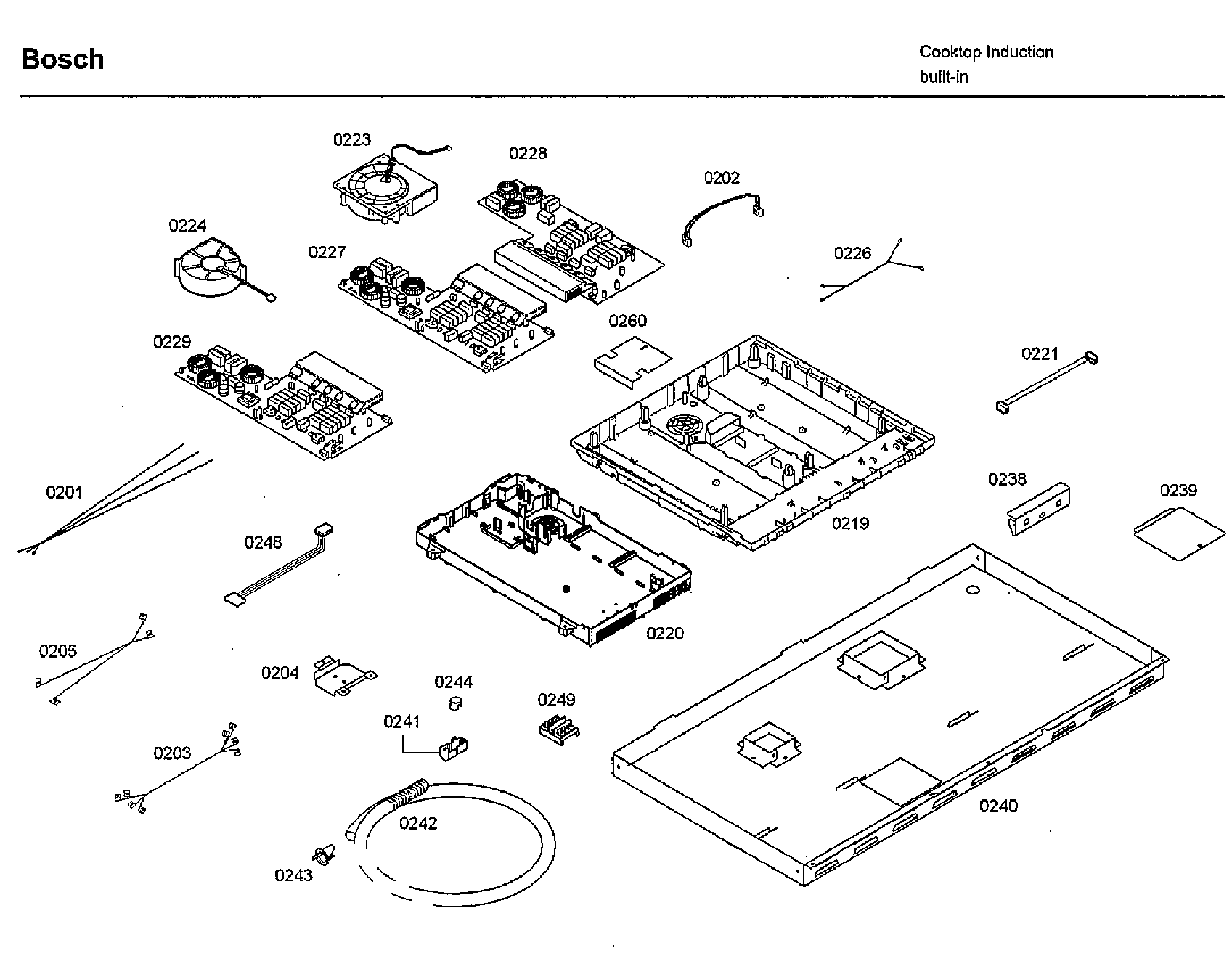

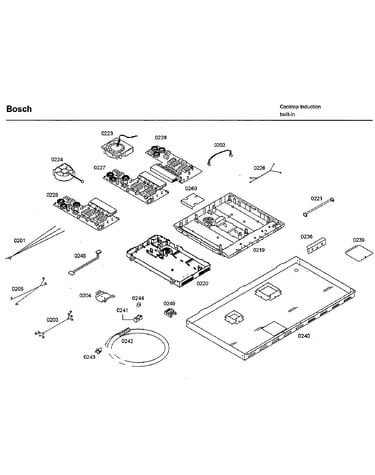

Pcb asy diagram

Insert

Part #00416289

This item is not returnable
$6.23
In Stock
Connection 00613540
#150

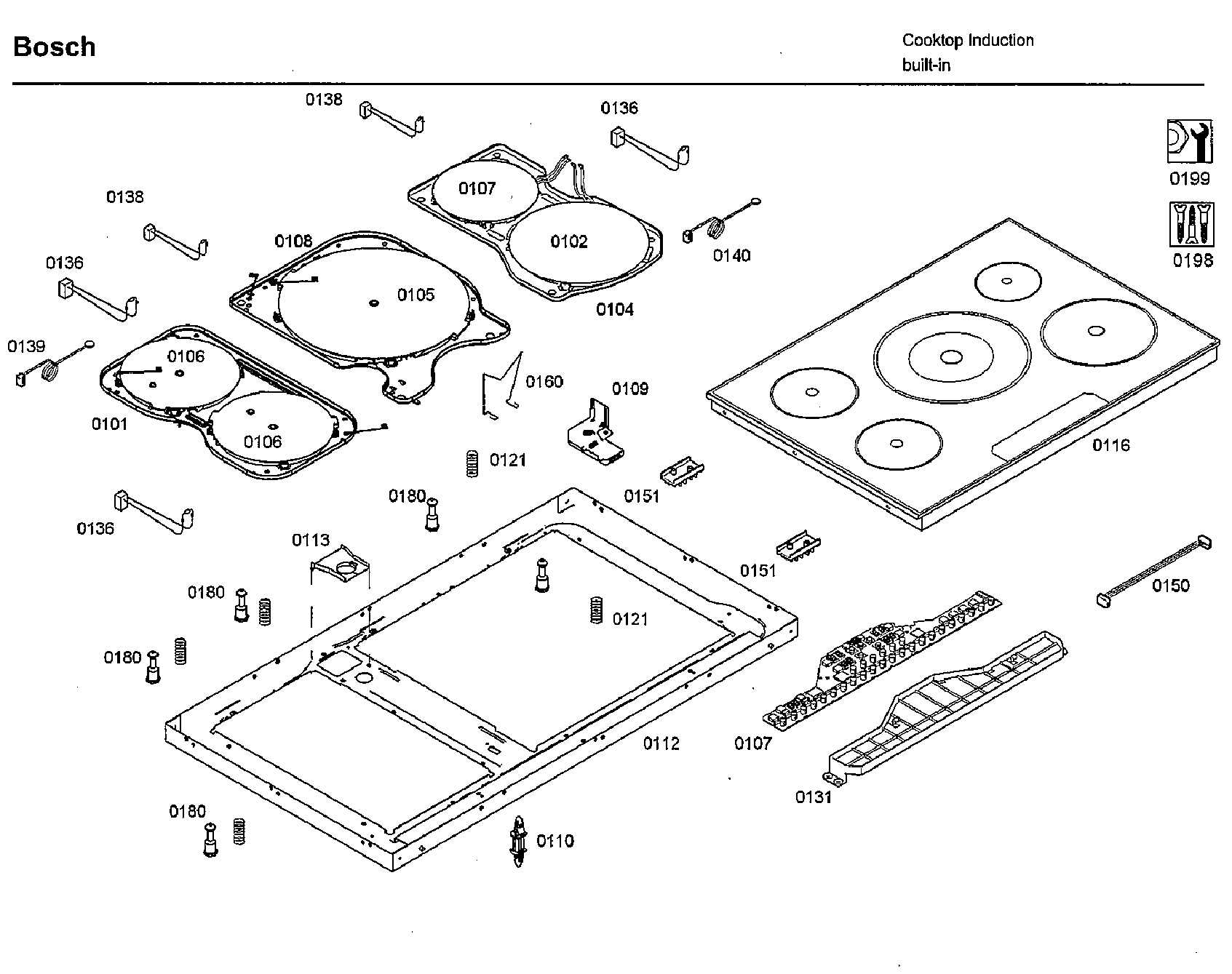

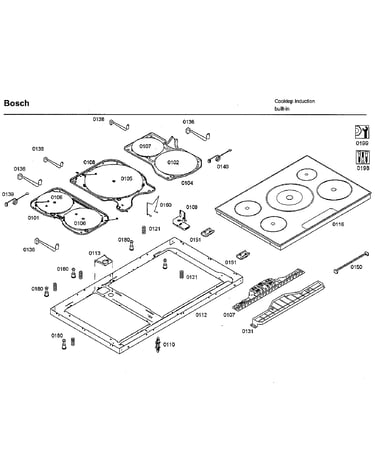

Induction asy diagram

Connection

Part #00613540

$25.77
In Stock
Instructions 00561156
#NI

Pcb asy diagram

Instructions

Part #00561156

$101.67
In Stock
Cooktop Wire Harness Retainer, 1/2-in 00414692
#241

Pcb asy diagram

Cooktop wire harness retainer, 1/2-in

Part #00414692

$49.31
In Stock
Cooktop User Interface Board 00673557
#107

Induction asy diagram

Cooktop user interface board

Part #00673557

$382.47
In Stock
Cover 00646530
#131

Induction asy diagram

Cover

Part #00646530

$16.43
In Stock
Connection 00647698
#201

Pcb asy diagram

Connection

Part #00647698

$112.42
In Stock
Washer 00415812
#244

Pcb asy diagram

Washer

Part #00415812

This item is not returnable
$7.49
In Stock
Fan 00612942
#223

Pcb asy diagram

Fan

Part #00612942

$76.24
In Stock
Cooktop Main Top Seal (replaces 613888) 00613888
#NI

Induction asy diagram

Cooktop main top seal (replaces 613888)

Part #00613888

$24.69 |
20% OFF Phone Price : $30.69
In Stock
