Model # JSP28GV2BB Official GE electric slide-in range

Here are the diagrams and repair parts for Official GE JSP28GV2BB electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

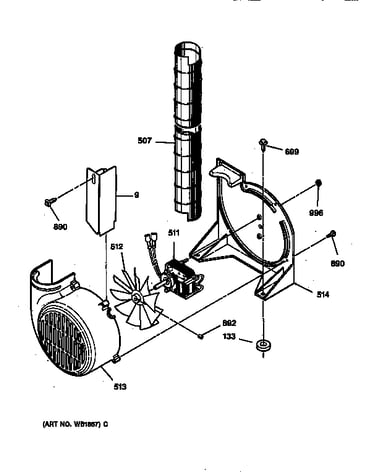

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012
#251

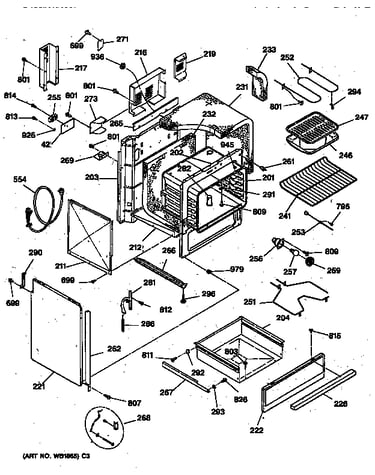

Body parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Terminal Block Assembly WB17K5017
#82

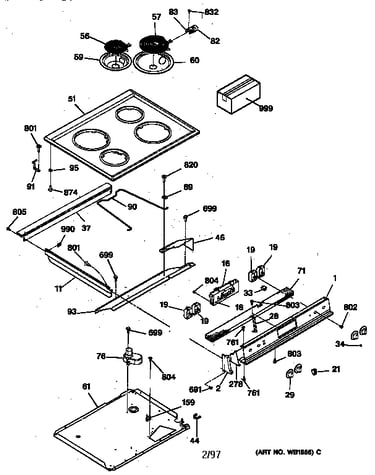

Control panel diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Broil Support WB02X9719
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
"8""p.i. S/u" WB30X5130
#57

Control panel diagram

"8""p.i. s/u"

Part #WB30X5130

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5130. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Ov Lt Dr Sw WB24K5031
#261

Body parts diagram

Ov lt dr sw

Part #WB24K5031

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24K5031. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
6"p.i. S/u WB30X5129
#56

Control panel diagram

6"p.i. s/u

Part #WB30X5129

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5129. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Lock Motor WB26K5030
#151

Door latch diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Dr Hndl Ecap WB15K5069
#397

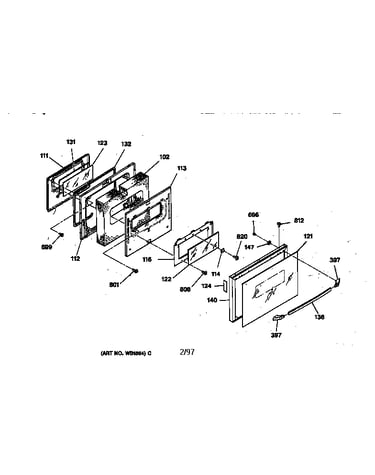

Oven door diagram

Dr hndl ecap

Part #WB15K5069

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB15K5069. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Oven Door Gasket WB02K5319
#132

Oven door diagram

Oven door gasket

Part #WB02K5319

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB02K5319. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
Drive Lock Plate WB34K5228
#184

Door latch diagram

Drive lock plate

Part #WB34K5228

$105.14
In Stock
