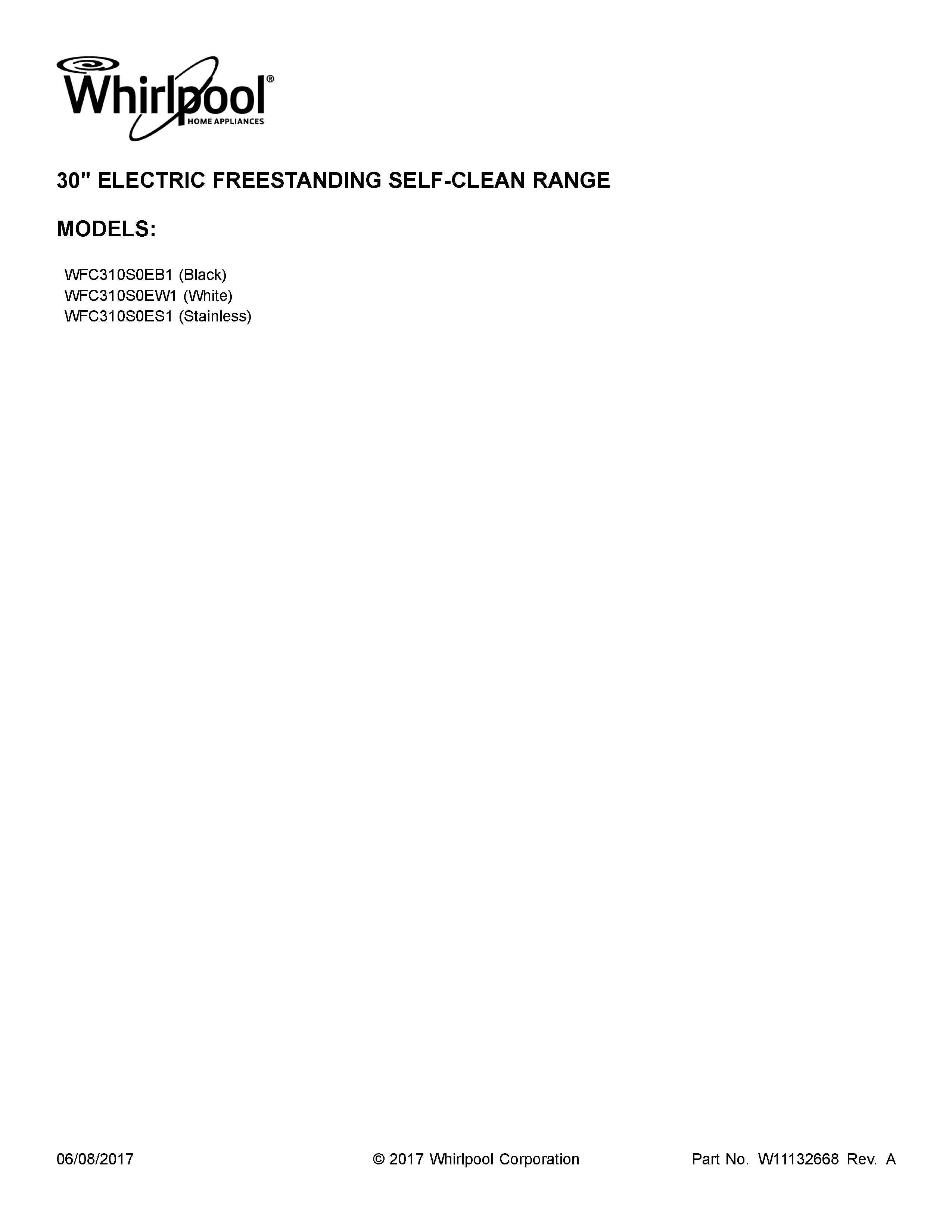

Model # WFC310S0ES1 Official Whirlpool electric freestanding range

Here are the diagrams and repair parts for Official Whirlpool WFC310S0ES1 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

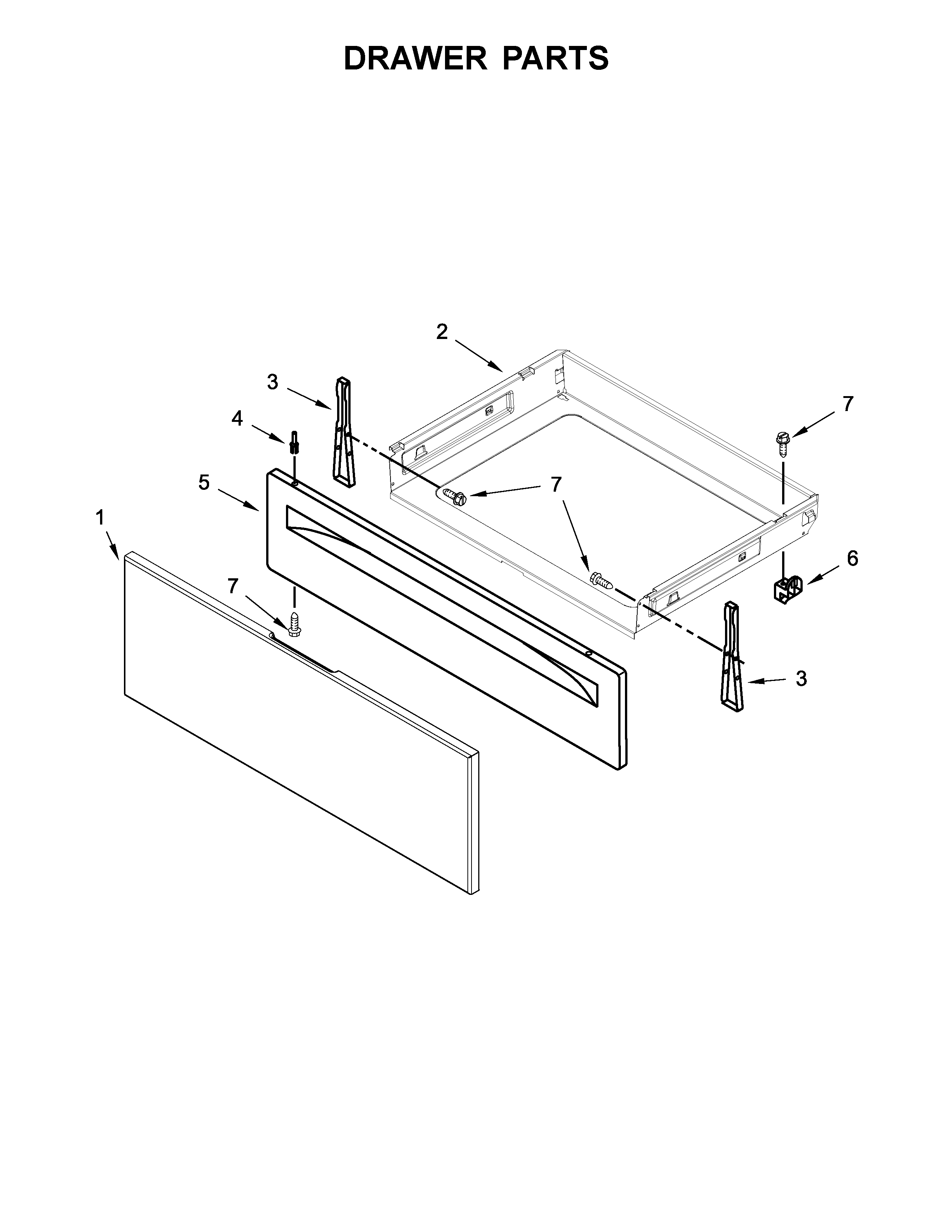

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Light Bulb 311255
#38

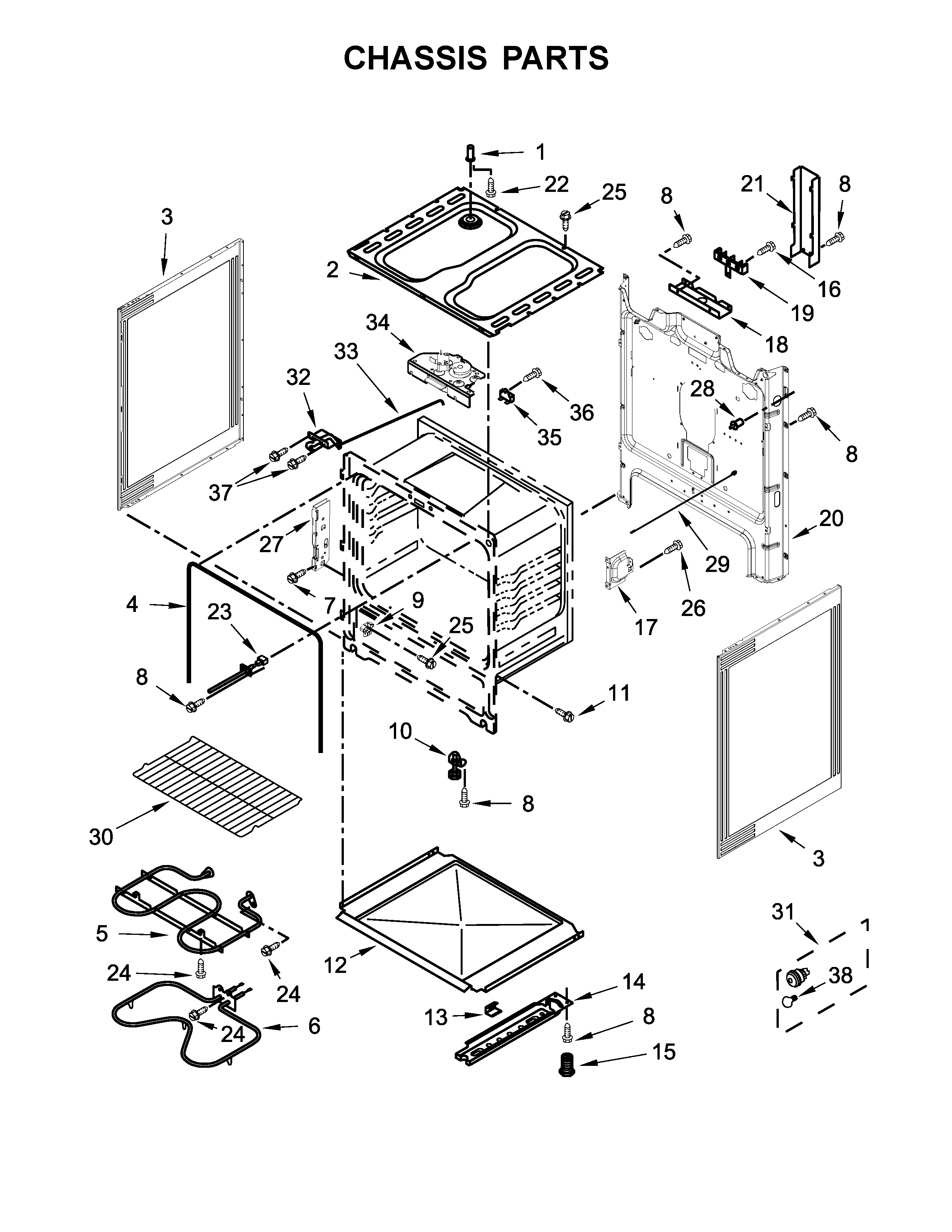

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Infinite Switch 3148954
#4A

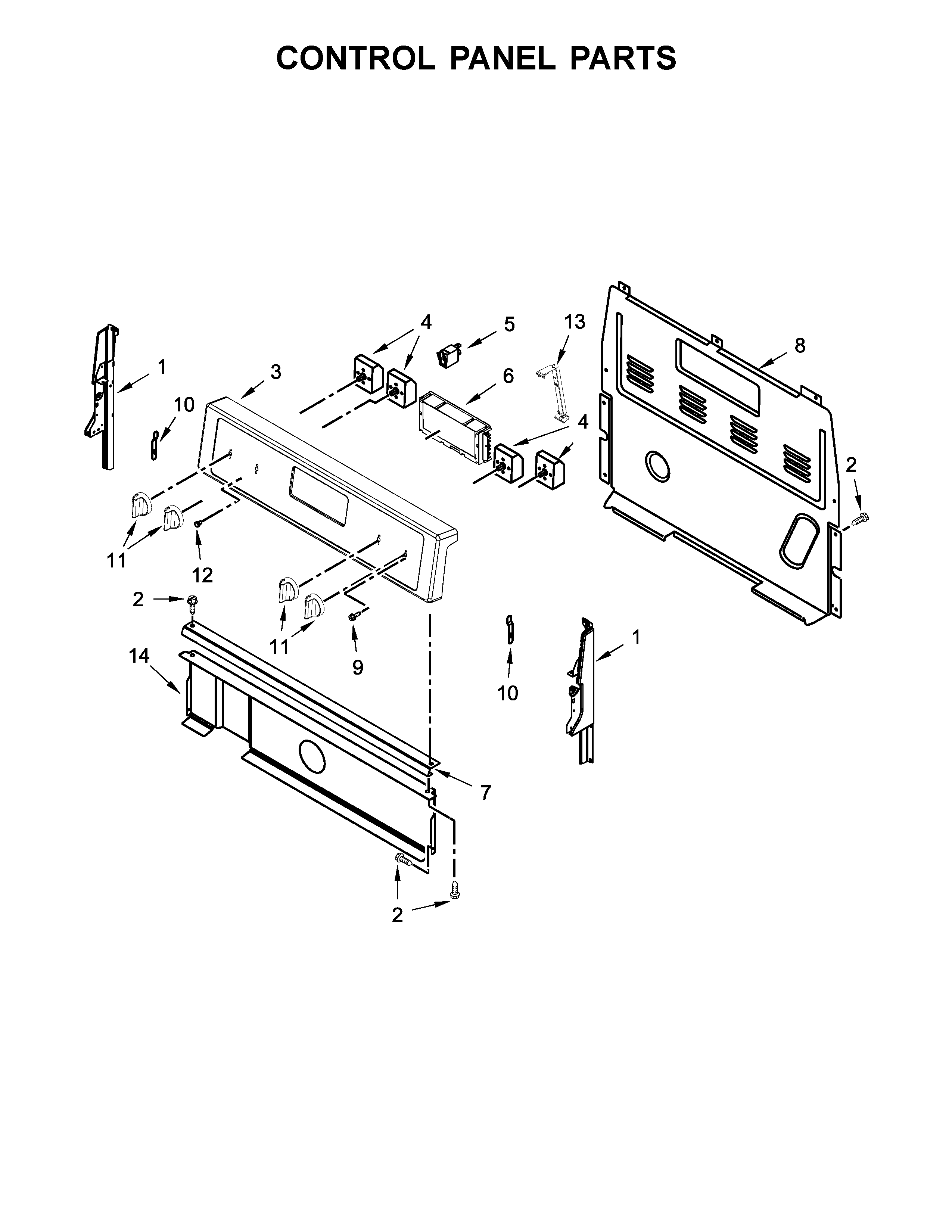

Control panel parts diagram

Infinite switch

Part #3148954

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 3148954. Substitute parts can look different from the original.
BEST SELLER
$37.80 |
14% OFF Phone Price : $43.80
In Stock
Range Terminal Block W10245259
#19

Chassis parts diagram

Range terminal block

Part #W10245259

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces W10245259. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Bake Element W10308477
#6

Chassis parts diagram

Range bake element

Part #W10308477

Replaced by #WPW10308477

?
Manufacturer substitution
This part replaces W10308477. Substitute parts can look different from the original.
BEST SELLER
$42.33 |
12% OFF Phone Price : $48.33
In Stock
Range Surface Element Control Switch 3148952
#4

Control panel parts diagram

Range surface element control switch

Part #3148952

Replaced by #WP3148952

?
Manufacturer substitution
This part replaces 3148952. Substitute parts can look different from the original.
BEST SELLER
$67.22 |
10% OFF Was : $74.69
In Stock
Range Oven Door Vent Cap W10310922
#13

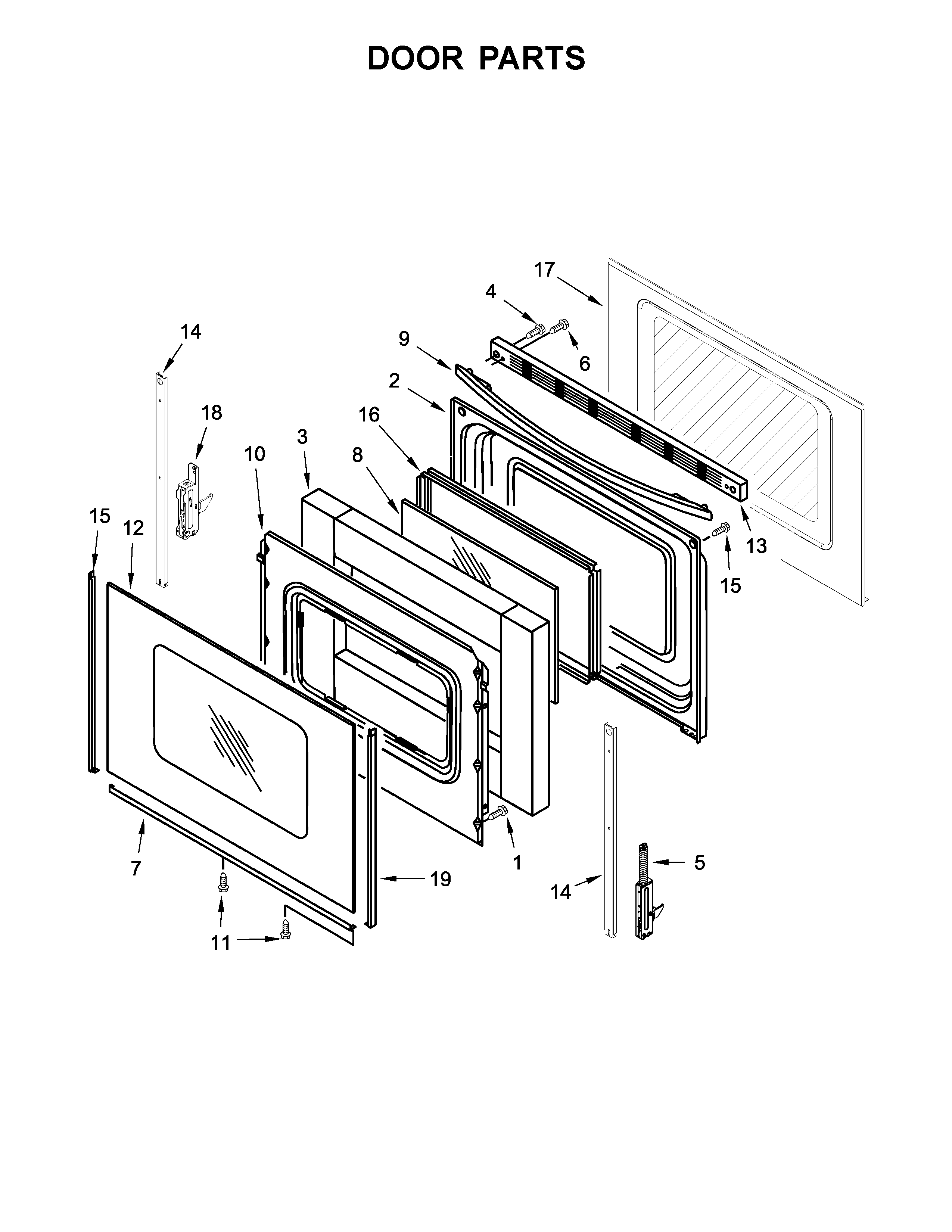

Door parts diagram

Range oven door vent cap

Part #W10310922

Replaced by #WPW10310922

?
Manufacturer substitution
This part replaces W10310922. Substitute parts can look different from the original.
BEST SELLER
$90.85 |
6% OFF Phone Price : $96.85
In Stock
Magic Chef Range Surface Element Receptacle 814399
#11

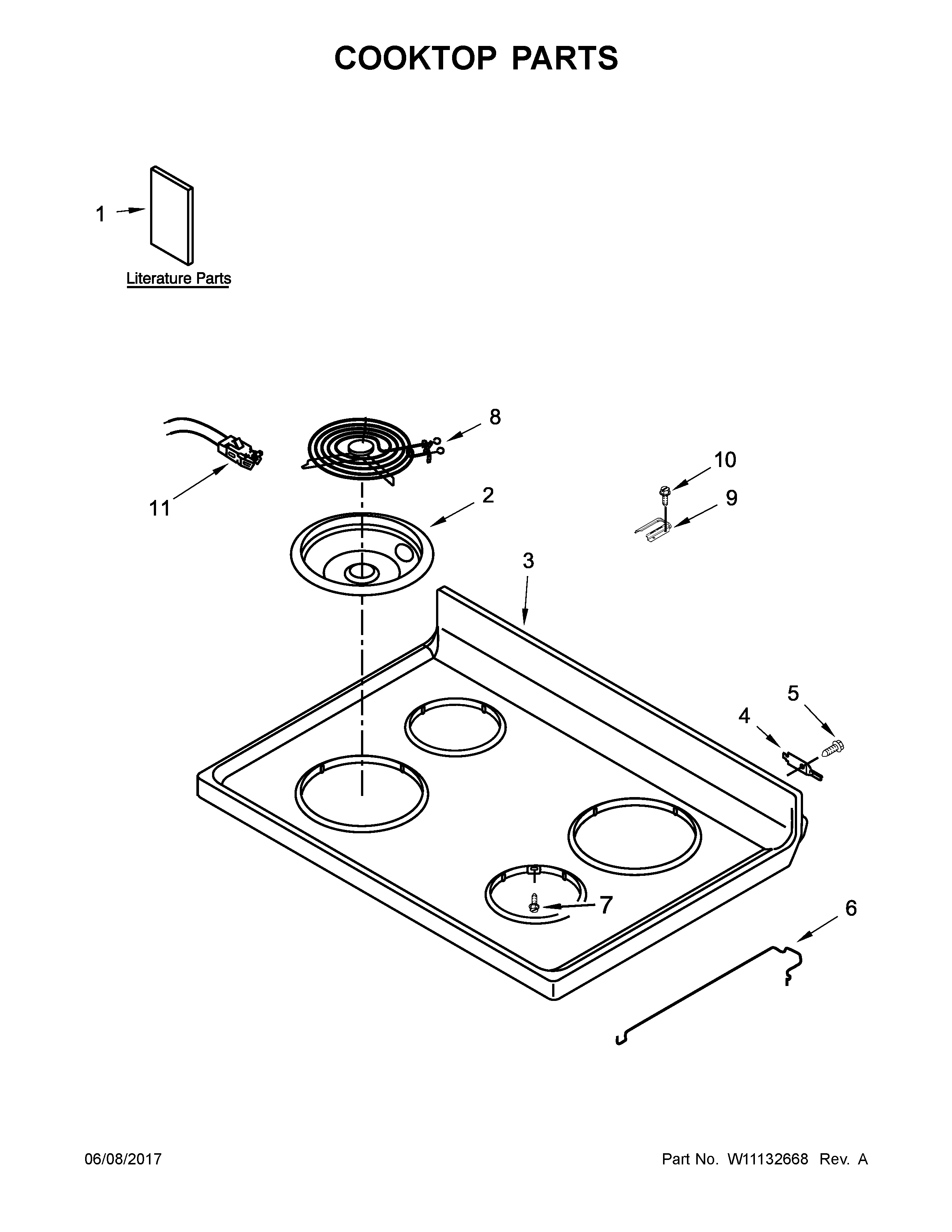

Cooktop parts diagram

Magic chef range surface element receptacle

Part #814399

BEST SELLER
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Range Coil Surface Element, 8-in W10259865
#8A

Cooktop parts diagram

Range coil surface element, 8-in

Part #W10259865

Replaced by #WPW10259865

?
Manufacturer substitution
This part replaces W10259865. Substitute parts can look different from the original.
BEST SELLER
$90.73 |
6% OFF Phone Price : $96.73
In Stock
Range Screw W10200660
#4

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
