Model # GFC05M0AW1 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFC05M0AW1 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Filter Drier 216634500
#4

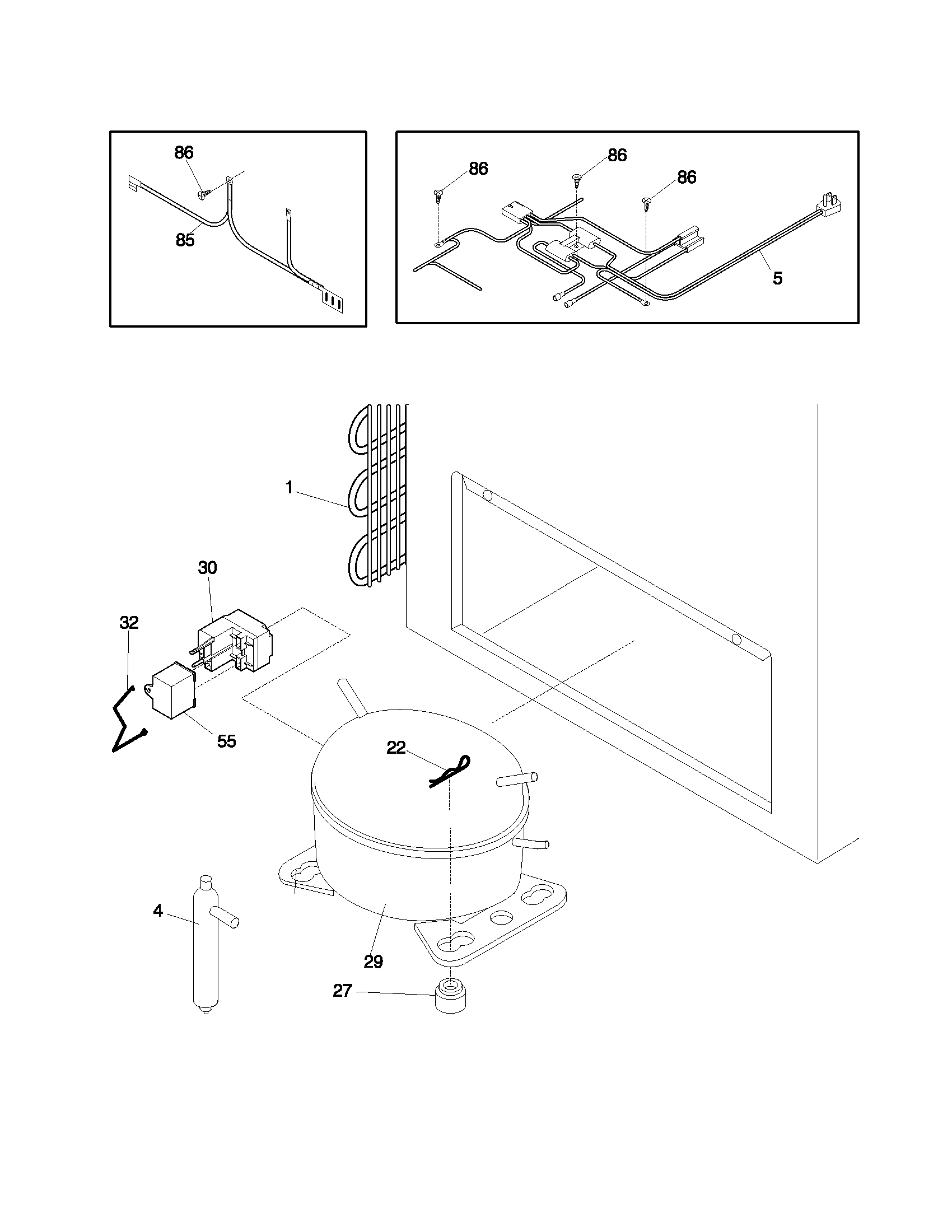

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

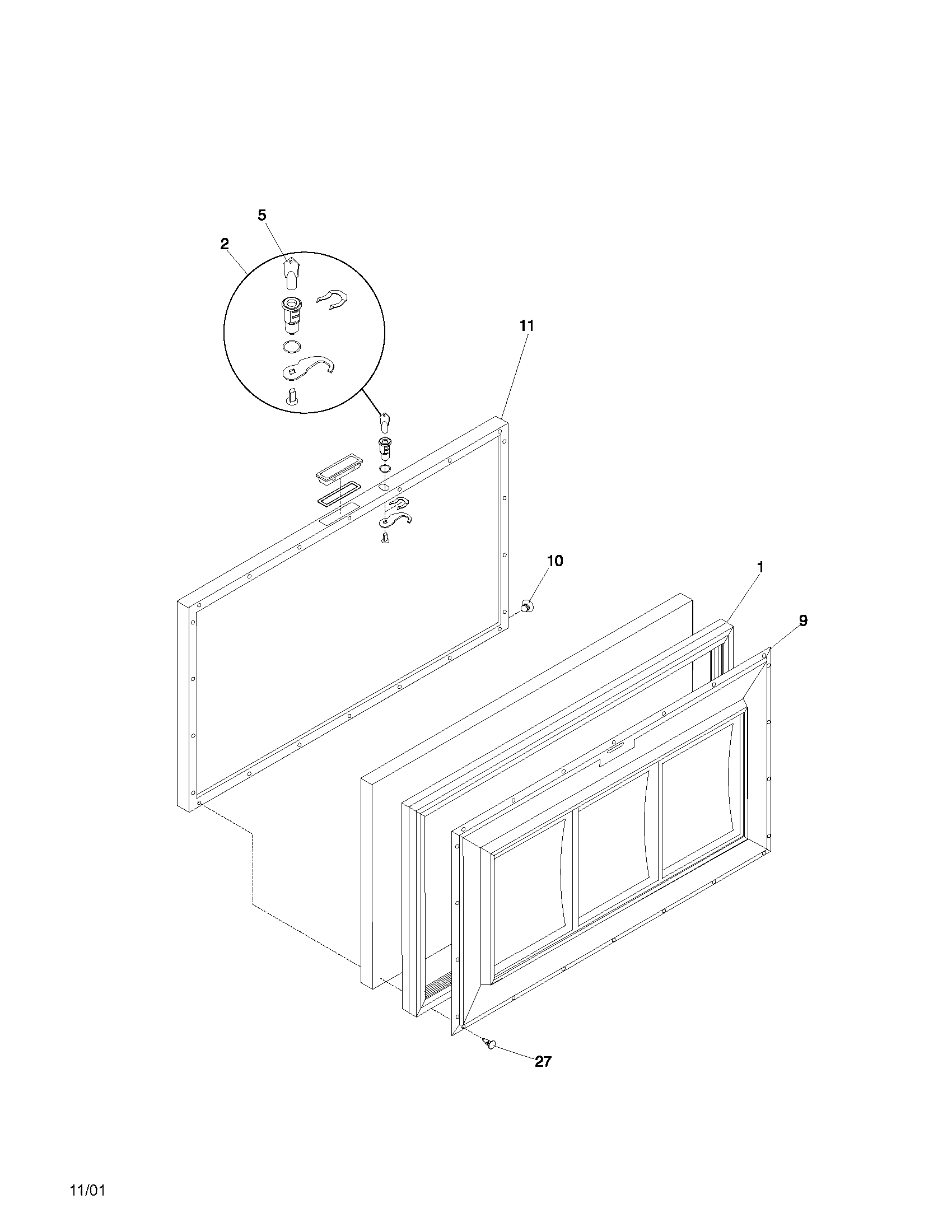

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Touch Paint 5303305324
#NI

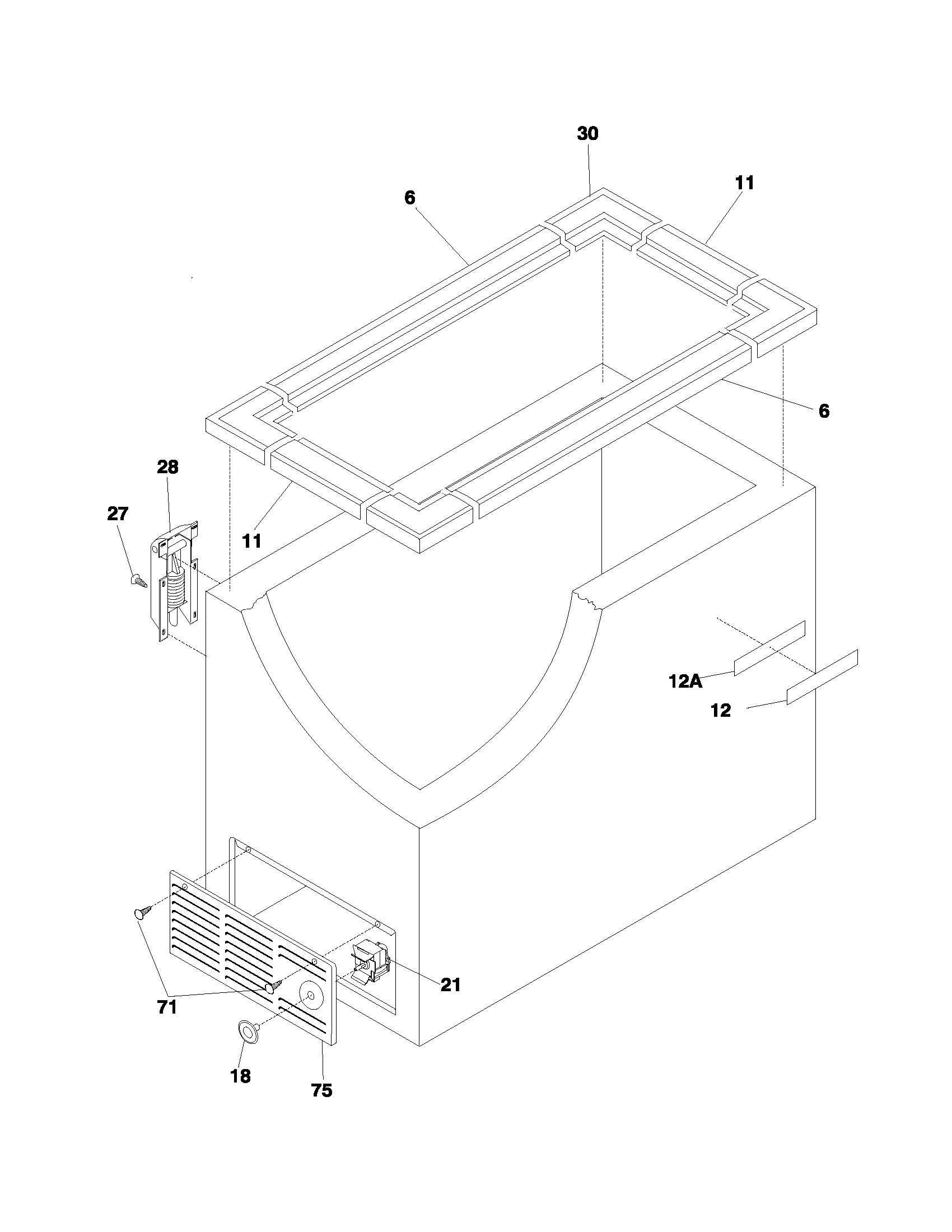

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Kelvinator Freezer Lid Outer Panel (white) 216106014
#11

Door diagram

Kelvinator freezer lid outer panel (white)

Part #216106014

$188.14
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Kelvinator Freezer Lid Gasket (replaces 216078400, 216078403, 216078405, 216480802, 216480803) 216480801
#1

Door diagram

Kelvinator freezer lid gasket (replaces 216078400, 216078403, 216078405, 216480802, 216480803)

Part #216480801

$126.30 |
9% OFF Phone Price : $138.30
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Condenser Coil 5300120779
#1

System diagram

Freezer condenser coil

Part #5300120779

$296.67
In Stock
Screw Hwh #2 216337700
#27

Cabinet diagram

Screw hwh #2

Part #216337700

Replaced by #216337701

?
Manufacturer substitution
This part replaces 216337700. Substitute parts can look different from the original.
$13.26
In Stock
Freezer Temperature Control Thermostat 216787700
#21

Cabinet diagram

Freezer temperature control thermostat

Part #216787700

Replaced by #5304496559

?
Manufacturer substitution
This part replaces 216787700. Substitute parts can look different from the original.
This item is not returnable
$41.79 |
13% OFF Phone Price : $47.79
In Stock
