Broan
Downdraft Ventilation System

Model # ILB6 Official Broan inline blower

Here are the diagrams and repair parts for Official Broan ILB6 inline blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Trash Compactor Lock Nut 99260477
#11

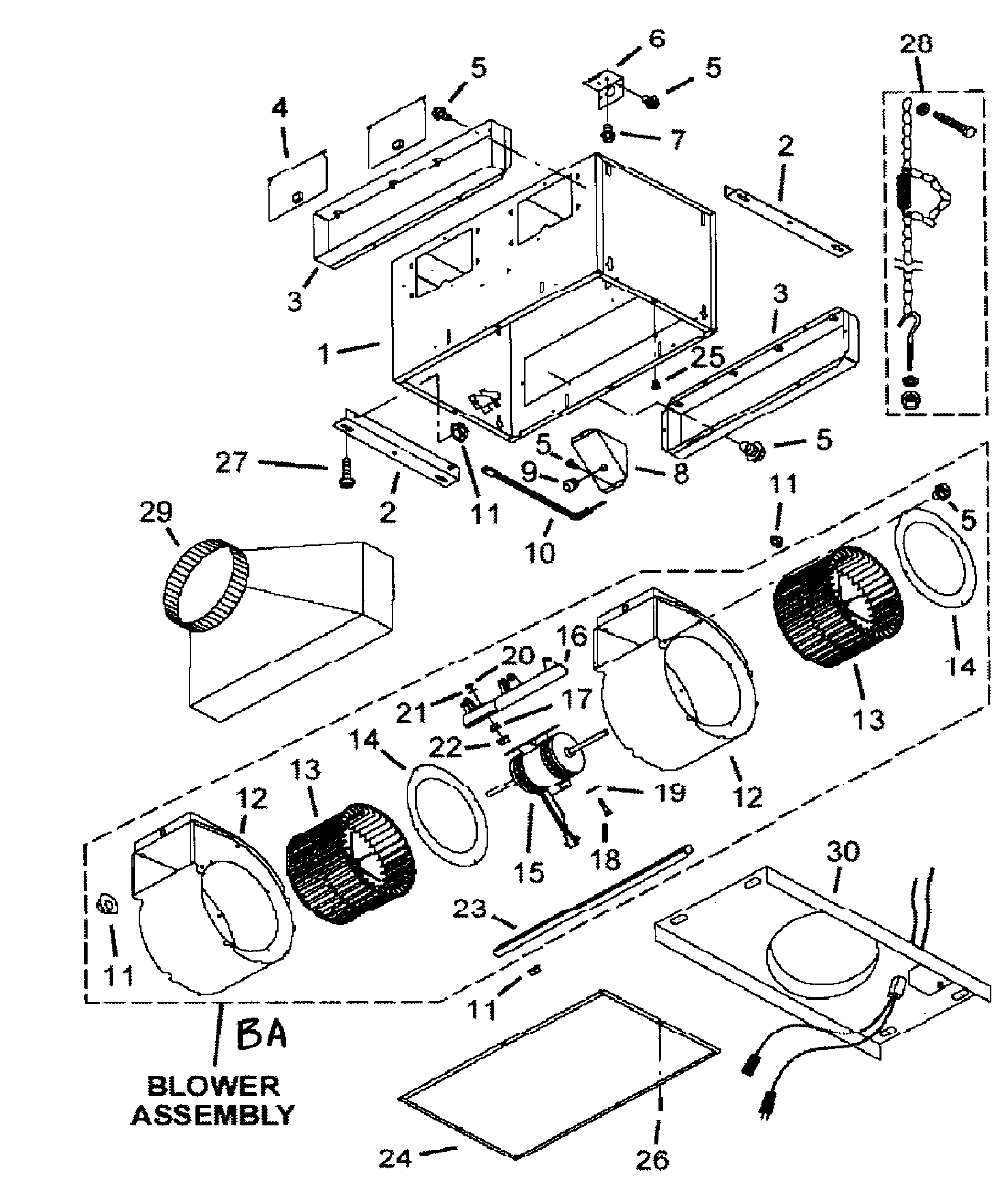

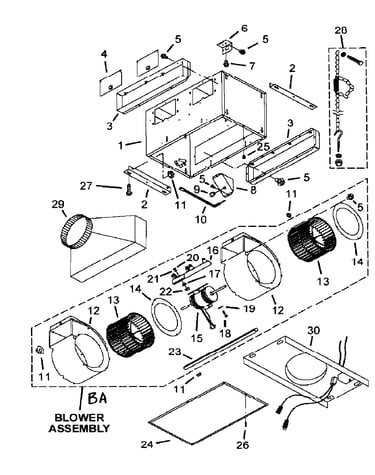

Main asy diagram

Trash compactor lock nut

Part #99260477

Replaced by #S99260477

?
Manufacturer substitution
This part replaces 99260477. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Nut 3/8-16 93260456
#22

Main asy diagram

Nut 3/8-16

Part #93260456

This item is not returnable
$4.44
In Stock
Downdraft Vent Transition S423
#29

Main asy diagram

Downdraft vent transition

Part #S423

$91.56
In Stock
Downdraft Vent Blower Motor 99080488
#15

Main asy diagram

Downdraft vent blower motor

Part #99080488

$150.49
In Stock
Broan Installation Instructions 99043701C
#NI

Main asy diagram

Broan installation instructions

Part #99043701C

This item is not returnable
$2.16
In Stock
Hanger Kit 97016791
#28

Main asy diagram

Hanger kit

Part #97016791

Replaced by #S97016791

?
Manufacturer substitution
This part replaces 97016791. Substitute parts can look different from the original.
$64.46
In Stock
Bushing 99400035
#9

Main asy diagram

Bushing

Part #99400035

Replaced by #S99400035

?
Manufacturer substitution
This part replaces 99400035. Substitute parts can look different from the original.
This item is not returnable
$6.66
In Stock
Adapter Pl 98005512
#6

Main asy diagram

Adapter pl

Part #98005512

Replaced by #S98005512

?
Manufacturer substitution
This part replaces 98005512. Substitute parts can look different from the original.
This item is not returnable
$4.53
In Stock
Downdraft Vent Blower Fan Assembly 97016793
#BA

Main asy diagram

Downdraft vent blower fan assembly

Part #97016793

Replaced by #S97016793

?
Manufacturer substitution
This part replaces 97016793. Substitute parts can look different from the original.
$507.63
In Stock
Blower Wheel 99020273
#13

Main asy diagram

Blower wheel

Part #99020273

Replaced by #S99020273

?
Manufacturer substitution
This part replaces 99020273. Substitute parts can look different from the original.
$71.40
In Stock
