Amana
Gas Range

Model # SBK22AH0-P1143072NW Official Amana gas range

Here are the diagrams and repair parts for Official Amana SBK22AH0-P1143072NW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

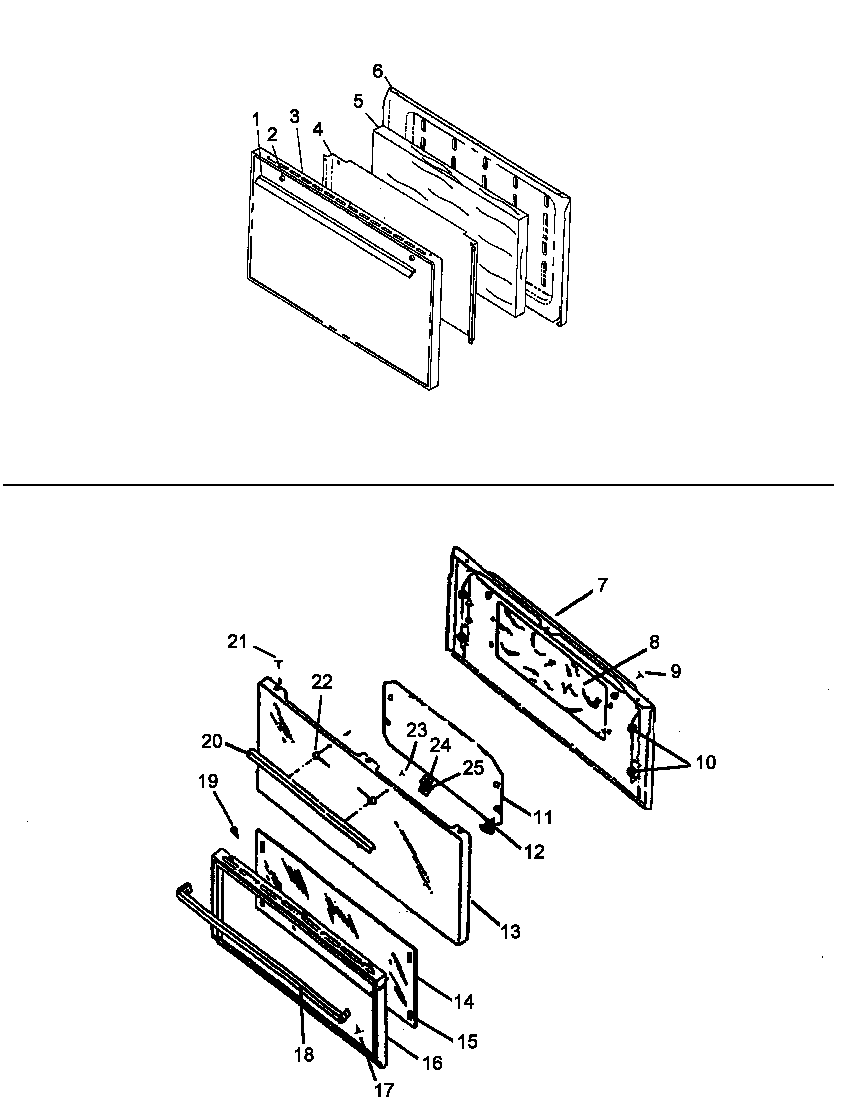

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Pan Screw 0310611
Pan screw

Part #0310611

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 0310611. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Spark Switch 0089068
Spark switch

Part #0089068

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 0089068. Substitute parts can look different from the original.
$43.51
In Stock
Switch 07455200
#17

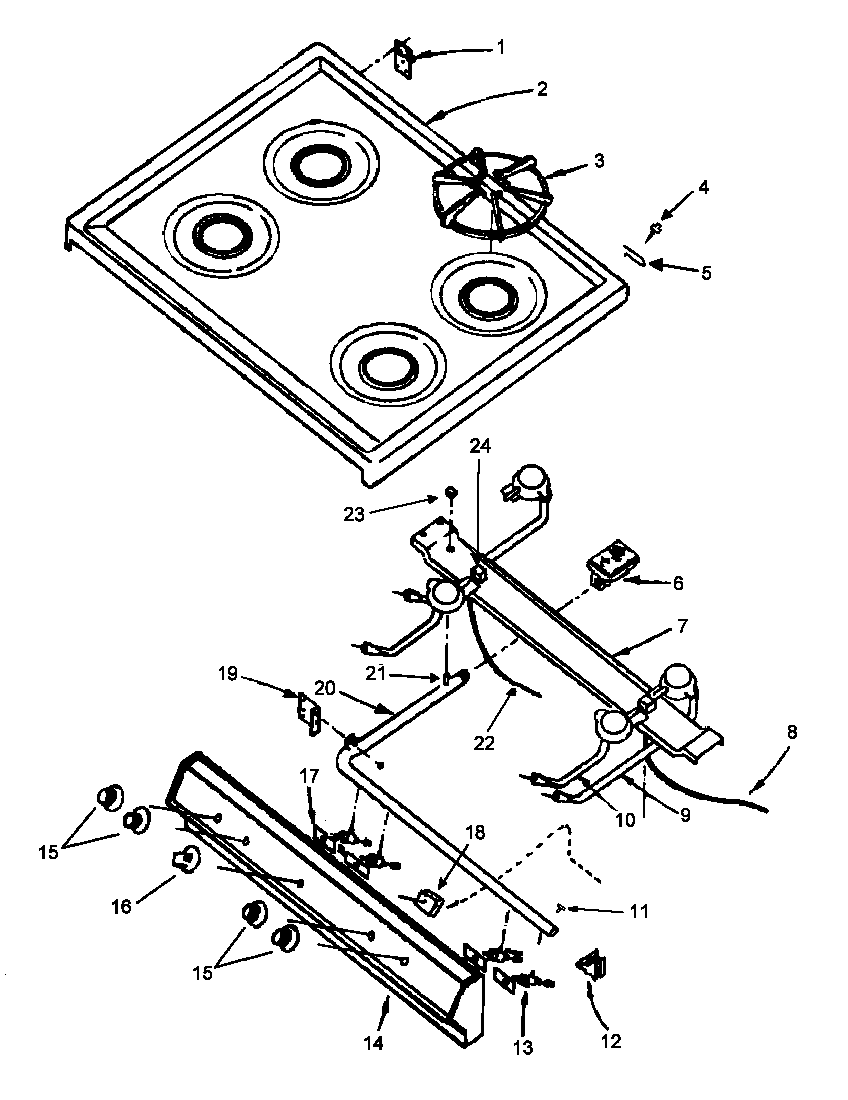

Main top assy diagram

Switch

Part #07455200

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 07455200. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Nut M0282009
#11

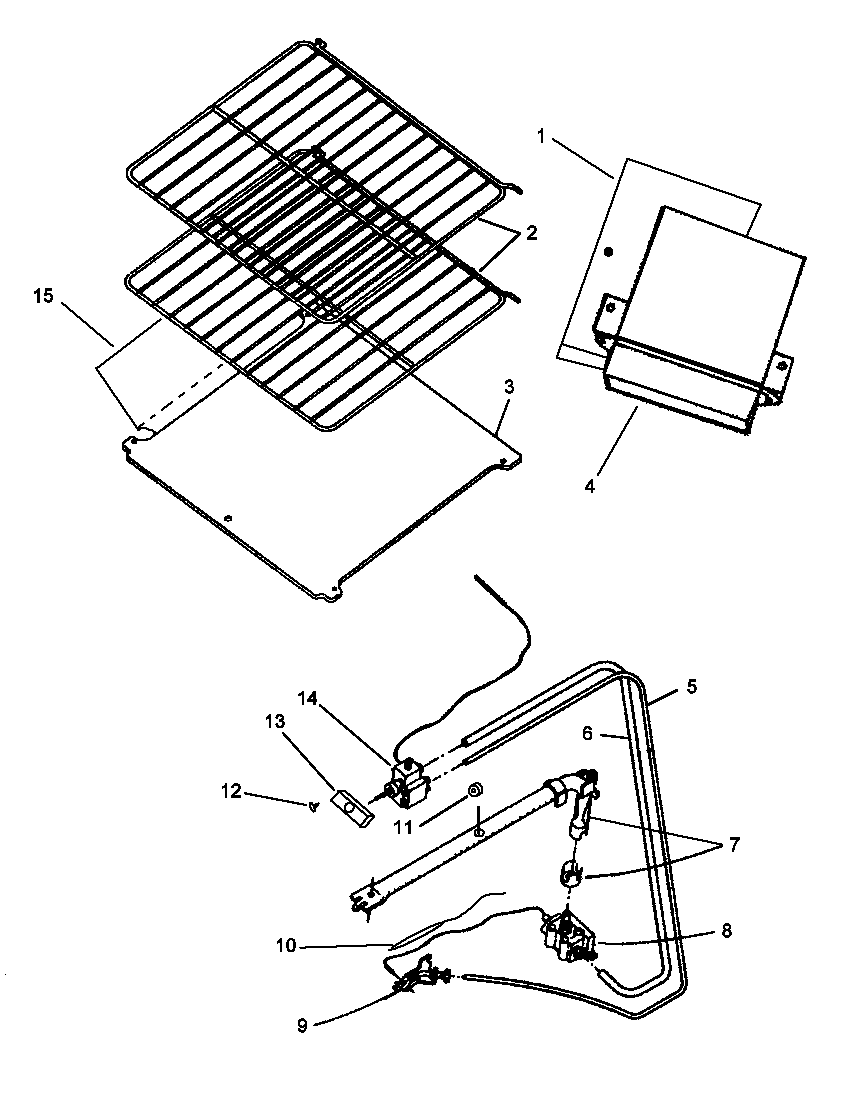

Oven components diagram

Nut

Part #M0282009

$12.49
In Stock
Screw 0056088
Screw

Part #0056088

Replaced by #W10856125

?
Manufacturer substitution
This part replaces 0056088. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Leg Leveler 01084002
#11

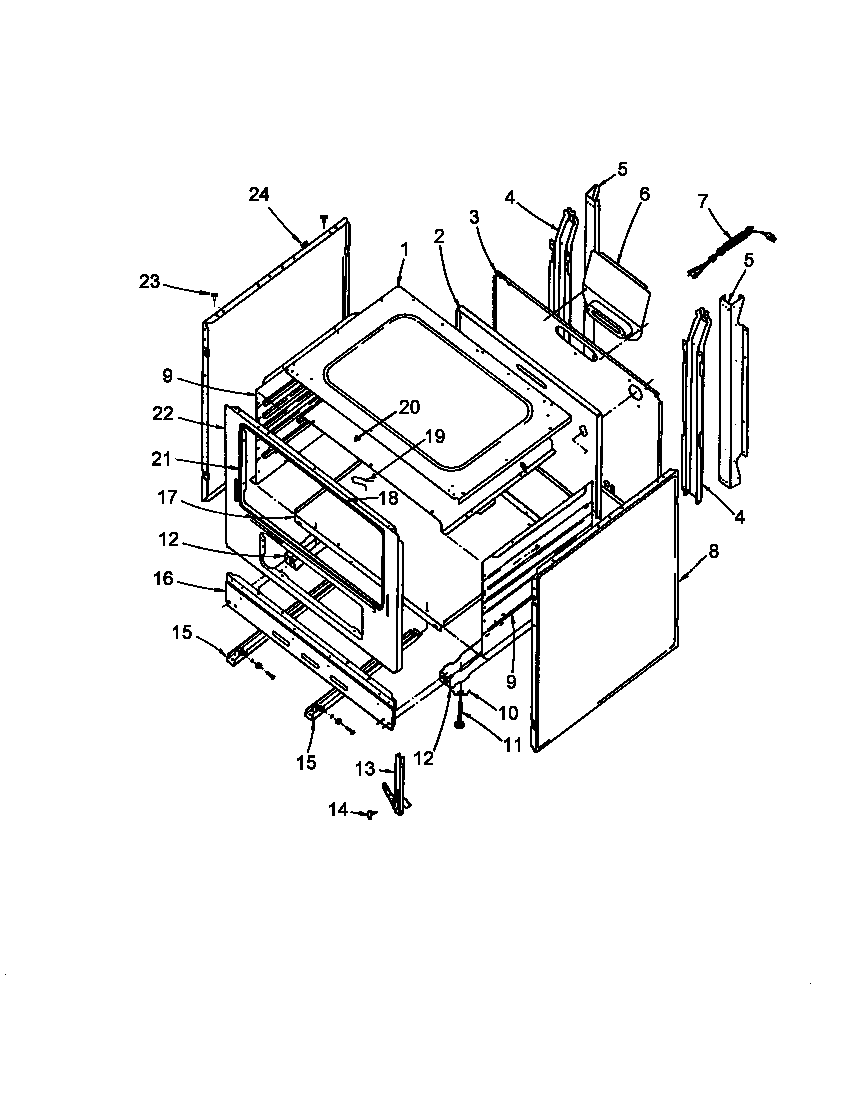

Cabinet assy diagram

Leg leveler

Part #01084002

Replaced by #W11117769

?
Manufacturer substitution
This part replaces 01084002. Substitute parts can look different from the original.
$12.39 |
14% OFF Phone Price : $14.39
In Stock
Screw, #10-1 01063001
Screw, #10-1

Part #01063001

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 01063001. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Drawer Guide 07687901
#5

Broiler drawer assy diagram

Drawer guide

Part #07687901

Replaced by #W10709871

?
Manufacturer substitution
This part replaces 07687901. Substitute parts can look different from the original.
$7.96
In Stock
Igniter-spk, 0057255
#22

Main top assy diagram

Igniter-spk,

Part #0057255

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 0057255. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Top Burner Knob 0311080
#15

Main top assy diagram

Top burner knob

Part #0311080

Replaced by #WPY07628200

?
Manufacturer substitution
This part replaces 0311080. Substitute parts can look different from the original.
$26.29
In Stock
