Model # W5CG3625XB00 Official Whirlpool 30" gas cooktop

Here are the diagrams and repair parts for Official Whirlpool W5CG3625XB00 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |

Surface Igniter W10256047
#11

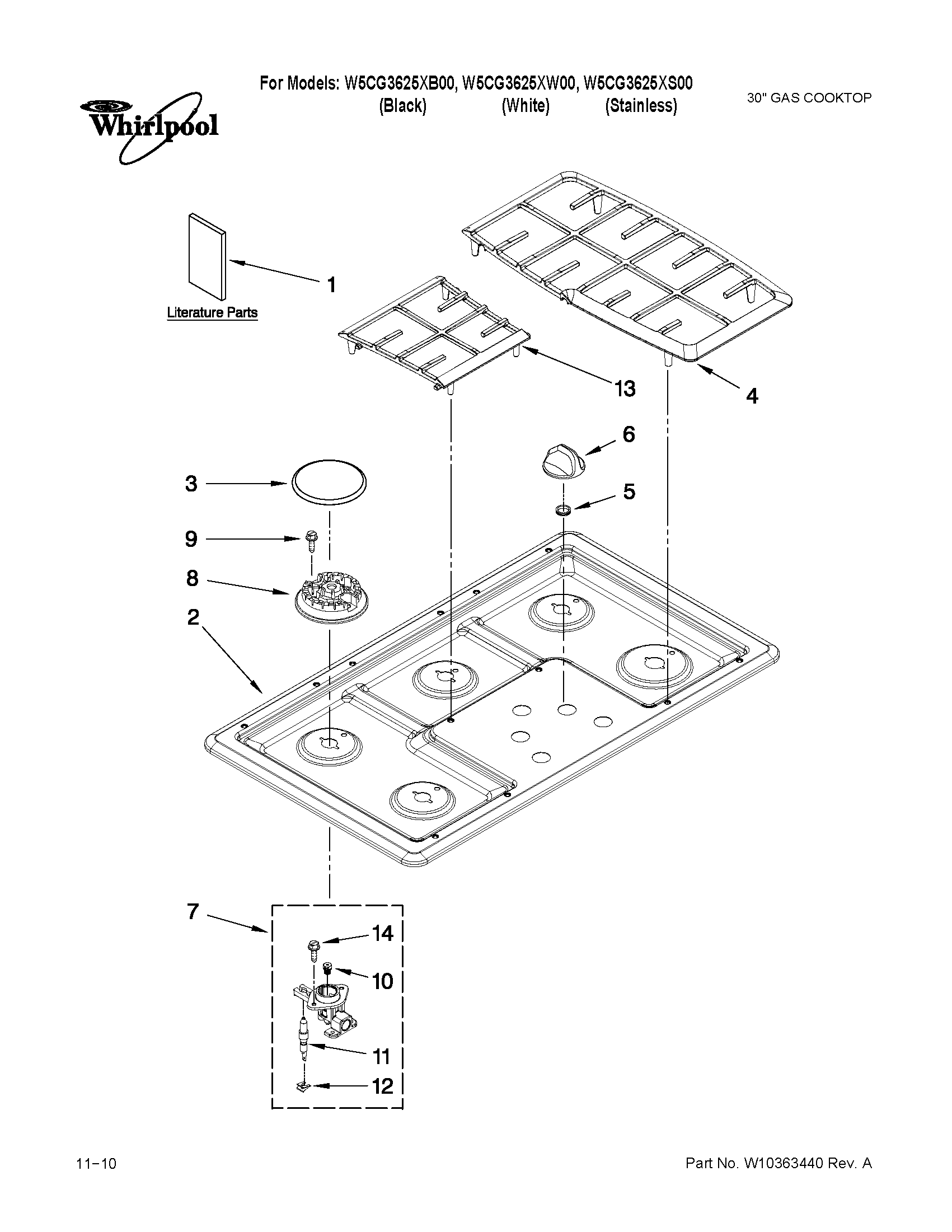

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10256047

Replaced by #W10833887

?
Manufacturer substitution
This part replaces W10256047. Substitute parts can look different from the original.
This item is not returnable
$15.47
11% OFF Phone Price : $17.47
In Stock
Cooktop Wire Harness W10256072
#NI

Optional parts (not included) diagram

Cooktop wire harness

Part #W10256072

Replaced by #WPW10256072

?
Manufacturer substitution
This part replaces W10256072. Substitute parts can look different from the original.
$108.74
10% OFF Phone Price : $120.74
In Stock
Cooktop Holder Orifice W10256122
#7B

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10256122

In Stock
Cooktop Burner Igniter And Orifice Holder W10256120
#7A

Cooktop, burner and grate parts diagram

Cooktop burner igniter and orifice holder

Part #W10256120

In Stock
Gasket Switch 3191387
#2

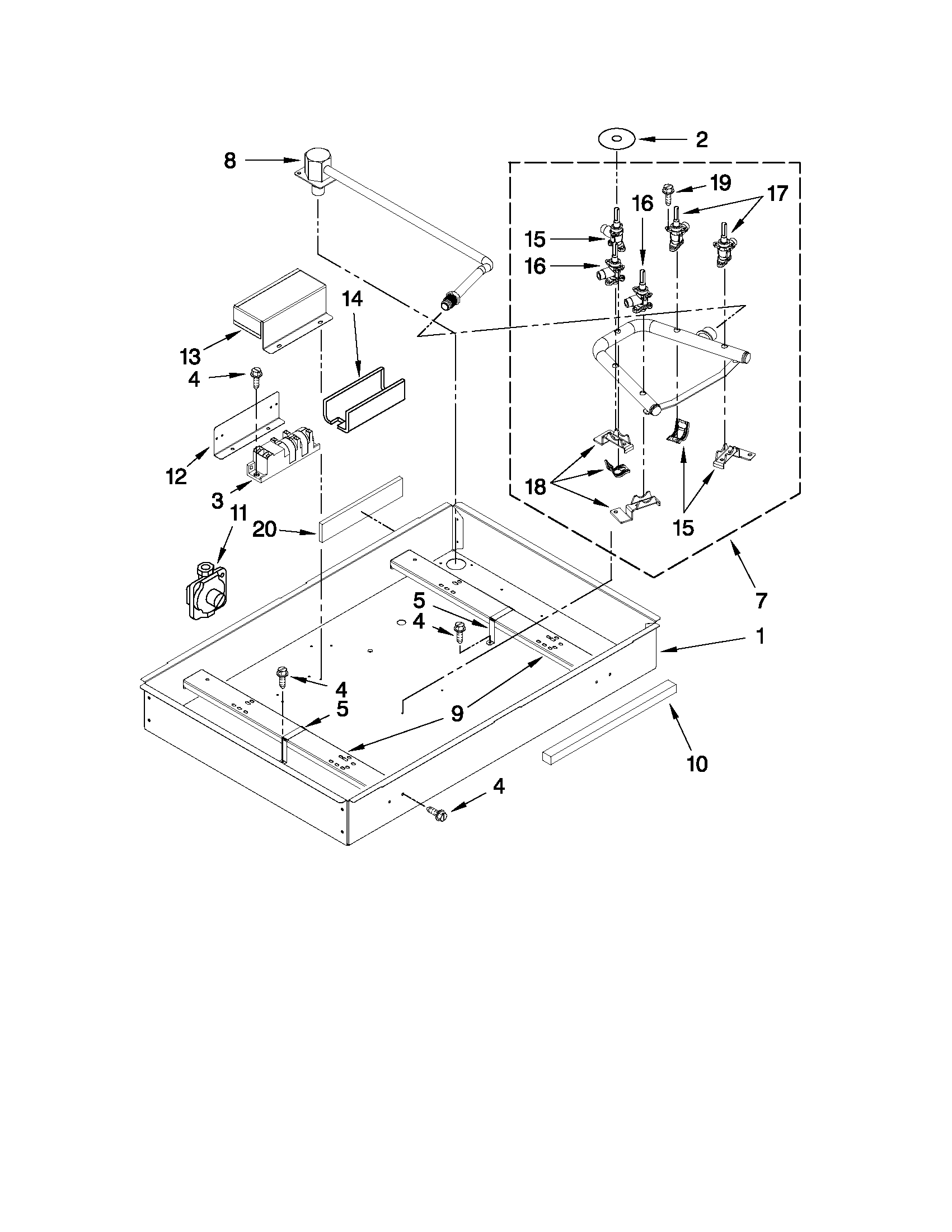

Burner box, gas valves, and switches diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89
15% OFF Phone Price : $38.89
In Stock
Range Screw 3177991
#14

Cooktop, burner and grate parts diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Cooktop Burner Grate W10286634
#13

Cooktop, burner and grate parts diagram

Cooktop burner grate

Part #W10286634

$87.69
6% OFF Phone Price : $93.69
In Stock
Range Surface Burner Cap W10300346
#3A

Cooktop, burner and grate parts diagram

Range surface burner cap

Part #W10300346

$42.99
12% OFF Phone Price : $48.99
In Stock
Cooktop Holder Orifice W10256119
#7

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10256119

Replaced by #WPW10256119

?
Manufacturer substitution
This part replaces W10256119. Substitute parts can look different from the original.
$36.62
14% OFF Phone Price : $42.62
In Stock
Cooktop Burner Knob W10284884
#6A

Cooktop, burner and grate parts diagram

Cooktop burner knob

Part #W10284884

$19.09
9% OFF Phone Price : $21.09
In Stock
