Kenmore
Gas Grill

Model # 920154510 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 920154510 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

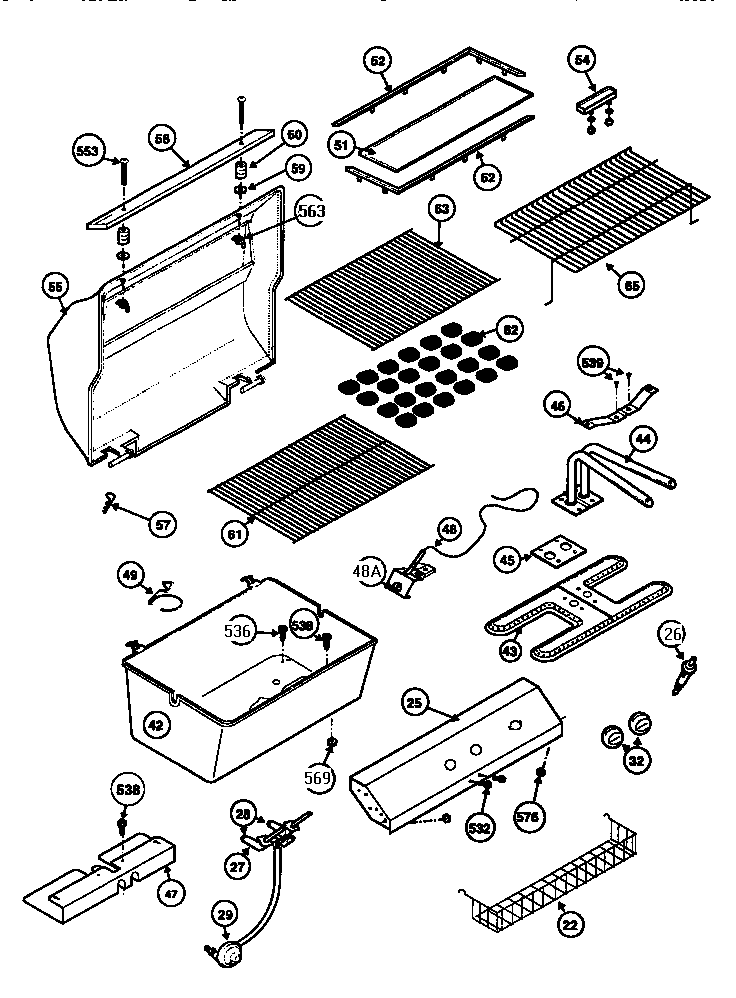

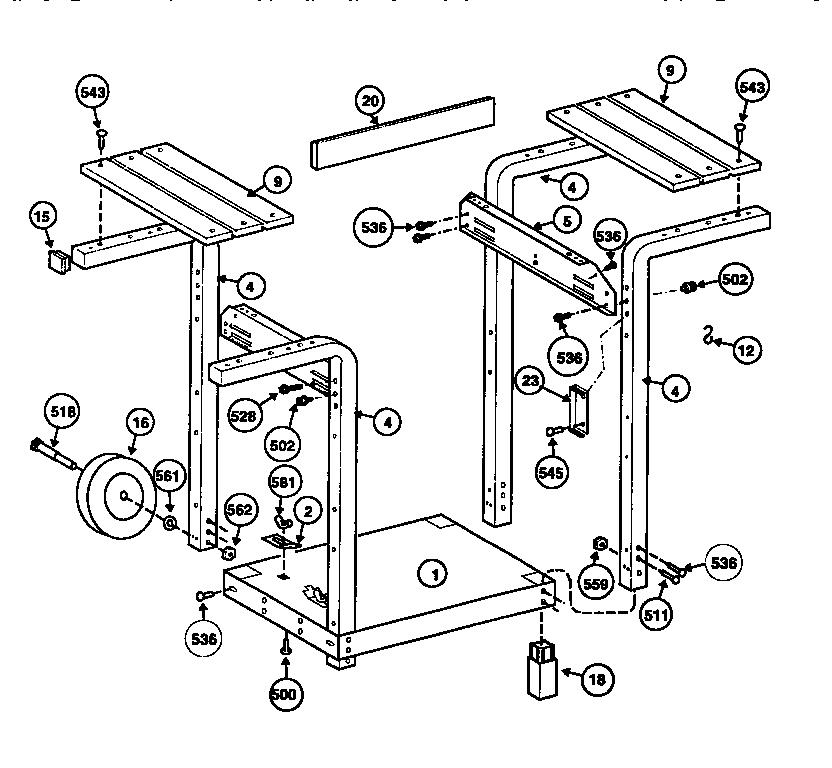

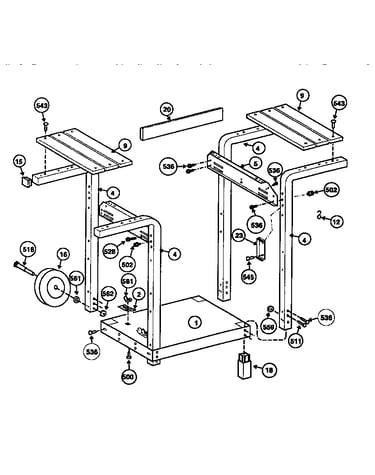

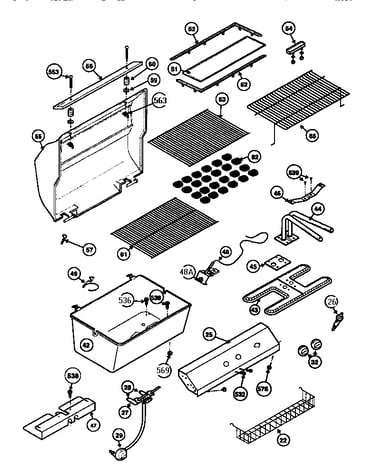

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Electro Shield 10156-79

#48A

All parts diagram

Electro shield

Part #10156-79

The manufacturer no longer makes this part, and there's no substitute part

Washer 0040-1380

#59

All parts diagram

Washer

Part #0040-1380

The manufacturer no longer makes this part, and there's no substitute part

Standoff 0113-0116

#60

All parts diagram

Standoff

Part #0113-0116

The manufacturer no longer makes this part, and there's no substitute part

Fhanlde 0113-0359

#58

All parts diagram

Fhanlde

Part #0113-0359

The manufacturer no longer makes this part, and there's no substitute part

Dual Valve 0040-2354

#27

All parts diagram

Dual valve

Part #0040-2354

The manufacturer no longer makes this part, and there's no substitute part

Bracket 0121-0141-1

#5

All parts diagram

Bracket

Part #0121-0141-1

The manufacturer no longer makes this part, and there's no substitute part

Top 10473-552

#55

All parts diagram

Top

Part #10473-552

The manufacturer no longer makes this part, and there's no substitute part

Plank 0113-0394

#20

All parts diagram

Plank

Part #0113-0394

The manufacturer no longer makes this part, and there's no substitute part

Leg Extension 0040-4372

#18

All parts diagram

Leg extension

Part #0040-4372

The manufacturer no longer makes this part, and there's no substitute part

Bridge Pin C10236-13

#57

All parts diagram

Bridge pin

Part #C10236-13

The manufacturer no longer makes this part, and there's no substitute part
