Caloric
Top-Mount Refrigerator

Model # GFS165/MN10 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFS165-MN10 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

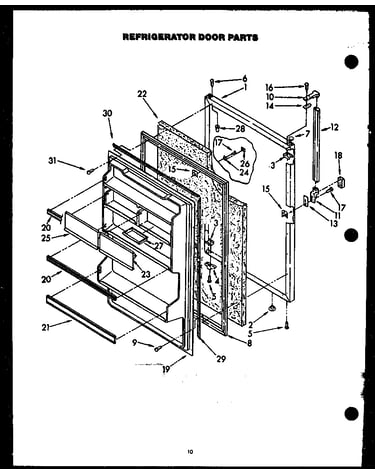

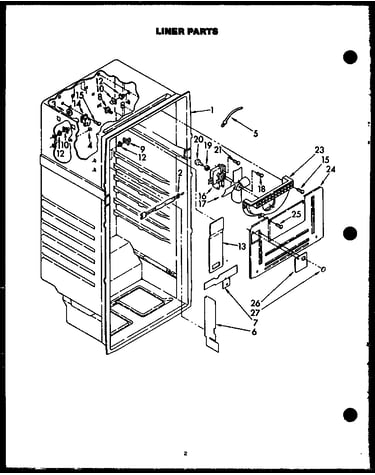

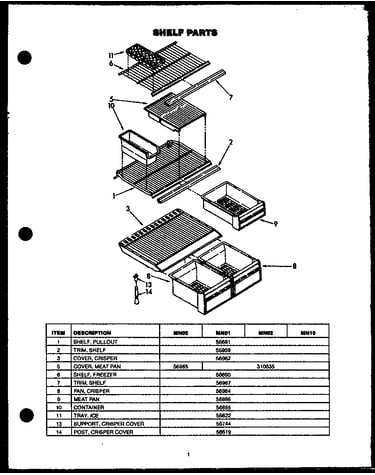

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Cover Glider - Almond 56663L
#31C

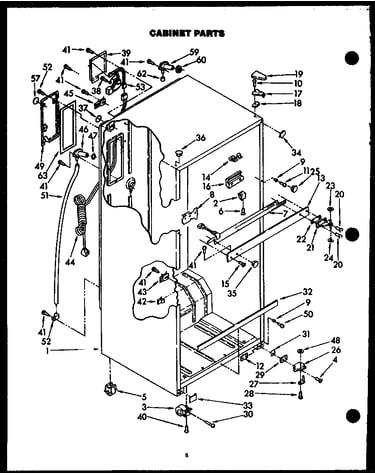

Cabinet parts diagram

Cover glider - almond

Part #56663L

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 56521
#17B

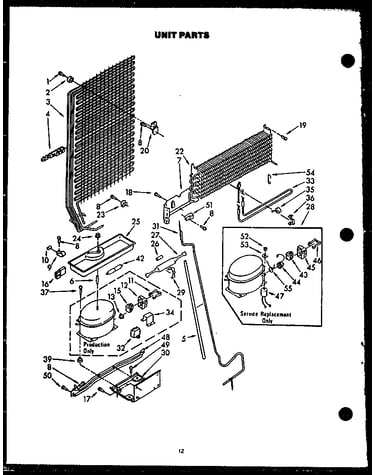

Unit parts diagram

Refrigerator screw

Part #56521

The manufacturer no longer makes this part, and there's no substitute part

Shim, Top Hinge 56735
#18A

Cabinet parts diagram

Shim, top hinge

Part #56735

The manufacturer no longer makes this part, and there's no substitute part

Handle, Center 56857
#12

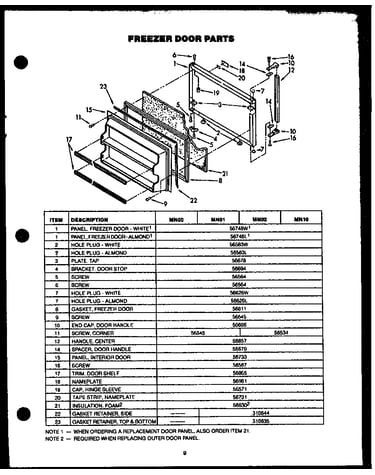

Freezer door parts diagram

Handle, center

Part #56857

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Drain Fan 56844
#15

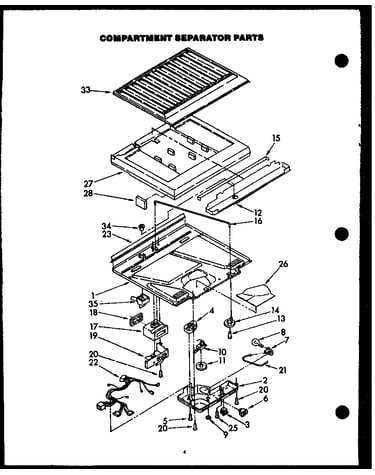

Compartment separator parts diagram

Gasket, drain fan

Part #56844

The manufacturer no longer makes this part, and there's no substitute part

Knob, Air Control 311637
#14B

Compartment separator parts diagram

Knob, air control

Part #311637

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drain Pan 56843
#12

Compartment separator parts diagram

Refrigerator drain pan

Part #56843

The manufacturer no longer makes this part, and there's no substitute part

Spring, Case Retaining 56646
Spring, case retaining

Part #56646

The manufacturer no longer makes this part, and there's no substitute part

Hole Plug - Almond 56583L
Hole plug - almond

Part #56583L

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield, Evaporator 56842
#7

Unit parts diagram

Heat shield, evaporator

Part #56842

The manufacturer no longer makes this part, and there's no substitute part
