Model # GZ9730SSS0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool GZ9730SSS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Transformer 8186782
#19

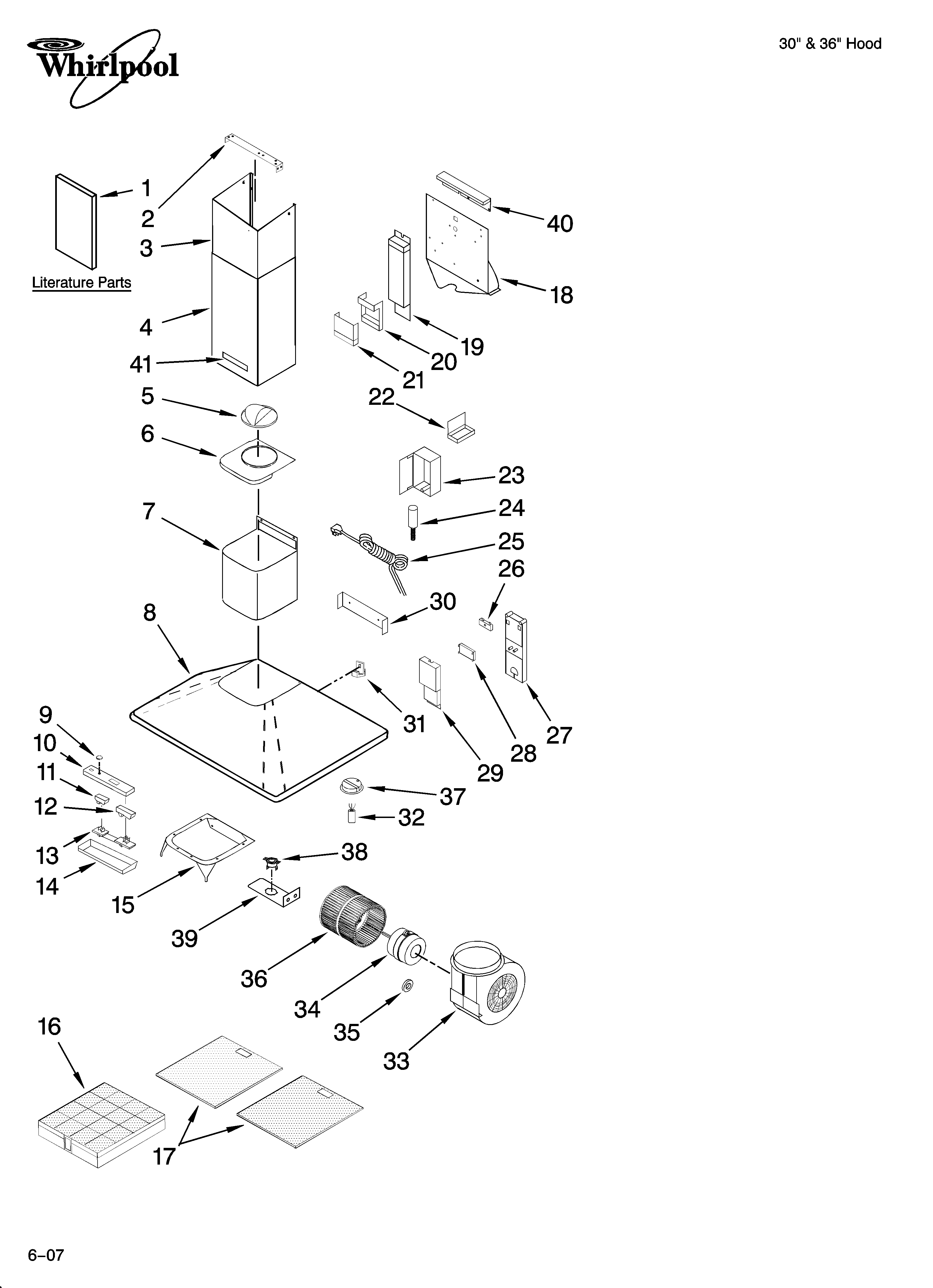

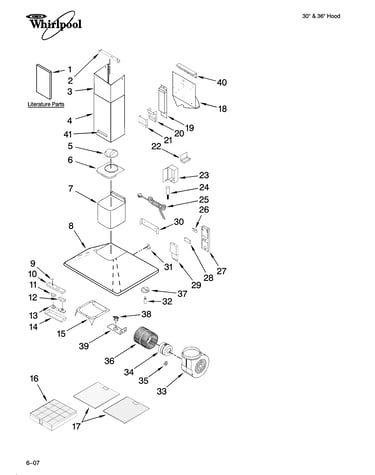

Hood parts diagram

Transformer

Part #8186782

$153.24
In Stock
Socket W10137742
#37

Hood parts diagram

Socket

Part #W10137742

$22.44
In Stock
Power Cord 8186769
#25

Hood parts diagram

Power cord

Part #8186769

$62.00
In Stock
Capacitor 8186761
#24

Hood parts diagram

Capacitor

Part #8186761

$109.84
In Stock
Filter 8212631
#16

Hood parts diagram

Filter

Part #8212631

Replaced by #WP8212631

?
Manufacturer substitution
This part replaces 8212631. Substitute parts can look different from the original.
$84.13
In Stock
Holdr-fuse 8186795
#NI

Hood parts diagram

Holdr-fuse

Part #8186795

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide W10029770
#1

Hood parts diagram

Use and care guide

Part #W10029770

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover W10137734
#40

Hood parts diagram

Terminal cover

Part #W10137734

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 8186778
#29

Hood parts diagram

Terminal cover

Part #8186778

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Fan 8186765
#33

Hood parts diagram

Range hood blower fan

Part #8186765

The manufacturer no longer makes this part, and there's no substitute part
