Model # 13181340 Official Craftsman 32" side-discharge rotary cutting unit

Here are the diagrams and repair parts for Official Craftsman 13181340 32" side-discharge rotary cutting unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Spring 59012
#34

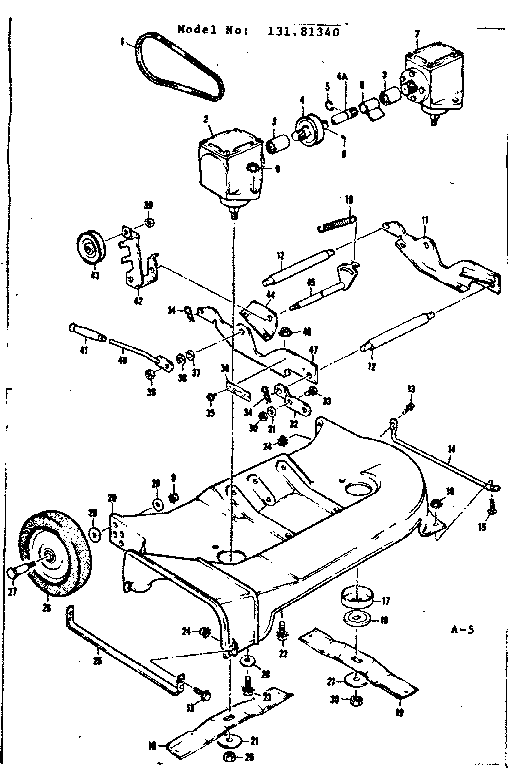

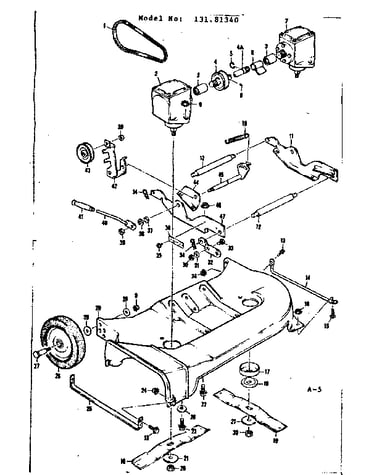

Mower housing diagram

Spring

Part #59012

Replaced by #532003146

?
Manufacturer substitution
This part replaces 59012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Bearing 780034
#11

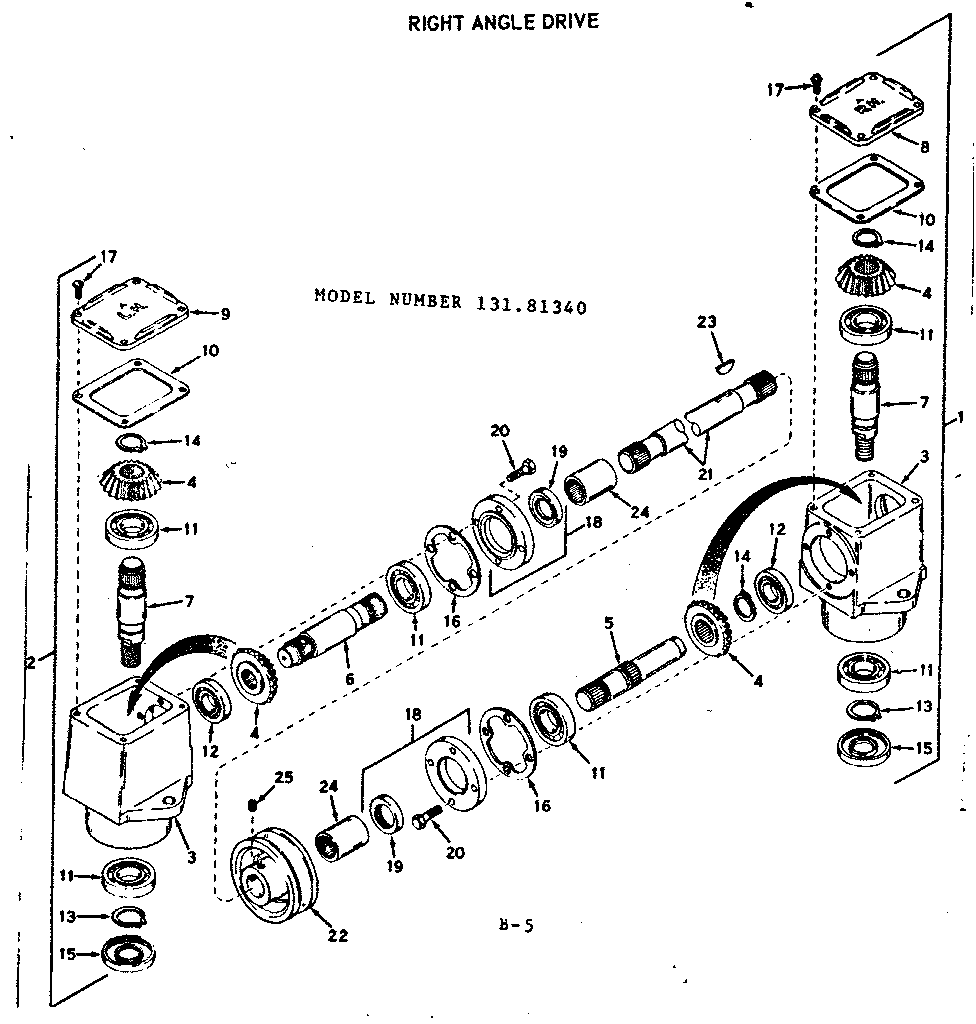

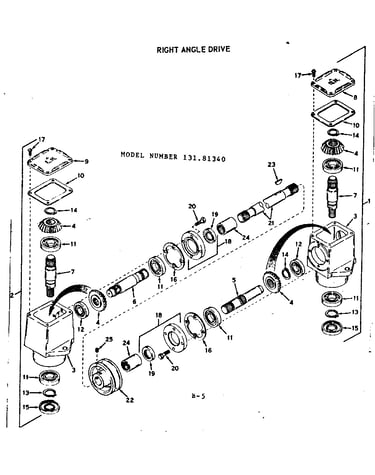

Right angle drive diagram

Bearing

Part #780034

Replaced by #780034

?
Manufacturer substitution
This part replaces 780034. Substitute parts can look different from the original.
In Stock
Housing 770026
#3

Right angle drive diagram

Housing

Part #770026

Replaced by #770026A

?
Manufacturer substitution
This part replaces 770026. Substitute parts can look different from the original.
In Stock
Input Shaft 776041
#6

Right angle drive diagram

Input shaft

Part #776041

Replaced by #776041A

?
Manufacturer substitution
This part replaces 776041. Substitute parts can look different from the original.
In Stock
Gear 778046
#4

Right angle drive diagram

Gear

Part #778046

Replaced by #778046

?
Manufacturer substitution
This part replaces 778046. Substitute parts can look different from the original.
In Stock
Head Assembly 794001
Head assembly

Part #794001

Replaced by #794327A

?
Manufacturer substitution
This part replaces 794001. Substitute parts can look different from the original.
In Stock
Screw 792027
#25

Right angle drive diagram

Screw

Part #792027

Replaced by #730636A

?
Manufacturer substitution
This part replaces 792027. Substitute parts can look different from the original.
In Stock
Lh Cover 772035
#9

Right angle drive diagram

Lh cover

Part #772035

Replaced by #772035

?
Manufacturer substitution
This part replaces 772035. Substitute parts can look different from the original.
In Stock
Gasket 788028
#10

Right angle drive diagram

Gasket

Part #788028

Replaced by #788028

?
Manufacturer substitution
This part replaces 788028. Substitute parts can look different from the original.
This item is not returnable
In Stock
Output Shaft 776042
#7

Right angle drive diagram

Output shaft

Part #776042

Replaced by #776042

?
Manufacturer substitution
This part replaces 776042. Substitute parts can look different from the original.
In Stock
