Model # 2335218510 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335218510 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 50 parts |

#15

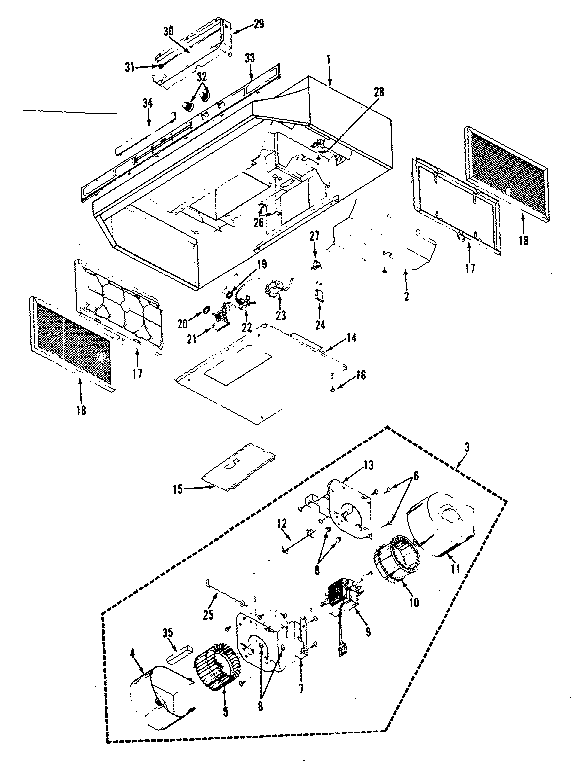

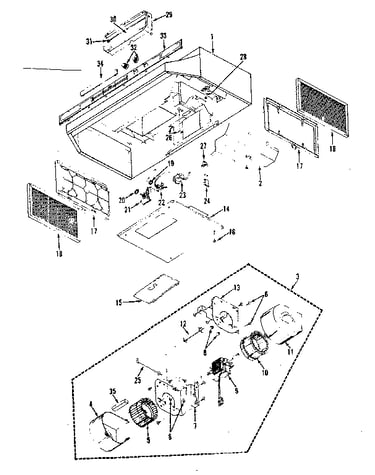

Range hood diagram

Light lens

Part #99110490

Replaced by #S97013316

This item is not returnable

$20.00 |

23% OFF Phone Price : $26.00

In Stock

Qty

#29

Range hood diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

#23

Range hood diagram

Bulb holder

Part #99270536

Replaced by #99270530

This item is not returnable

$4.99

In Stock

Qty

#30

Range hood diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

This item is not returnable

$3.70

In Stock

Qty

#20

Range hood diagram

Pal nut

Part #99260422

Replaced by #S99260419

This item is not returnable

$3.33

In Stock

Qty

#22

Range hood diagram

Range hood switch

Part #97005328

This item is not returnable

$16.38

In Stock

Qty

#17

Range hood diagram

Filter kit

Part #97007997

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Grounding Screw (green) 99150471

#28

Range hood diagram

Range hood grounding screw (green)

Part #99150471

Replaced by #S99150471

This item is not returnable

$3.64

In Stock

Qty

#19

Range hood diagram

Range hood nut, 15/32 x 32-in

Part #99260470

Replaced by #S99260470

This item is not returnable

$3.37

In Stock

Qty

#18

Range hood diagram

Filter kit

Part #97007893

The manufacturer no longer makes this part, and there's no substitute part
