Model # 8567L10 Official Roper dishwasher
Here are the diagrams and repair parts for Official Roper 8567L10 dishwasher, as well as links to manuals and error code tables, if available.

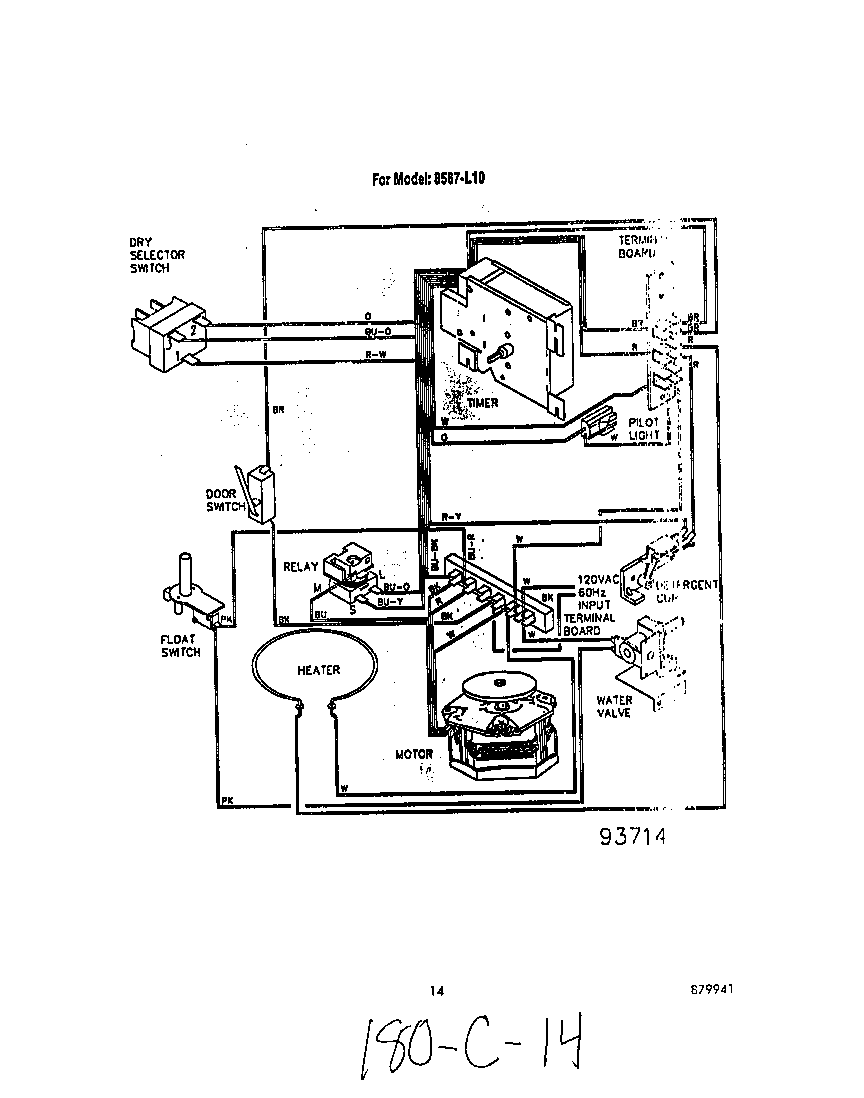

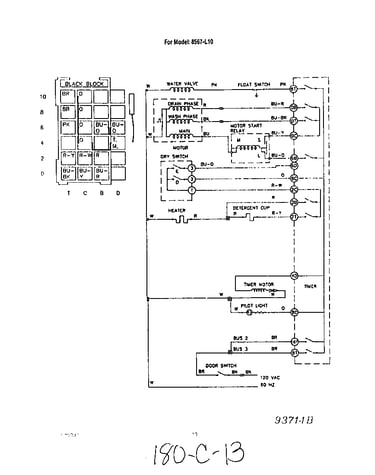

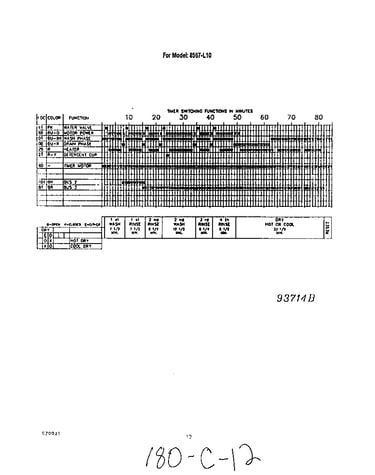

Error CodesBy Schematic
By Part

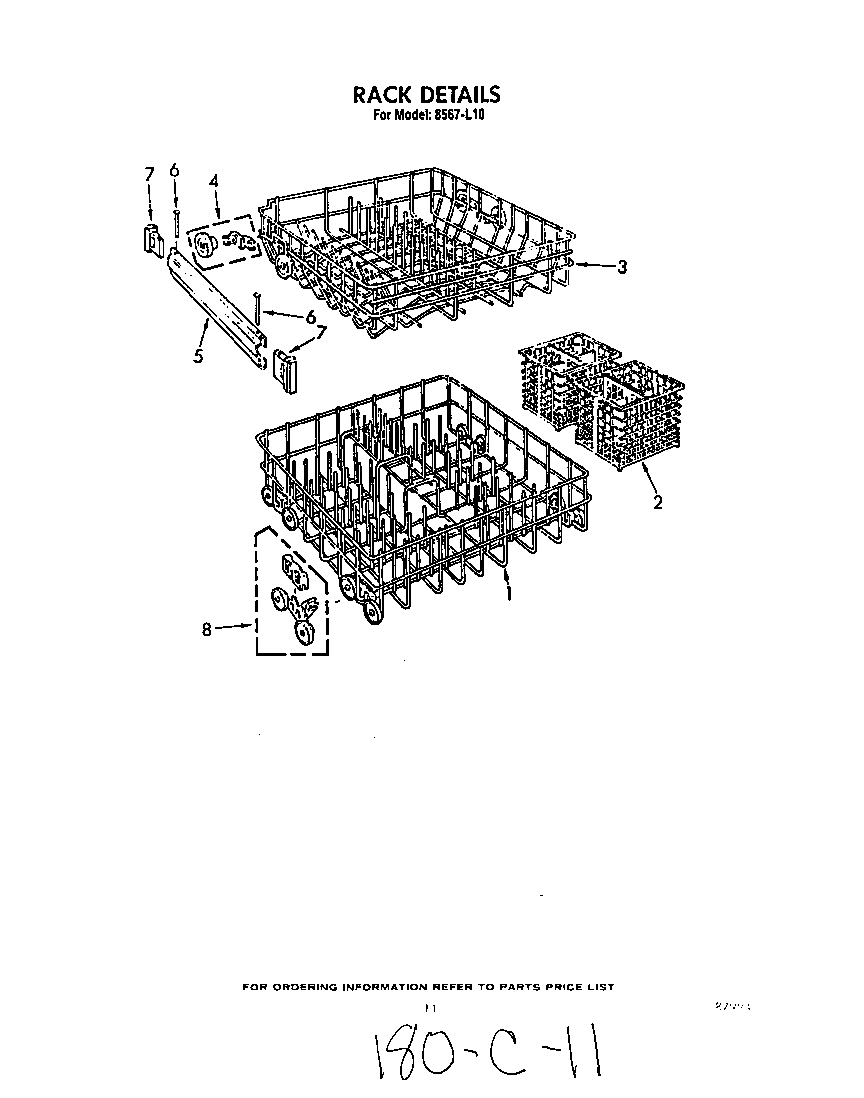

SELECT DIAGRAM
Browse Parts for
8567L10 Dishwasher
#9

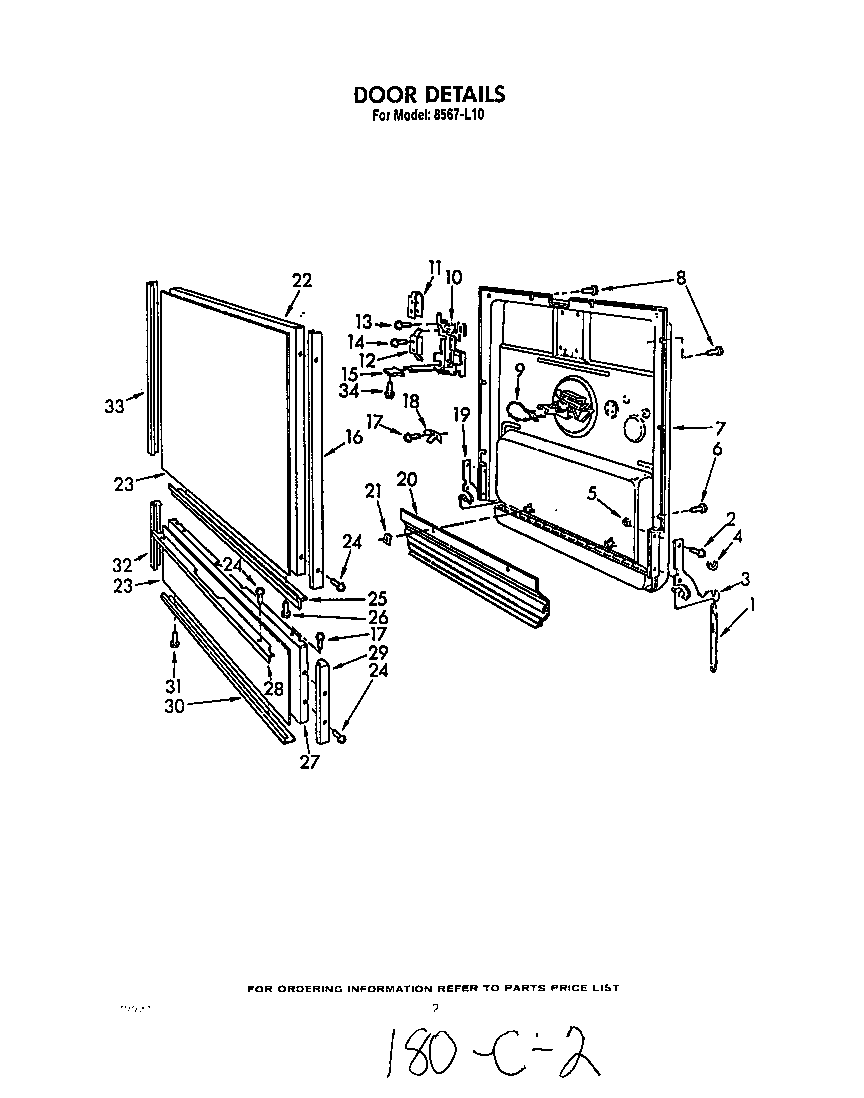

Door diagram
Wire tie
Part #4340846
Replaced by #WPW10339879
?
Manufacturer substitution
This part replaces 4340846. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#21

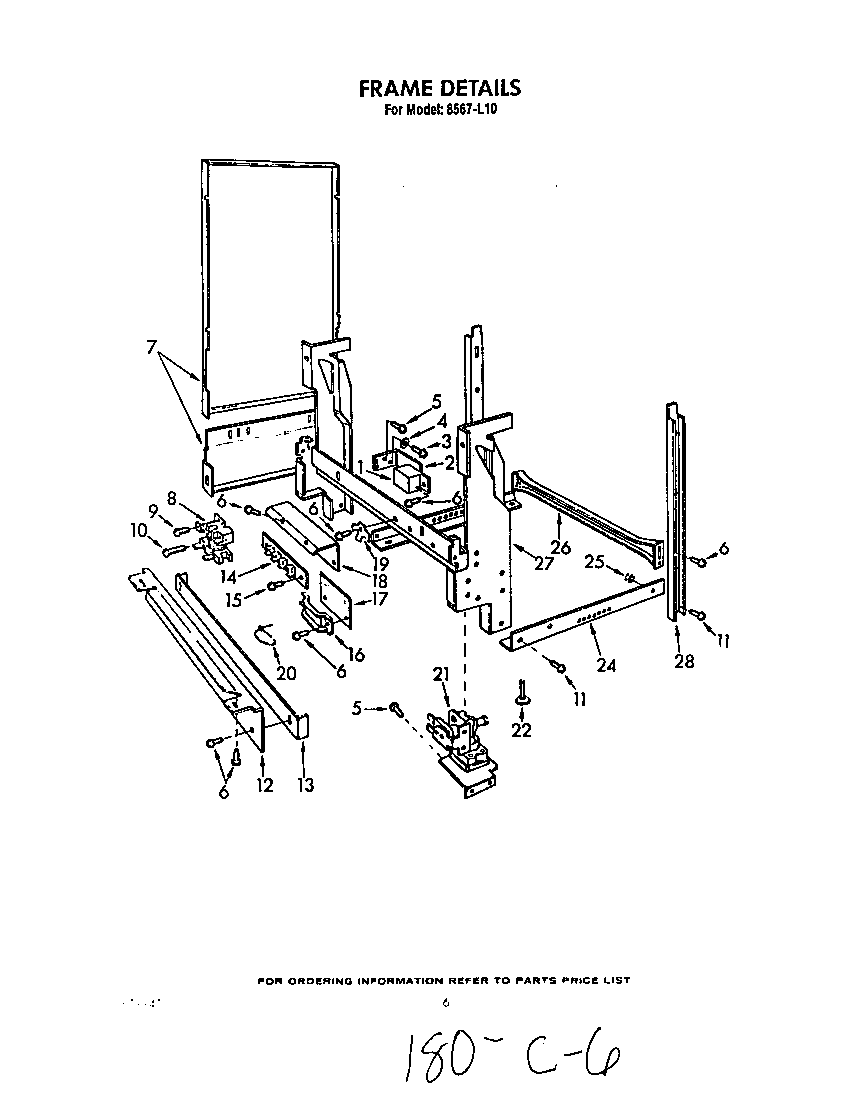

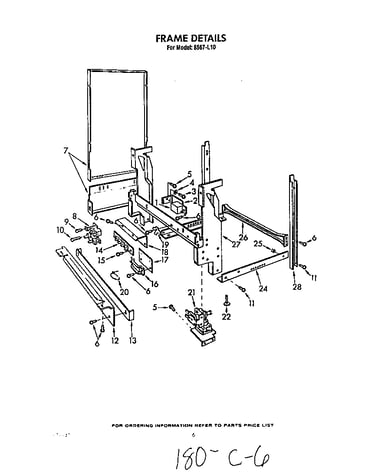

Frame diagram
Inlet valve
Part #4340877
Replaced by #965466
?
Manufacturer substitution
This part replaces 4340877. Substitute parts can look different from the original.
$82.02
In Stock
#15

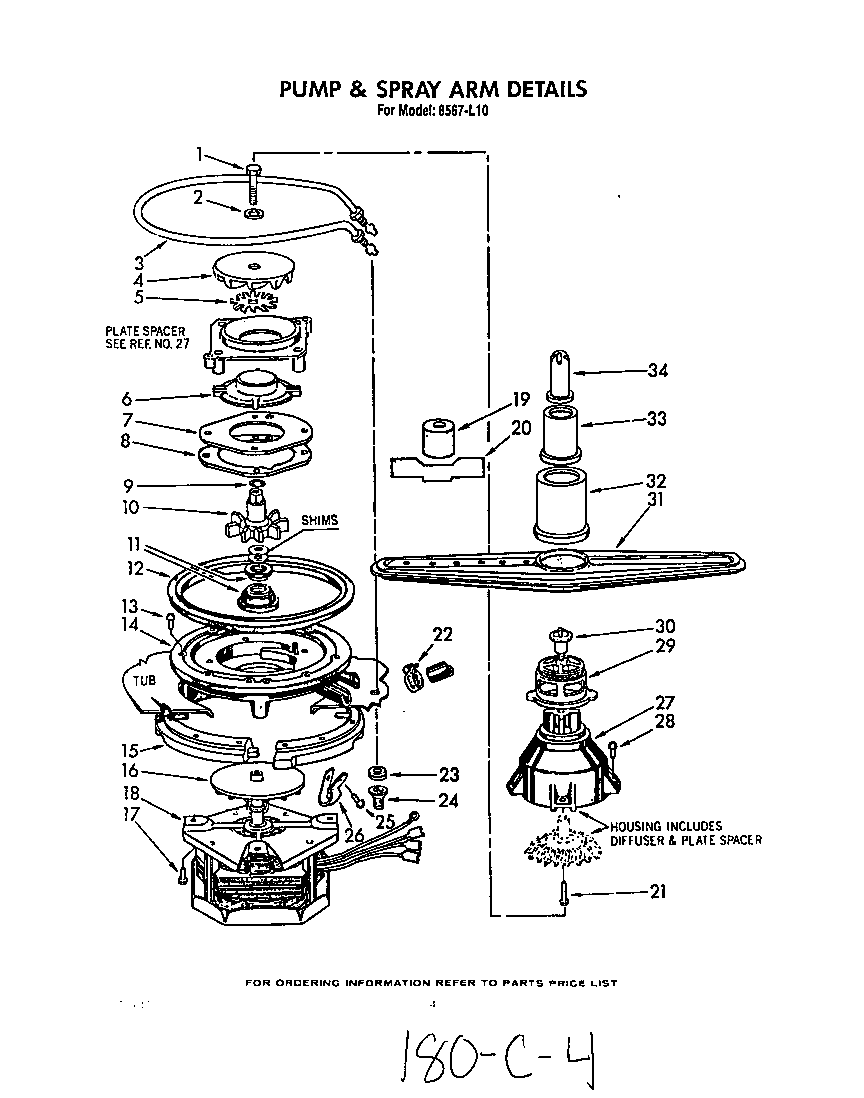

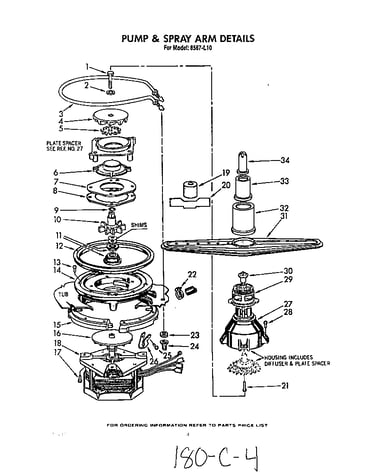

Pump and spray arm diagram
Clamp ring
Part #4340490
The manufacturer no longer makes this part, and there's no substitute part
#22

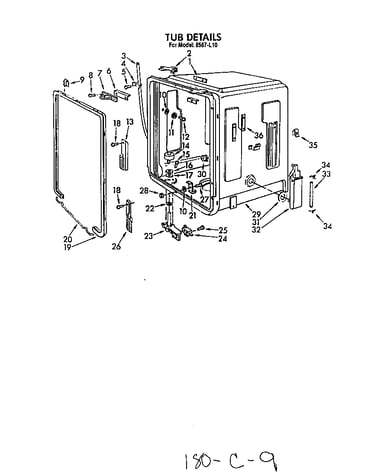

Tub diagram
O-ring
Part #4340497
The manufacturer no longer makes this part, and there's no substitute part
#30
Tub diagram
Nut
Part #4340170
The manufacturer no longer makes this part, and there's no substitute part
#21
Door diagram
Speed nut
Part #4340830
The manufacturer no longer makes this part, and there's no substitute part
#17
Pump and spray arm diagram
Screw
Part #4340828
The manufacturer no longer makes this part, and there's no substitute part
#31
Pump and spray arm diagram
Spray arm
Part #4340564
The manufacturer no longer makes this part, and there's no substitute part
#13

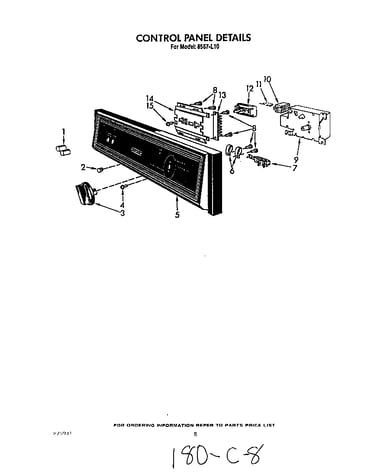

Control panel diagram
Terminal board
Part #4340654
The manufacturer no longer makes this part, and there's no substitute part
#12
Door diagram
Switch
Part #4340356
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
