Side-By-Side Refrigerator

Model # KSSS42FKX02 Official KitchenAid built-in refrigerator

Here are the diagrams and repair parts for Official KitchenAid KSSS42FKX02 built-in refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

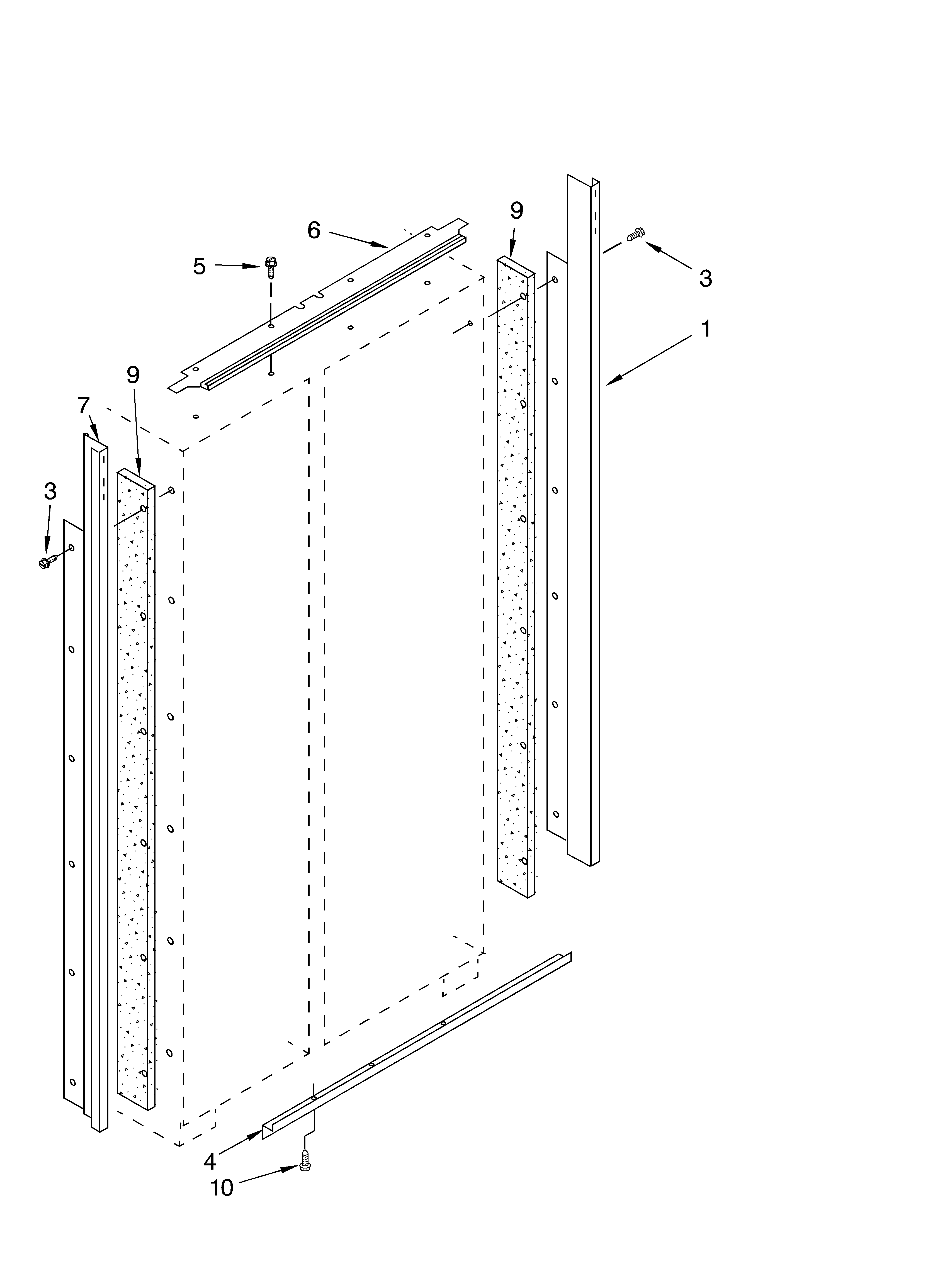

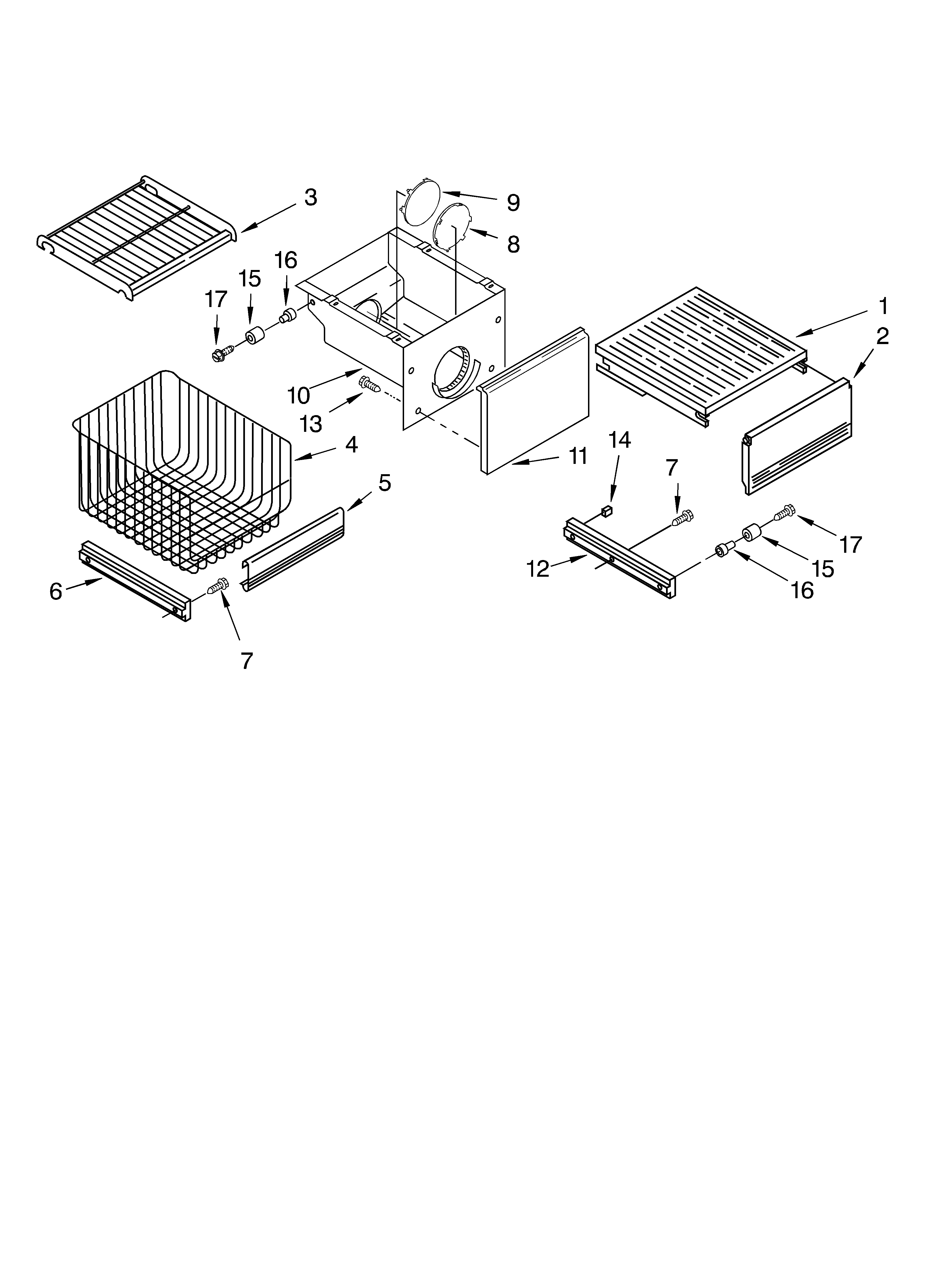

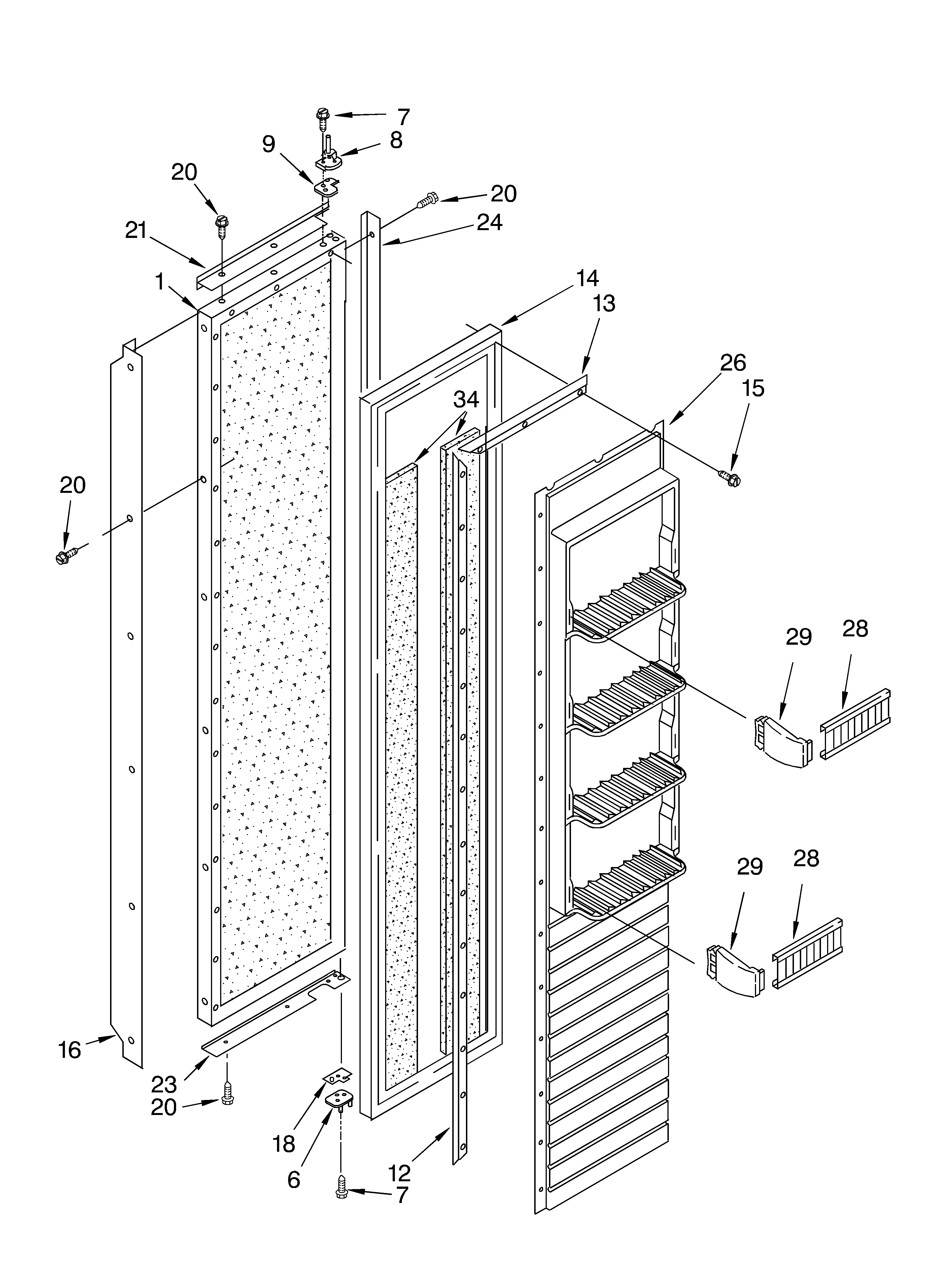

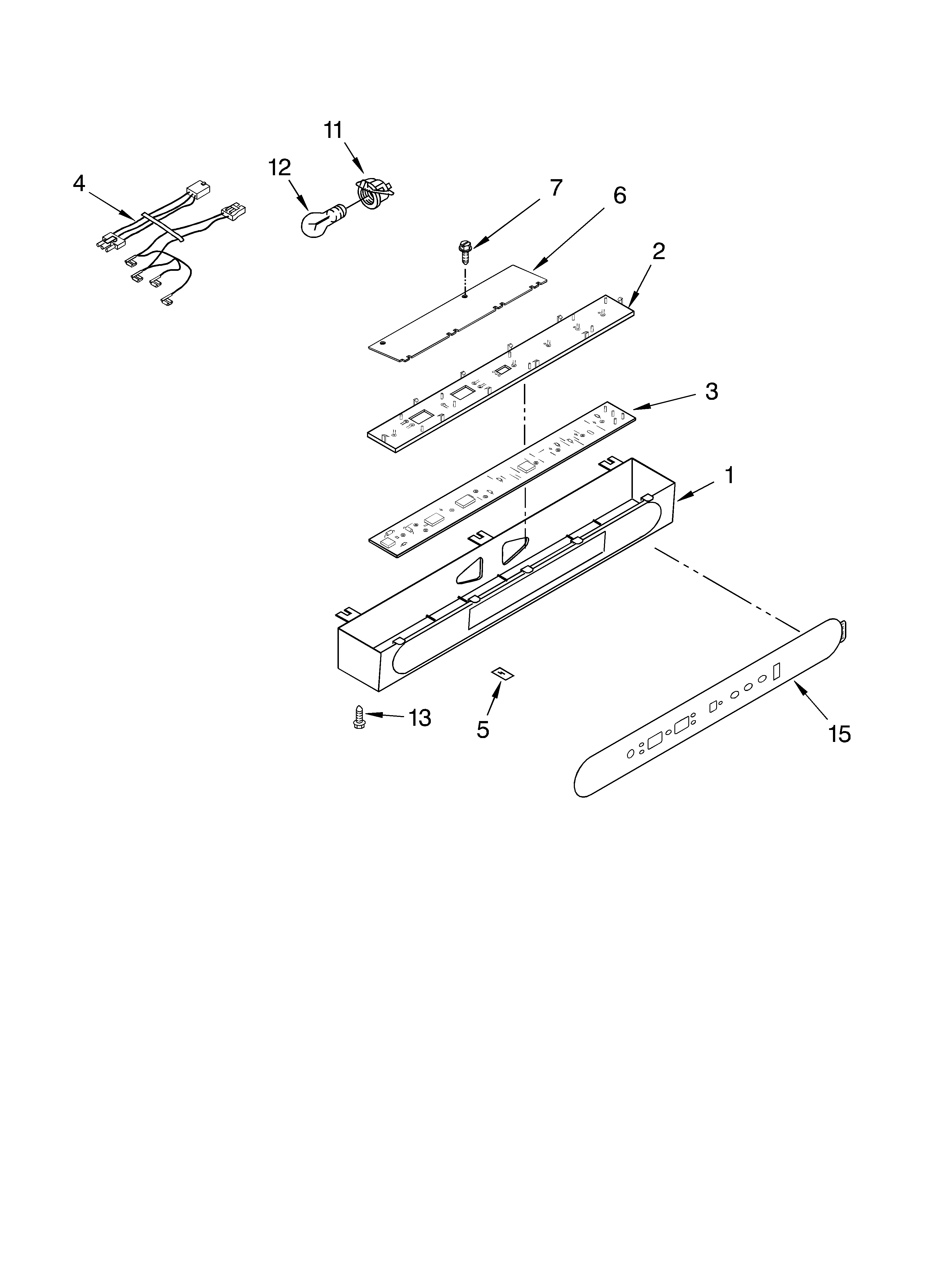

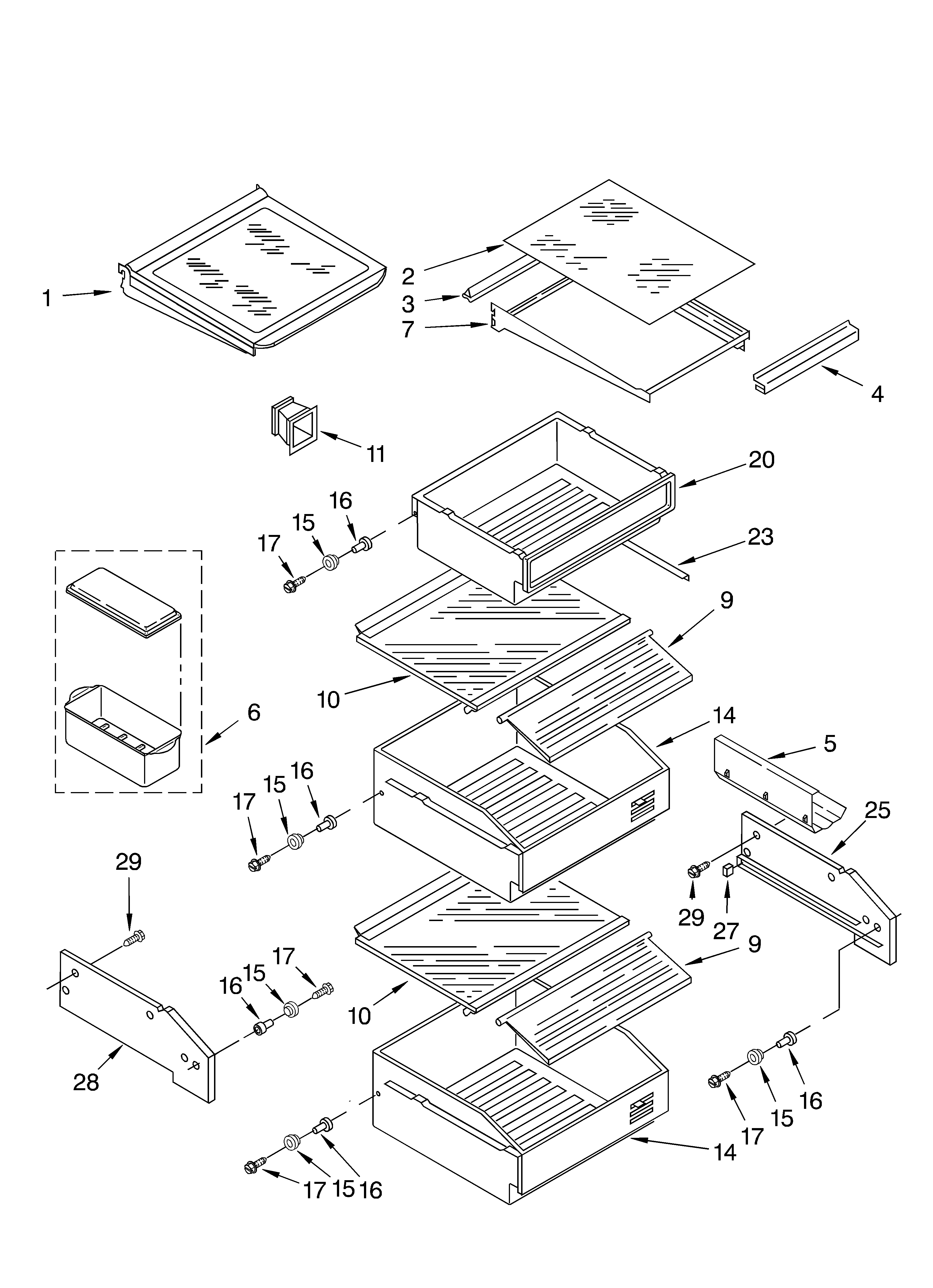

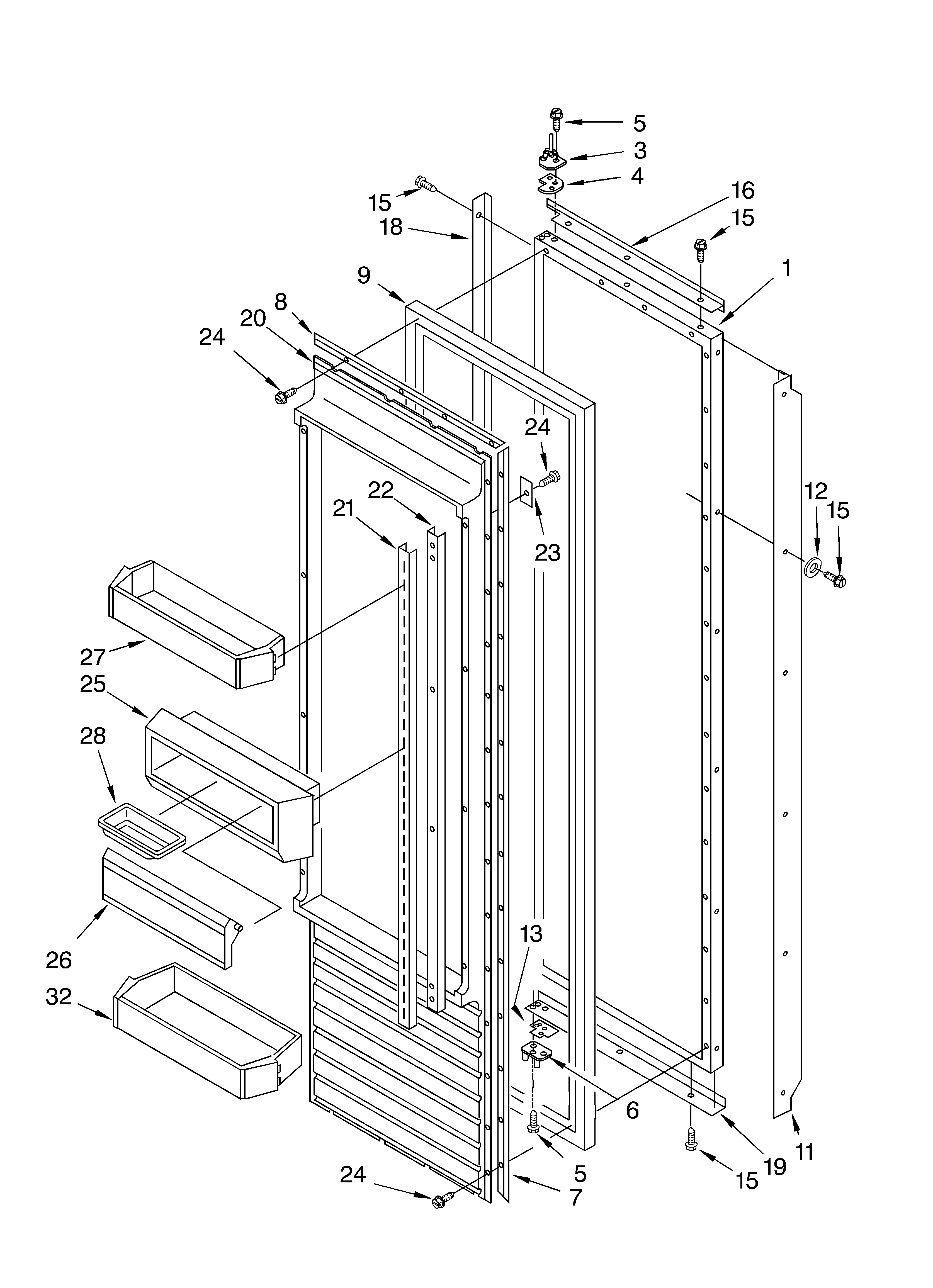

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KSSS42FKX02 Refrigerators
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

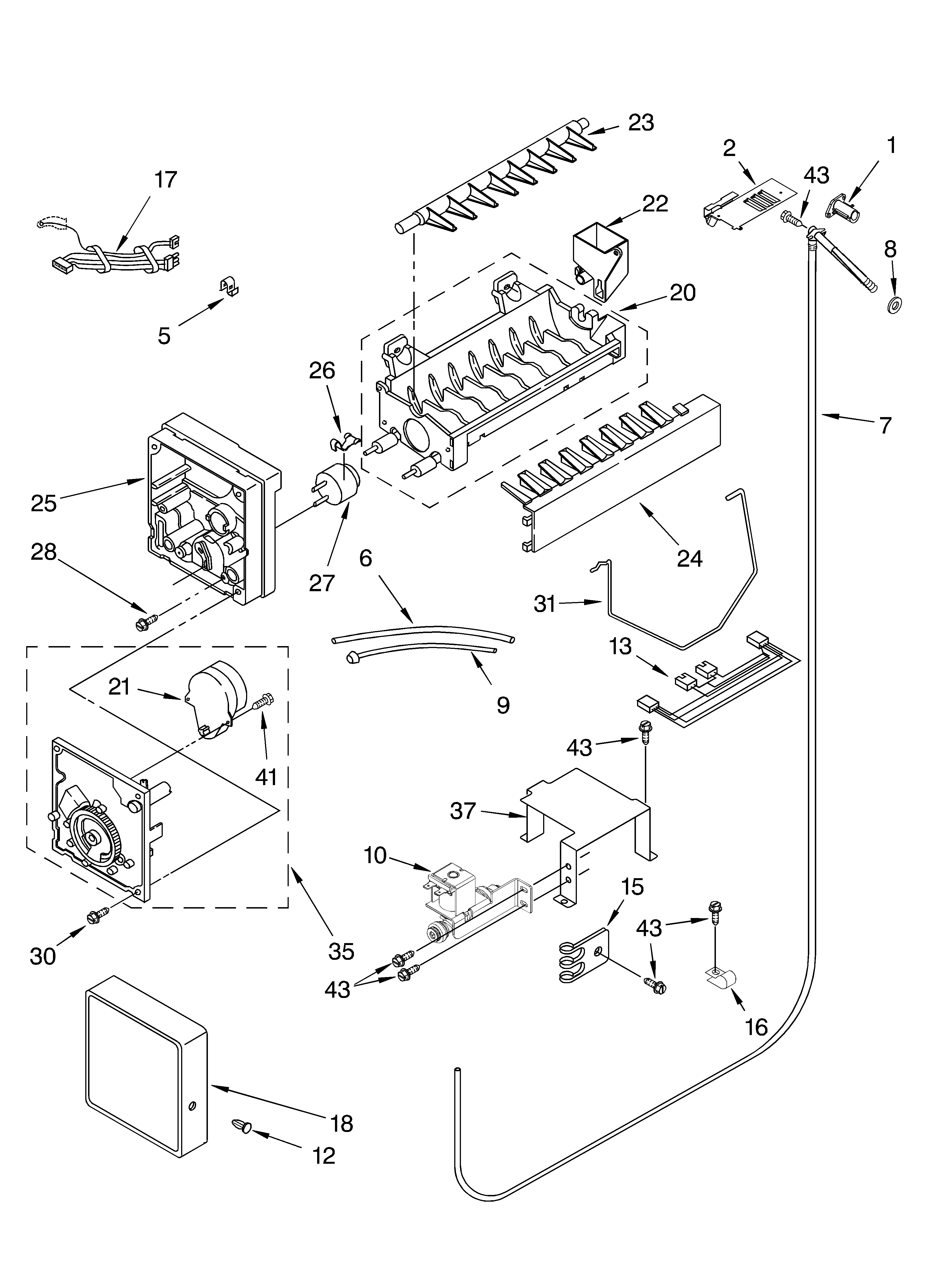

Icemaker parts diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

4.29 (82)
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Defrost Bi-metal 2196155
#1

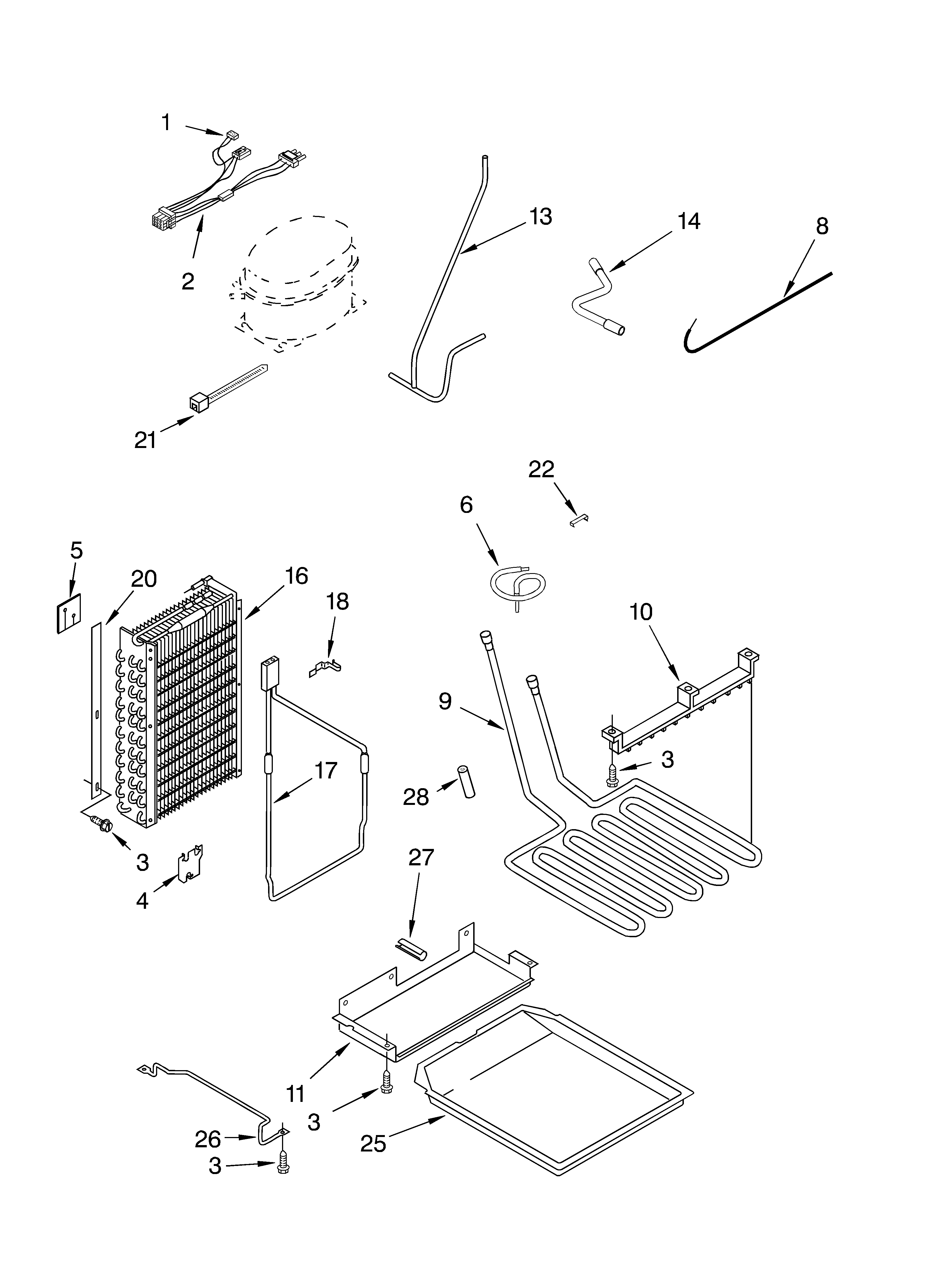

Lower unit and tube parts diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
4.53 (17)
BEST SELLER
$28.87 |
17% OFF Phone Price : $34.87
In Stock
Refrigerator Evaporator Fan Blade 2169142
#3

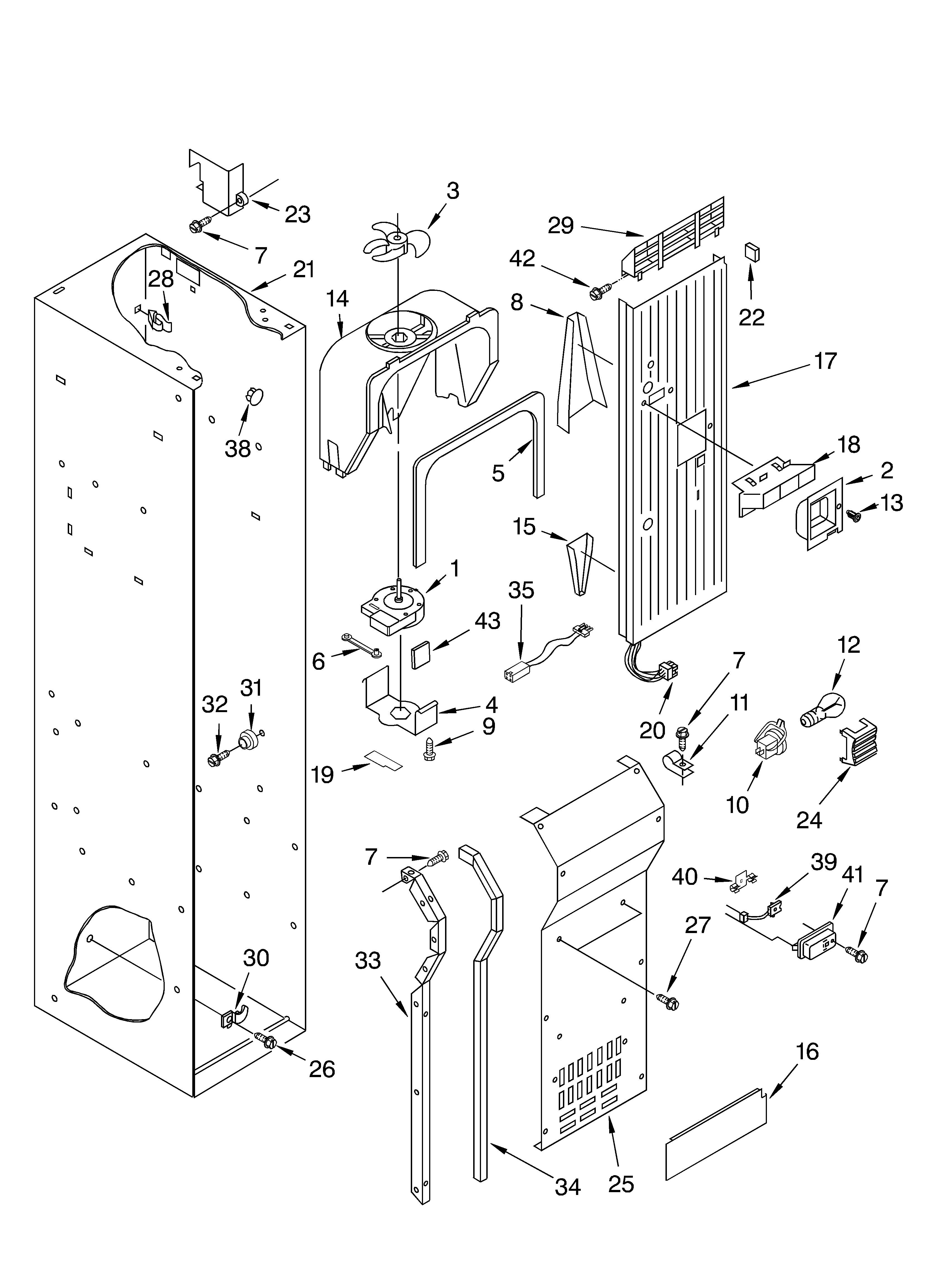

Freezer liner and air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
5 (1)
BEST SELLER
$34.25 |
15% OFF Phone Price : $40.25
In Stock
Refrigerator Inverter Box 2209324
#1

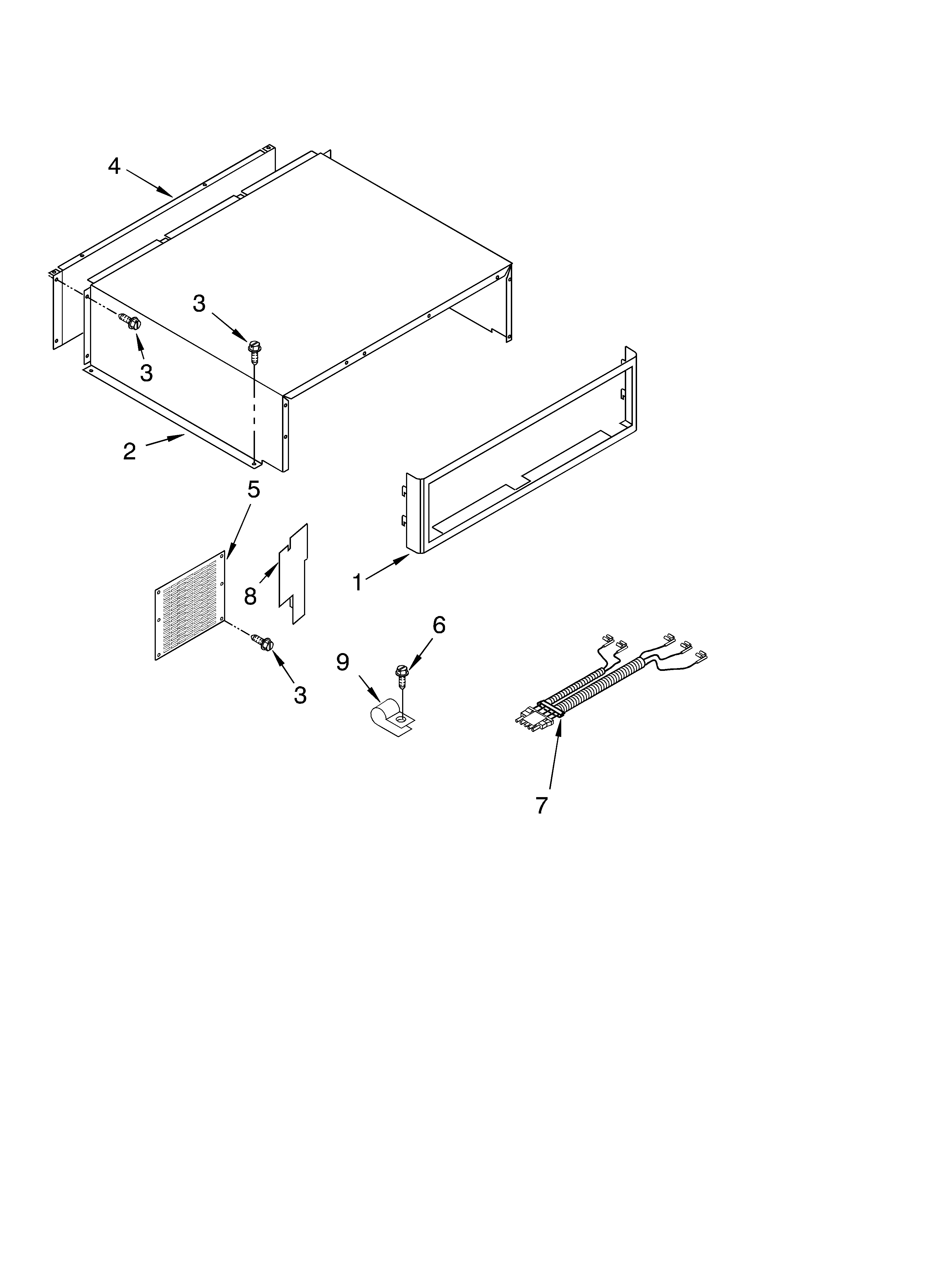

Upper unit parts diagram

Refrigerator inverter box

Part #2209324

Replaced by #W10629033

?
Manufacturer substitution
This part replaces 2209324. Substitute parts can look different from the original.
3 (2)
BEST SELLER
$243.19 |
5% OFF Phone Price : $255.19
In Stock
Refrigerator Water Filter Cap (black) 2186494B
#8A

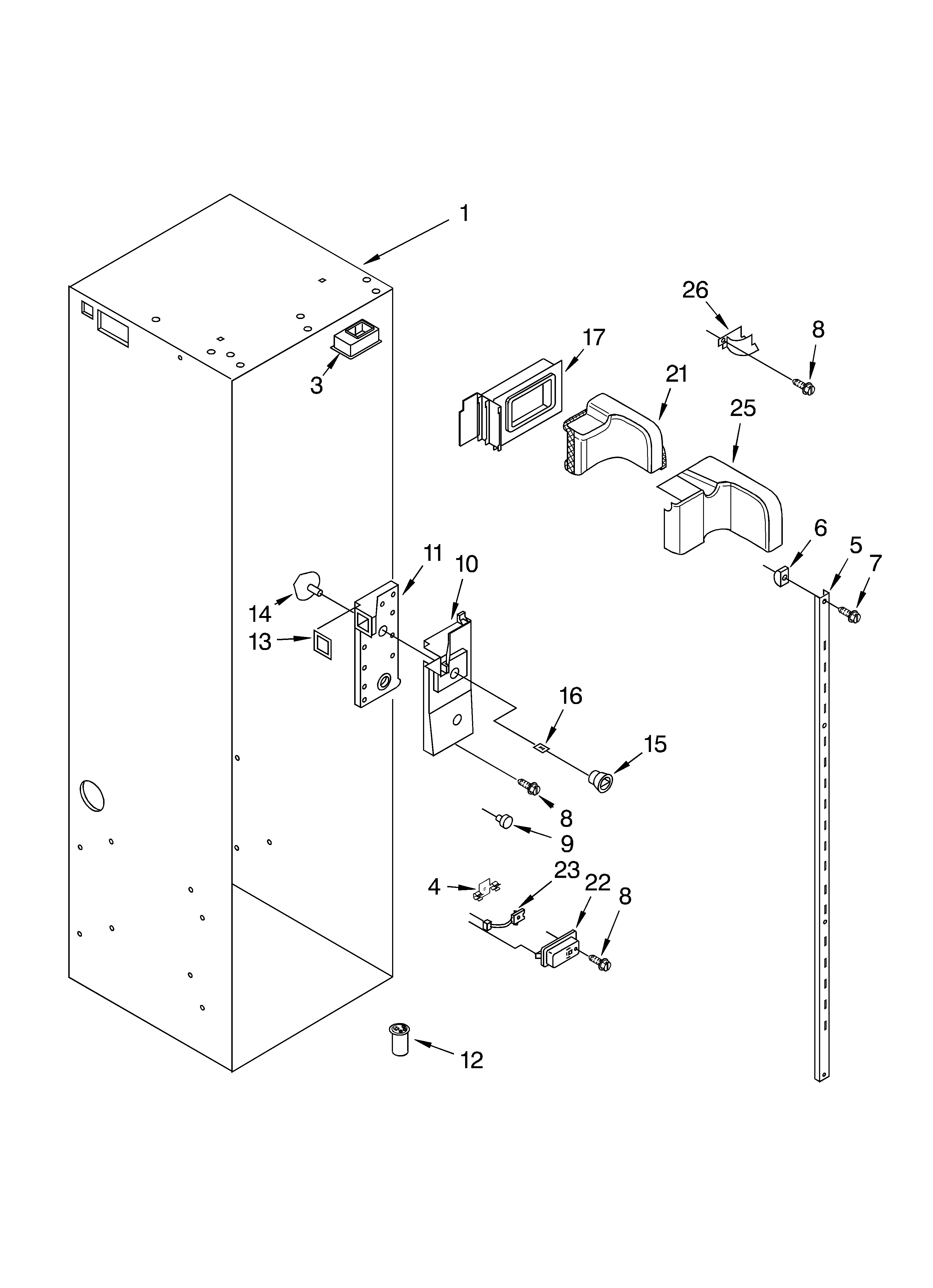

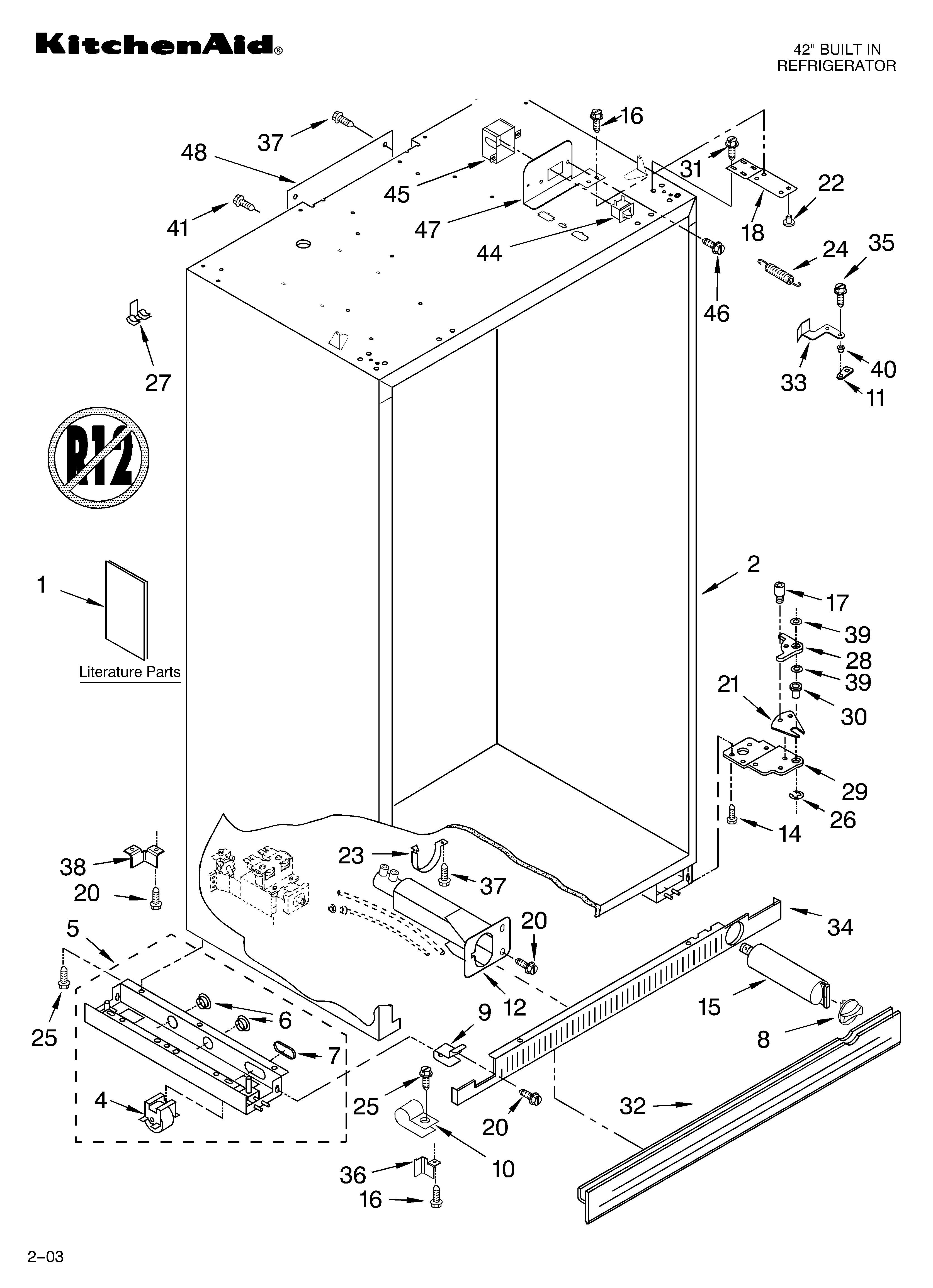

Cabinet parts diagram

Refrigerator water filter cap (black)

Part #2186494B

Replaced by #WP2186494B

?
Manufacturer substitution
This part replaces 2186494B. Substitute parts can look different from the original.
4.38 (13)
BEST SELLER
$34.28 |
15% OFF Phone Price : $40.28
In Stock
Refrigerator Compressor 2208937
#3

Upper unit parts diagram

Refrigerator compressor

Part #2208937

Replaced by #W10841139

?
Manufacturer substitution
This part replaces 2208937. Substitute parts can look different from the original.
BEST SELLER
$290.25 |
$12.00 OFF Phone Price : $302.25
In Stock
Arm-shut 2209675
#31

Icemaker parts diagram

Arm-shut

Part #2209675

Replaced by #W11342242

?
Manufacturer substitution
This part replaces 2209675. Substitute parts can look different from the original.
3.6 (5)
BEST SELLER
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Thermistor 2213442
Refrigerator thermistor

Part #2213442

Replaced by #WP2188820

?
Manufacturer substitution
This part replaces 2213442. Substitute parts can look different from the original.
4 (1)
BEST SELLER
$33.56 |
15% OFF Phone Price : $39.56
In Stock
Refrigerator Condenser Fan 2206036
#23

Upper unit parts diagram

Refrigerator condenser fan

Part #2206036

Replaced by #W10181323

?
Manufacturer substitution
This part replaces 2206036. Substitute parts can look different from the original.
2.83 (6)
BEST SELLER
$147.23 |
8% OFF Phone Price : $159.23
In Stock
Motor Mold 626653
#35

Icemaker parts diagram

Motor mold

Part #626653

Replaced by #8201515

?
Manufacturer substitution
This part replaces 626653. Substitute parts can look different from the original.
4.75 (8)
BEST SELLER
$88.18 |
6% OFF Phone Price : $94.18
In Stock
