Kenmore
Gas Grill

Model # 14834176411 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14834176411 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

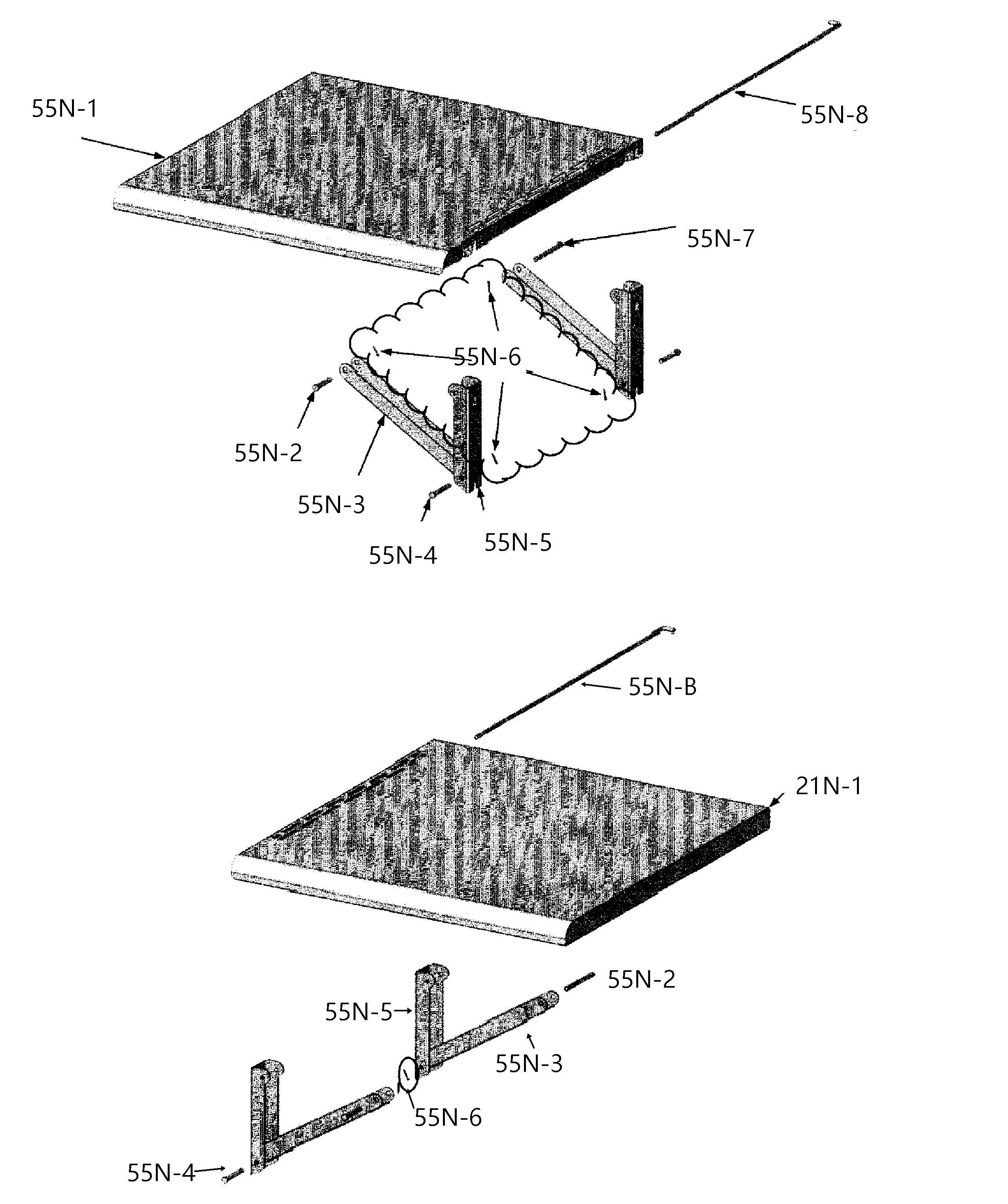

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Right Panel Assembly 2818-2NB-1400
#29-1

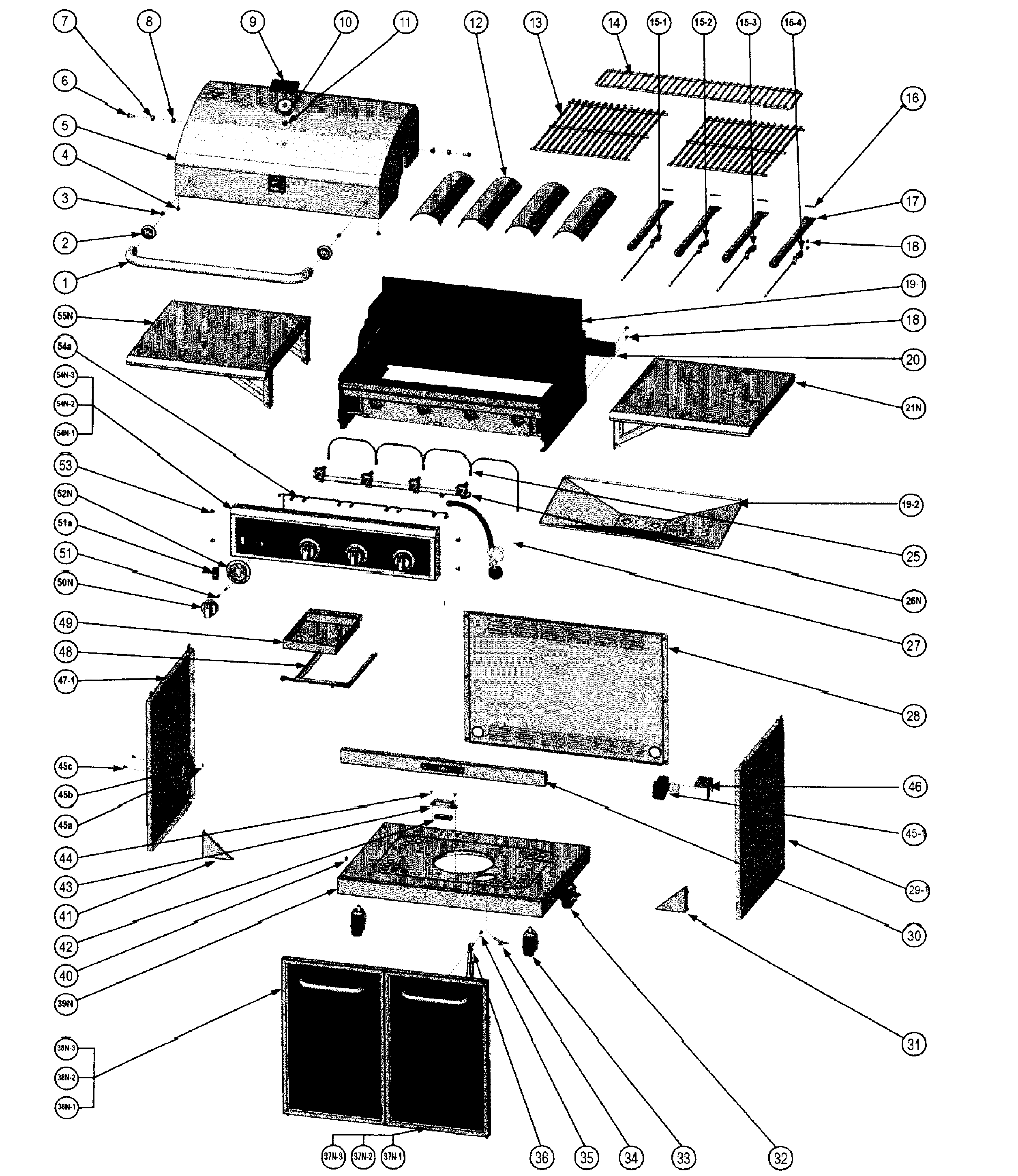

Gas grill diagram

Right panel assembly

Part #2818-2NB-1400

The manufacturer no longer makes this part, and there's no substitute part

Screw 1/4-20X3/8IN.
#53

Gas grill diagram

Screw

Part #1/4-20X3/8IN.

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter Box 2818-2T-1302
#46

Gas grill diagram

Gas grill igniter box

Part #2818-2T-1302

The manufacturer no longer makes this part, and there's no substitute part

Grill Windshield 2818-2T-2004
#20

Gas grill diagram

Grill windshield

Part #2818-2T-2004

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Lid Handle Base S3218ANR-00-4001
#2

Gas grill diagram

Gas grill lid handle base

Part #S3218ANR-00-4001

The manufacturer no longer makes this part, and there's no substitute part

Grill Magnet Housing 2818-2T-1102
#43

Gas grill diagram

Grill magnet housing

Part #2818-2T-1102

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Panel Angle Bracket, Left 2818-2T-1600
#41

Gas grill diagram

Gas grill side panel angle bracket, left

Part #2818-2T-1600

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Cabinet Panel, Left 2818-2NB-1300
#47-1

Gas grill diagram

Gas grill cabinet panel, left

Part #2818-2NB-1300

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Hardware Pack 34176-HDWE
#NI

Gas grill diagram

Gas grill hardware pack

Part #34176-HDWE

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Lid Handle 2818-2T-6200
#1

Gas grill diagram

Gas grill lid handle

Part #2818-2T-6200

The manufacturer no longer makes this part, and there's no substitute part
