Electric Range

Model # LGEF3045KFH Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire LGEF3045KFH electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

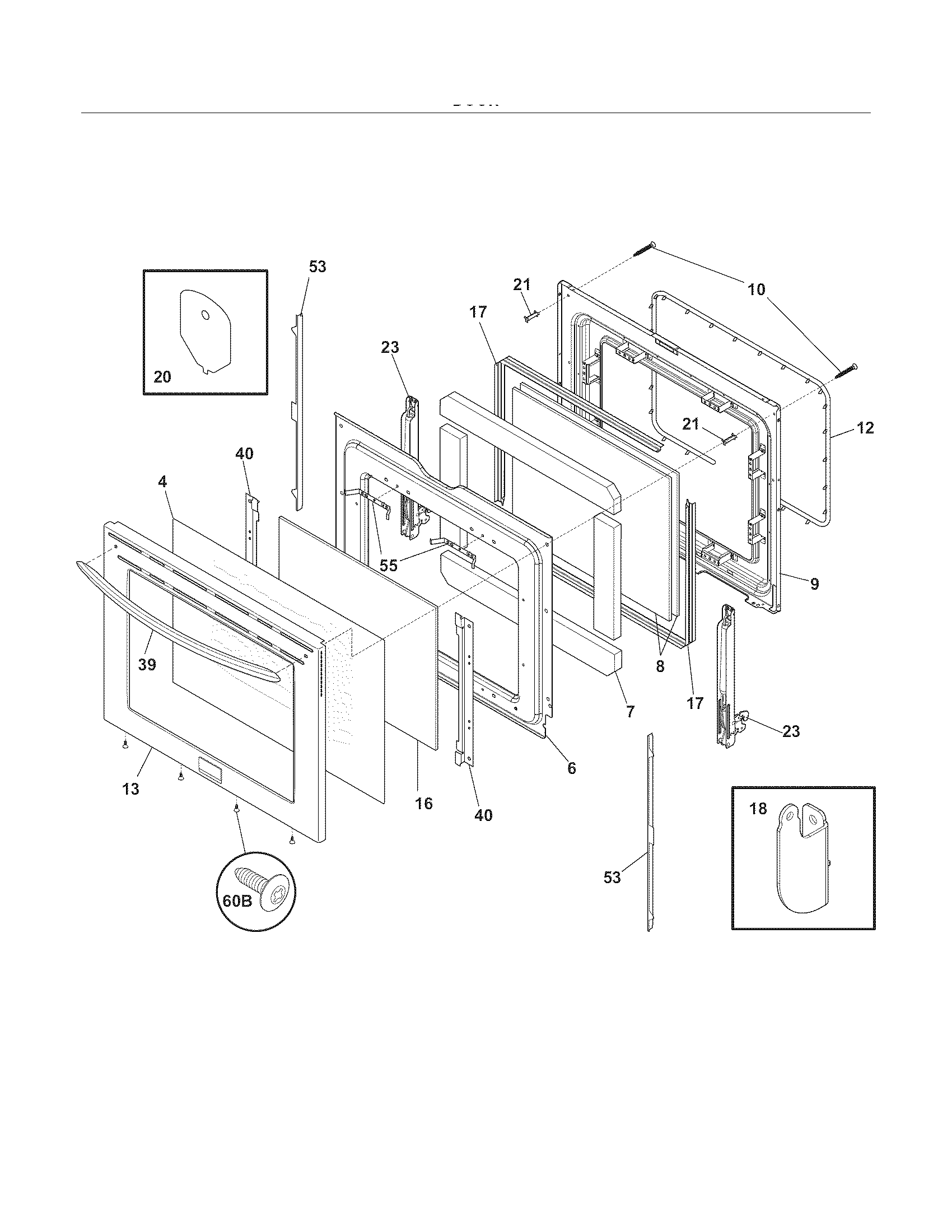

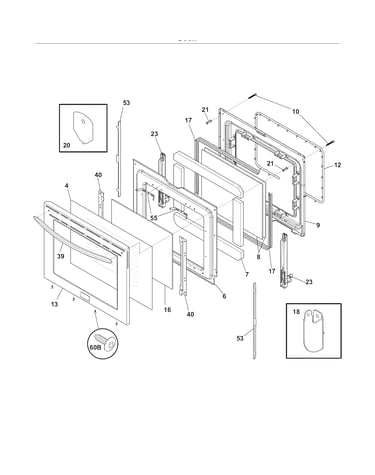

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
LGEF3045KFH Ranges
Frigidaire Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

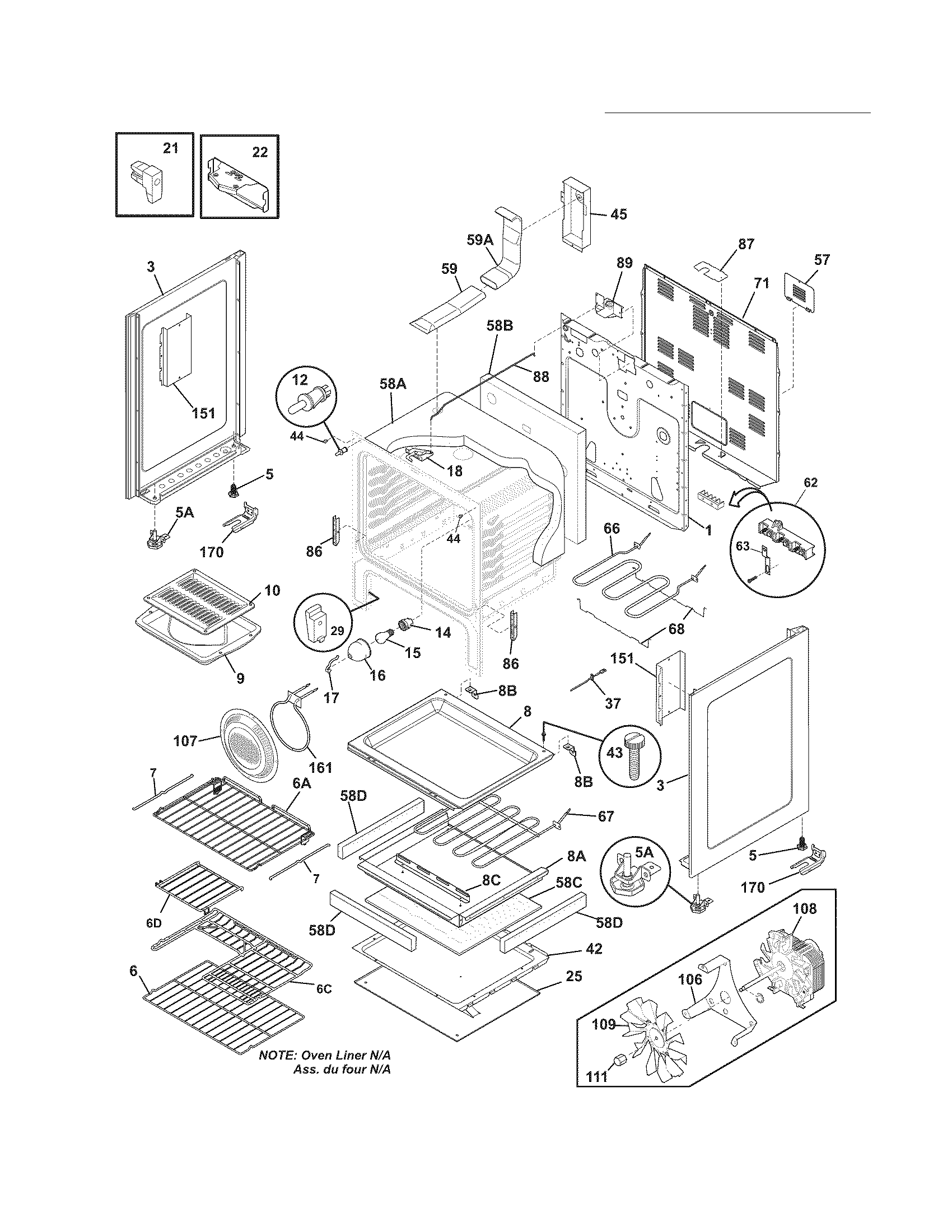

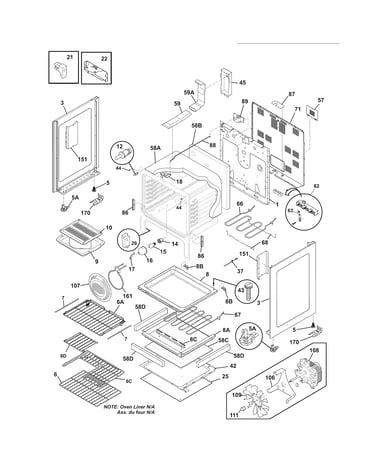

Body diagram

Frigidaire range oven temperature sensor (replaces 316490003)

Part #316490000

3.83 (36)
BEST SELLER
$36.99 |
14% OFF Phone Price : $42.99
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$17.47 |
10% OFF Phone Price : $19.47
In Stock
Frigidaire Range Surface Element Control Switch (replaces 316238200) 316238201
#54B

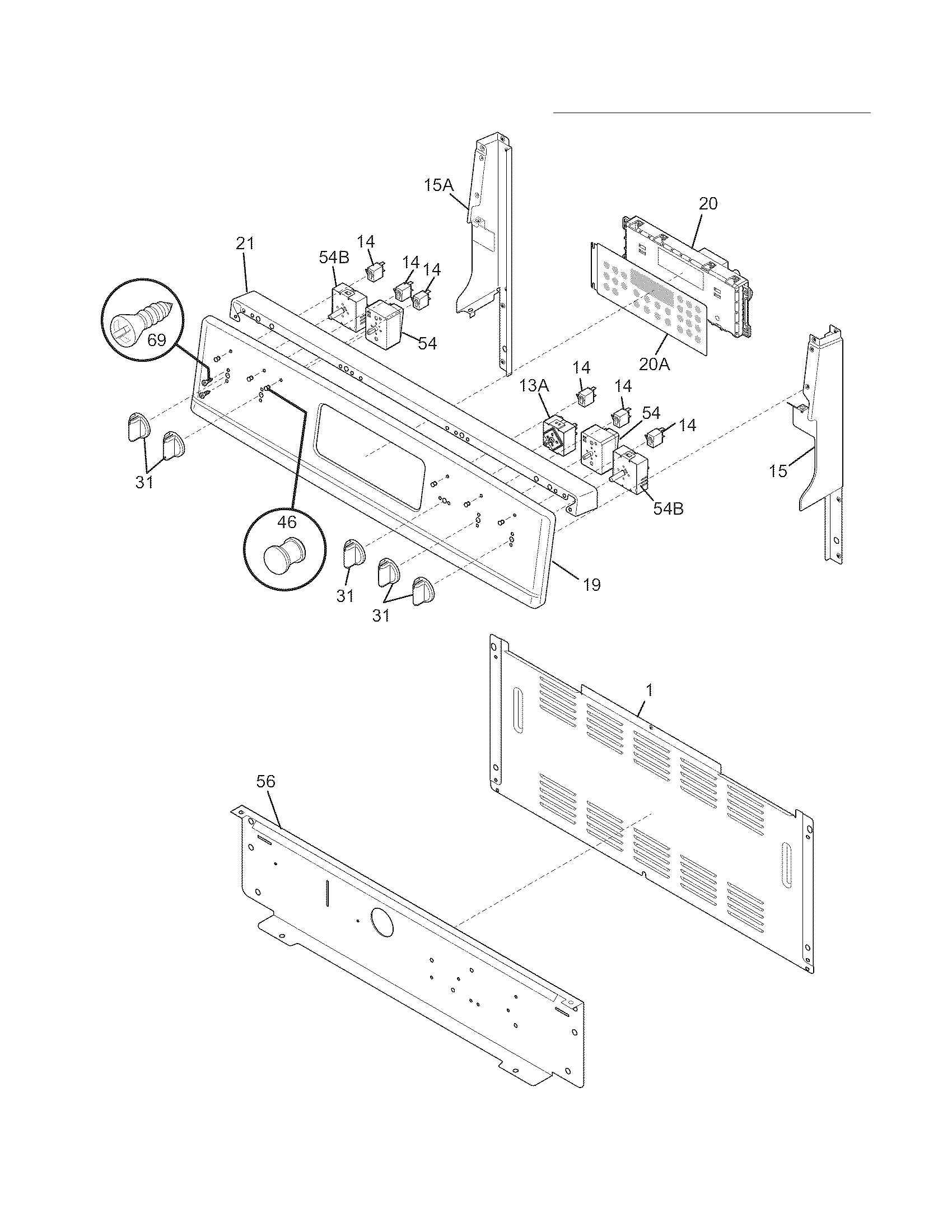

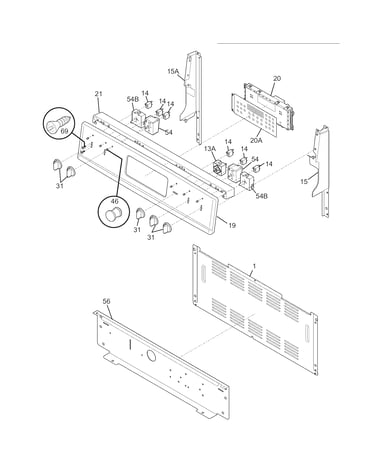

Backguard diagram

Frigidaire range surface element control switch (replaces 316238200)

Part #316238201

3.64 (22)
BEST SELLER
$89.62 |
6% OFF Phone Price : $95.62
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

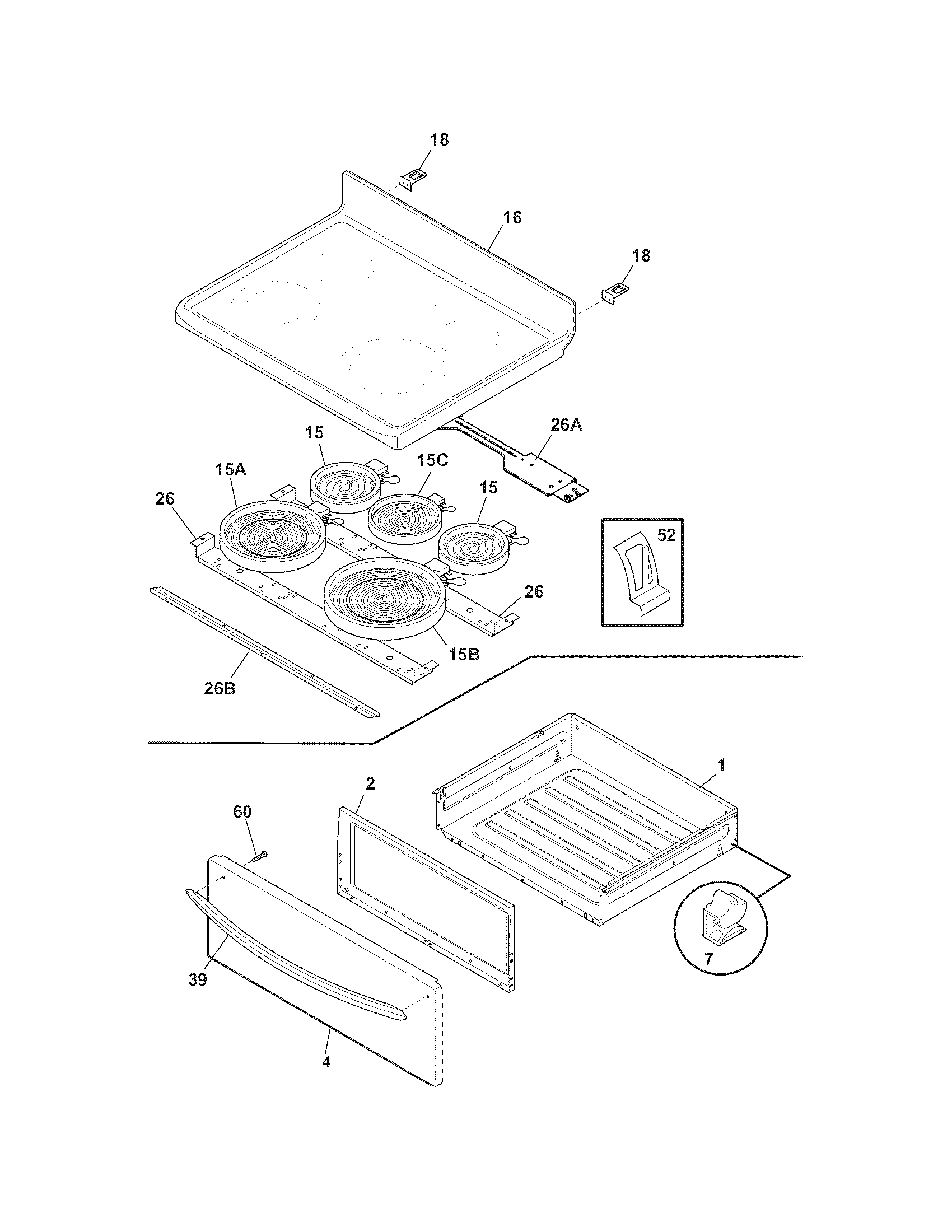

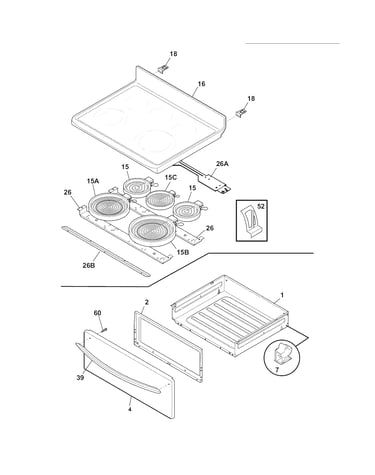

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

4.35 (20)
BEST SELLER
$92.01 |
6% OFF Phone Price : $98.01
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

5 (2)
BEST SELLER
$13.63 |
13% OFF Phone Price : $15.63
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

4.33 (6)
BEST SELLER
$42.64 |
12% OFF Phone Price : $48.64
In Stock
Frigidaire Range Oven Rack (replaces 316496202, 316496207, 7316498003) 316496201
#6

Body diagram

Frigidaire range oven rack (replaces 316496202, 316496207, 7316498003)

Part #316496201

4.8 (15)
BEST SELLER
This item is not returnable
$82.88 |
7% OFF Phone Price : $88.88
In Stock
Frigidaire Range Bake Element (replaces 316505501, 7316505500) 316505500
#67

Body diagram

Frigidaire range bake element (replaces 316505501, 7316505500)

Part #316505500

5 (1)
BEST SELLER
$148.24 |
7% OFF Phone Price : $160.24
In Stock
Range Convection Fan Blade (replaces 139009100, 316136400, 318398300) 318398302
#109

Body diagram

Range convection fan blade (replaces 139009100, 316136400, 318398300)

Part #318398302

BEST SELLER
$24.46 |
20% OFF Phone Price : $30.46
In Stock
Universal/multiflex (frigidaire) Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Universal/multiflex (frigidaire) range terminal block (replaces 75303935271)

Part #5303935271

4.67 (9)
BEST SELLER
$38.49 |
13% OFF Phone Price : $44.49
In Stock
