Upright Vacuum

Model # 2275AZ Official Eureka vacuum

Here are the diagrams and repair parts for Official Eureka 2275AZ vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

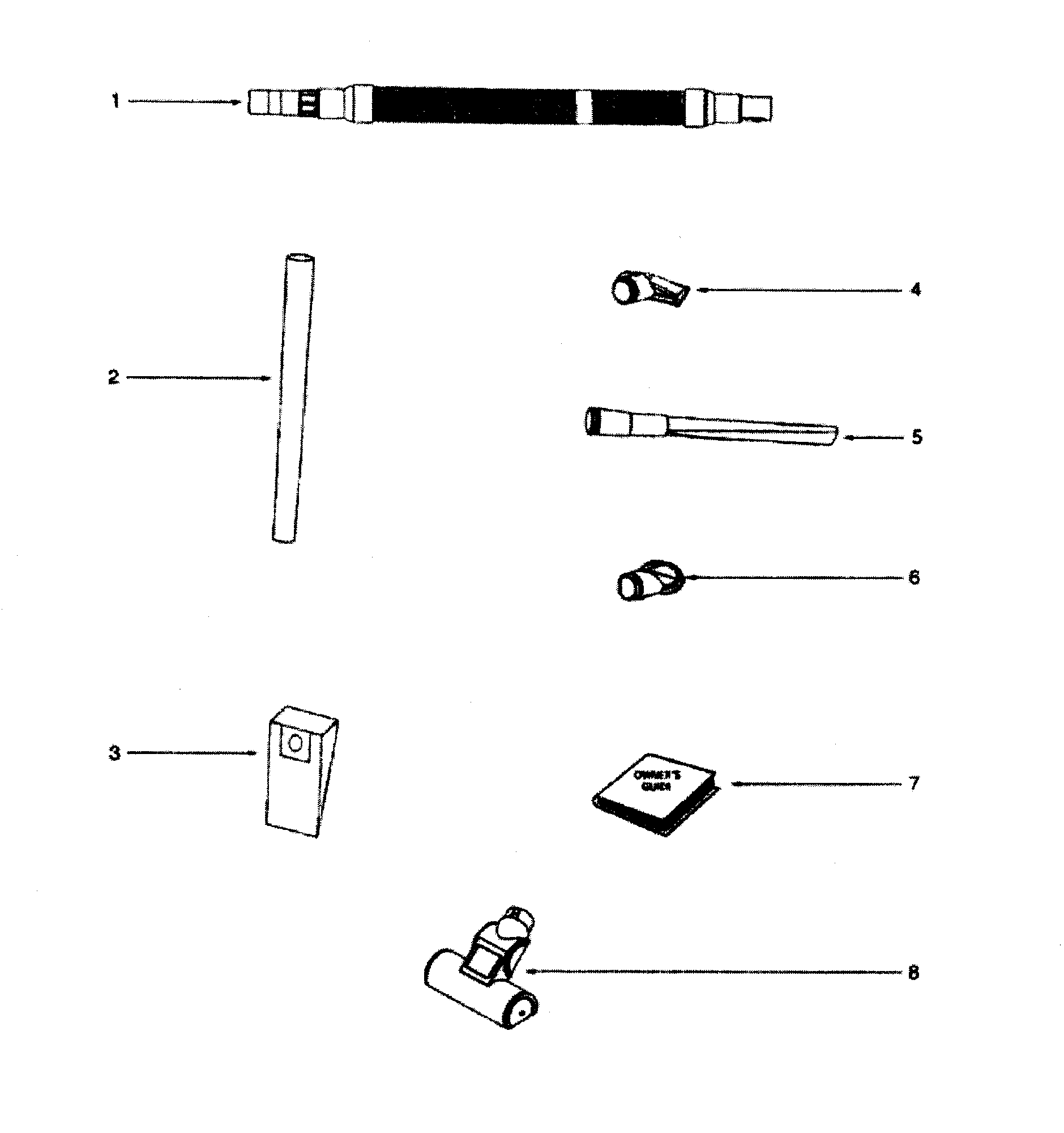

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
2275AZ Vacuum Cleaners
Eureka Bag Cover 63018
#5

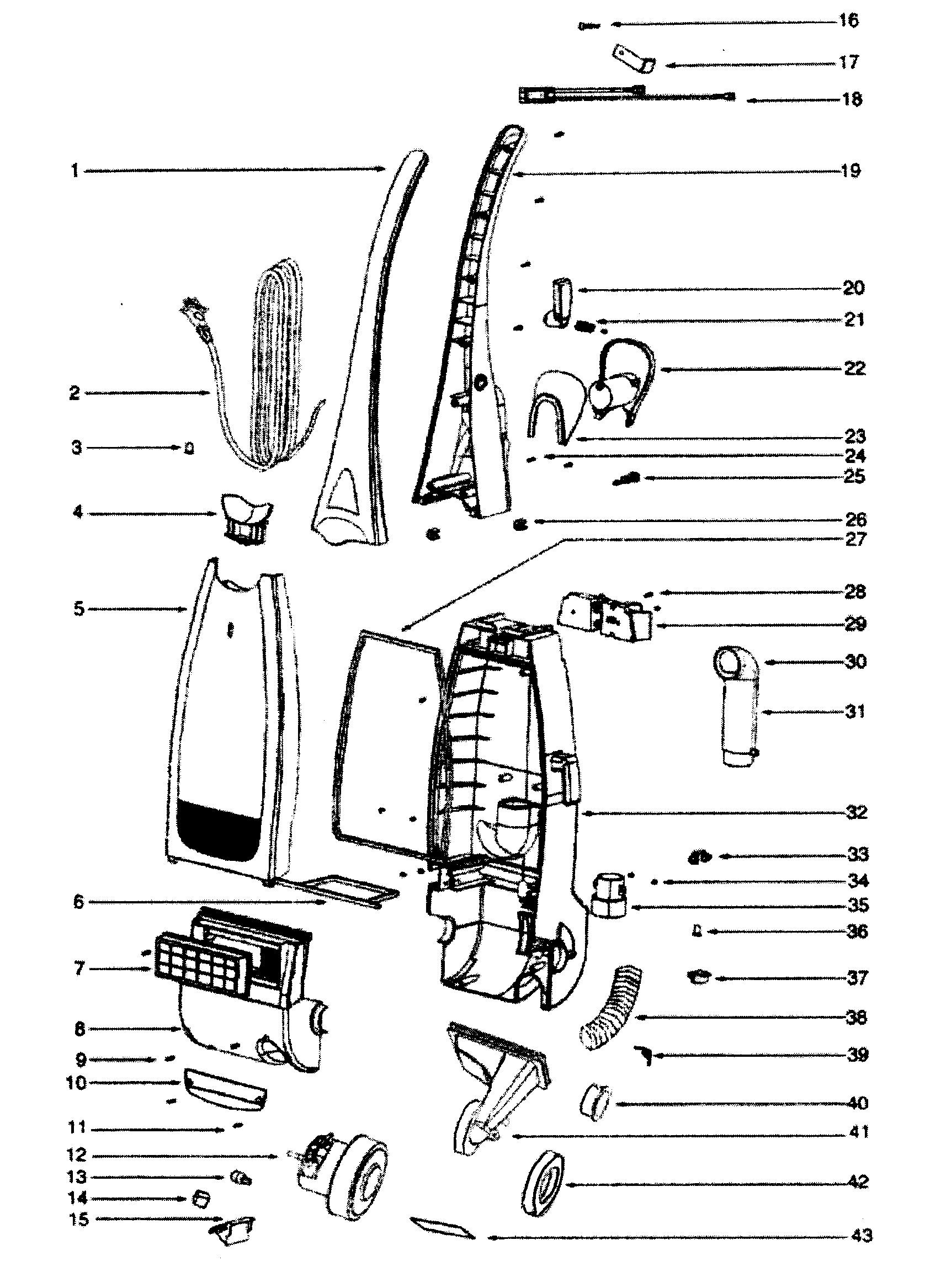

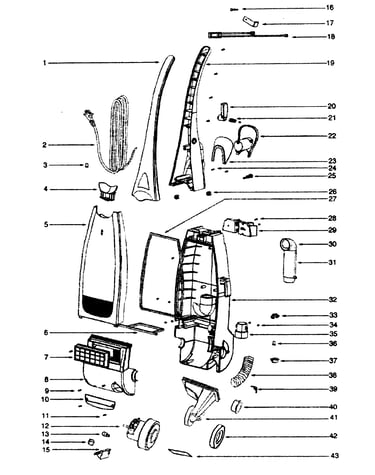

Main body asy diagram

Eureka bag cover

Part #63018

The manufacturer no longer makes this part, and there's no substitute part

Cap 61613
#4

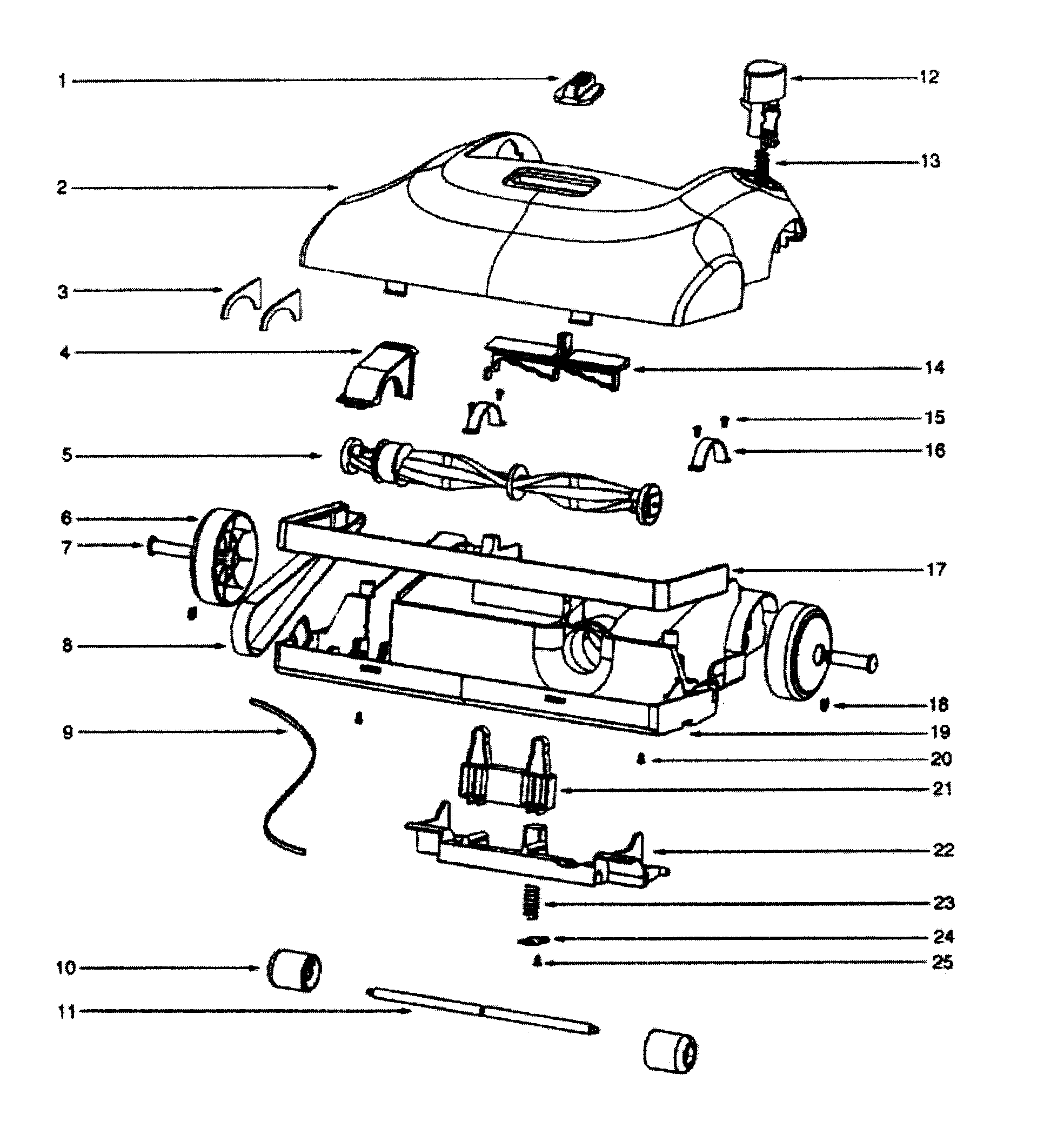

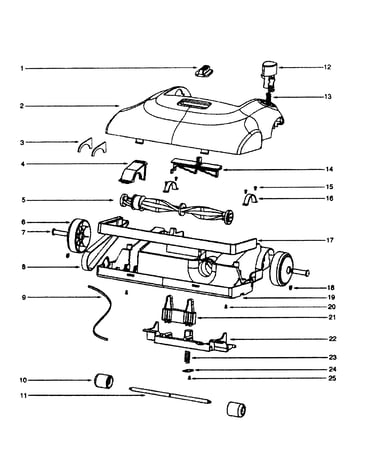

Base assy diagram

Cap

Part #61613

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 5-pack 61803
Vacuum screw, 5-pack

Part #61803

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 61617
#17

Base assy diagram

Vacuum furniture guard

Part #61617

The manufacturer no longer makes this part, and there's no substitute part

Spring 61626
#23

Base assy diagram

Spring

Part #61626

The manufacturer no longer makes this part, and there's no substitute part

Connector 61648
#31

Main body asy diagram

Connector

Part #61648

The manufacturer no longer makes this part, and there's no substitute part

Plate 61625
#24

Base assy diagram

Plate

Part #61625

The manufacturer no longer makes this part, and there's no substitute part

Hose 61649
#38

Main body asy diagram

Hose

Part #61649

The manufacturer no longer makes this part, and there's no substitute part

Spring 61643
#39

Main body asy diagram

Spring

Part #61643

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61622
#9

Base assy diagram

Gasket

Part #61622

The manufacturer no longer makes this part, and there's no substitute part
