Side-By-Side Refrigerator

Model # ZISB42DYA Official GE refrigerator - y series

Here are the diagrams and repair parts for Official GE ZISB42DYA refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

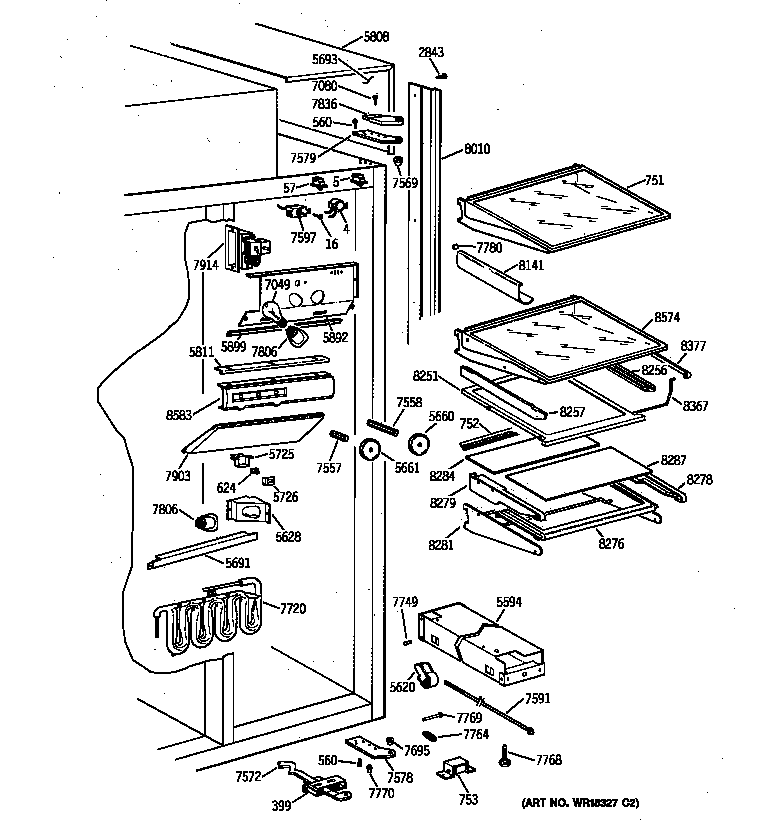

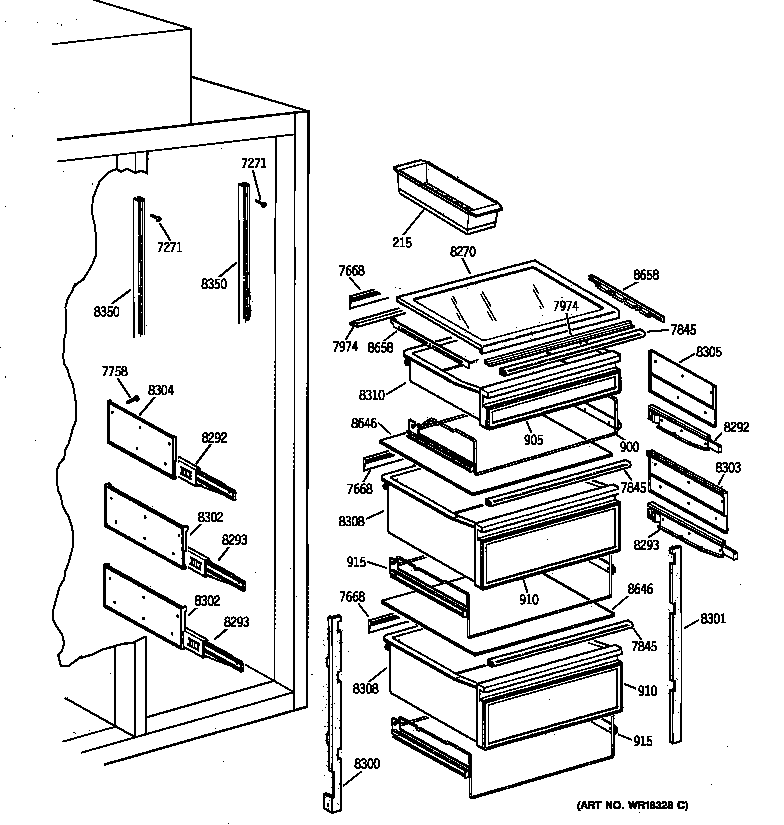

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 328 parts  |
Refrigerator Ice Maker WR30X304
Refrigerator ice maker

Part #WR30X304

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X304. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Filter Dryer WR86X96
#740

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Comp Rpl Kit WR87X471
#725

Unit parts diagram

Comp rpl kit

Part #WR87X471

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X471. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Dr Reces Asm WR17X3093
#62

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Defrost Timer WR9X587
#257

Unit parts diagram

Refrigerator defrost timer

Part #WR9X587

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR9X587. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Heater Trough WR51X321
#17

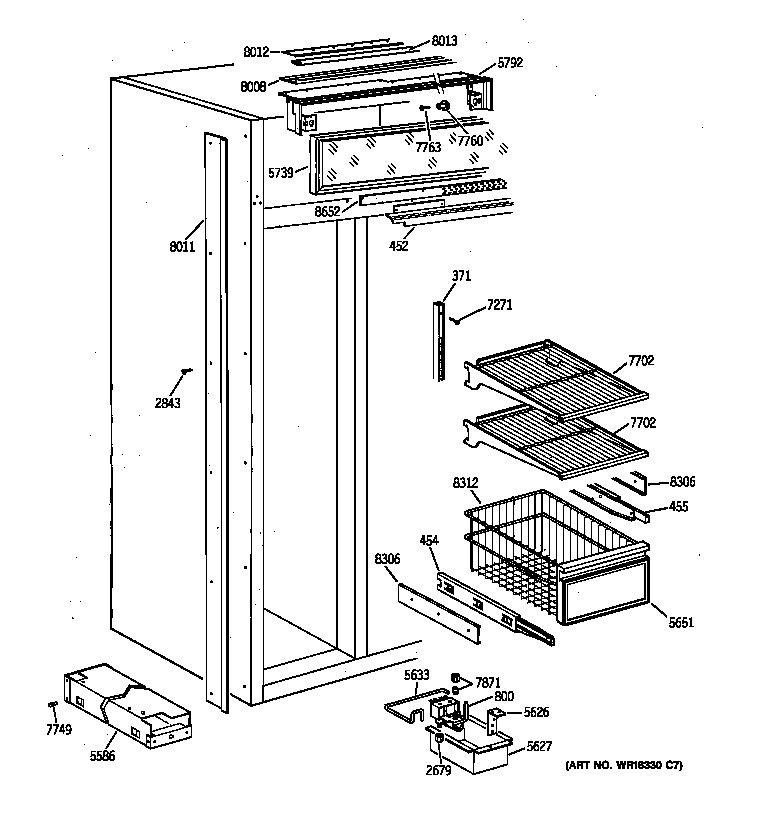

Freezer section diagram

Heater trough

Part #WR51X321

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR51X321. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Refrigerator Drain Pan WR17X3038
#5304

Freezer section diagram

Refrigerator drain pan

Part #WR17X3038

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR17X3038. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Refrigerator Ice Container Assembly (replaces Wr17x2898) WR17X4312
#354

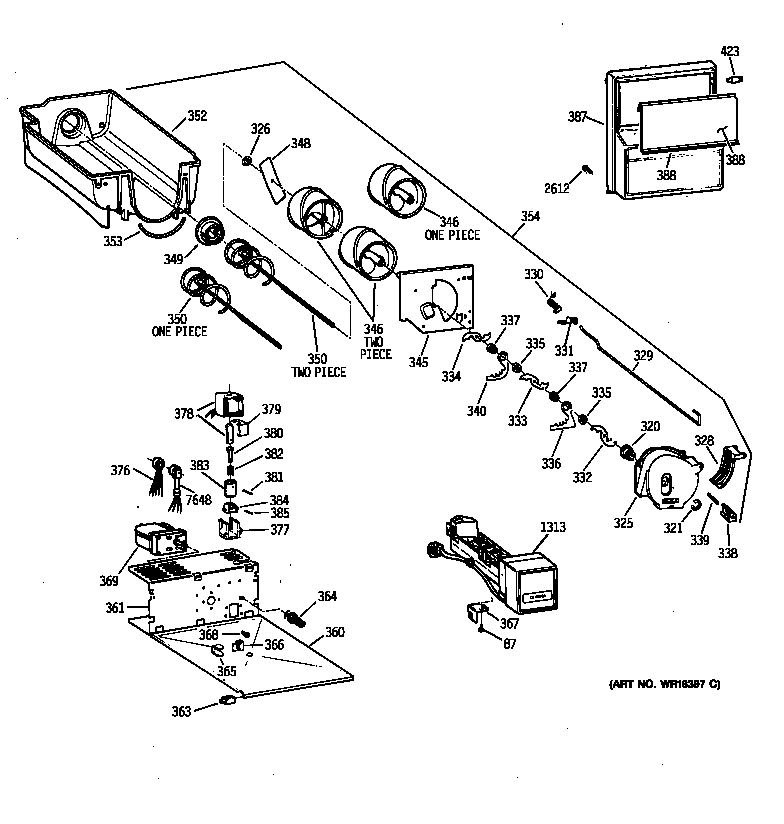

Ice bucket assembly diagram

Refrigerator ice container assembly (replaces wr17x2898)

Part #WR17X4312

BEST SELLER
$173.75 |
6% OFF Phone Price : $185.75
In Stock
Refrigerator Grommet WR2X9466
#8140

Freezer section diagram

Refrigerator grommet

Part #WR2X9466

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR2X9466. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Dispenser Crusher Motor WR60X202
#369

Ice bucket assembly diagram

Refrigerator dispenser crusher motor

Part #WR60X202

Replaced by #WR60X10262

?
Manufacturer substitution
This part replaces WR60X202. Substitute parts can look different from the original.
$156.16 |
7% OFF Phone Price : $168.16
In Stock
