Frigidaire
Room Air Conditioner

Model # FFRA2822R22 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRA2822R22 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

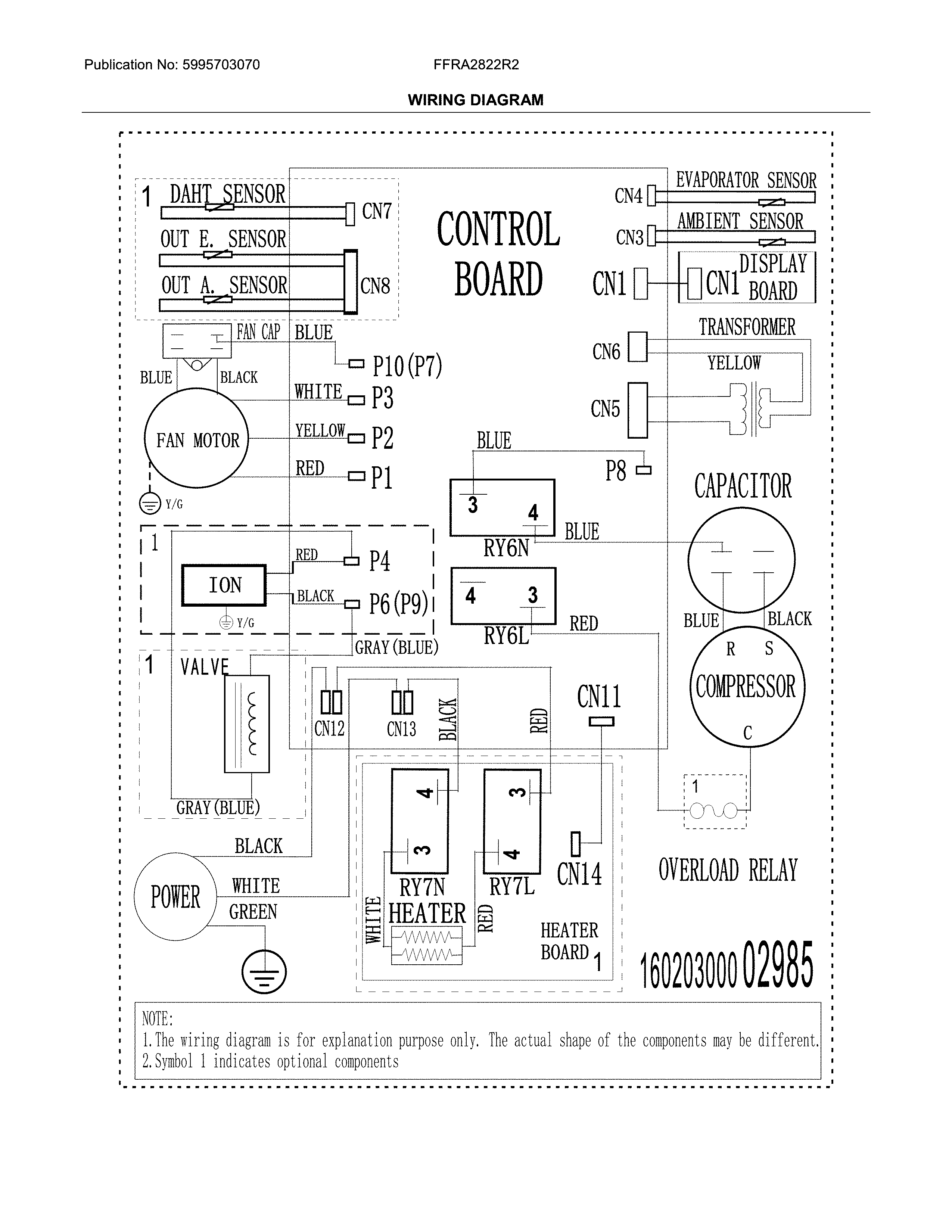

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Room Air Conditioner Fan Motor 5304482882
#41

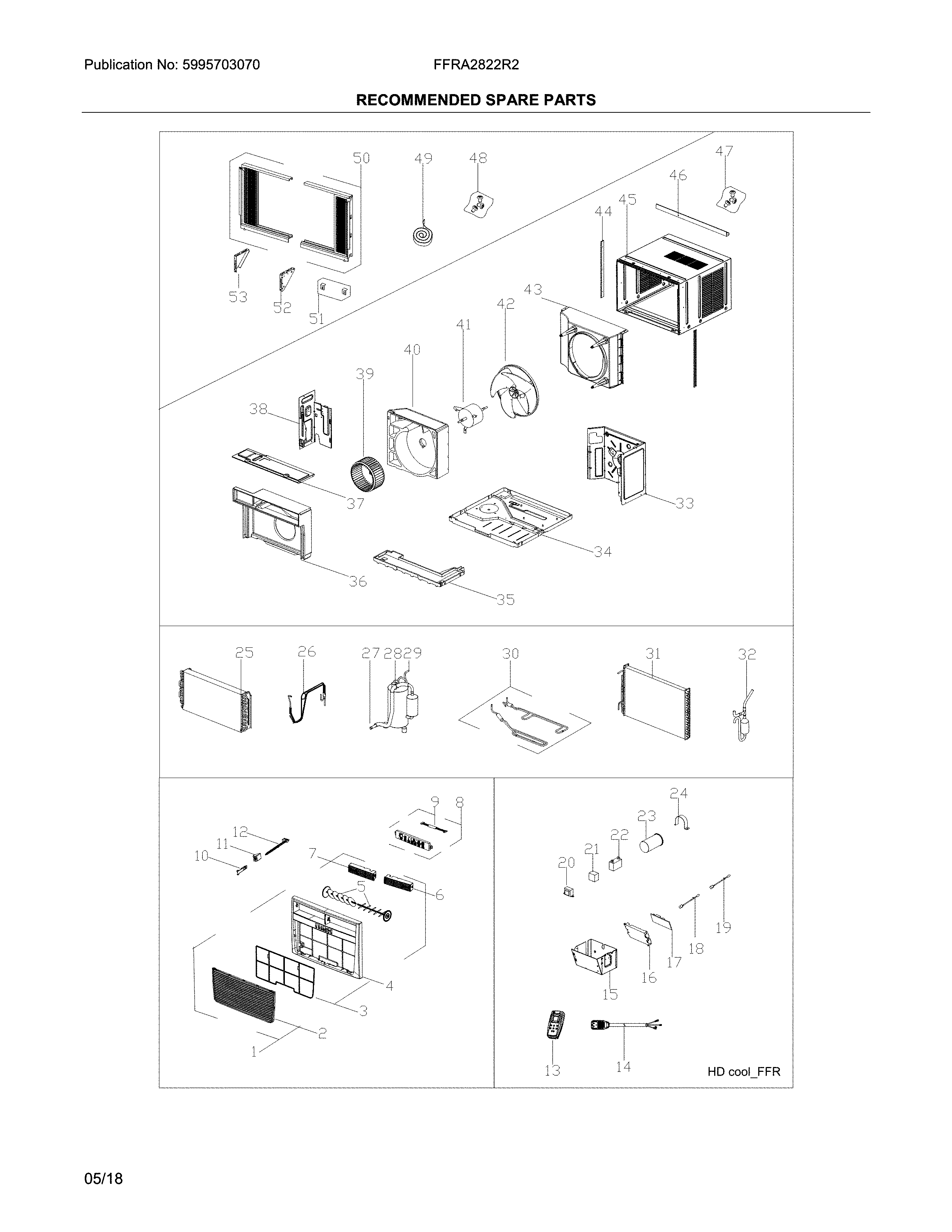

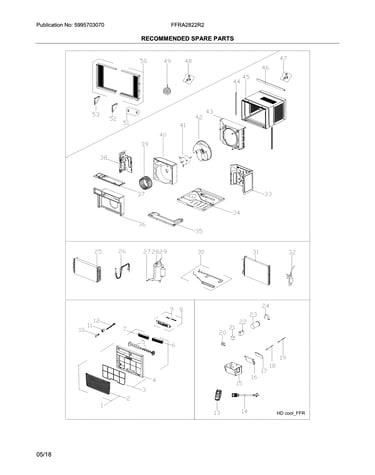

Recommended spare parts diagram

Room air conditioner fan motor

Part #5304482882

In Stock
Louver 5304477147
#6

Recommended spare parts diagram

Louver

Part #5304477147

In Stock
Strap,capacitor Clamp 5304512380
#24

Recommended spare parts diagram

Strap,capacitor clamp

Part #5304512380

In Stock
Louver 5304477146
#5

Recommended spare parts diagram

Louver

Part #5304477146

In Stock
Tray 5304472343
#35

Recommended spare parts diagram

Tray

Part #5304472343

In Stock
Condenser 5304512397
#31

Recommended spare parts diagram

Condenser

Part #5304512397

In Stock
Capillary Tube 5304512393
#26

Recommended spare parts diagram

Capillary tube

Part #5304512393

In Stock
Panel 5304477183
#4

Recommended spare parts diagram

Panel

Part #5304477183

In Stock
Bulkhead 5304495039
#38

Recommended spare parts diagram

Bulkhead

Part #5304495039

In Stock
Tube 5304483011
#27

Recommended spare parts diagram

Tube

Part #5304483011

In Stock
