Craftsman
Front-Engine Lawn Tractor

Model # 917276320 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 917276320 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

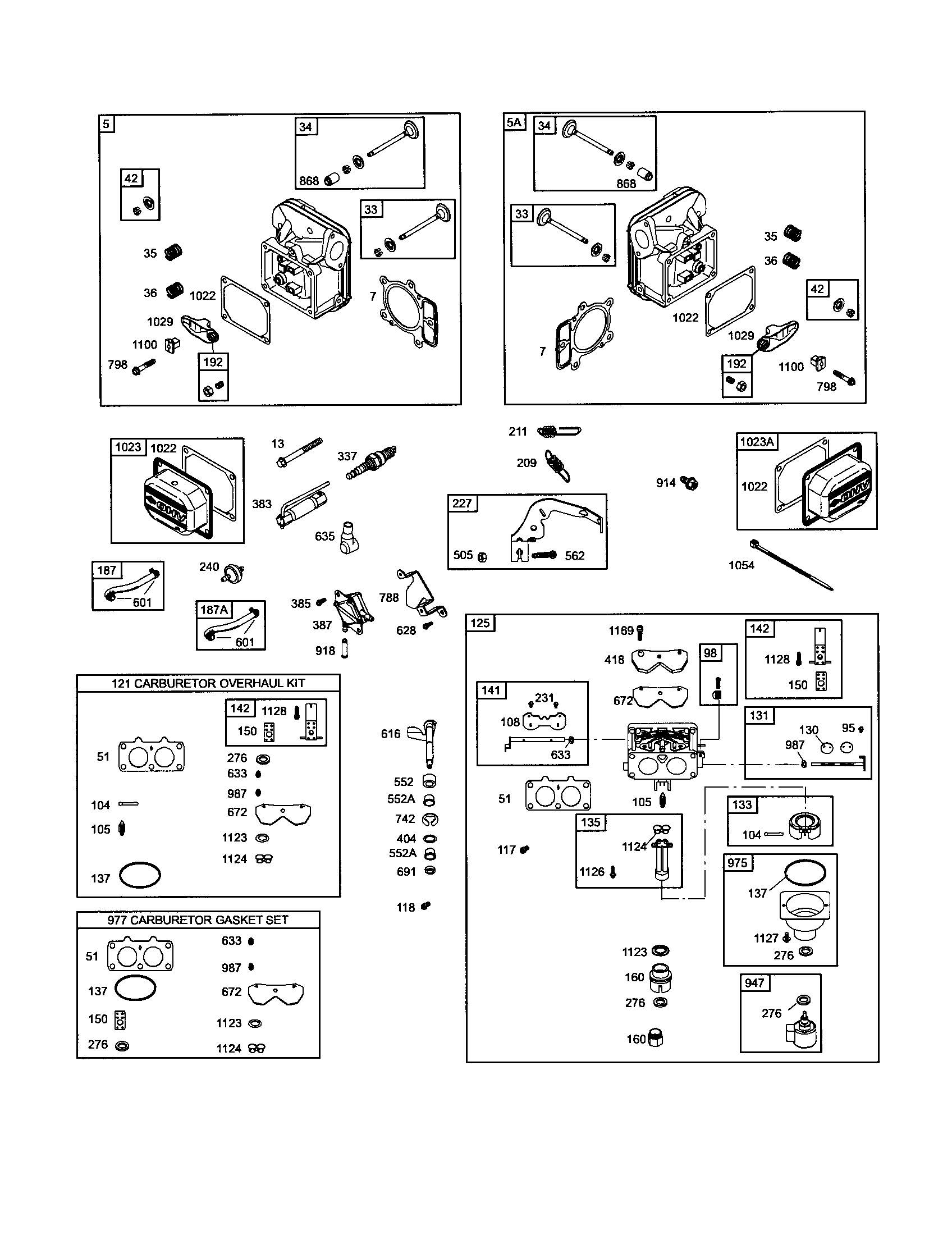

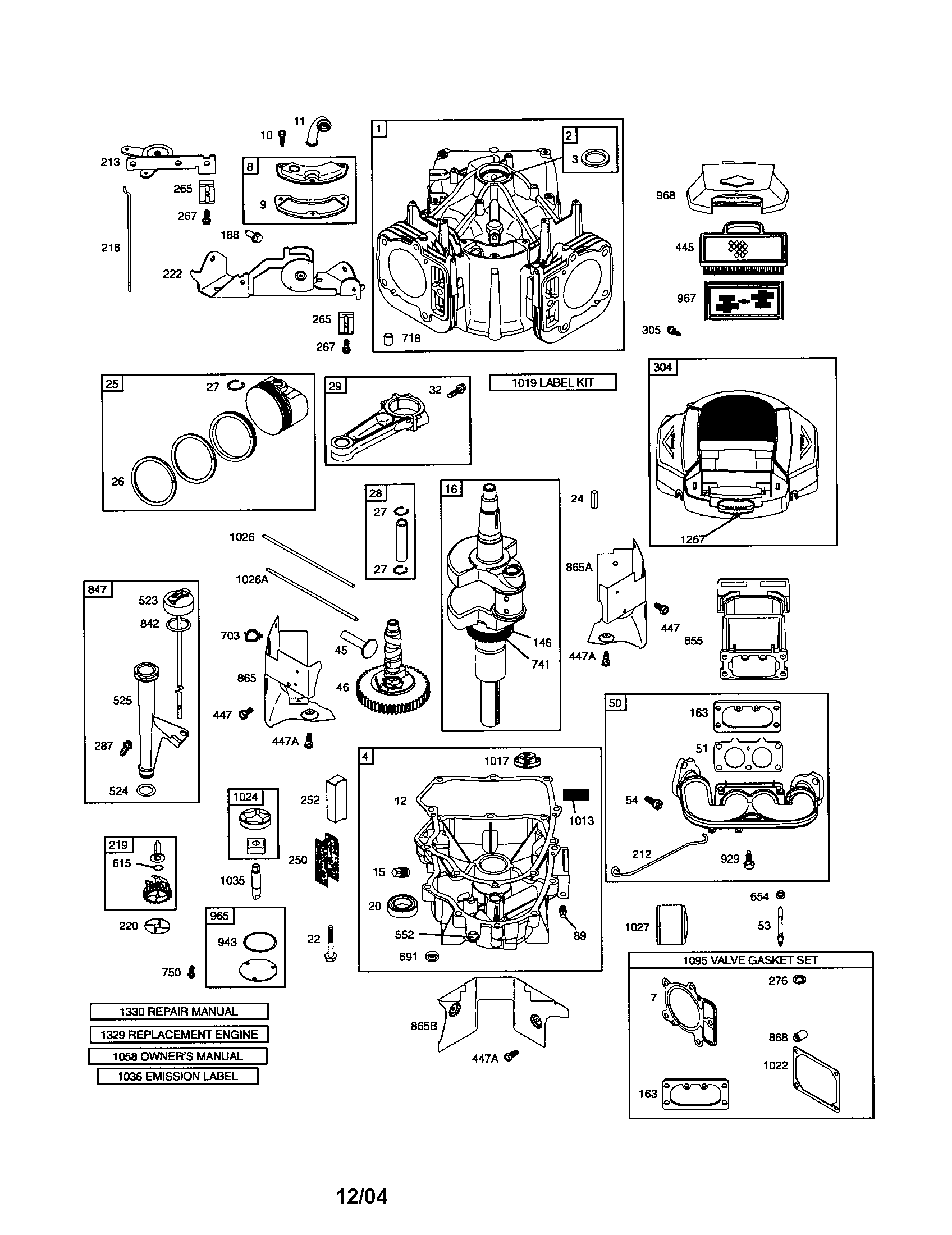

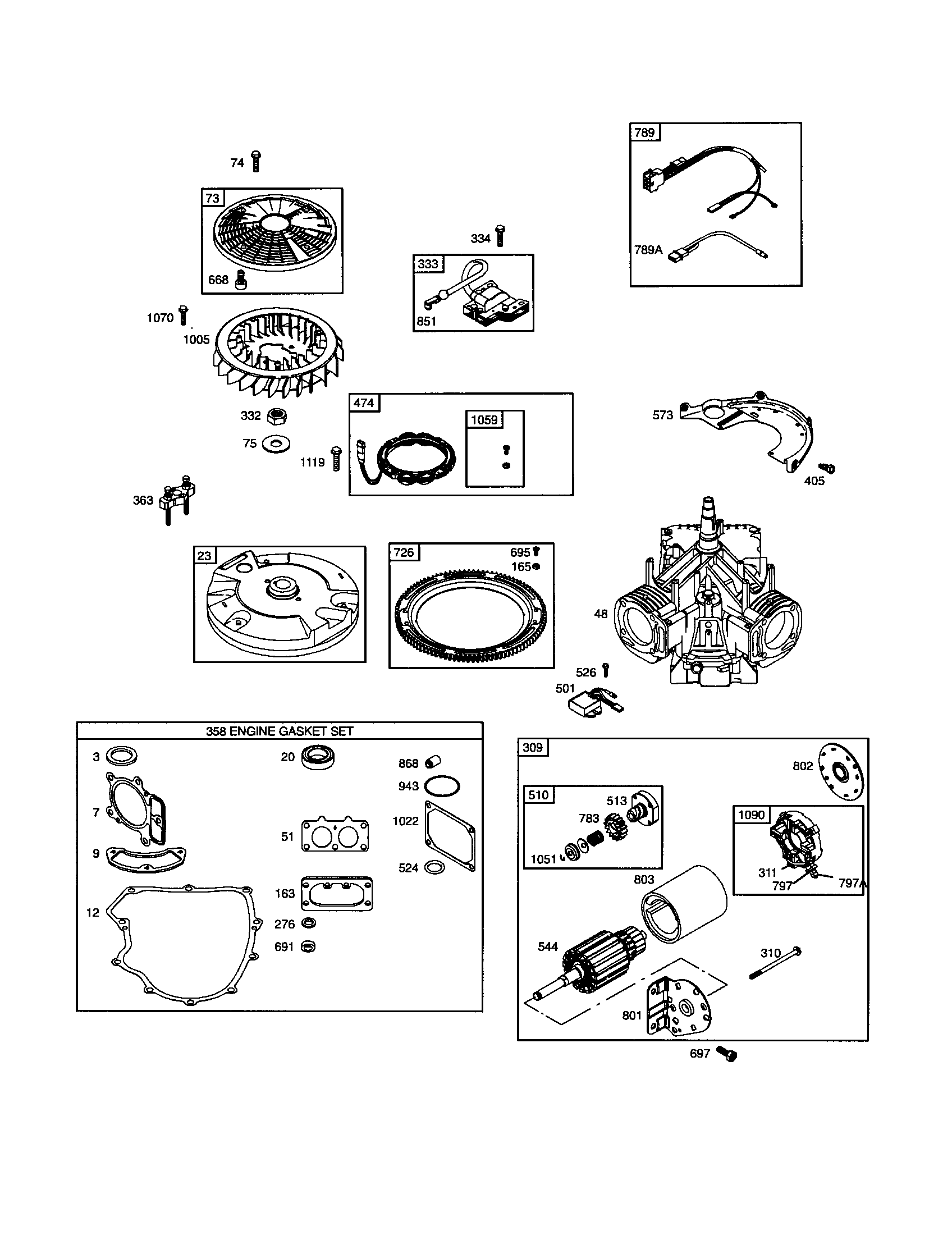

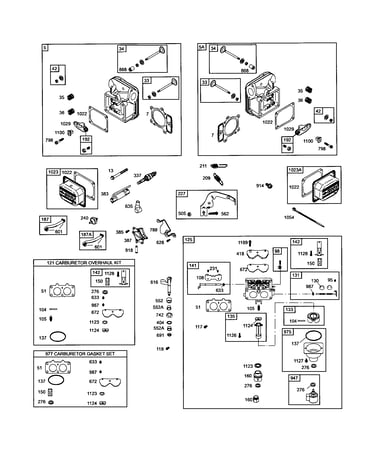

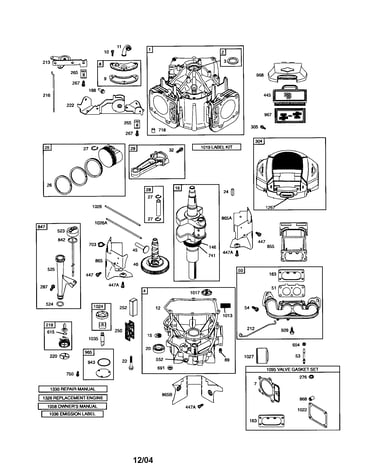

  View engine

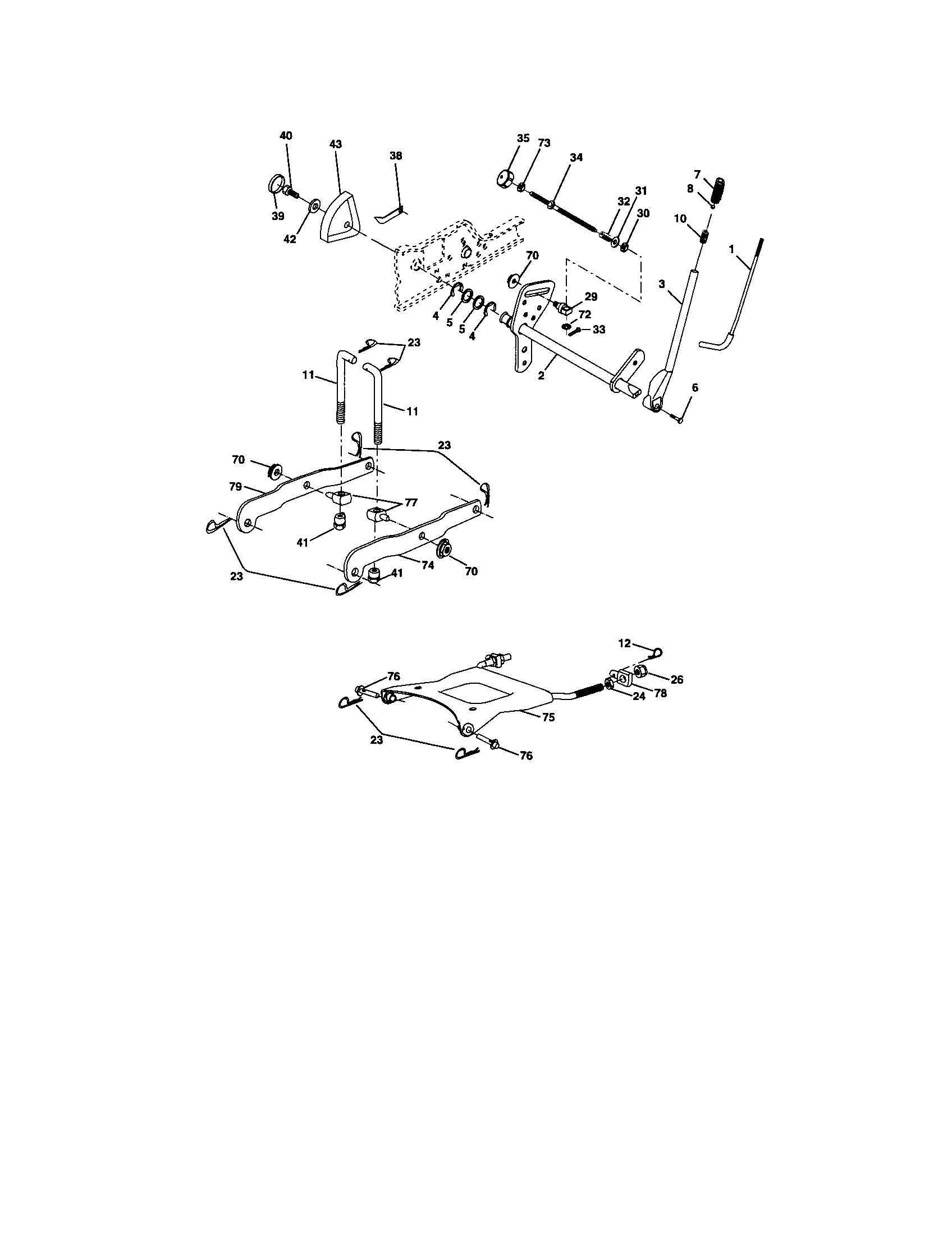

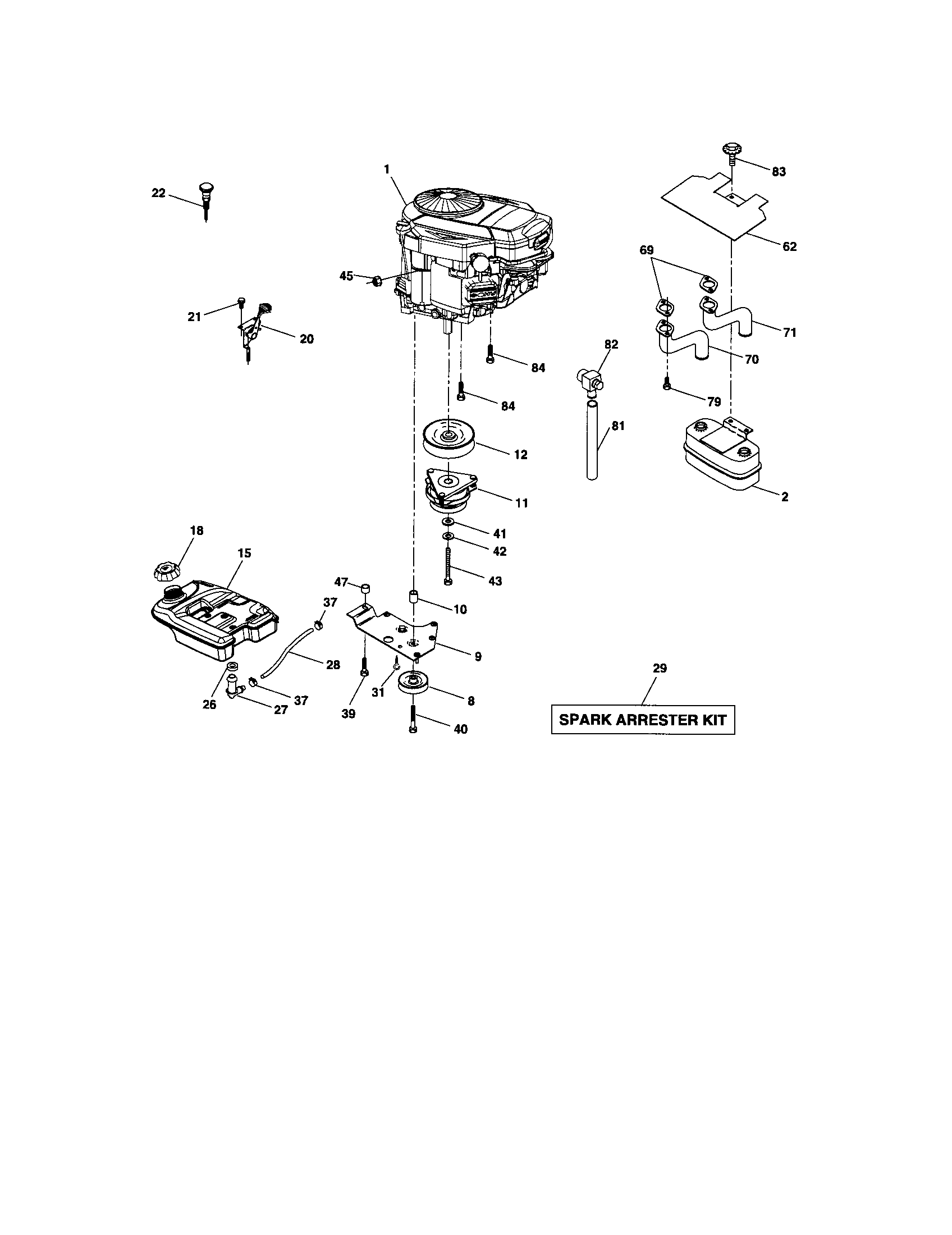

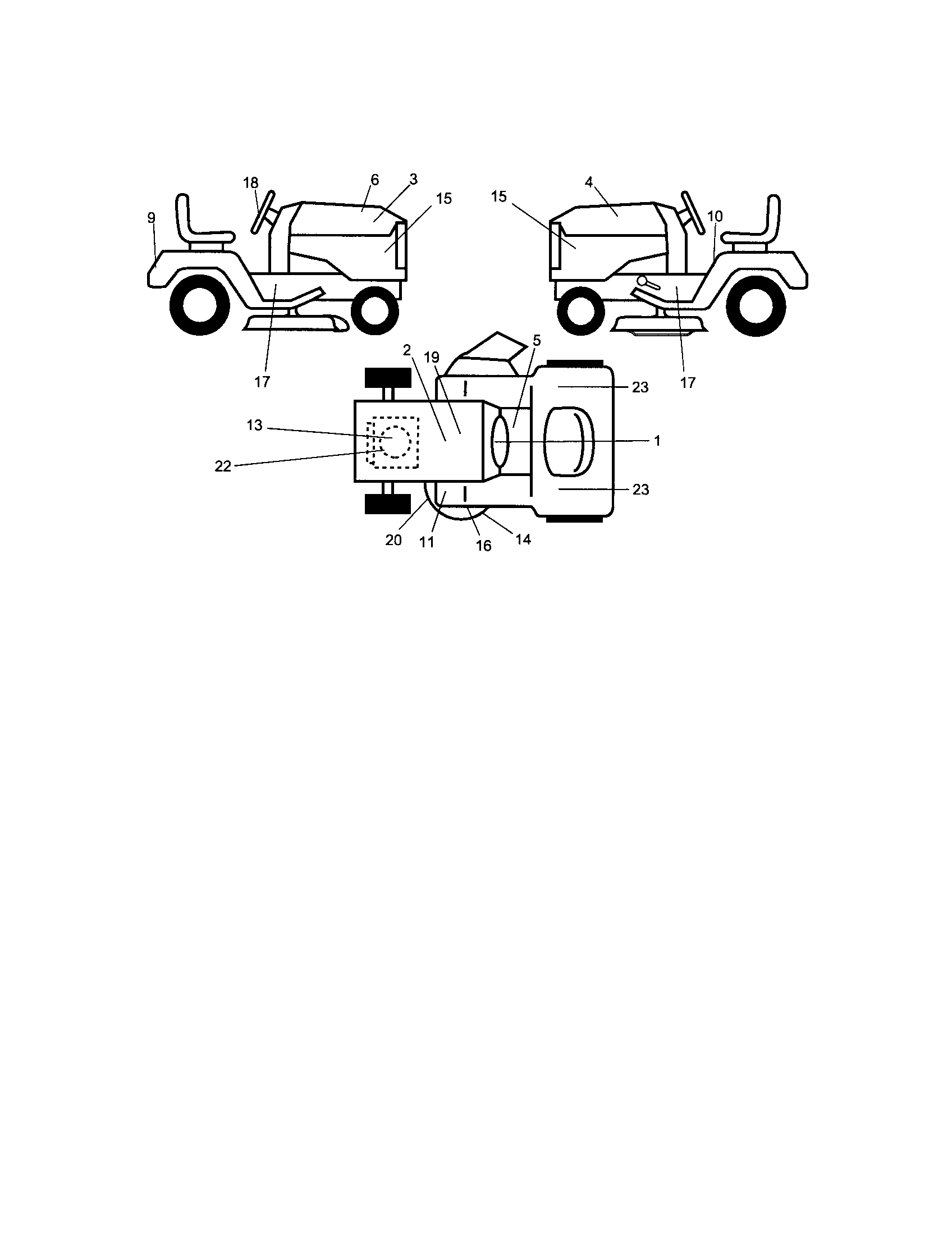

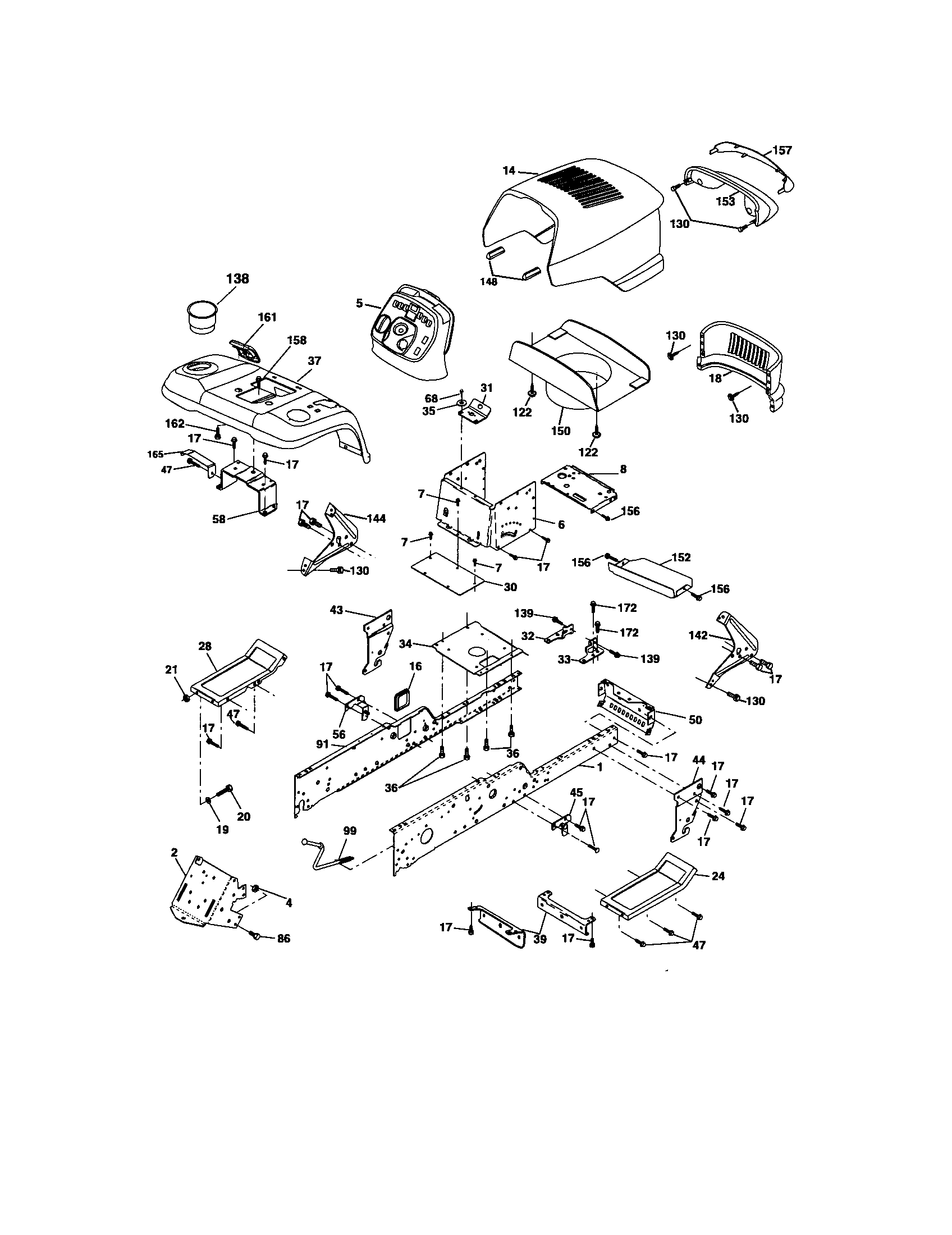

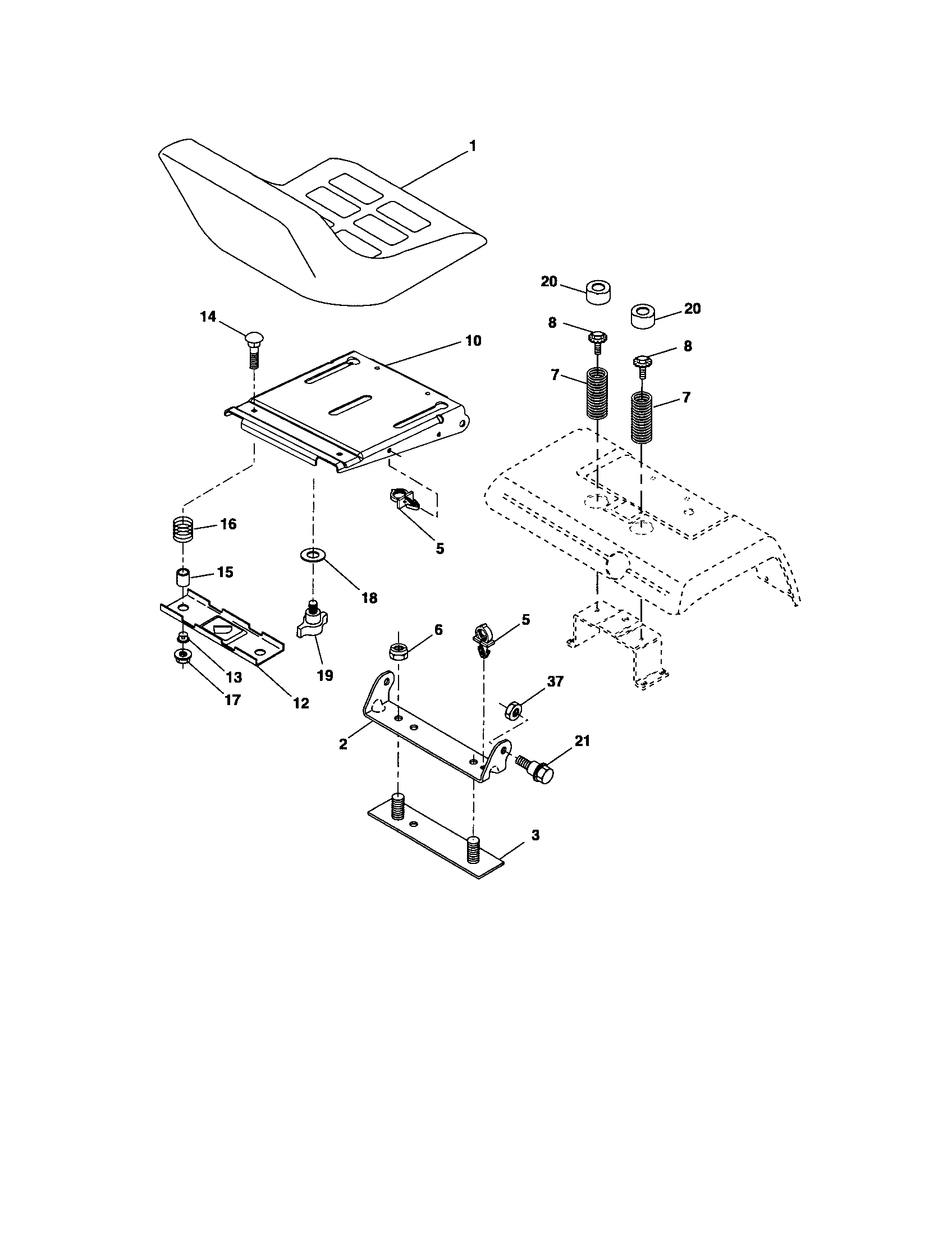

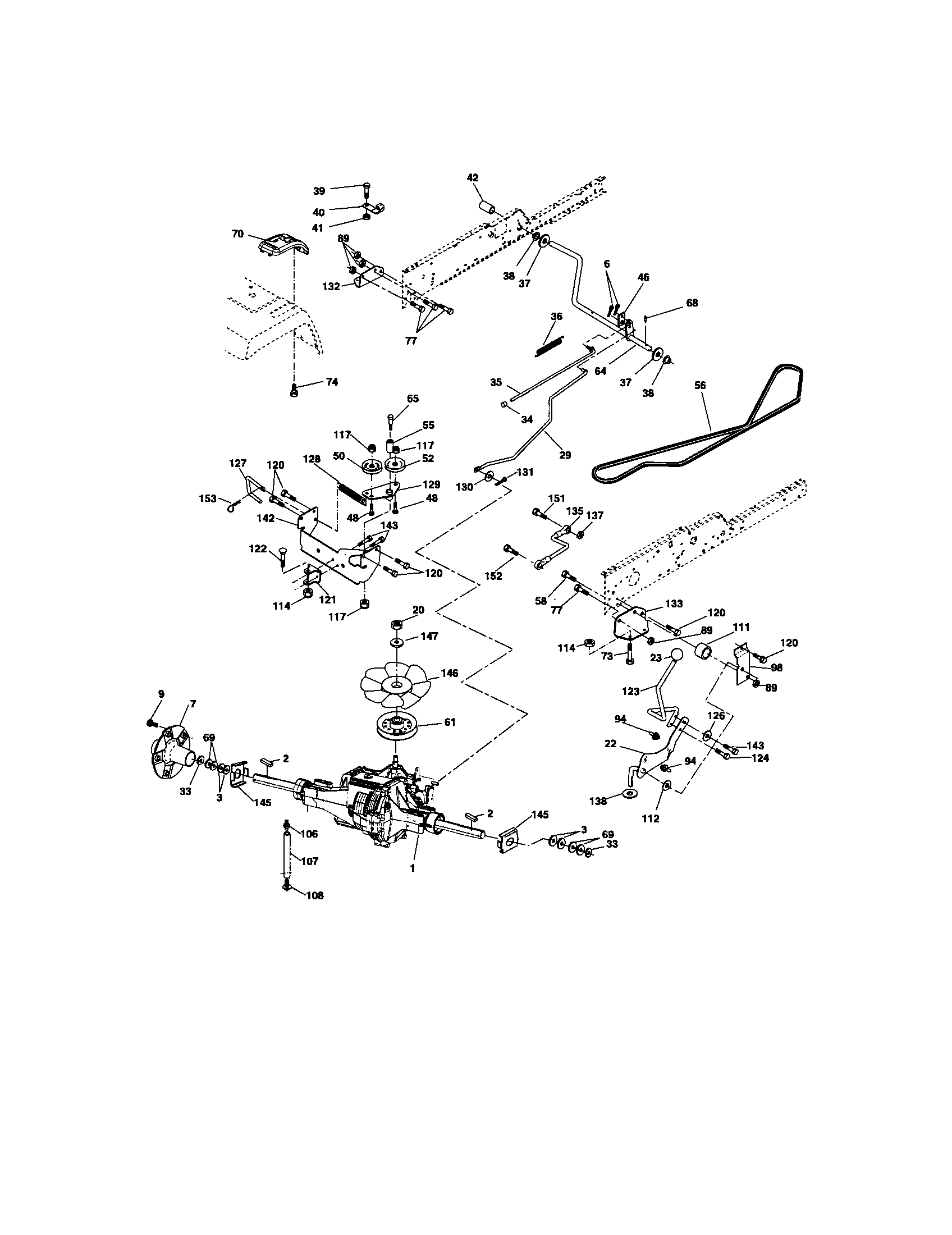

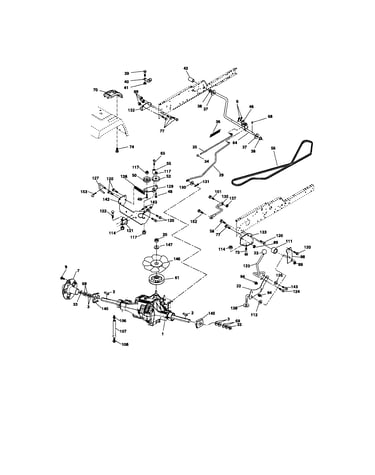

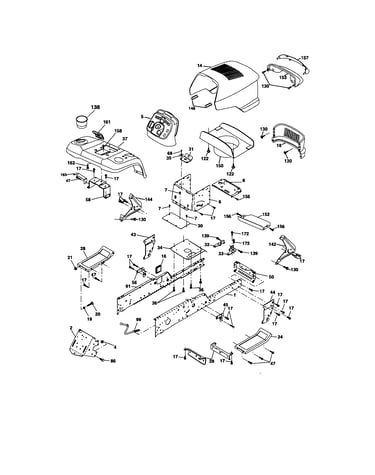

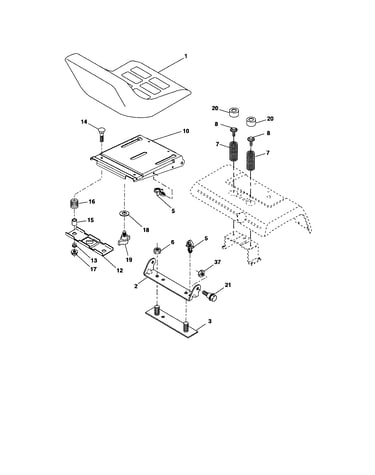

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 661 parts  |
Lawn Tractor Axle Cap 104757X428
#8

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

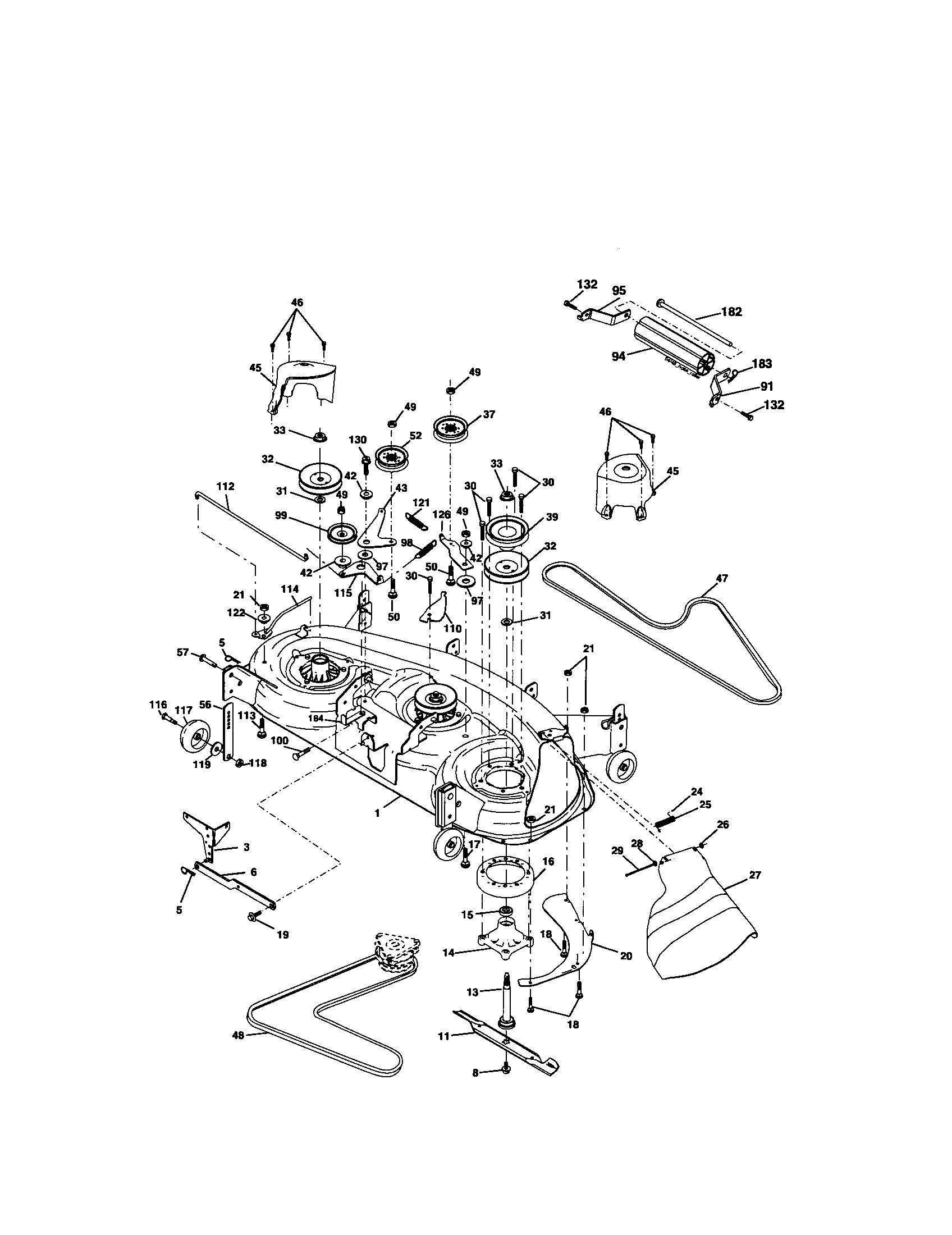

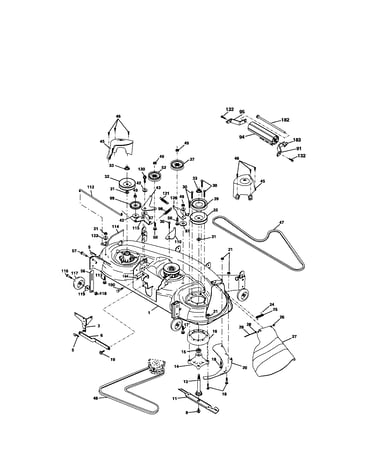

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid With Brass Plunger 178861
#43

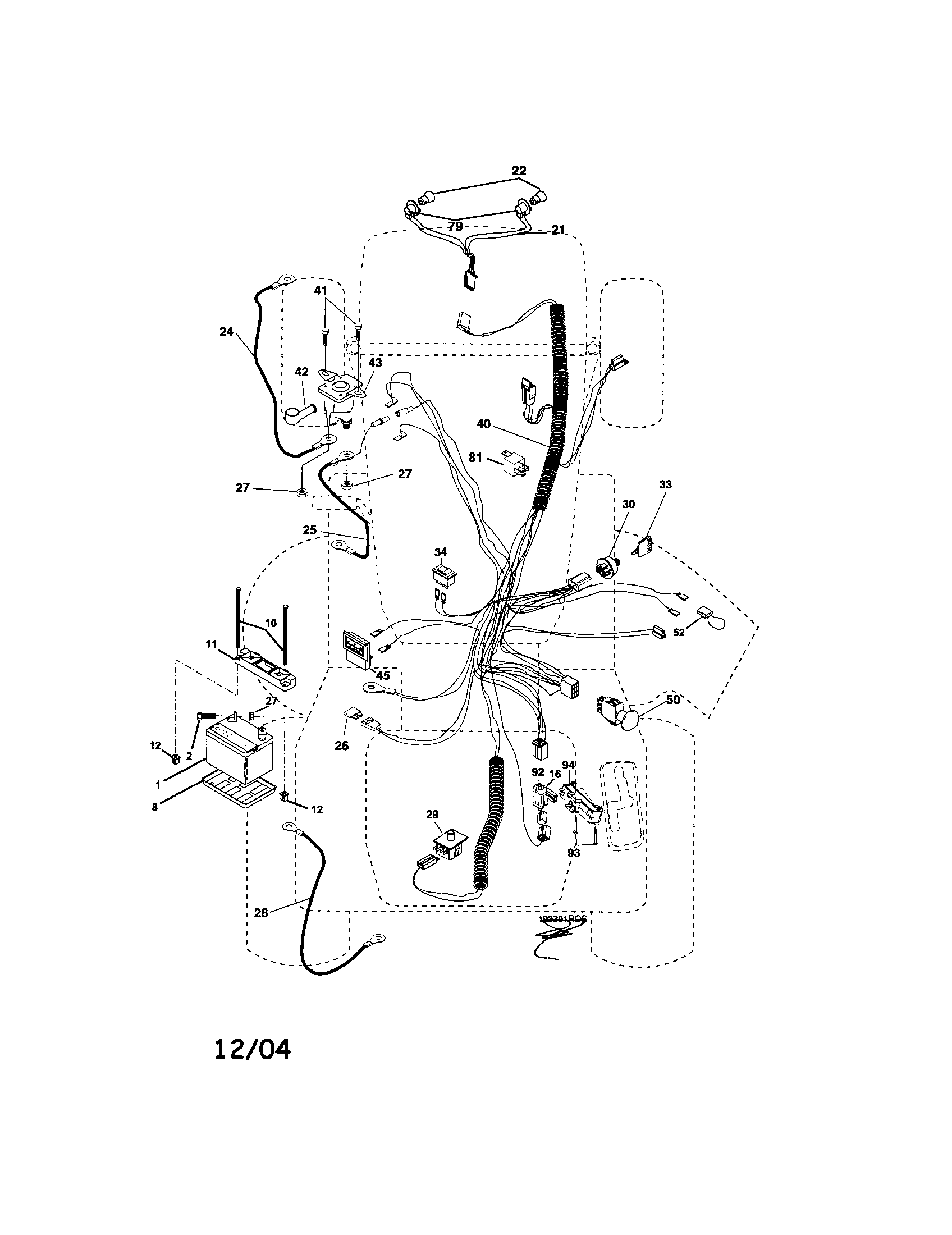

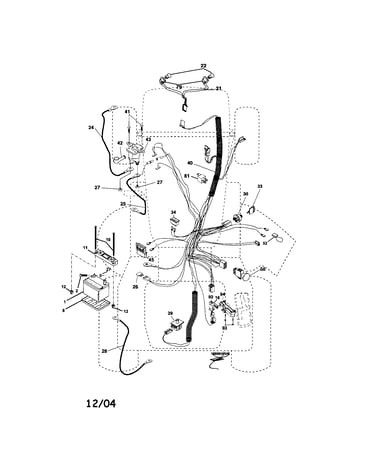

Electrical diagram

Solenoid with brass plunger

Part #178861

Replaced by #532146154

?
Manufacturer substitution
This part replaces 178861. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Switch.pto 174652
#50

Electrical diagram

Switch.pto

Part #174652

Replaced by #582107601

?
Manufacturer substitution
This part replaces 174652. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Lawn Tractor Ignition Switch 193350
#30

Electrical diagram

Lawn tractor ignition switch

Part #193350

Replaced by #532193350

?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
BEST SELLER
$25.34 |
19% OFF Phone Price : $31.34
In Stock
Lawn Tractor Shoulder Bolt 193406
#116

Mower deck diagram

Lawn tractor shoulder bolt

Part #193406

Replaced by #596434404

?
Manufacturer substitution
This part replaces 193406. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Tractor Gauge Wheel 174873
#117

Mower deck diagram

Lawn tractor gauge wheel

Part #174873

Replaced by #589527301

?
Manufacturer substitution
This part replaces 174873. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn Tractor Drag Link (replaces 137155, 532175572, 5321755-72) 175572
#18

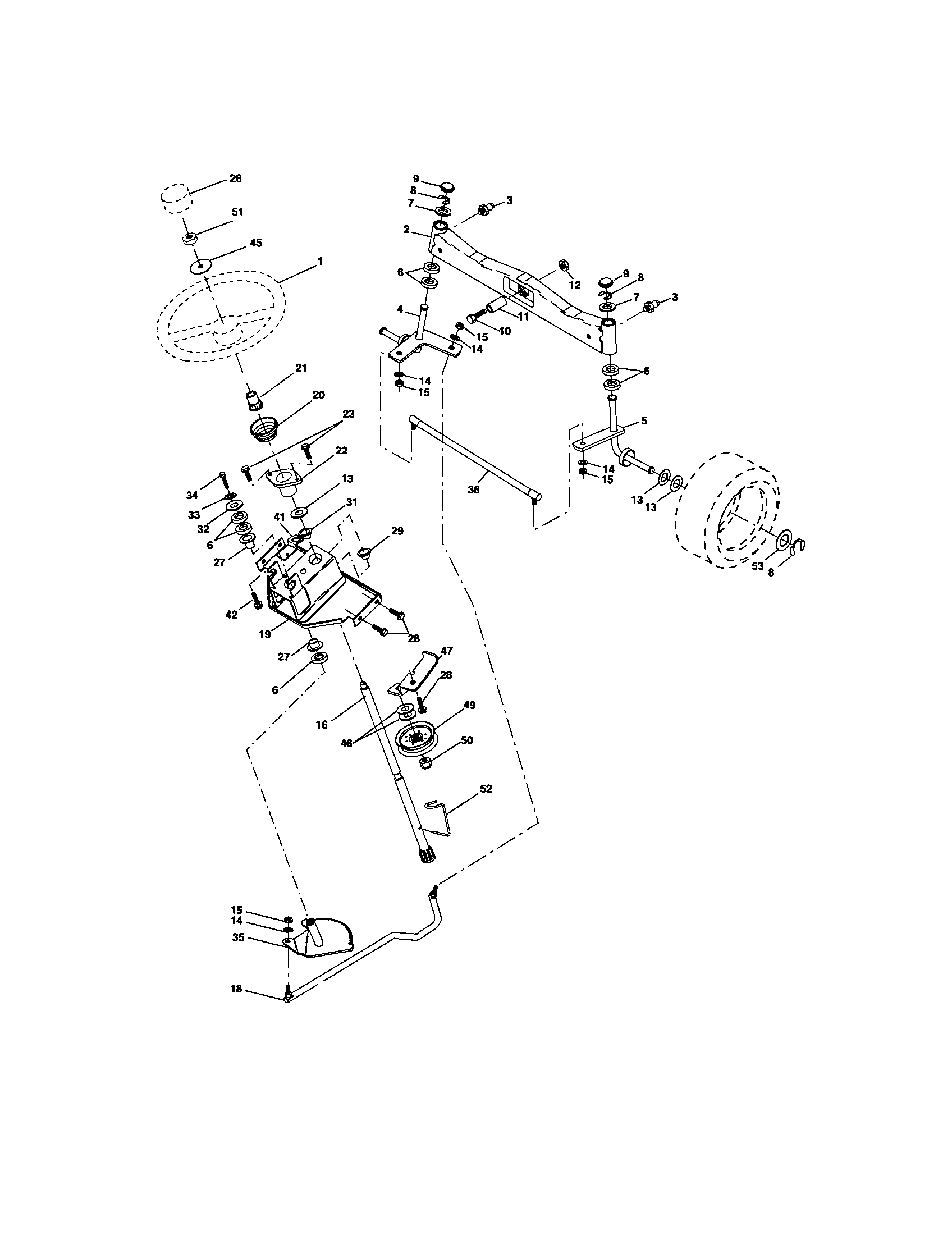

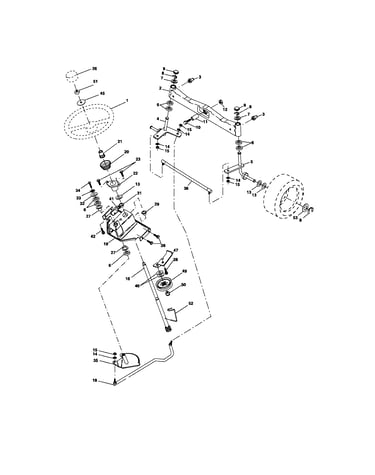

Steering diagram

Lawn tractor drag link (replaces 137155, 532175572, 5321755-72)

Part #175572

BEST SELLER
$41.25 |
13% OFF Phone Price : $47.25
In Stock
Lawn Tractor Primary Blade Drive Belt, 5/8 X 90-3/32-in (replaces 33907, 532174368, 5321743-68) 174368
#48

Mower deck diagram

Lawn tractor primary blade drive belt, 5/8 x 90-3/32-in (replaces 33907, 532174368, 5321743-68)

Part #174368

BEST SELLER

Get free shipping with Automatic Reorder

$53.56 |
10% OFF Phone Price : $59.56
In Stock
Lawn Tractor Bearing 3366R
#27

Steering diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
