GE
Bottom-Mount Refrigerator

Model # PFSS6PKXESS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE PFSS6PKXESS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

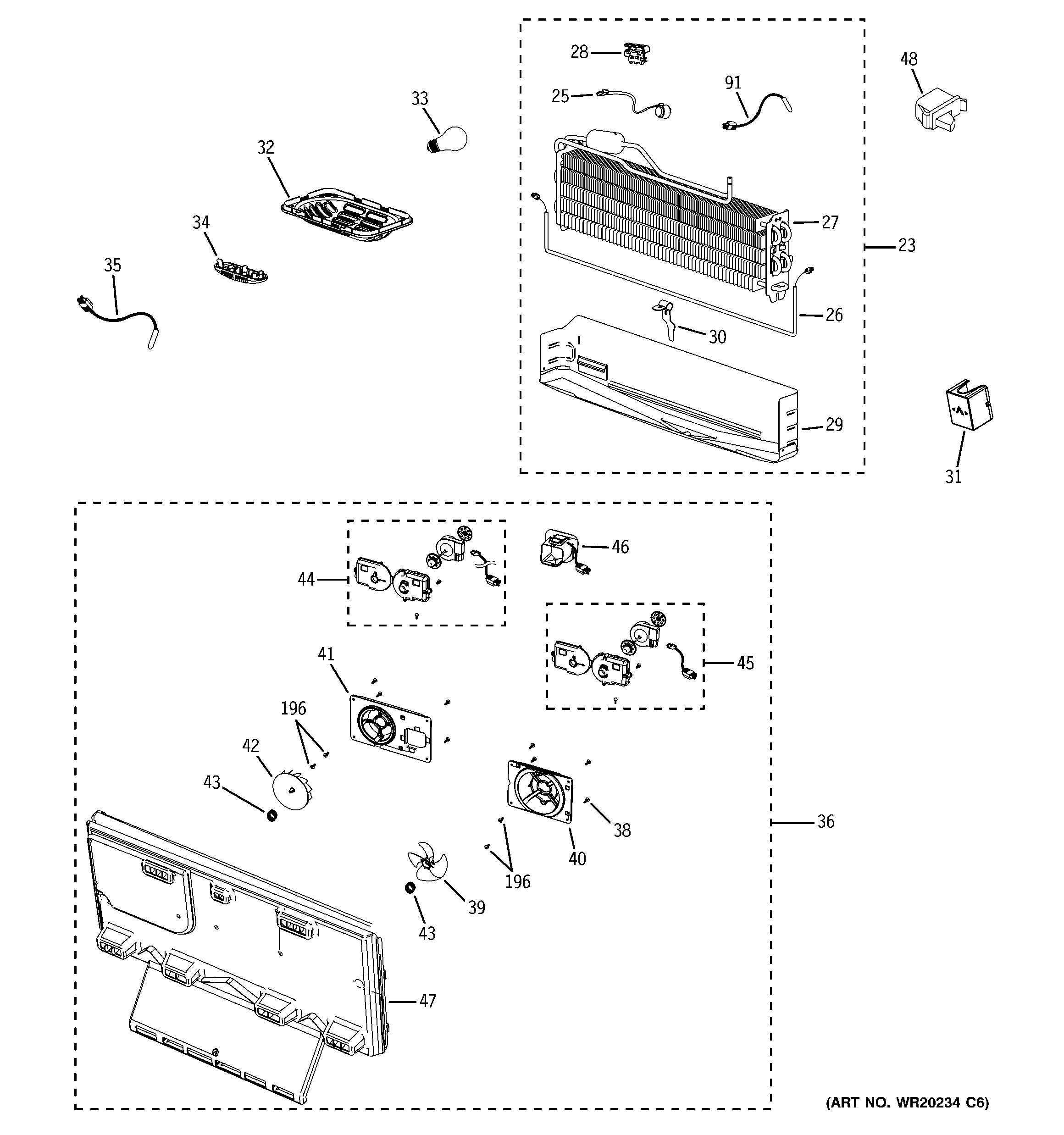

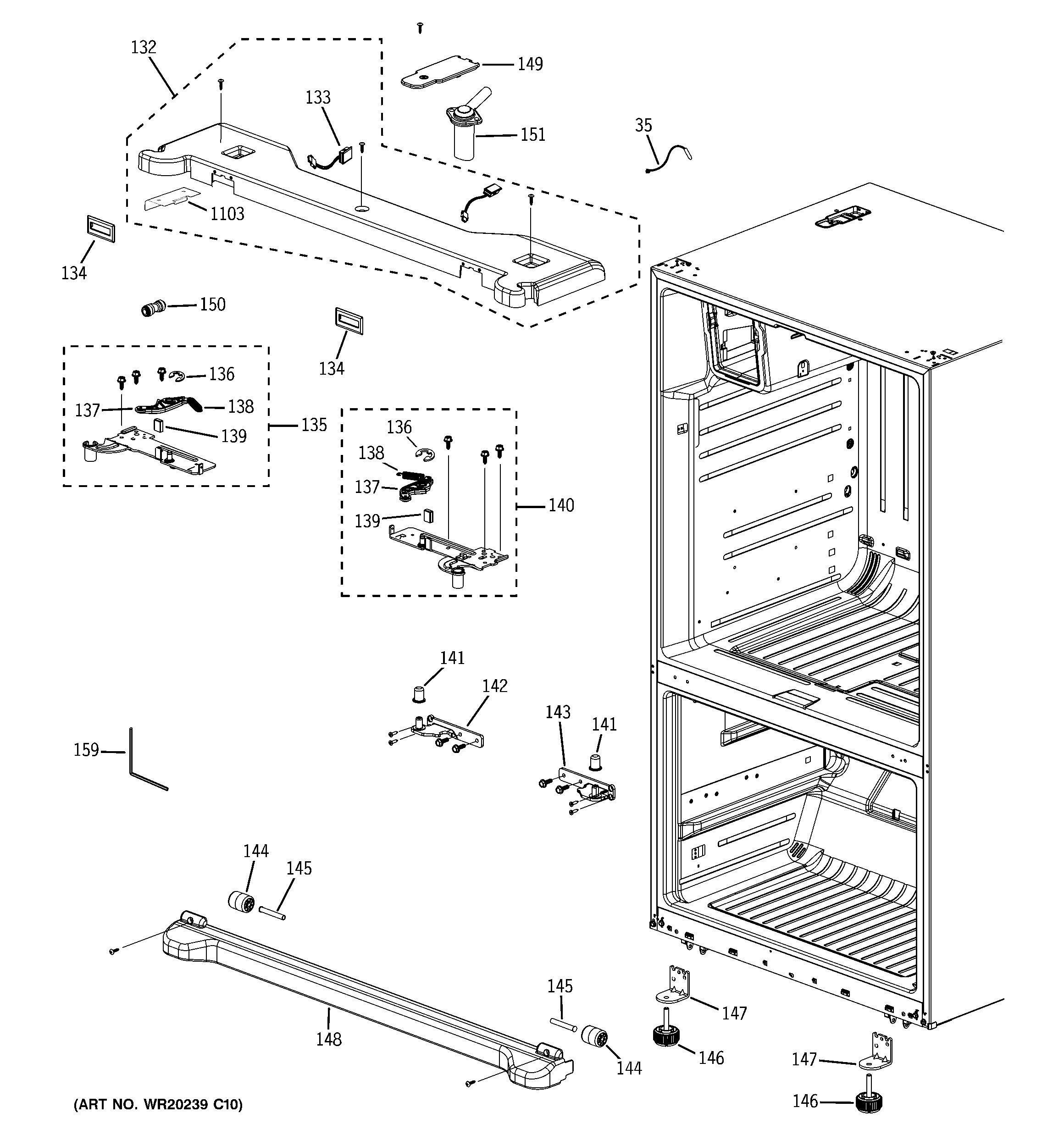

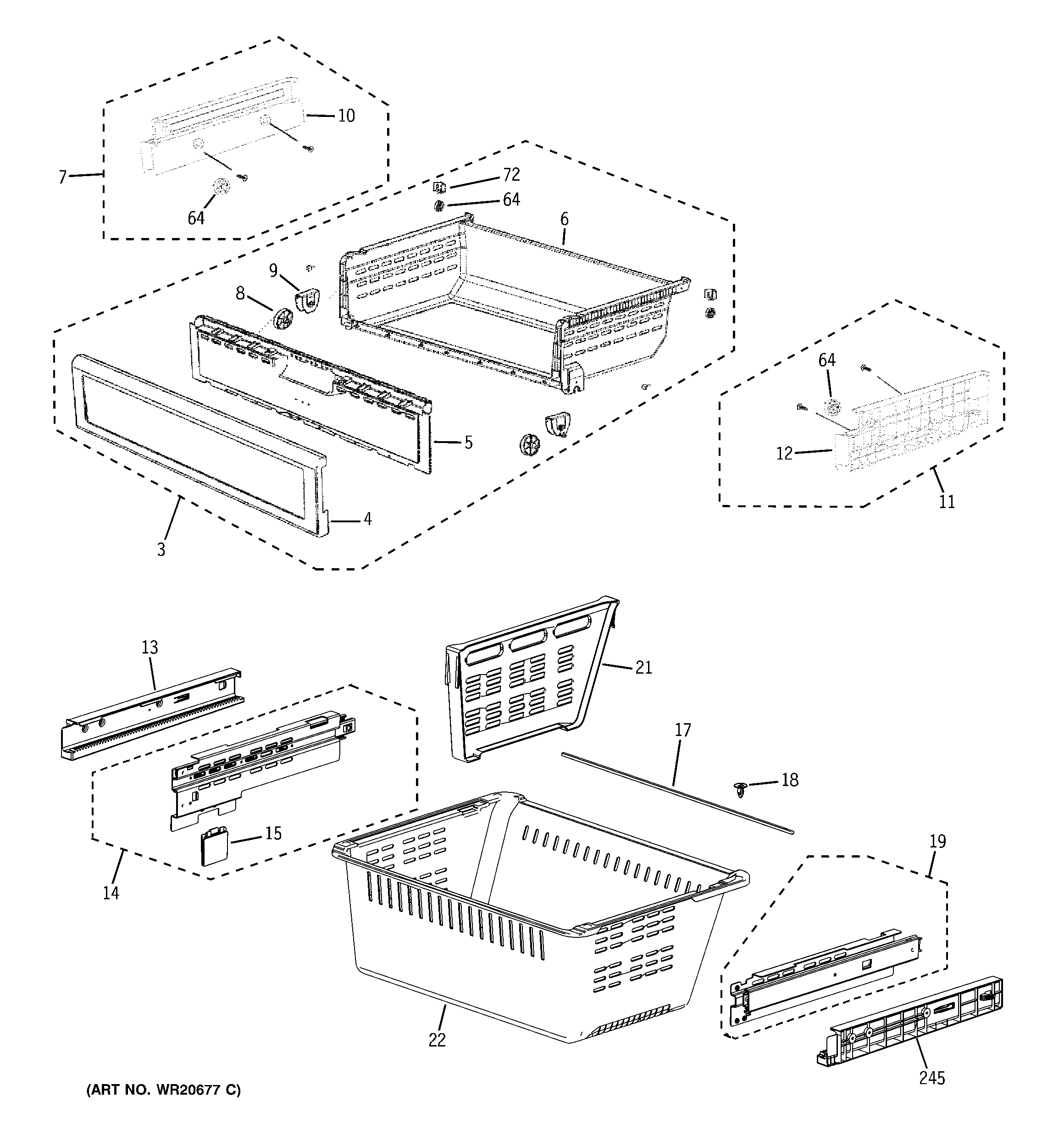

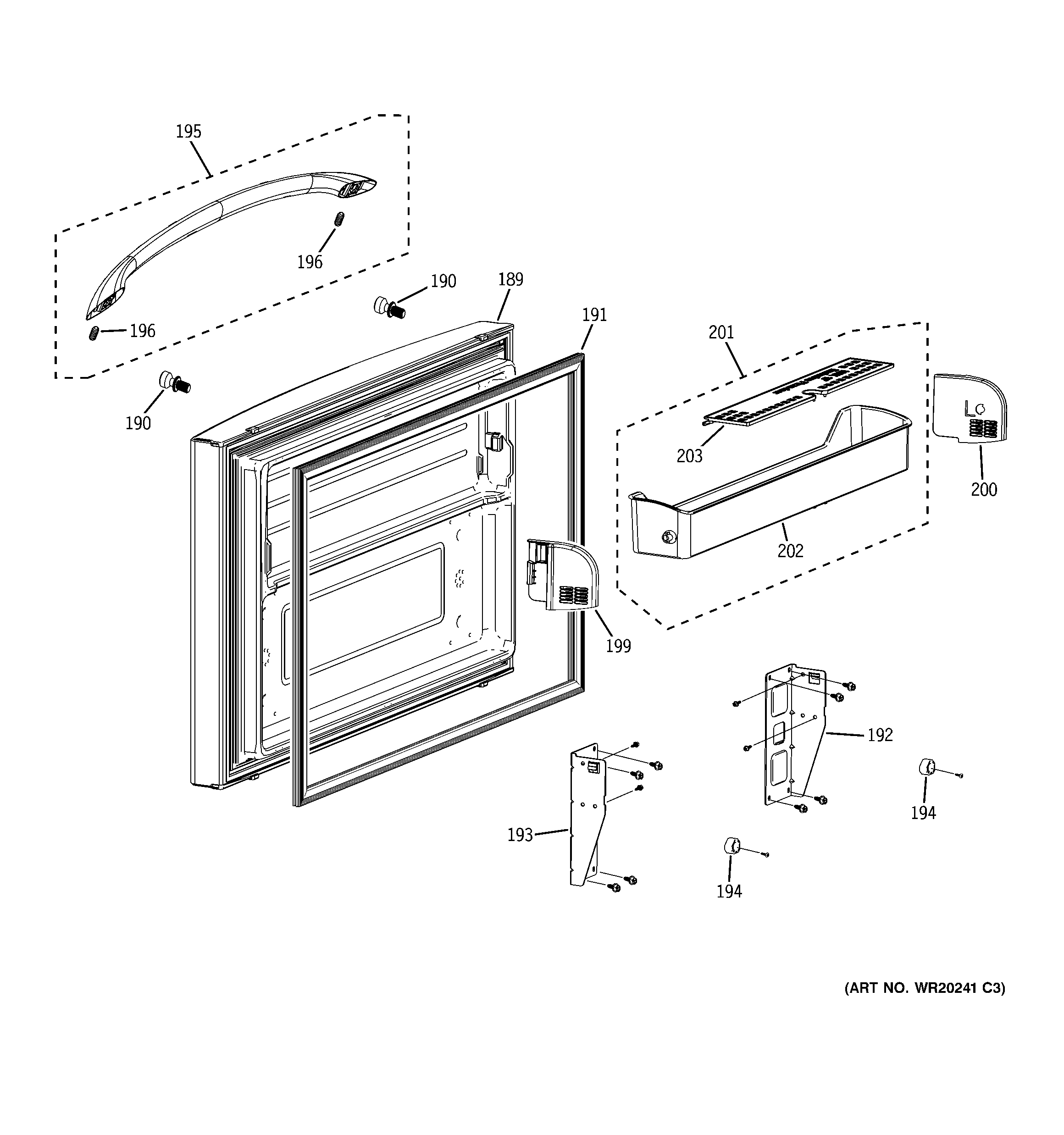

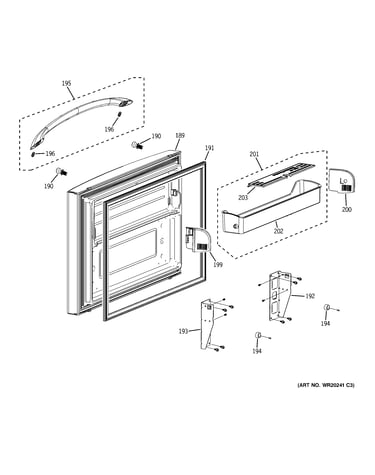

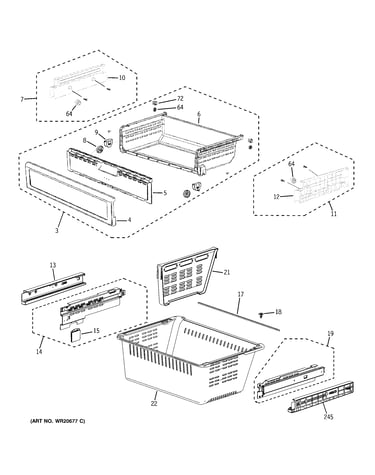

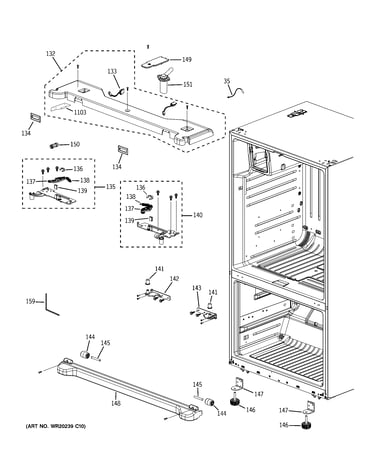

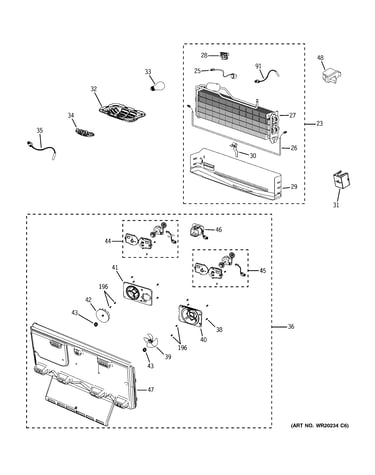

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Refrigerator Temperature Sensor (replaces Wr23x10581) WR23X10582
Refrigerator temperature sensor (replaces wr23x10581)

Part #WR23X10582

BEST SELLER
$78.11 |
7% OFF Phone Price : $84.11
In Stock
Refrigerator Ice Bin (replaces Wr29x10088, Wr29x10095) WR29X10097
#122

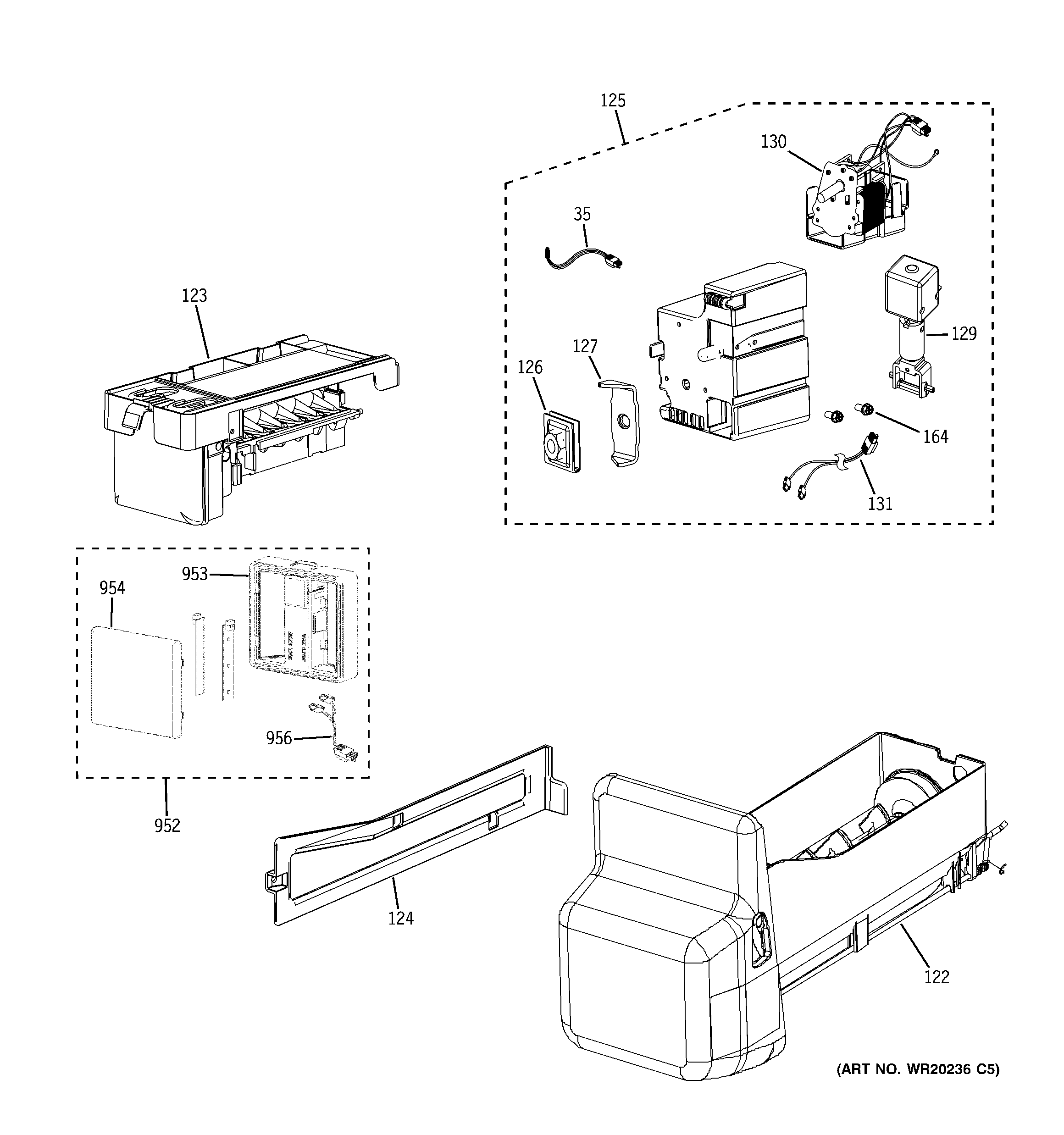

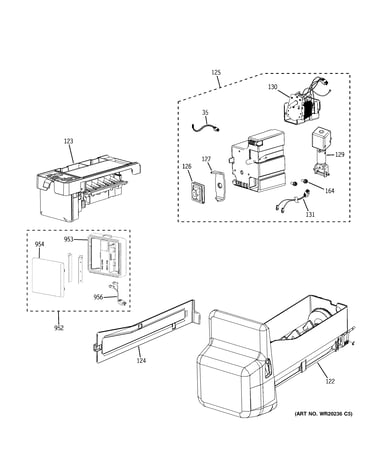

Ice maker & dispenser diagram

Refrigerator ice bin (replaces wr29x10088, wr29x10095)

Part #WR29X10097

$199.20 |
6% OFF Phone Price : $211.20
In Stock
Refrigerator Compressor (replaces Wr87x10215) WR87X10185
#172

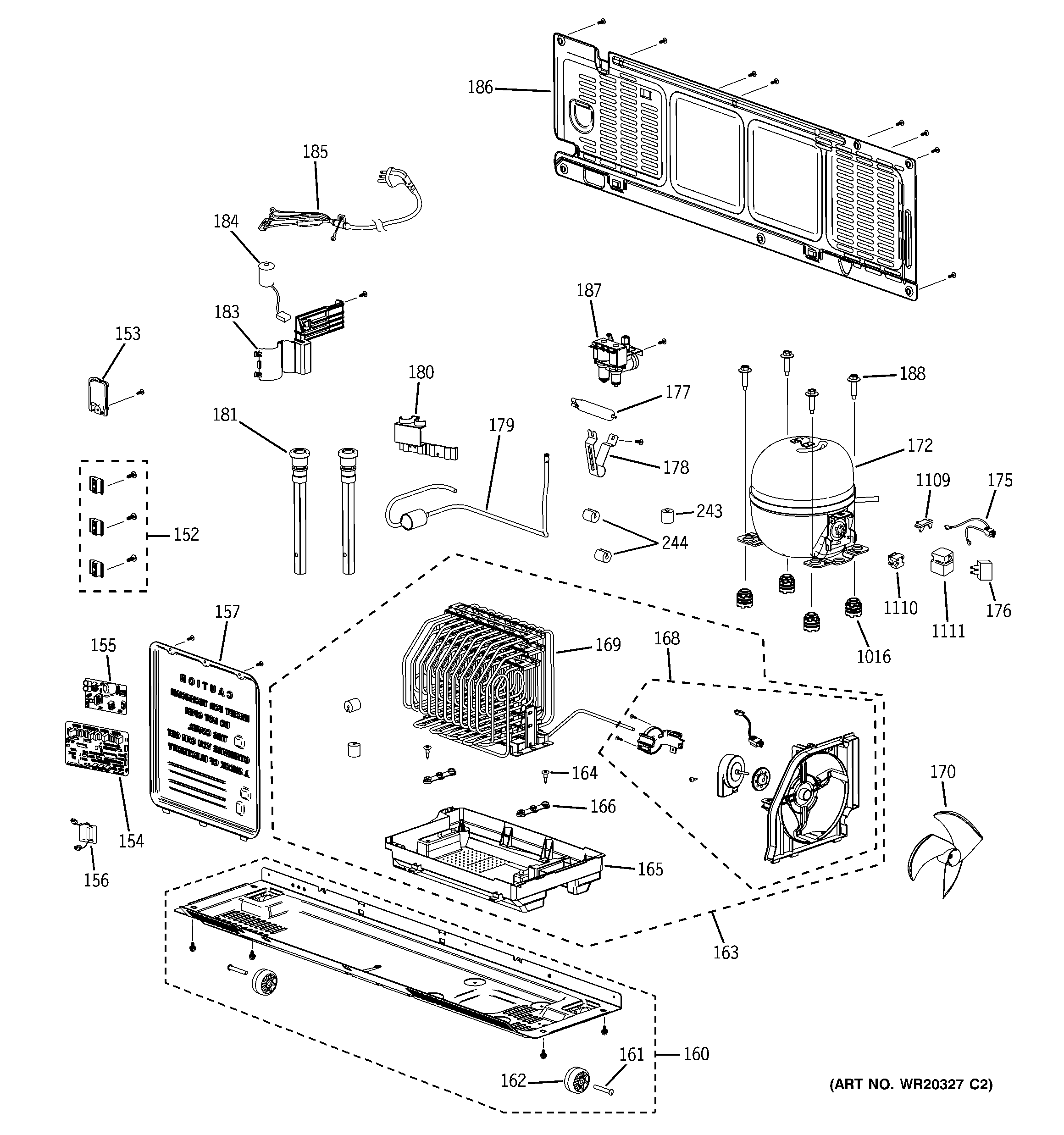

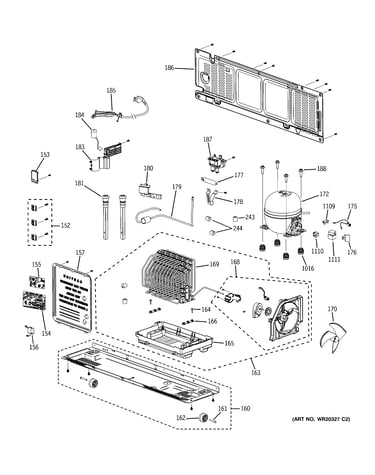

Unit parts diagram

Refrigerator compressor (replaces wr87x10215)

Part #WR87X10185

$291.05 |
$12.00 OFF Phone Price : $303.05
In Stock
Refrigerator Compressor Start Relay WR07X10112
#1109

Unit parts diagram

Refrigerator compressor start relay

Part #WR07X10112

$87.17 |
6% OFF Phone Price : $93.17
In Stock
Asm Motor Re WR60X10252
Asm motor re

Part #WR60X10252

Replaced by #WR60X10254

?
Manufacturer substitution
This part replaces WR60X10252. Substitute parts can look different from the original.
$239.45 |
5% OFF Phone Price : $251.45
In Stock
Refrigerator Door Gasket (replaces Wr24x10241) WR24X10201
#207

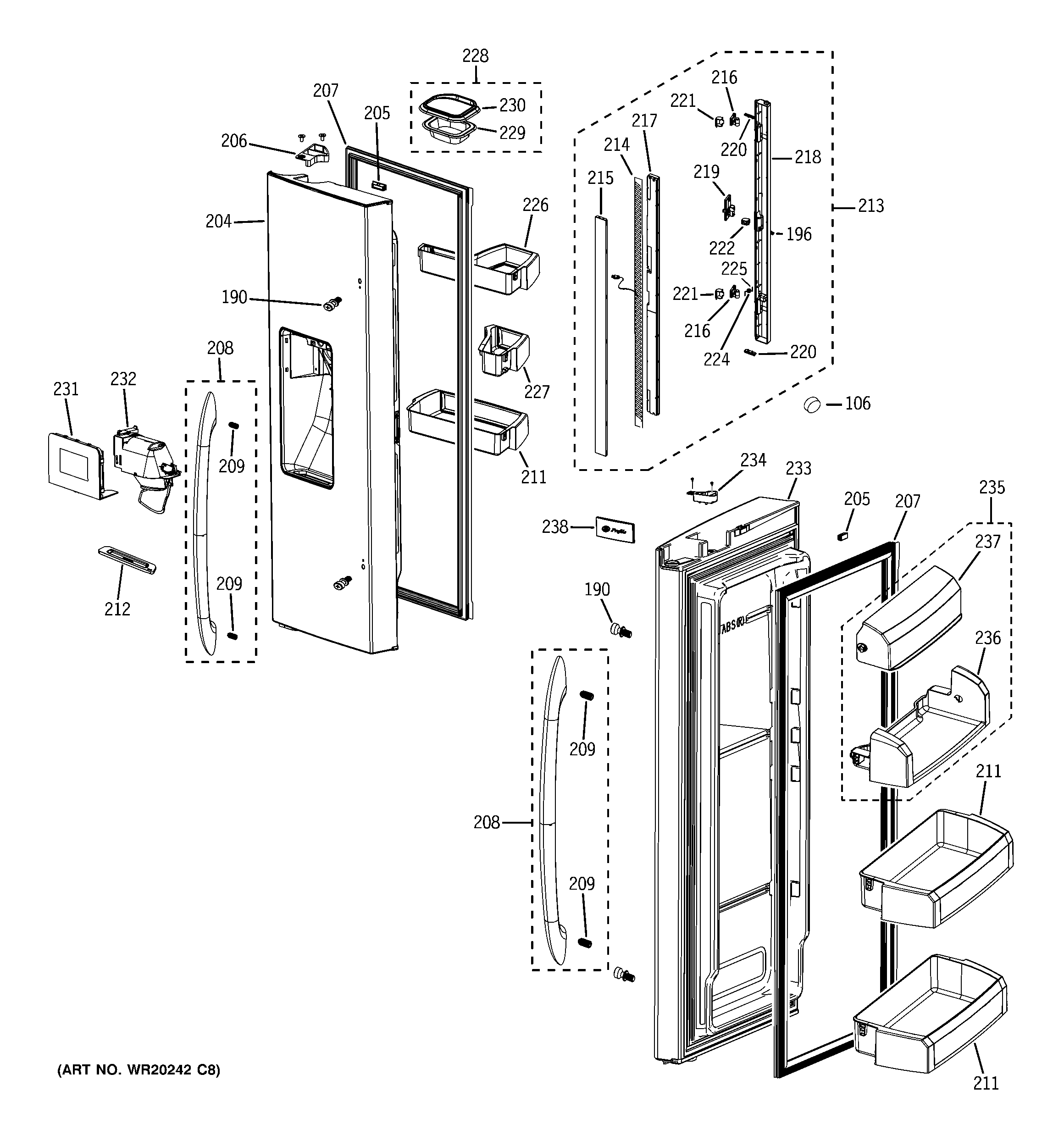

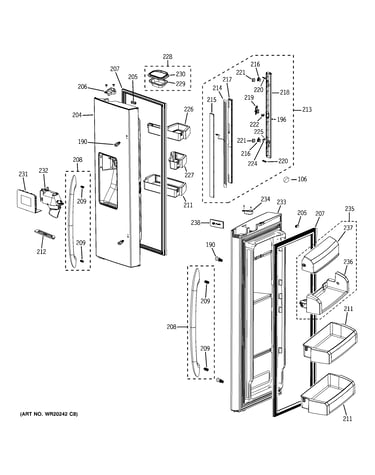

Fresh food doors diagram

Refrigerator door gasket (replaces wr24x10241)

Part #WR24X10201

$135.81 |
8% OFF Phone Price : $147.81
In Stock
Refrigerator Crisper Drawer Cover Assembly (replaces Wr13x10957, Wr17x12383, Wr17x12391, Wr32x10678, Wr32x10802) WR32X10662
Refrigerator crisper drawer cover assembly (replaces wr13x10957, wr17x12383, wr17x12391, wr32x10678, wr32x10802)

Part #WR32X10662

$204.33 |
6% OFF Phone Price : $216.33
In Stock
Refrigerator Glass Cover WR17X12383
#63

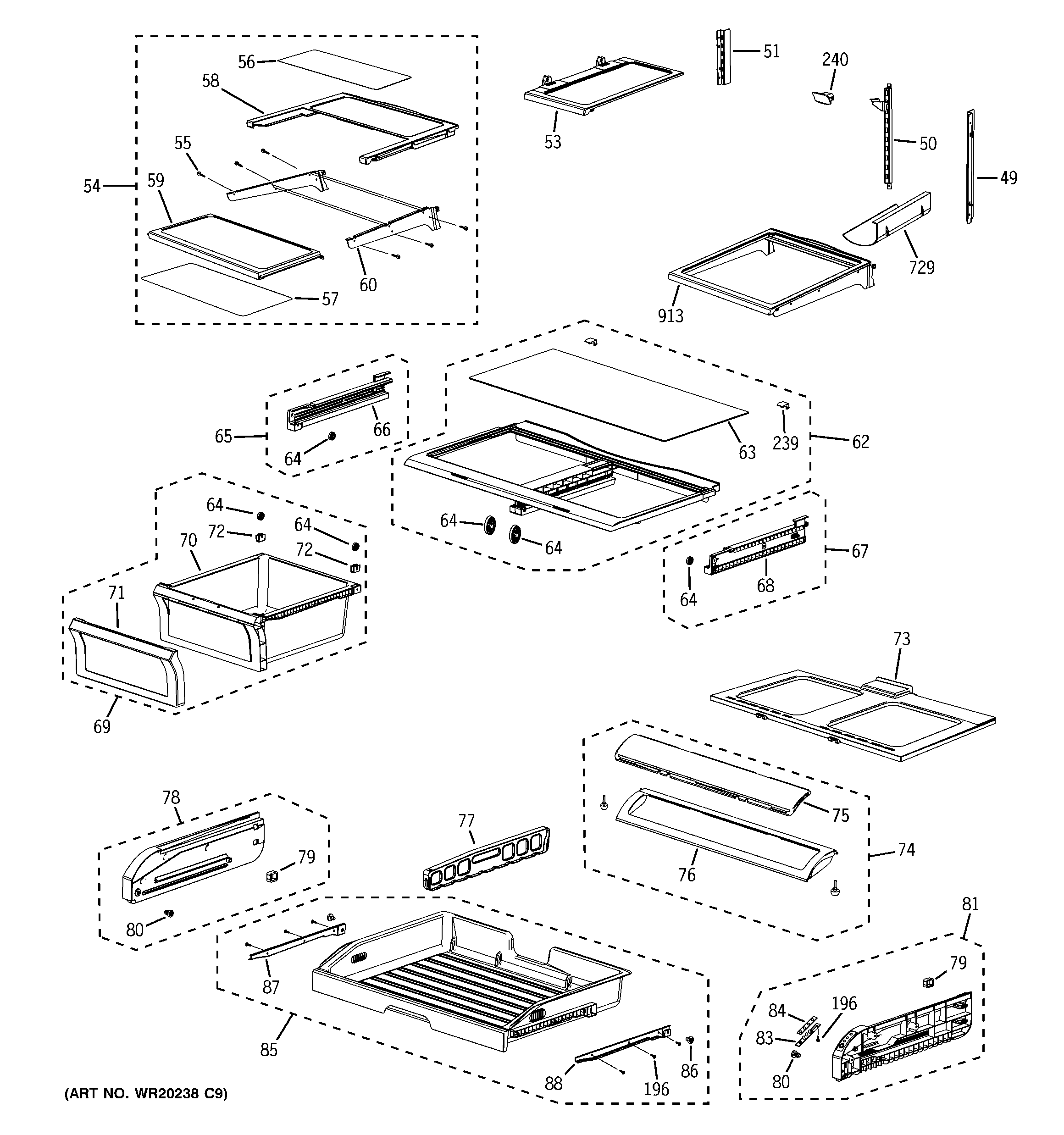

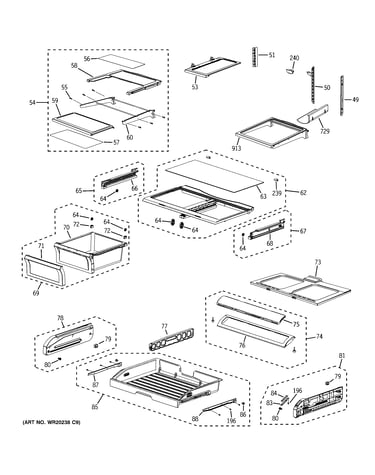

Fresh food shelves diagram

Refrigerator glass cover

Part #WR17X12383

Replaced by #WR32X10662

?
Manufacturer substitution
This part replaces WR17X12383. Substitute parts can look different from the original.
$204.33 |
6% OFF Phone Price : $216.33
In Stock
Refrigerator Electronic Control Board WR55X11055
#154

Unit parts diagram

Refrigerator electronic control board

Part #WR55X11055

$318.46 |
$12.00 OFF Phone Price : $330.46
In Stock
Refrigerator Temperature Sensor WR50X10058
#380

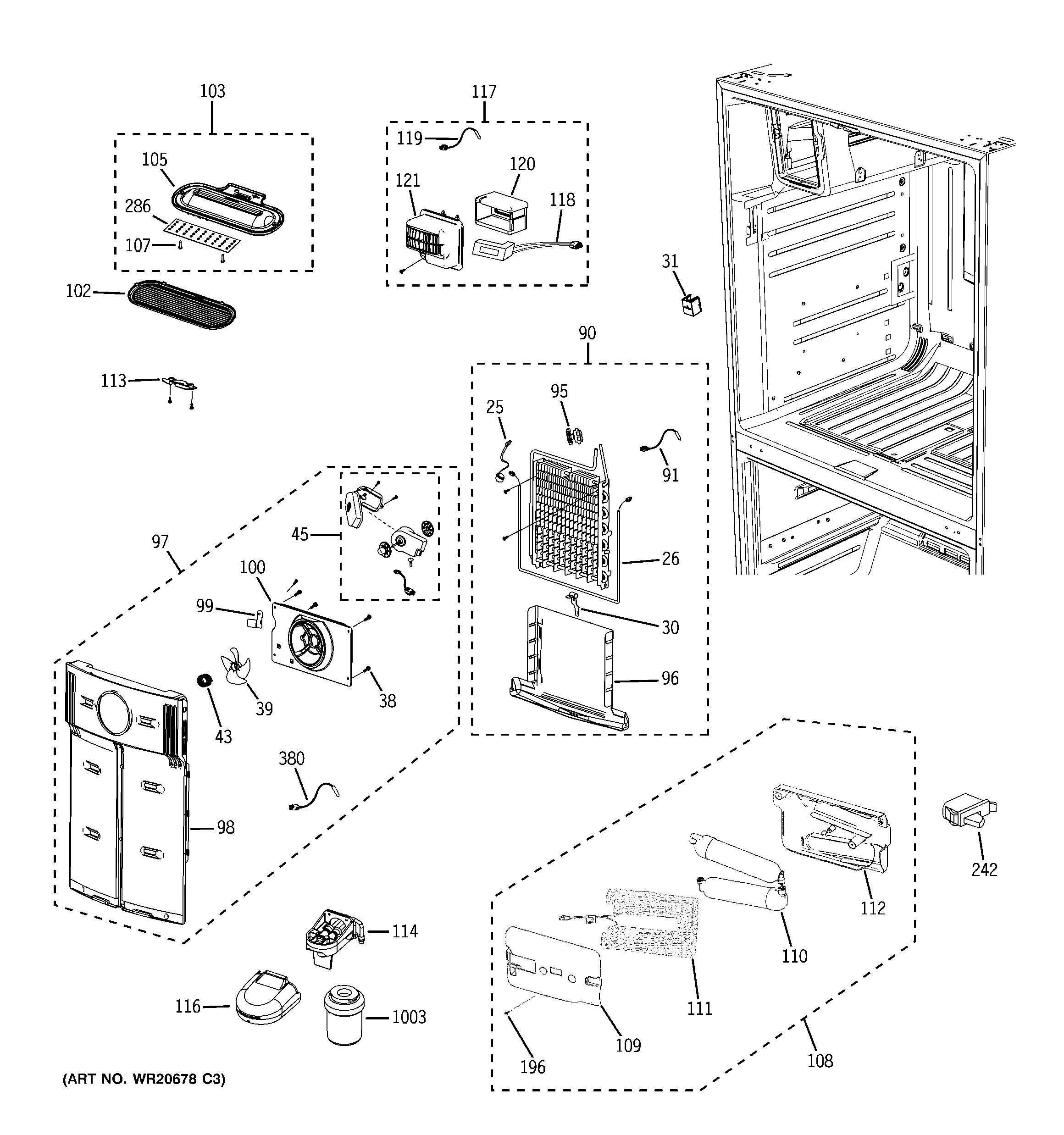

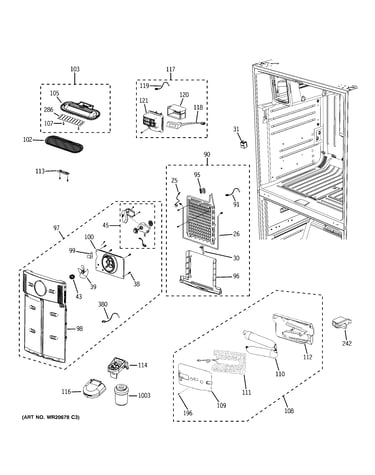

Fresh food section diagram

Refrigerator temperature sensor

Part #WR50X10058

$57.59 |
9% OFF Phone Price : $63.59
In Stock
