Model # 919184192 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919184192 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 82 parts |

#15

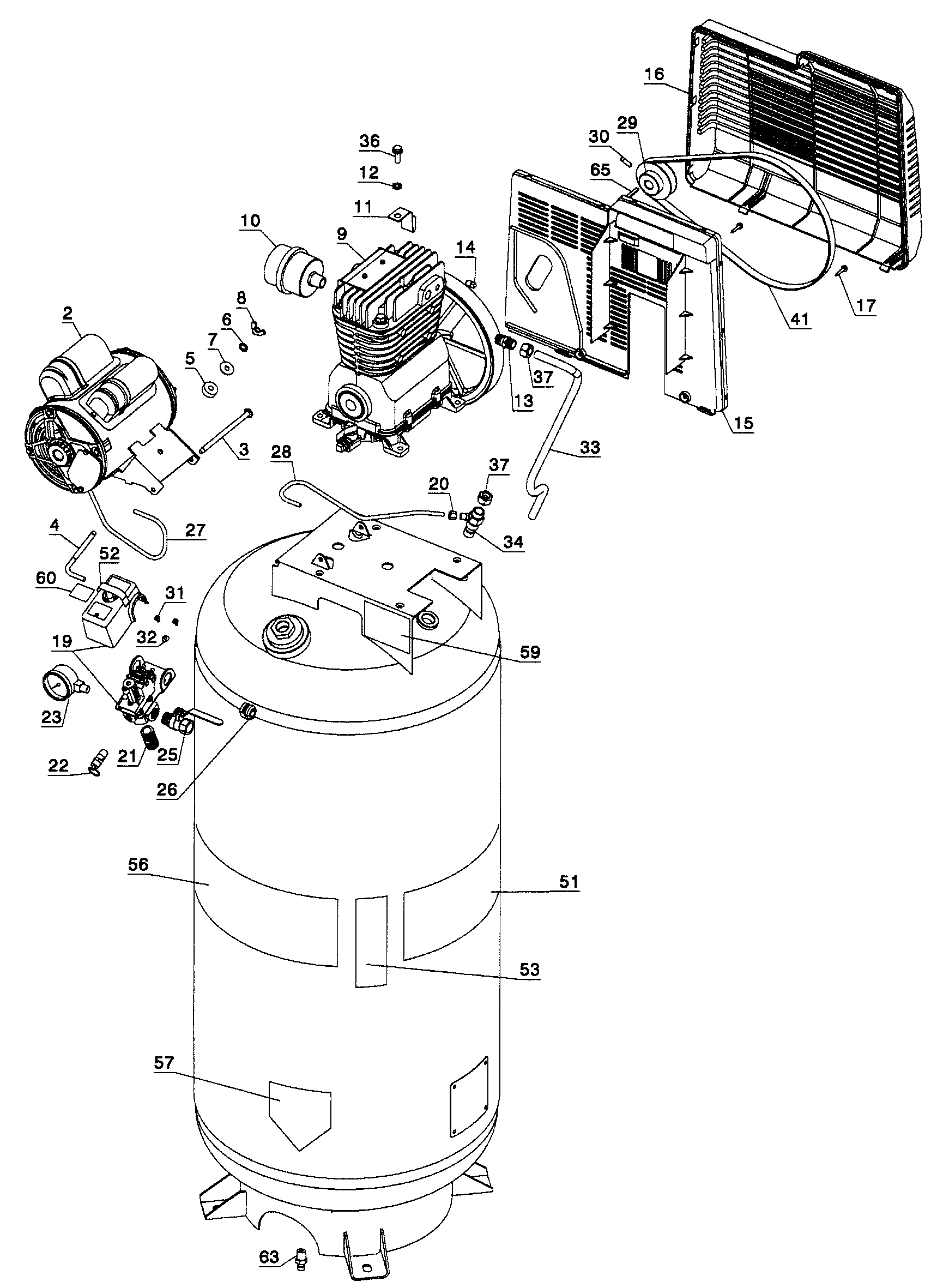

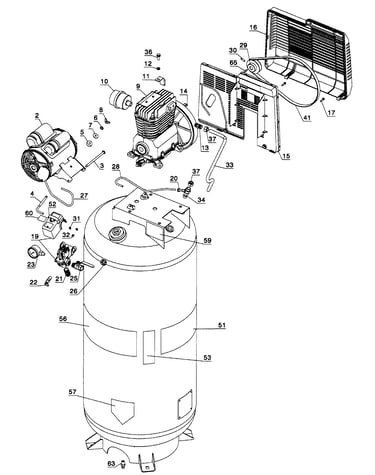

Compressor diagram

Unknown brand name #696 air compressor belt guard

Part #CAC-323

The manufacturer no longer makes this part, and there's no substitute part

#217

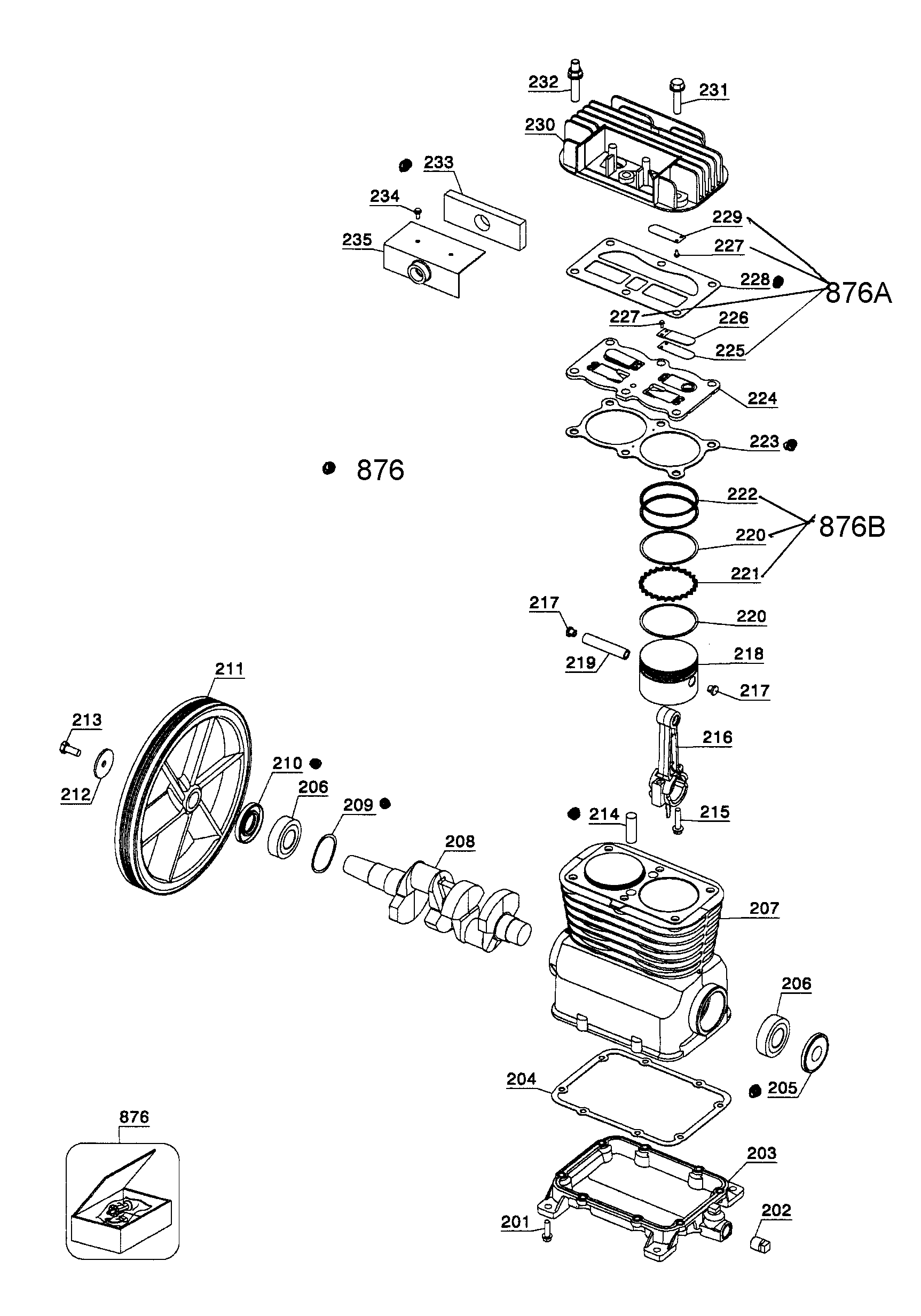

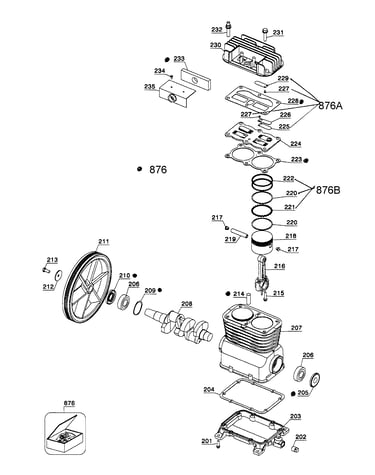

Pump assy diagram

Unknown brand name #696 air compressor piston pin plug

Part #CAC-207

The manufacturer no longer makes this part, and there's no substitute part

#201

Pump assy diagram

Unknown brand name #696 air compressor screw

Part #SSF-925

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Crankcase Oil Plug SSP-505

#205

Pump assy diagram

Air compressor crankcase oil plug

Part #SSP-505

The manufacturer no longer makes this part, and there's no substitute part

#21

Compressor diagram

Nipple

Part #1000003228

The manufacturer no longer makes this part, and there's no substitute part

#56

Compressor diagram

Tower air compressor decal

Part #LA-3105

The manufacturer no longer makes this part, and there's no substitute part

#30

Compressor diagram

Unknown brand name #696 air compressor set screw

Part #SS-391

The manufacturer no longer makes this part, and there's no substitute part

#215

Pump assy diagram

Unknown brand name #696 air compressor screw

Part #SSF-927

The manufacturer no longer makes this part, and there's no substitute part

#214

Pump assy diagram

Unknown brand name #696 air compressor exhaust vent filter

Part #265-6

The manufacturer no longer makes this part, and there's no substitute part

#13

Compressor diagram

Unknown brand name #696 air compressor compression nut thread adapter

Part #SSP-9401

The manufacturer no longer makes this part, and there's no substitute part
